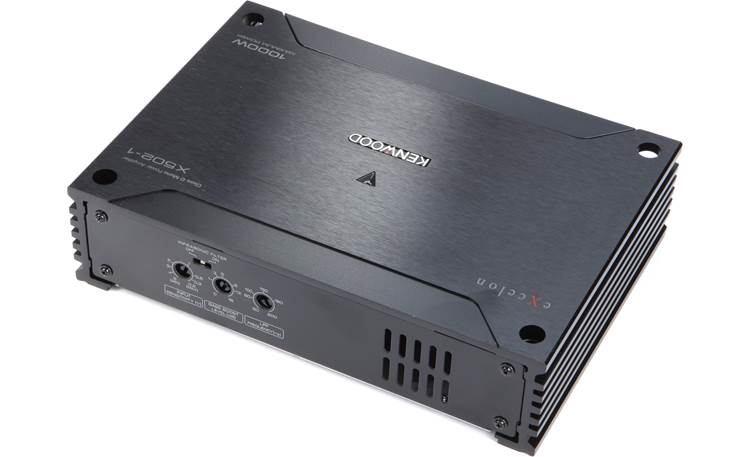

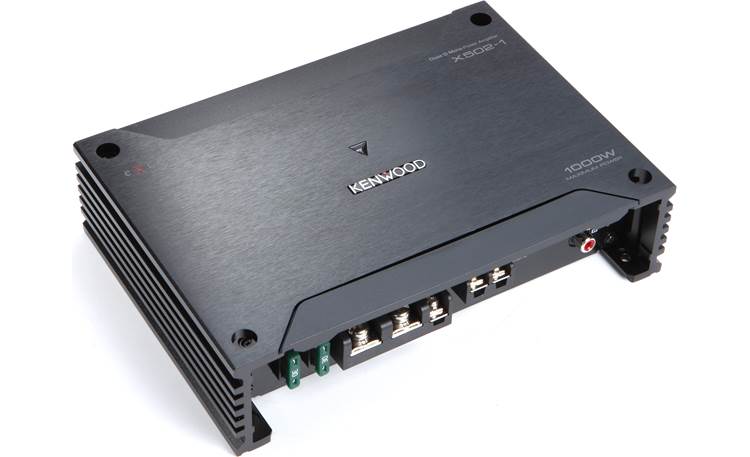

KENWOOD X502-1

KENWOOD

(X502-1) X SERIES MONO SUBWOOFER AMPLIFIER, 500 WATTS RMS AT 2 OHMS

BIG BASS OUT OF THIS TINY AMP

Any basshead will tell you that big power is key to great sound, but sometimes you just don't have much space for a big amp. Kenwood's Excelon X502-1 mono subwoofer amplifier can send up to 500 watts RMS to your subwoofer, and it'll fit almost anywhere in your vehicle. A precise low-pass filter lets you optimize the sound for your sub, while the built-in bass boost lets you dial in just the right amount of thump. The subsonic filter removes ultra-low bass so that your amp and subs can operate more efficiently. An optional wired remote control lets you control your sub's level from the front seat.

CONVENIENT TECHNOLOGY

Class D technology ensures that this compact amp will run cool and perform reliably. Kenwood divided the amp's internal circuitry — analog, digital, and power supply — onto separate, non-overlapping circuit boards for improved overall sound quality. The X502-1 accepts input signals via RCA cables from an aftermarket receiver or by way of your vehicle's speaker wiring, so it'll work with almost any mobile audio system. If you do use the speaker-level inputs, the amp can sense the signal and turn itself on, so you won't need to run a separate remote turn-on lead to the receiver or fuse box.

FEATURES:

• Mono subwoofer amplifier
  • 300 Watts RMS x 1 at 4 ohms (500 watts RMS x 1 at 2 ohms)
• CTA-2006 Compliant
• Class-D amplifier design

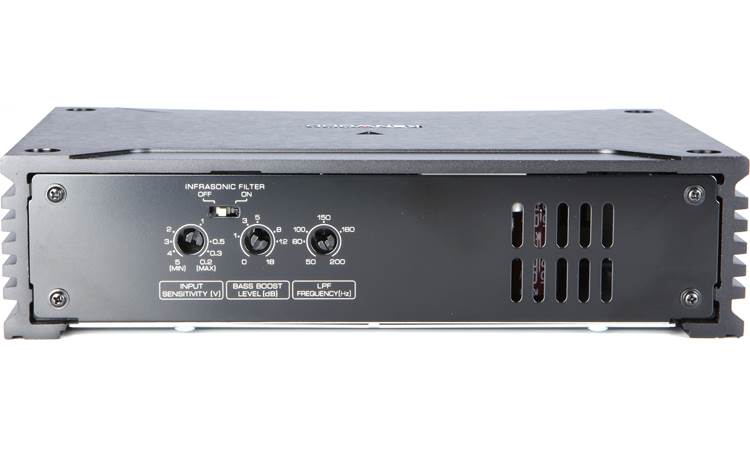

• Variable low-pass filter (50-200 Hz at 24 dB/octave)
• Bass boost (0-18 dB at 40 Hz)
• Subsonic filter (25 Hz at 24 dB per octave)

MORE INFO:

• Optional KCA-RC01A wired remote level control available

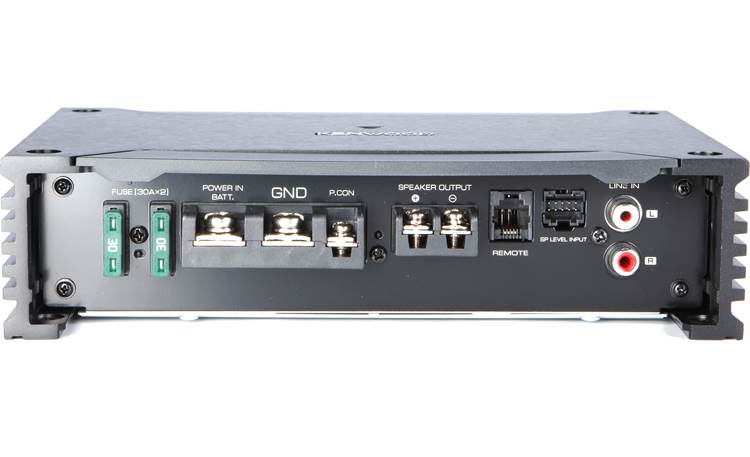

• Preamp and speaker-level inputs
• Wiring and hardware not included with amplifier
  • 8-Gauge power and ground leads recommended
• Fuse rating: 30A x 2
• 8-7/16"W x 2-1/8"H x 5-15/16"D
