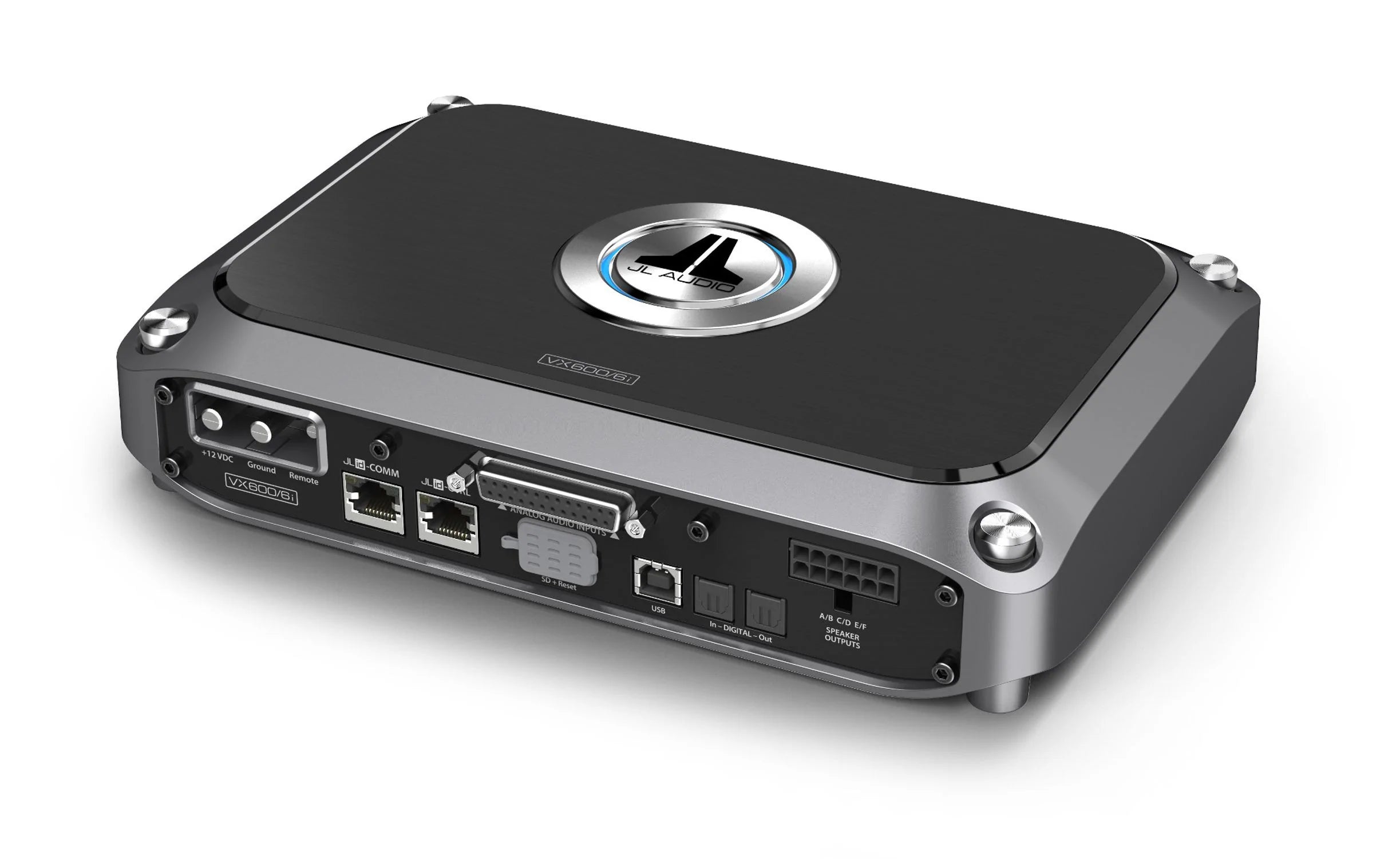

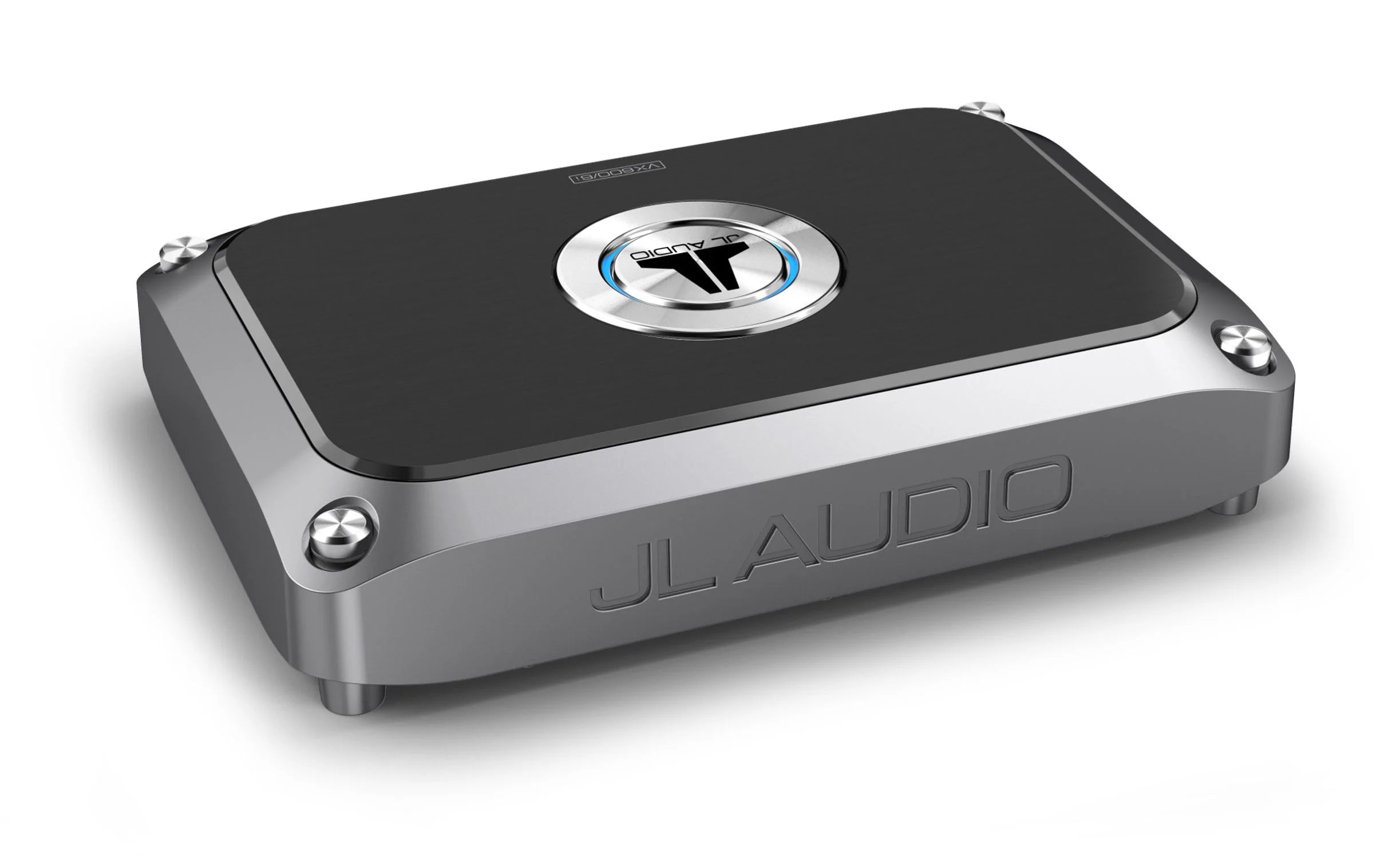

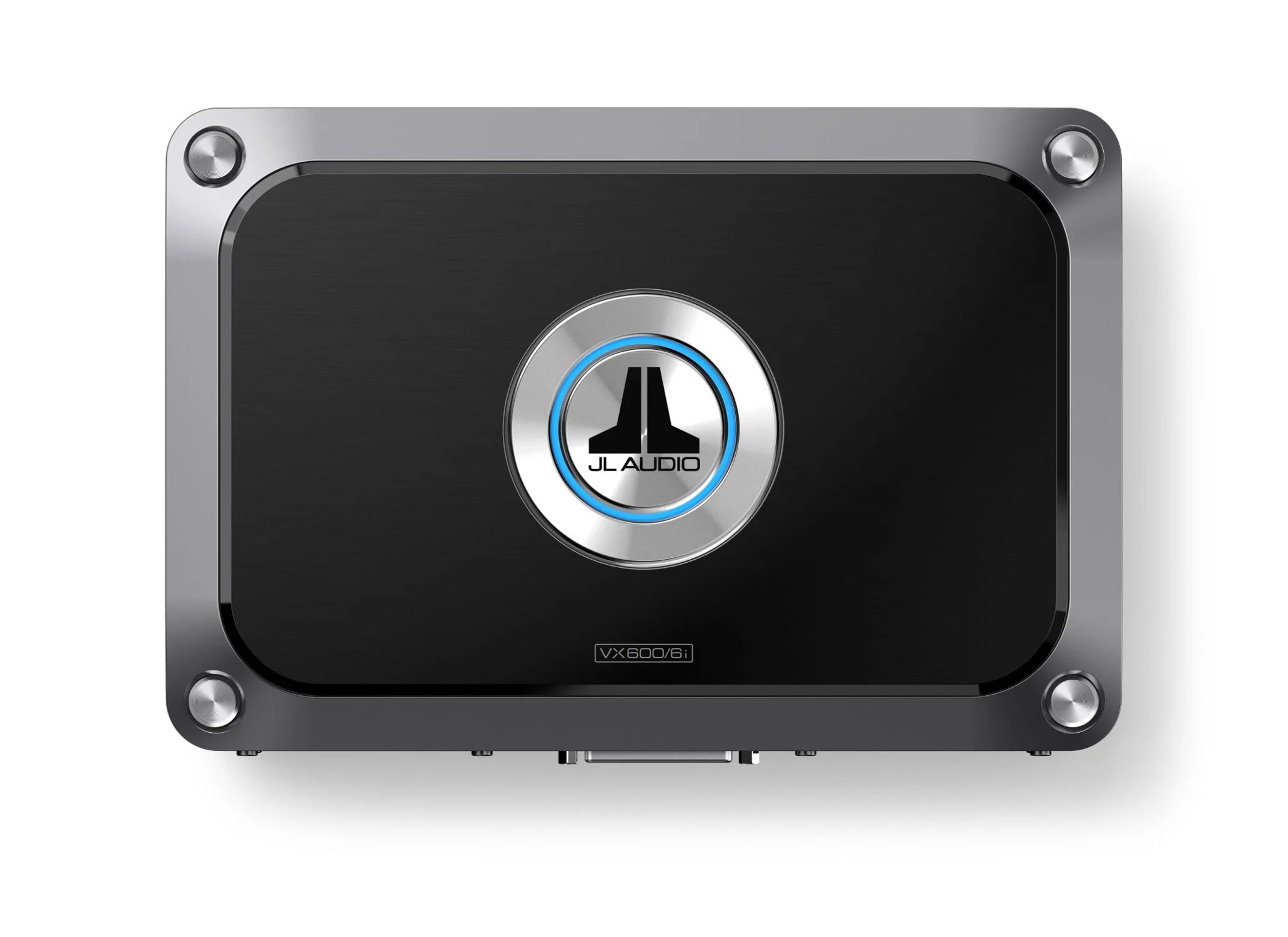

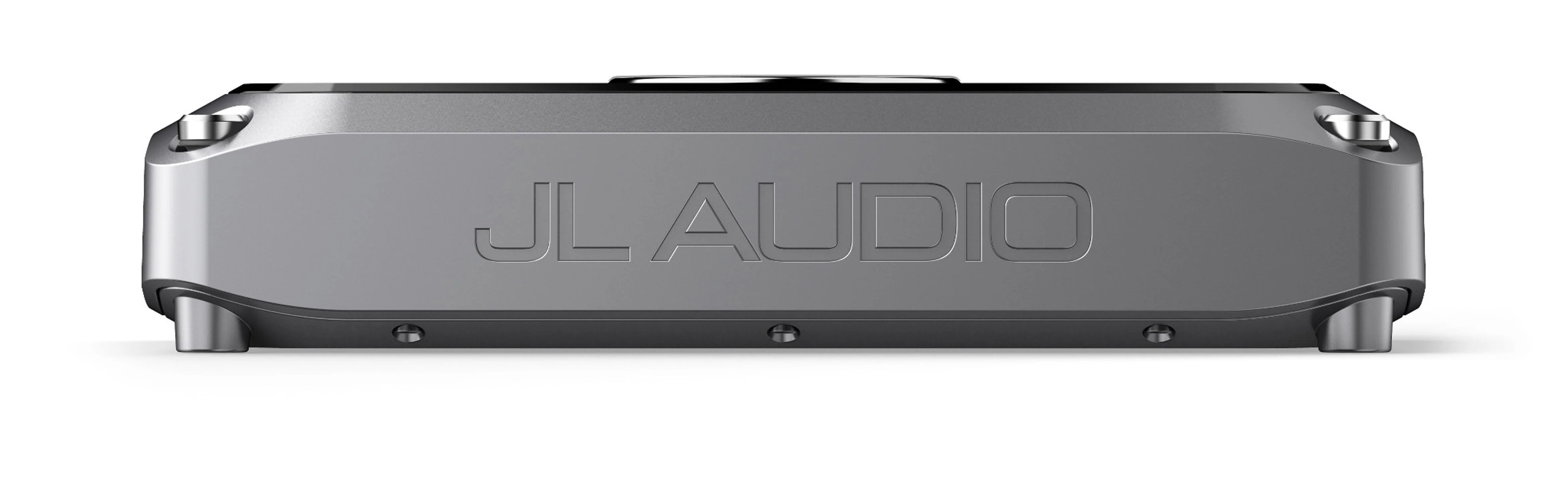

JL AUDIO VX600/6i

JL AUDIO

(VX600/6I) 6-CHANNEL CLASS D SYSTEM AMPLIFIER WITH INTEGRATED DSP, 100 WATTS X 6 @ 2 OHM / 75W X 6 @ 4 OHM - 14.4V

OVERVIEW:

• 6-Channel Class D Full-Range Amplifier with Integrated DSP, 100 W x 6 @ 2 Ω / 75 W x 6 @ 4 Ω - 14.4V
• Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
• With our second-generation NexD2™ technology, the VX600/6i full-range amplifier outputs up to 75 watts per channel into 4 ohms, or 100 watts into 2 ohms. It can also be bridged into 4 ohms, producing up a rock-solid 200 W x 3.

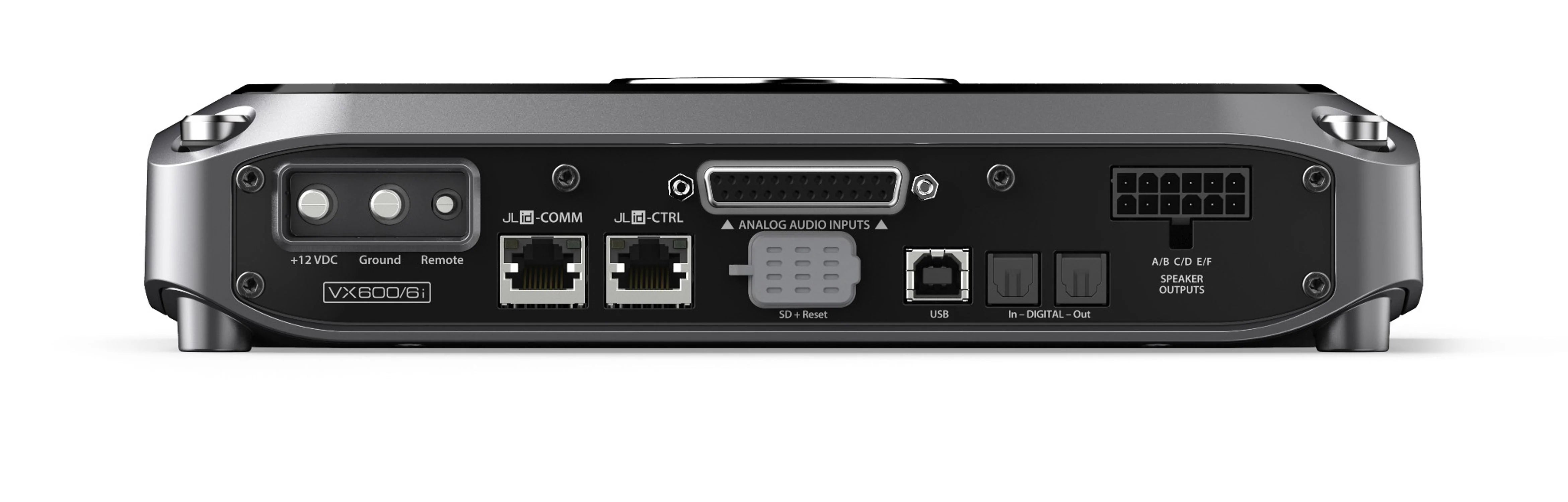

• The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.
• Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.
• Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, 6 ft A/B USB Cable

RATED CONTINUOUS (RMS) POWER @ 14.4 V

• @ 4 Ω : 75 W RMS x 6
• @ 2 Ω : 100 W RMS x 6
• Bridged @ 4Ω : 200 W RMS x 3

RATED CONTINUOUS (RMS) POWER @ 12.5 V

• @ 4 Ω : 60 W RMS x 6
• @ 2 Ω : 90 W RMS x 6
• Bridged @ 4Ω : 180 W RMS x 3

GENERAL SPECIFICATIONS:

• Frequency Response : 12 Hz - 24 kHz (+0, -1dB))
• S/N Ratio, referred to highest rated power (Analog Inputs) : 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Analog Inputs) : 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to highest rated power (Digital Inputs) : 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Digital Inputs) : 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω : >100 / 50 Hz
• Damping Factor @ 2 Ω : >50 / 50 Hz
• THD+N @ Rated Power : <1% @ 2 Ω per Ch.
• Input Voltage Range @ RCA Inputs : 200 mV - 16 V RMS
• Min.Copper Power / Ground Wire Gauge : 4 AWG wire
• Fuse Rating : 40 A (AFS, AGU or MaxiFuse™)

PHYSICAL SPECIFICATIONS:

• Height (H) : 2.12 in / 54 mm
• Width (W) : 9.81 in / 250 mm
• Depth (D) : 6.62 in / 168 mm
• Net Weight : 5.55 lb / 2.5 kg

In-store Purchase only

SKU # 98639
