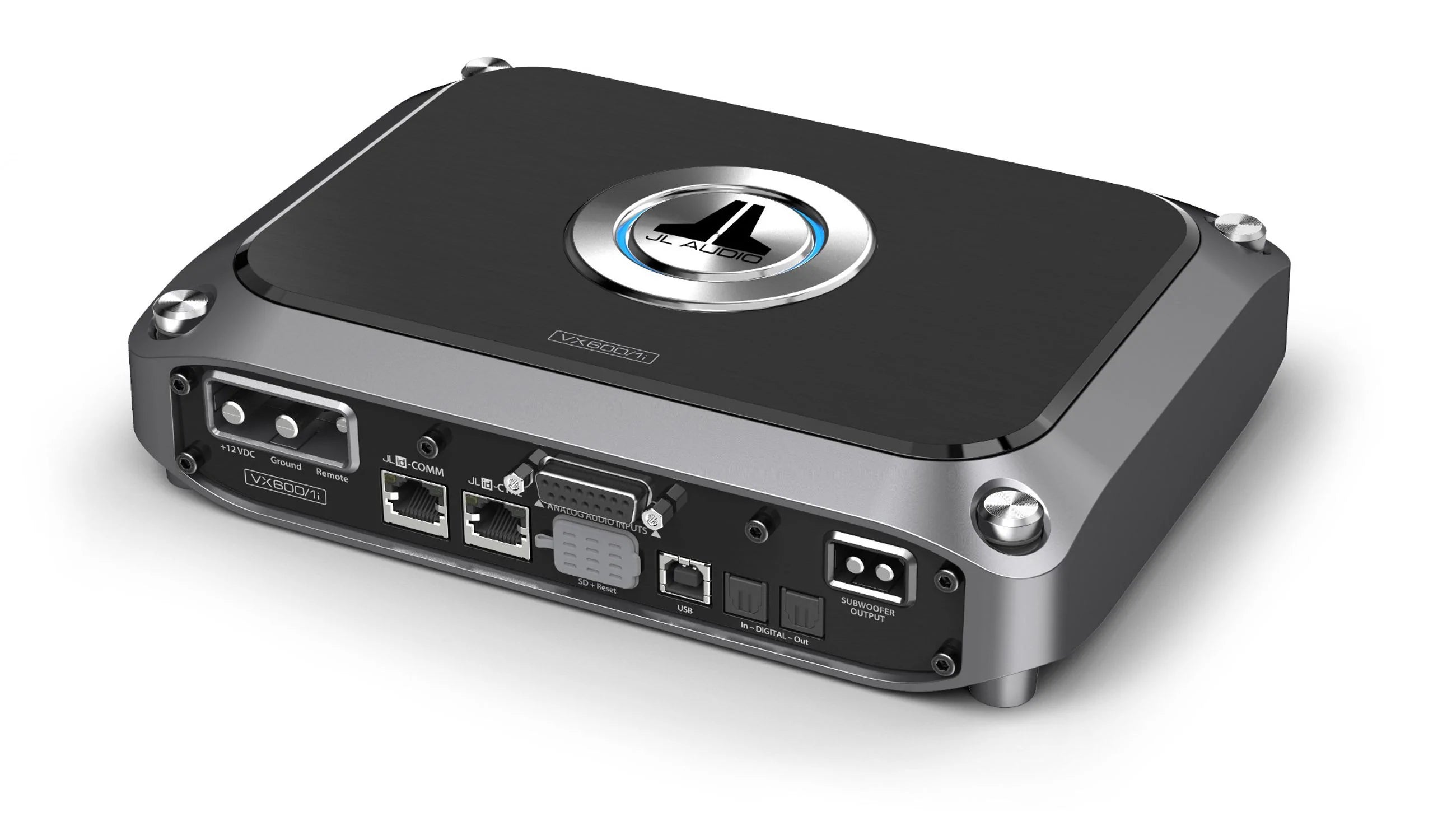

JL AUDIO VX600/1i

JL AUDIO

(VX600/1I) MONOBLOCK CLASS D SUBWOOFER AMPLIFIER WITH INTEGRATED DSP, 600 WATTS @ 2 OHM / 400 WATTS @ 4 OHM - 14.4V

OVERVIEW:

• Monoblock Class D Subwoofer Amplifier with Integrated DSP, 600 W x 1 @ 2 Ω / 400 W x 1 @ 4 Ω - 14.4V
• Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

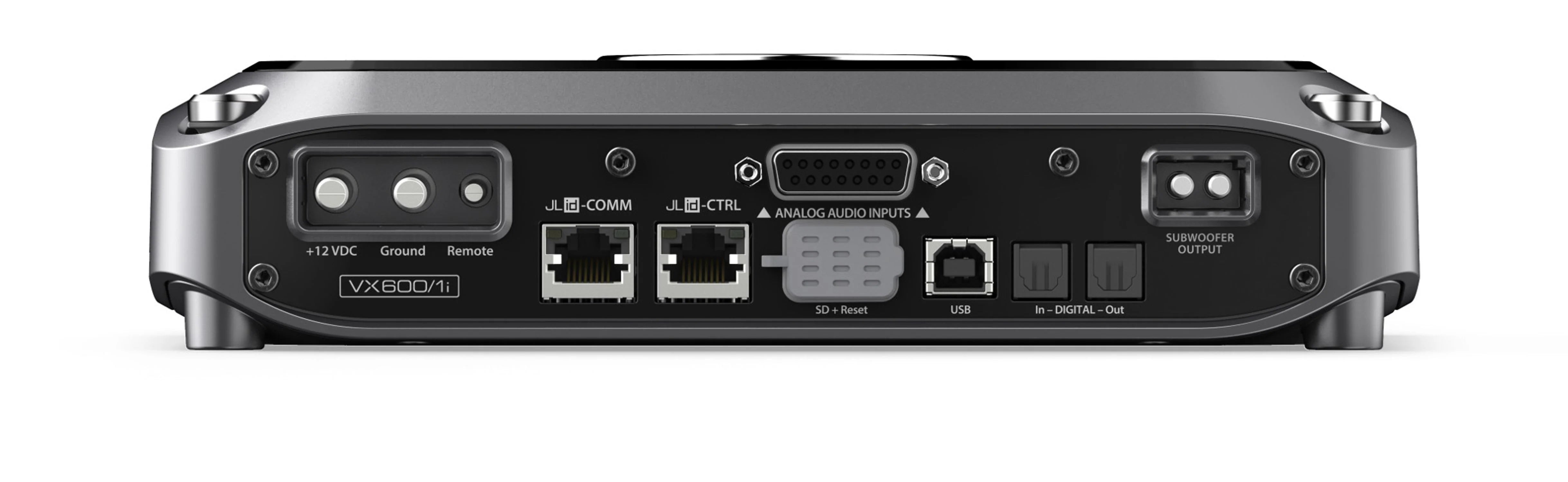

• The VX600/1i monoblock subwoofer amplifier outputs up to 400 watts into 4 ohms, or a staggering 600 watts into 2 ohms. A specialized, low-frequency version of our NexD2™ amplifier technology delivers rock-solid bass performance and fidelity, with outstanding efficiency. Compact dimensions with all connections placed on one side, via mating plugs, greatly simplify installation into tight spaces.
• Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.
• Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Subwoofer Output Connector, 6 ft A/B USB Cable

RATED CONTINUOUS (RMS) POWER @ 14.4 V

• @ 4 Ω : 400 W RMS x 1
• @ 3 Ω : 500 W RMS x 1
• @ 2 Ω : 600 W RMS x 1
• @ 1.5 Ω : N/A

RATED CONTINUOUS (RMS) POWER @ 12.5 V

• @ 4 Ω : 300 W RMS x 1
• @ 3 Ω : 400 W RMS x 1
• @ 2 Ω : 500 W RMS x 1
• @ 1.5 Ω : N/A

SPECIFICATIONS:

• Frequency Response : 12 Hz - 500 Hz (+0, -1dB)
• S/N Ratio, referred to highest rated power (Analog Inputs) : 90 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Analog Inputs) : 64 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to highest rated power (Digital Inputs) : 90 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Digital Inputs) : 64 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω : >125 / 50 Hz
• Damping Factor @ 2 Ω : >125 / 50 Hz
• THD+N @ Rated Power : <1% @ 2 Ω per Ch.
• Input Voltage Range @ RCA Inputs : 200 mV - 16 V RMS
• Min.Copper Power / Ground Wire Gauge : 4 AWG wire
• Fuse Rating : 50 A (AFS, AGU or MaxiFuse™)

PHYSICAL SPECIFICATIONS:

• Height (H) : 2.12 in / 54 mm
• Width (W) : 9.02 in / 229 mm
• Depth (D) : 6.62 in / 168 mm
• Net Weight : 5.0 lb / 2.27 kg

In-store Purchase only

SKU # 98638
