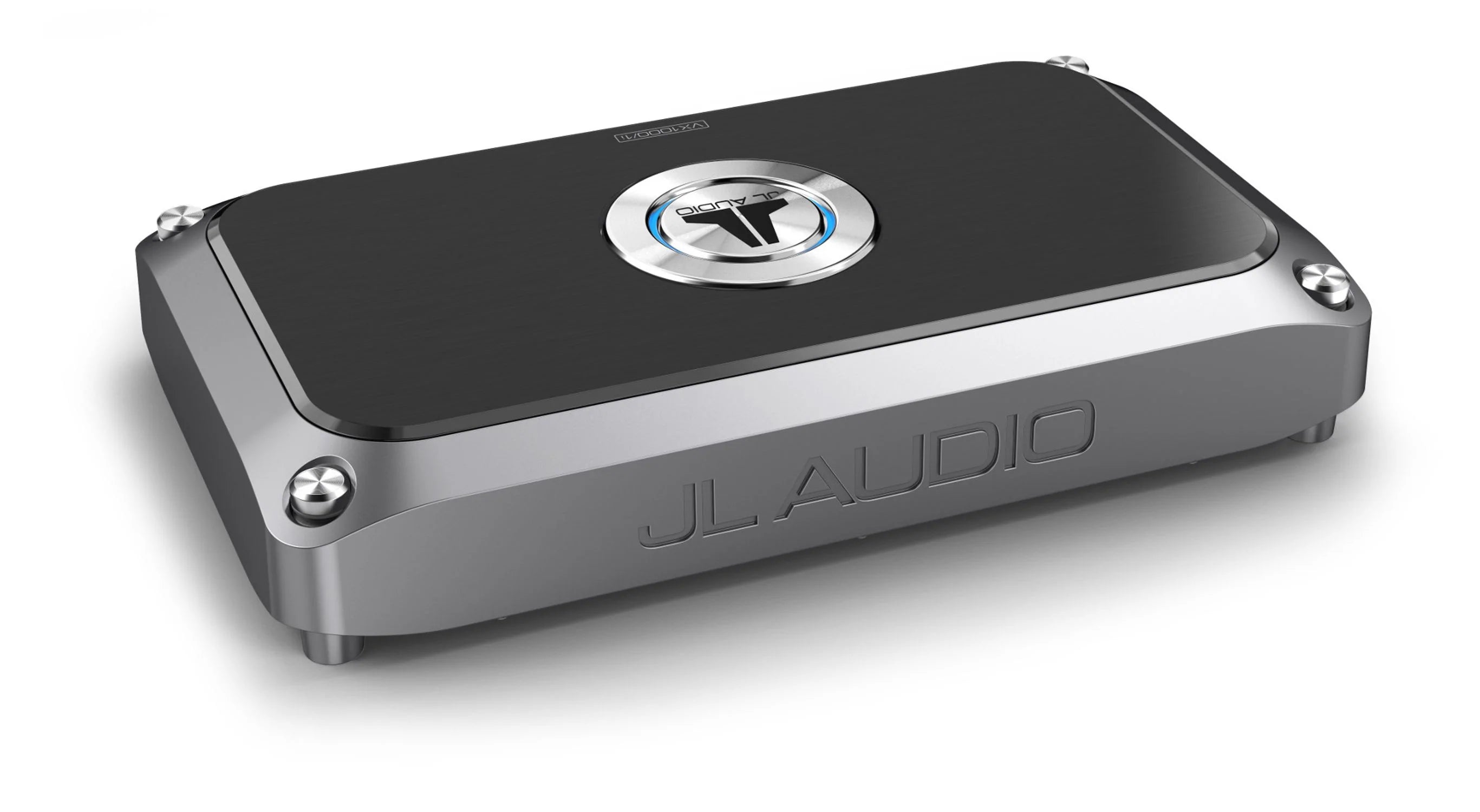

JL AUDIO VX1000/1i

JL AUDIO

(VX1000/1I) MONOBLOCK CLASS D SUBWOOFER AMPLIFIER WITH INTEGRATED DSP, 1000 WATTS @ 2 OHM / 600 WATTS @ 4 OHM - 14.4V

OVERVIEW:

• Monoblock Class D Subwoofer Amplifier with Integrated DSP, 1000 W x 1 @ 2 Ω / 600 W x 1 @ 4 Ω - 14.4V
• Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

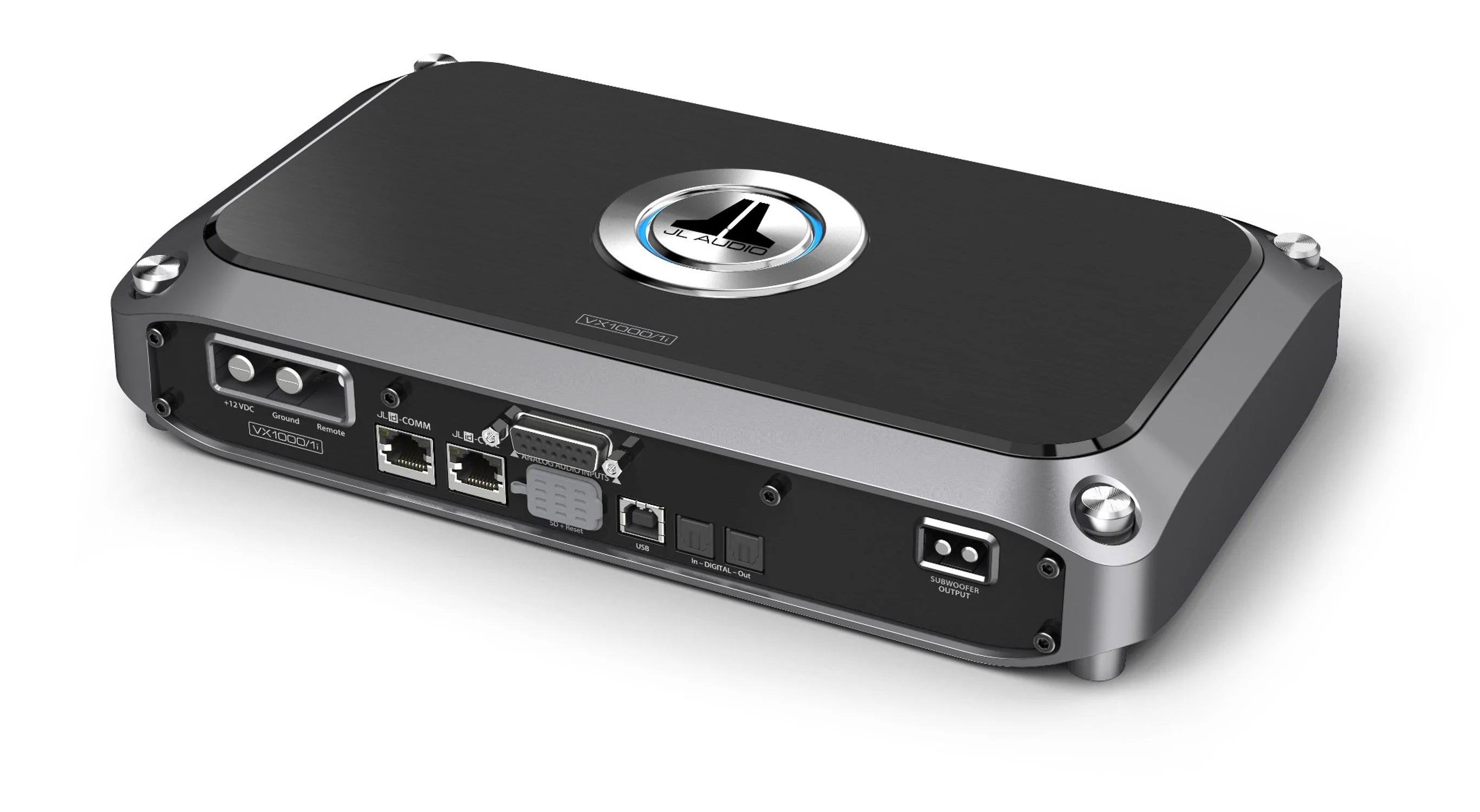

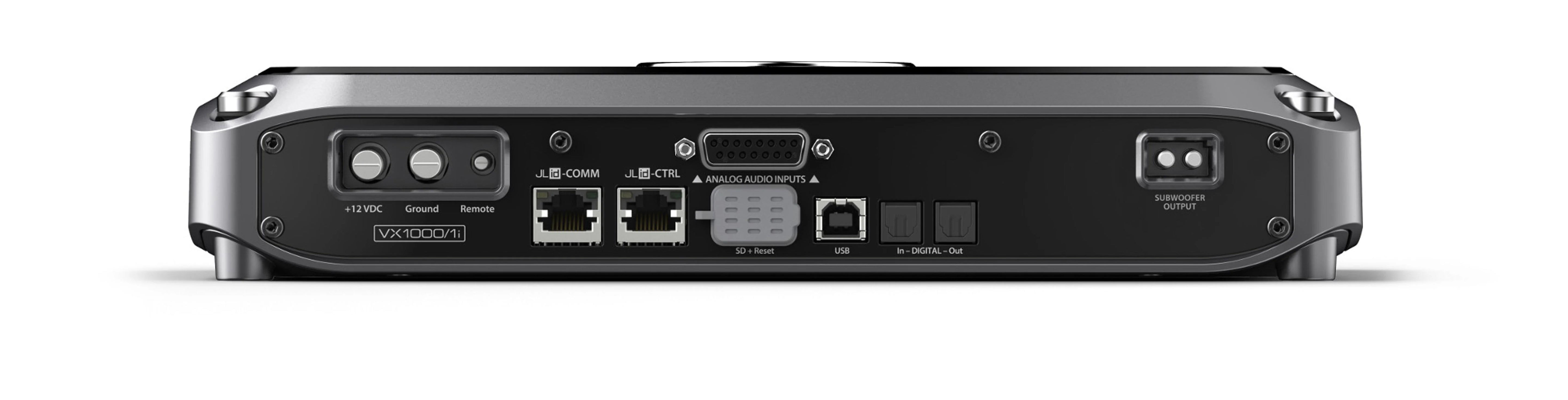

• The VX1000/1i monoblock subwoofer amplifier outputs up to 600 watts into 4 ohms, or a jaw-dropping 1000 watts into 2 ohms. A specialized, low-frequency version of our NexD2™ amplifier technology delivers rock-solid bass performance and fidelity, with outstanding efficiency. Compact dimensions with all connections placed on one side, via mating plugs, greatly simplify installation into tight spaces.
• Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN® Software application installed.
• Amplifier includes: Power Connector (for 2 AWG wire), Analog Input/Pre-Out Harness, Subwoofer Output Connector, 6 ft A/B USB Cable

RATED CONTINUOUS (RMS) POWER @ 14.4 V

• @ 4 Ω : 75 W RMS x 8
• @ 2 Ω : 100 W RMS x 8
• Bridged @ 4Ω : 200 W RMS x 4

RATED CONTINUOUS (RMS) POWER @ 12.5 V

• @ 4 Ω : 60 W RMS x 8
• @ 2 Ω : 90 W RMS x 8
• Bridged @ 4Ω : 180 W RMS x 4

GENERAL SPECIFICATIONS:

• Frequency Response : 12 Hz - 24 kHz (+0, -1dB))
• S/N Ratio, referred to highest rated power (Analog Inputs) : 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Analog Inputs) : 80 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to highest rated power (Digital Inputs) : 101 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Digital Inputs) : 82 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω : >100 / 50 Hz
• Damping Factor @ 2 Ω : >50 / 50 Hz
• THD+N @ Rated Power : <1% @ 2 Ω per Ch.
• Input Voltage Range @ RCA Inputs : 200 mV - 16 V RMS
• Min.Copper Power / Ground Wire Gauge : 4 AWG wire
• Fuse Rating : 80 A (AFS, AGU or MaxiFuse™)

PHYSICAL SPECIFICATIONS:

• Height (H) : 2.12 in / 54 mm
• Width (W) : 11.32 in / 287 mm
• Depth (D) : 6.62 in / 168 mm
• Net Weight : 6.5 lb / 2.95 kg

In-store Purchase only

SKU # 98631
