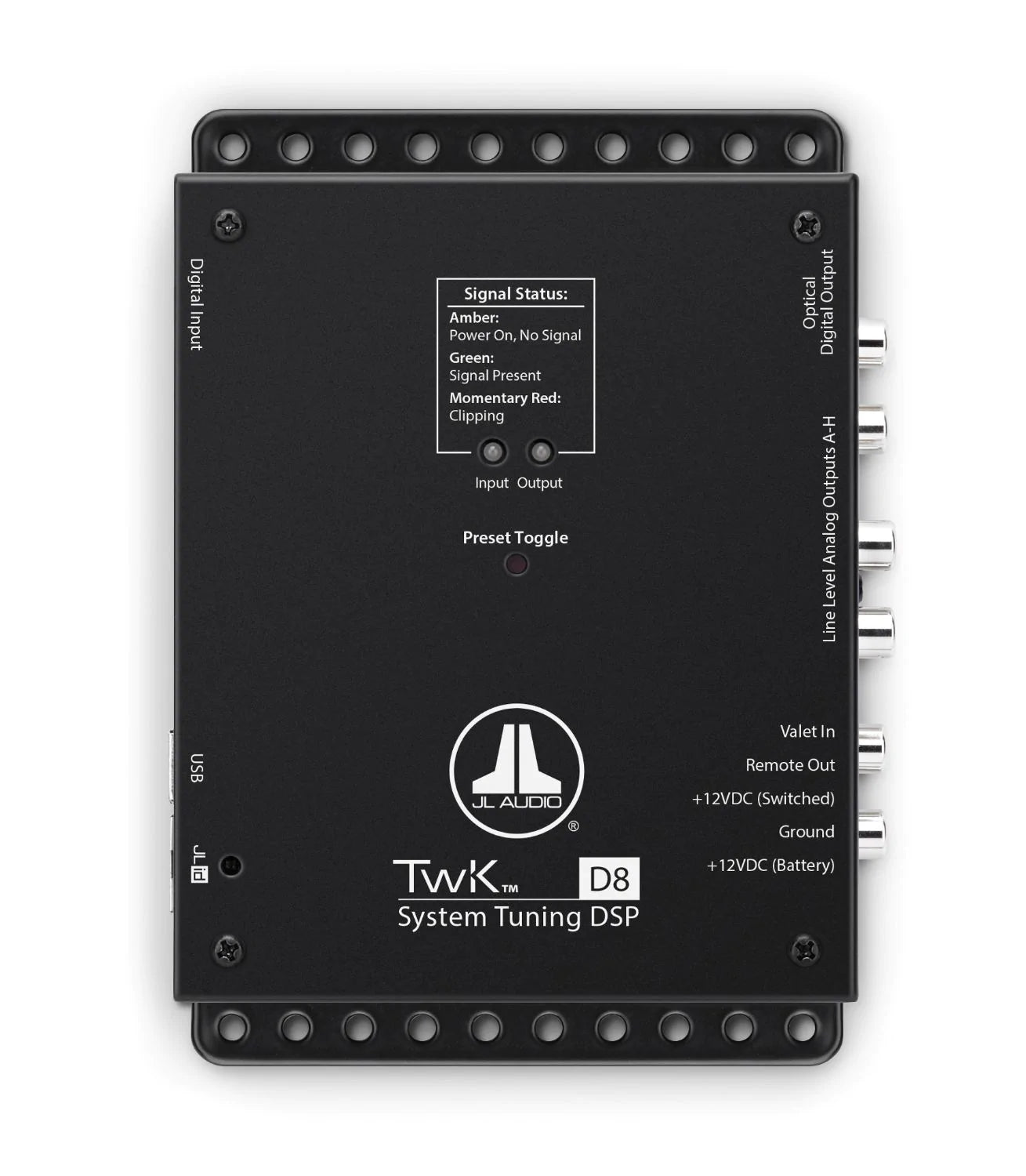

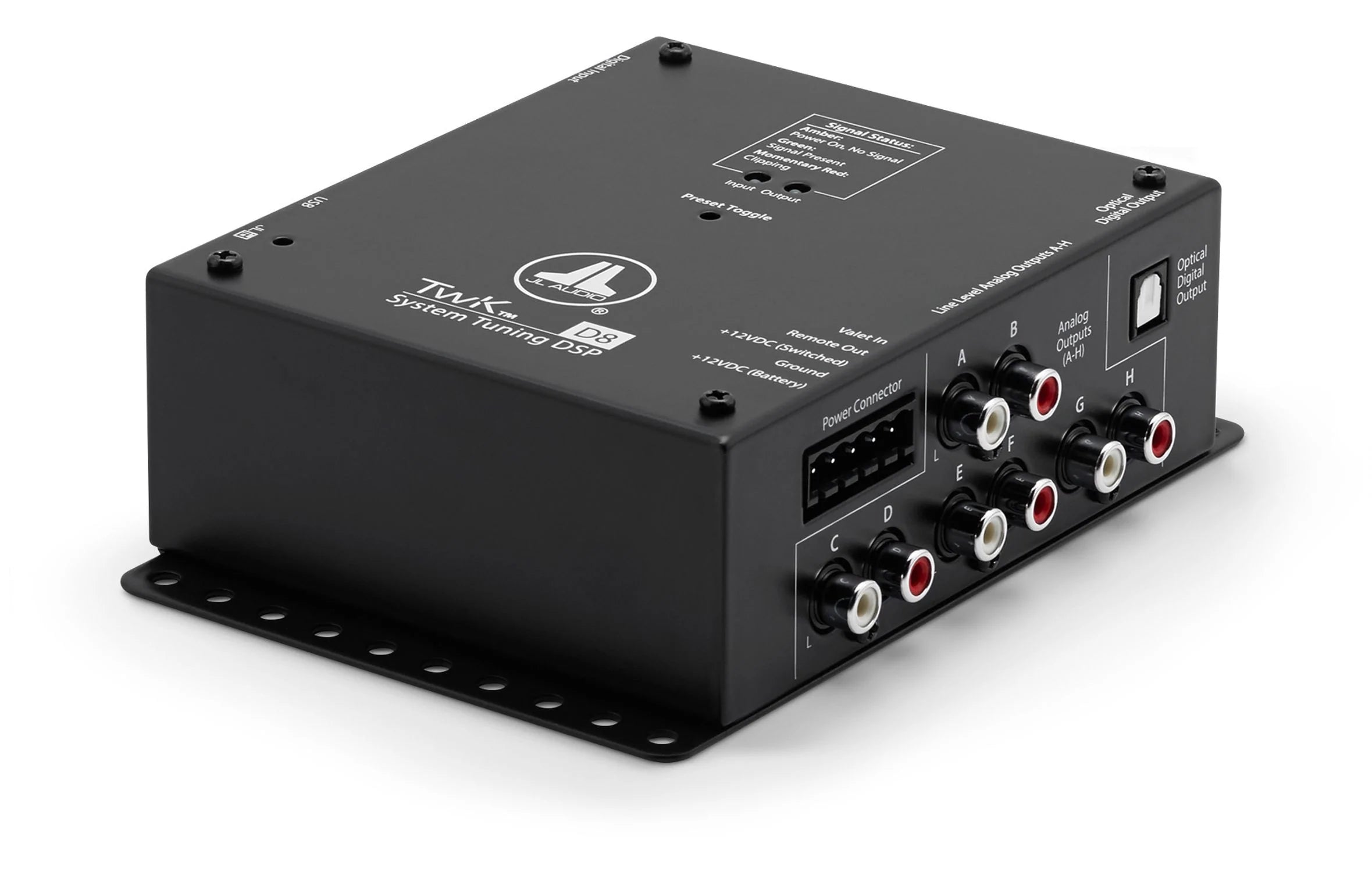

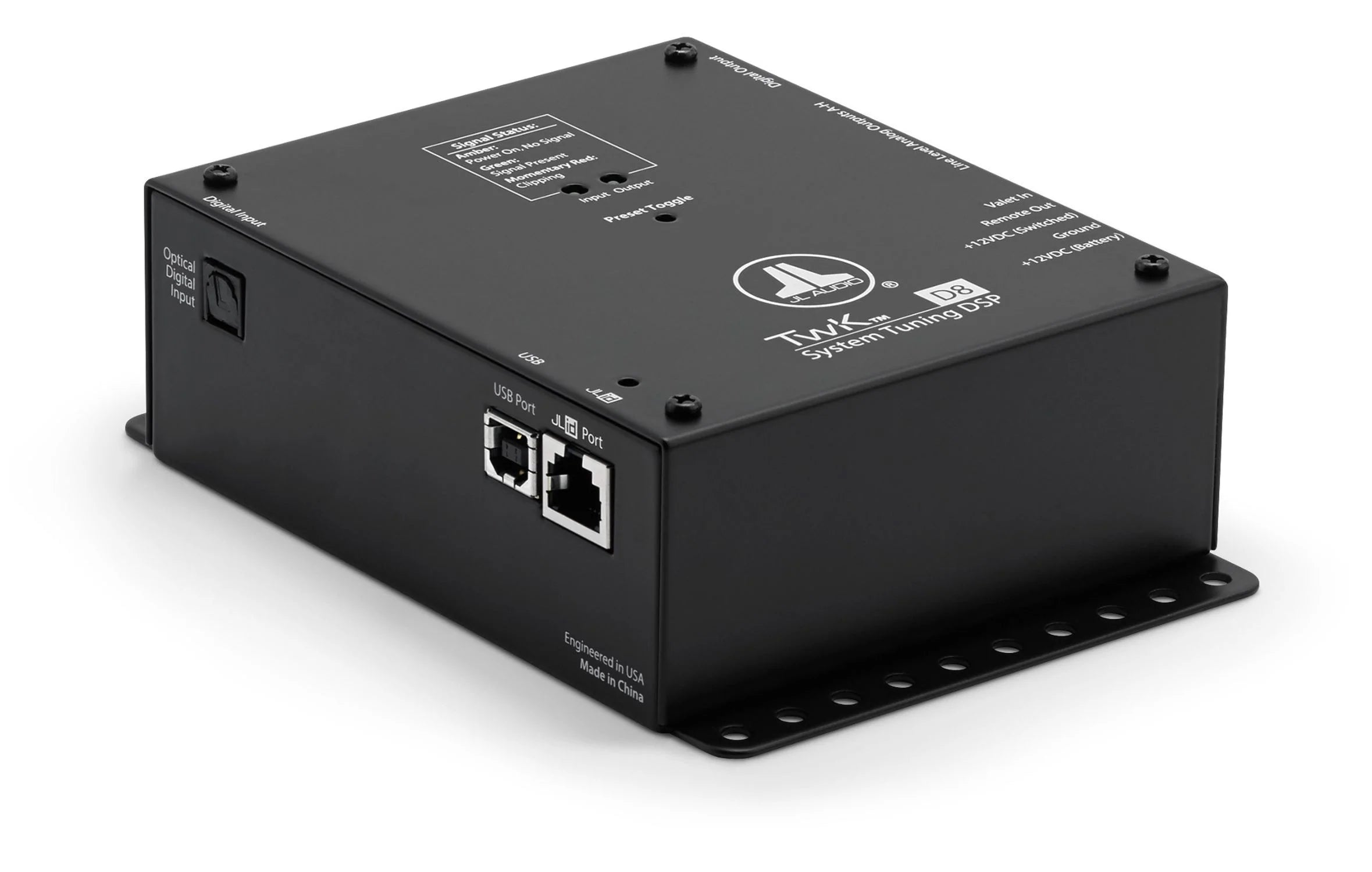

JL AUDIO TwK-D8

JL AUDIO

(TWK-D8) SYSTEM TUNING DSP WITH DIGITAL OPTICAL INPUT / 8-CH. STEREO RCA OUTPUTS / 1 DIGITAL OPTICAL OUTPUT

The TwK® D8 is a state-of-the-art digital signal processor engineered to deliver world-class system tuning capabilities in an easy-to-use format.
Equipped with an advanced 24-bit DSP processor, the TwK® D8 is equipped with a digital optical (Toslink) input and connects directly to our FiX® 82 OEM Integration DSP, or any 2-channel digital (S/PDIF) output, to maintain an all-digital signal path.

The TwK® D8 is also equipped with flexible output options, 80 total bands of equalization and powerful mixing tools. The included DRC-200 Digital Remote Controller offers dual level controls, toggles up to six presets, and has an LED indicator.

CONTROL THE TWK® D8’S ENTIRE FEATURE SET BY CONNECTING IT TO YOUR PC VIA USB, USING THE COMPANION TÜN® SOFTWARE INTERFACE.

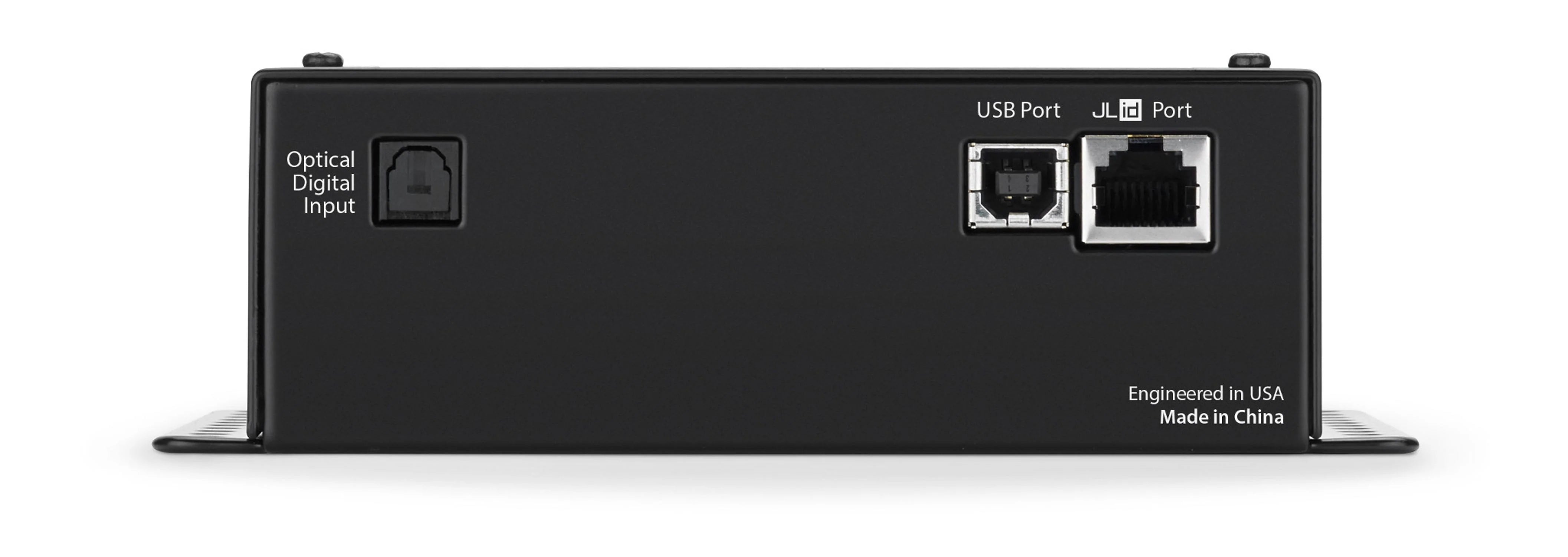

• All-digital, optical (Toslink) input connects directly to any digital (S/PDIF) output.
• Flexible input mixer allows left and right input channels to be combined with full control over each input’s level and polarity.
• 8 banks of 10-band graphic or parametric equalizers with configurable EQ assignment
• Powerful crossover section with fully variable, high-pass and low-pass filters, crossover slopes are selectable from 6 dB/octave to 48 dB/octave (in 6 dB/octave increments)
• Configurable polarity and delay settings, with separate entries for speaker distance plus offset control; fully linkable with other channels, in any combination, for adjustment
• Precise output level controls, adjustable in 0.5 or 0.1 dB increments, fully linkable with other channels, in any combination

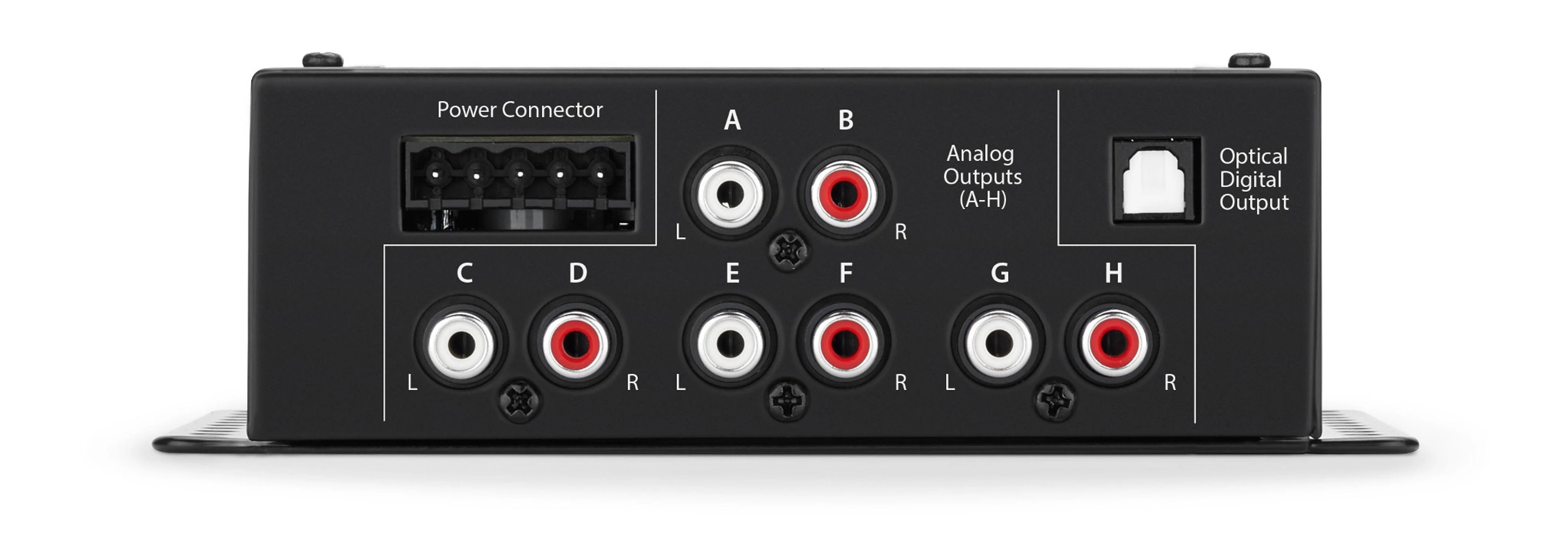

• 8 analog, line-level RCA output jacks (4V RMS)
• Optical (Toslink) output jack provides a pass-through digital audio (S/PDIF) signal from any pair of input channels, with no signal processing applied.

GENERAL SPECIFICATIONS:

• Power Supply Type : Regulated DC-DC SMPS
• Input Operating Voltage : 10 - 16 VDC
• Standby Current Draw : <1.5 mA
• Operating Current Draw : 0.7 A
• Recommended Fuse Value : 1 A
• Input Channels : Single Digital Input
• Input Type : Line-level, Differential-Balanced
• Input Voltage Range : 250 mV - 7.1 V RMS
• Minimum Input Voltage : 10 mV RMS
• Input Level Setting : N/A
• Output Channels : Eight
• Analog Output : Unbalanced, stereo RCA jacks
• Digital Output : Optical (Toslink) output (S/PDIF)
• Output Impedance : 450 Ω
• Latency :
• Optical - Optical: 4.860 mS
• Optical - Analog: 4.805 mS
• S/N Ratio : 96 dB (A-Weighted, referred to 4V RMS Output)
• THD+N : 0.02% (20 Hz - 20 kHz)

SIGNAL PROCESSING:

• Audio Resolution : 24 bit / 48 kHz
• Number of EQ Bands : 10 x 8 Channels
• Remote Level Control : Included (DRC-200)
• Remote Level Functions : Master Volume Control + Trim; Master Volume Control + Fader; Zone Control, LED Status Reporting

PHYSICAL SPECIFICATIONS:

• Height (H) : 1.85 in / 47 mm
• Width (W) : 4.29 in / 109 mm
• Depth (D) : 6.14 in / 156 mm
• Net Weight : 2.58 lb / 1.17 kg

In-store Purchase only

SKU # 98102
