ROCKFORD FOSGATE TM400X4AD
- Description
ROCKFORD FOSGATE

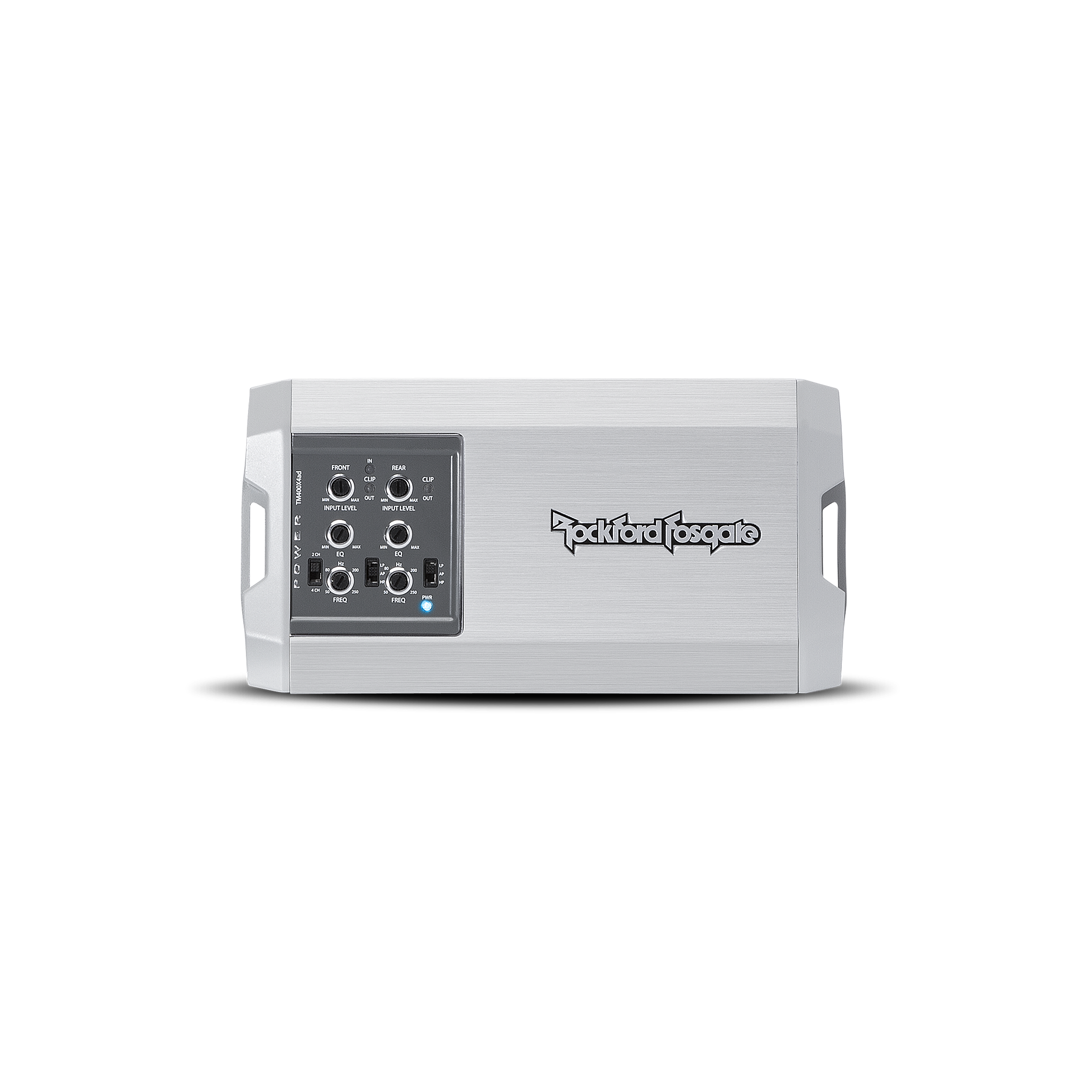

(TM400X4AD) POWER MARINE 400 WATT CLASS-AD 4-CHANNEL AMPLIFIER
The TM400X4ad is a 400 Watt 4-channel amplifier with high efficiency Class-ad technology and a conformal coated pc board designed for motorsport and marine applications.
The Power TM400X4ad 400 Watt 4-channel ultra-compact, amplifier is built on Rockford Fosgate’s proprietary Class-AD technology, featuring Constant Power to produce the same output at both 4-Ohm and 2-Ohm impedances. Flexible vehicle integration enabled through low-level and high-level inputs with auto turn-on. Top mounted controls allow easy access to built-in crossover and C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while real-time thermal/protection schemes safeguard the amplifier.
FEATURES:
- Rockford Fosgate proprietary Class AD technology
- 8 AWG power/ground connector w/ upgraded RCA connectors
- Differential inputs with high level auto turn-on feature
- Remote-Out feature when using high level inputs
- 4/2 Ohm muti-impedance Constant Power
- 2/4 channel input switch

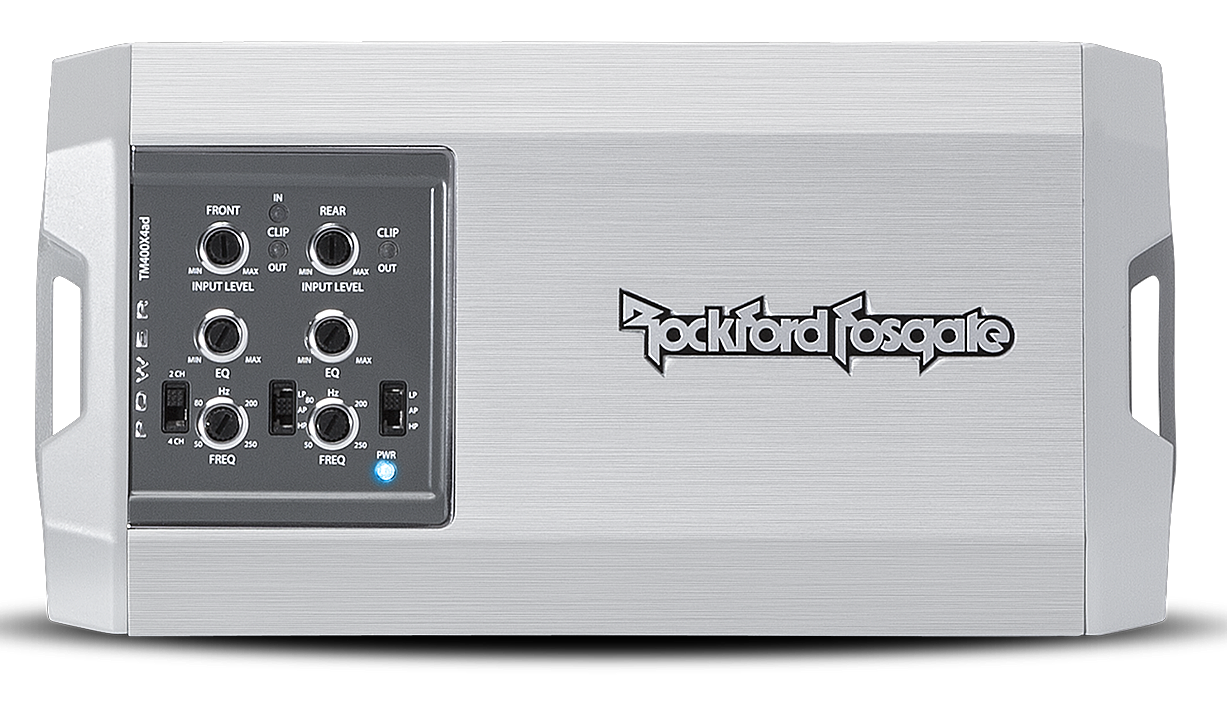

- Top mounted controls
- C.L.E.A.N. input/output clip detection and indicator LEDs
- 4 Ohm bridged capable
- Dual fan cooled
- Real time thermal sensing
- Dual extruded heat sinks
- Discrete surface mount technology
- Marine grade two part epoxy coating on circuit boards
TECHNOLOGIES
- CE Compliant: This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 ...CE Compliant: This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
- CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
- Class-AD: This technology allows the amplifier to produce more power with less current draw from the vehicle's charging system.
- Constant Power: Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.
- C.L.E.A.N. Set-Up: C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
- Element Ready™ | Amps: All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
- 3-Stage Airflow: 3-stage airflow method effectively exhausts heat and ensures your amplifier runs cooler for optimum performance.
- Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
- DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
SPECIFICATIONS:
- Cta-2006 Compliant: -
- Number of Channels: 4
- Total Power (Sum of Rated Power): 400 Watts
- Rated Power (RMS Continuous Power):
- 100 Watts x 4 @ 4-Ohm
- 100 Watts x 4 @ 2-Ohm
- 200 Watts x 2 @ 4-Ohm Bridged
- Dynamic Power (PVC/PowerCube®):
- 128 Watts x 4 @ 4-Ohm
- 152 Watts x 4 @ 2-Ohm
- 290 Watts x 2 @ 4-Ohm Bridged
- Bridgeable:
- Yes
- Front Terminals: Left (+) Right (-)
- Rear Terminals: Left (+) Right (-)
- Frequency Response: 20Hz-20kHz +/-1dB
- Input Sensitivity: 150 mV to 12 V
- Circuit Topology Class: Class AD
- Efficiency (average): >75%
- Total Harmonic Distortion (THD+Noise):
- 4-Ohm: <1.0%
- 2-Ohm: <1.0%
- Signal Input
- Front High/Low Level Input: 4-Pin harness
- Rear High/Low Level Input: 4-Pin harness
- Signal Output: —
- Tone Controls:
- Treble: 0 to +14 dB @ 12.5 kHz
- Bass: 0 to +18 dB @ 45 Hz
- Crossover Controls:
- High-Pass: 50Hz-250Hz @ 12dB/Octave Butterworth
- Low-Pass: 50Hz-250Hz @ 12dB/Octave Butterworth
- All-Pass: Yes
- Remote Controls: —
- Visual Indicators
- Power: Blue LED
- Protect: Red LED
- Input Clip: Red LED3
- Output Clip: Blue/Violet/Red LED1,2,3
- LED Color Legend:
- 1BLUE: <0.5% THD
- 2VIOLET: 1% THD
- 3RED: 10%+ THD
- Power Wire Gauge: 8 AWG
- Power Input Connector: Detachable Compression Terminal Replacement 1040-57997
- Speaker Wire Gauge: 16 AWG
- Speaker Output Connector
- Front: 4-Pin Harness
- Rear: 4-Pin Harness
- Cooling: Dual Fan Cooled
- Heatsink: Extruded Aluminum
- Operating Voltage: 9 - 16 VDC
- Recommended Fuse (not included): 60 A
- Average Current Draw (13.8V Music): 28 A
- Max. Current Draw (13.8V Sinewave); 55 A
- Suggested Alternator; 75 A
- Included In The Box:
- Dimensions (H x W x D): 1.6 x 4.3 x 8.3 (in.) 4.1 x 10.8 x 21.1 (cm)
- Shipping Weight: 3.4 Lbs. (1.54 Kg.)
