ROCKFORD FOSGATE T600-4
- Description
ROCKFORD FOSGATE

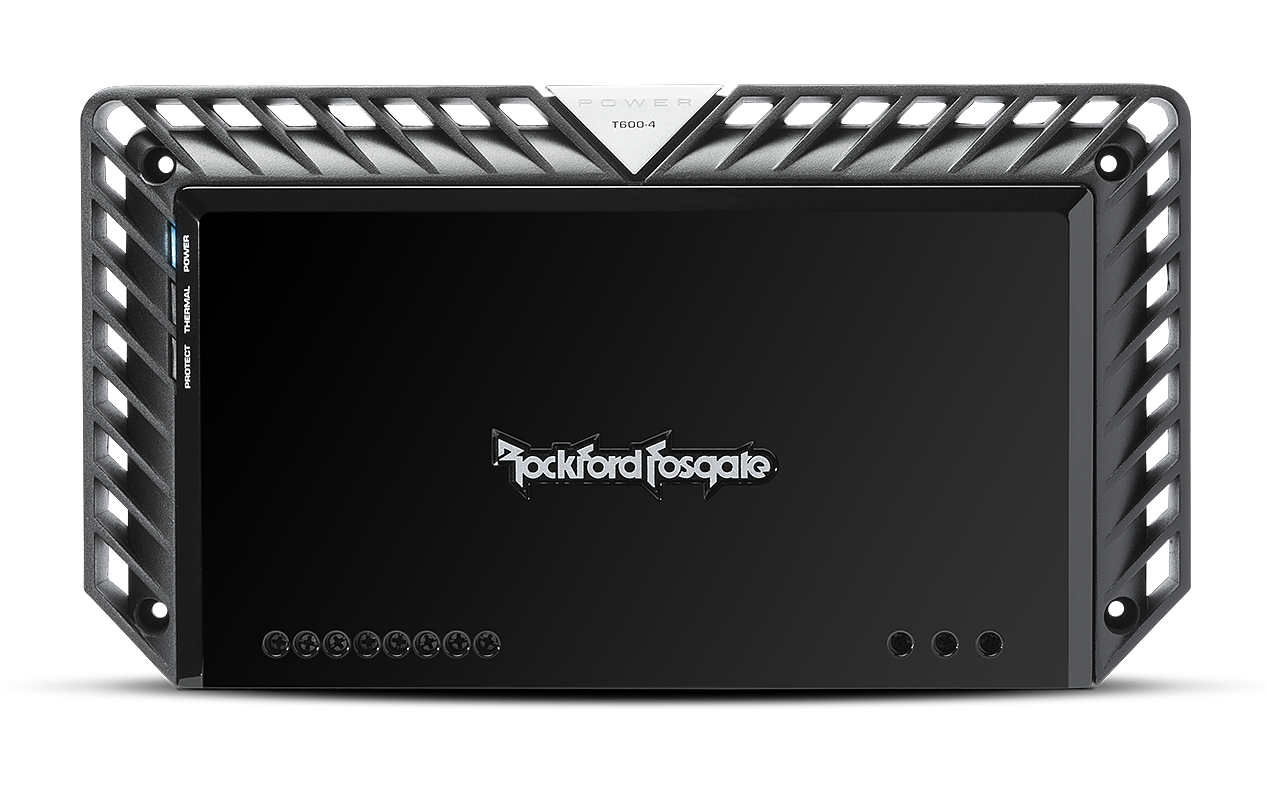

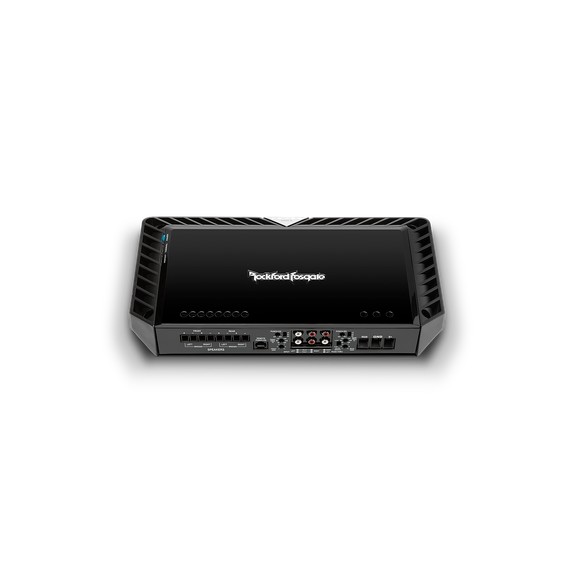

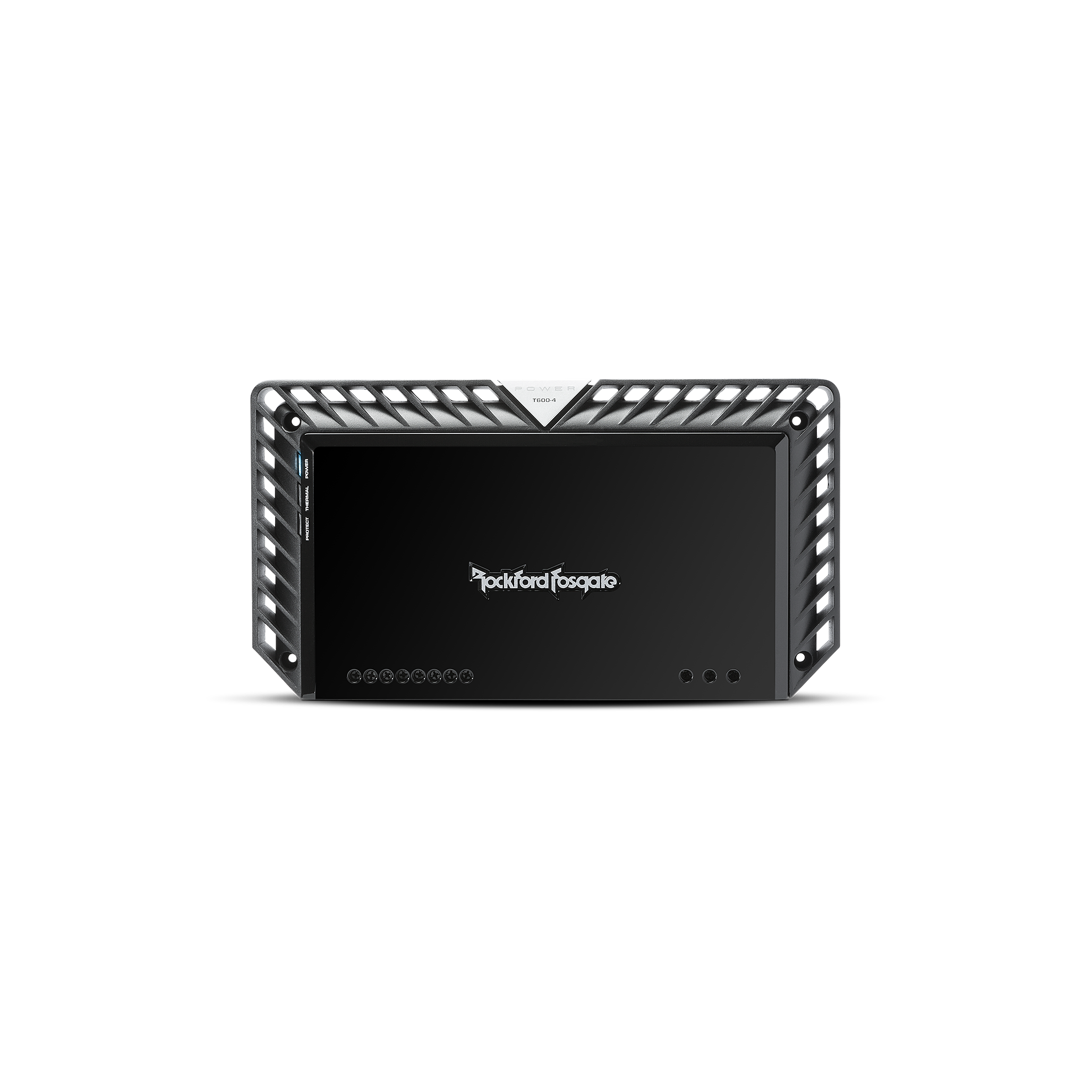

(T600-4) POWER 600 WATT 4-CHANNEL AMPLIFIER T600-4
The Power T600-4 is a 4-channel amplifier capable of producing 150 Watts into each of its four channels at 2-Ohms. The T600-4 can run a 4-way full-range system or use component speakers on the front with subwoofers on the rear.
The T600-4 amplifier offers the perfect balance of power output and compact design required for high performance audio systems. The 4-channel configuration allows fine tuning adjustments between front stage component systems and rear surround speakers. The built-in crossover also allows the rear channels to be configured for running one or two subwoofers.
FEATURES:
- 24dB/octave crossover
- MOSFET output stage
- 4 Gauge power/ground connectors
- 2/4 channel input switch
- MOSFET power supply
- Audiophile grade speaker connections
- RCA pass-thru outputs
TECHNOLOGIES:
- DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
- Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
- DTM: Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
- MEHSA3: MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
- NOMAD: NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
- CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
- Punch EQ2: Onboard equalizer with up to +18dB @ 45Hz and/or up to +12dB boost at 12kHz.
- TRANS•ana: Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
- TO-247 MOSFETs(left-OLD | right-NEW): Rockford Fosgate amps use custom TO-247 MOSFETs. These have 60% more metal tab area for more power capacity, lower impedance and improved heat dissipation over traditional TO-220 MOSFETs found in competitor amps.
SPECIFICATIONS:
- Cta-2006 Compliant:
- Number of Channels: 4
- Total Power(Sum of Rated Power): 600 Watts RMS
- Rated Power (RMS Continuous Power)
- 100 Watts x 4 @ 4-Ohm
- 150 Watts x 4 @ 2-Ohm
- 300 Watts x 2 @ 4-Ohm Bridged
- 2-Ohm x 2 Bridged Stable
- Dynamic Power (PVC/PowerCube®):
- Front Channels:
- 139 Watts x 2 @ 4-Ohms 0° Res
- 236 Watts x 2 @ 2-Ohms 0° Res
- Rear Channels:
- 140 Watts x 2 @ 4-Ohms 0° Res
- 236 Watts x 2 @ 2-Ohms 0° Res
- Bridgeable: Yes
- Frequency Response: 20Hz to 20kHz +/- 1dB
- Input Sensitivity: 150 mV to 4 V
- Circuit Topology Class: Class A/B
- Efficiency (average)
- 70% @ 4-Ohm
- 64% @ 2-Ohm
- Total Harmonic Distortion (THD+Noise)
- 4-Ohm: <1.0%
- 2-Ohm: <1.0%

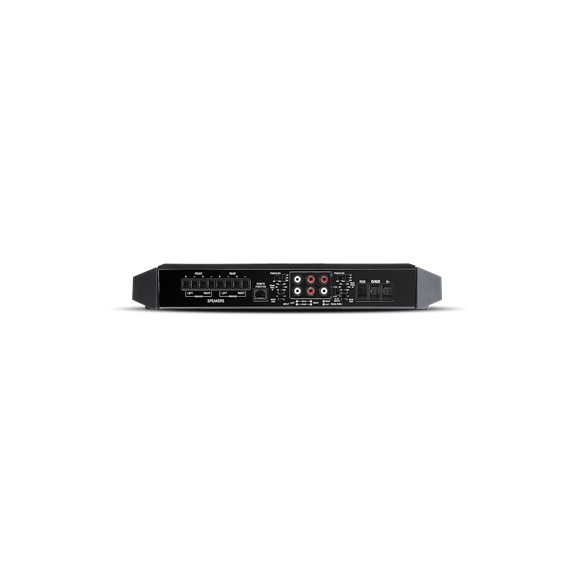

- Signal Input:
- Front Low level: 1 RCA pair
- Rear Low level: 1 RCA pair
- Input Switch: 2CH / 4CH
- Signal Output: Low Level: 1 RCA pair
- Tone Controls:
- Front Channels - Punch EQ
- Treble: 0dB to +12dB @ 12kHz
- Bass: 0dB to +18dB @ 45Hz
- Rear Channels - Punch EQ
- Treble: 0dB to +12dB @ 12kHz
- Bass: 0dB to +18dB @ 45Hz
- Crossover Controls:
- Front High-Pass (HP): 50-500Hz 24dB/octave Butterworth
- Front Low-Pass (LP): 50-500Hz 24dB/octave Butterworth
- Rear High-Pass (HP): 50-500Hz 24dB/octave Butterworth
- Rear Low-Pass (LP): 50-500Hz 24dB/octave Butterworth
- Remote Controls: Optional Remote Punch EQ (overrides rear channel built-in Punch EQ)
- Visual Indicators:
- Power
- Thermal
- Protect
- Power Wire Gauge: 4 AWG
- Power Input Connector: Block
- Speaker Wire Gauge: 8 AWG to 18 AWG
- Speaker Output Connector: Screw terminal barrier strip
- Cooling: Convection:
- Heatsink: -
- Operating Voltage: 9 - 16 VDC
- Recommended Fuse (not included): 80 A
- Average Current Draw (13.8V Music): 40 A
- Max. Current Draw (13.8V Sinewave): 80 A
- Suggested Alternator: 75 A
- Included In The Box: -
- Dimensions (H x W x D): 2.14 x 8.14 x 14.91 (in) 5.42 x 20.68 x 37.86 (cm)
- Shipping Weight: 12.00 Lbs. (5.44 Kg.)
