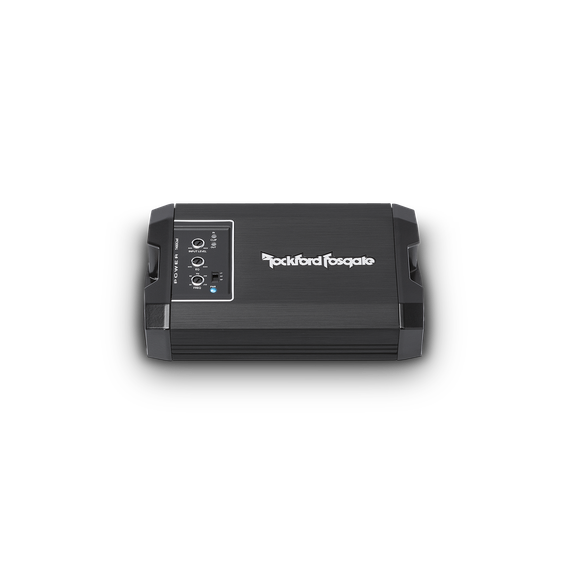

ROCKFORD FOSGATE T400X2AD
- Description
ROCKFORD FOSGATE
(T400X2AD) POWER 400 WATT CLASS-AD 2-CHANNEL AMPLIFIER
The Power T400X2ad is an ultra-compact, high efficiency 400 Watt stereo amplifier. Features multi-impedance Constant Power, input/output clip detection, top mounted controls and dual fan forced induction cooling. Perfect for hybrid, electric, small cars, trucks, motorcycles, and side-by-side UTVs.
The Power T400X2ad 400 Watt 2-channel ultra-compact amplifier is built on Rockford Fosgate’s proprietary Class-AD technology, featuring Constant Power to produce the same output at both 4-Ohm and 2-Ohm impedances. Flexible vehicle integration enabled through low-level and high-level inputs with auto turn-on. Top mounted controls allow easy access to built-in crossover and C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while real-time thermal/protection schemes safeguard the amplifier.
FEATURES AT A GLANCE
- Rockford Fosgate proprietary Class AD technology
- Remote-Out feature when using high level inputs
- 8 AWG power/ground connector w/ upgraded RCA connectors
- 4/2 Ohm muti-impedance Constant Power
- Differential inputs with high level auto turn-on feature
- 4 Ohm bridged capable

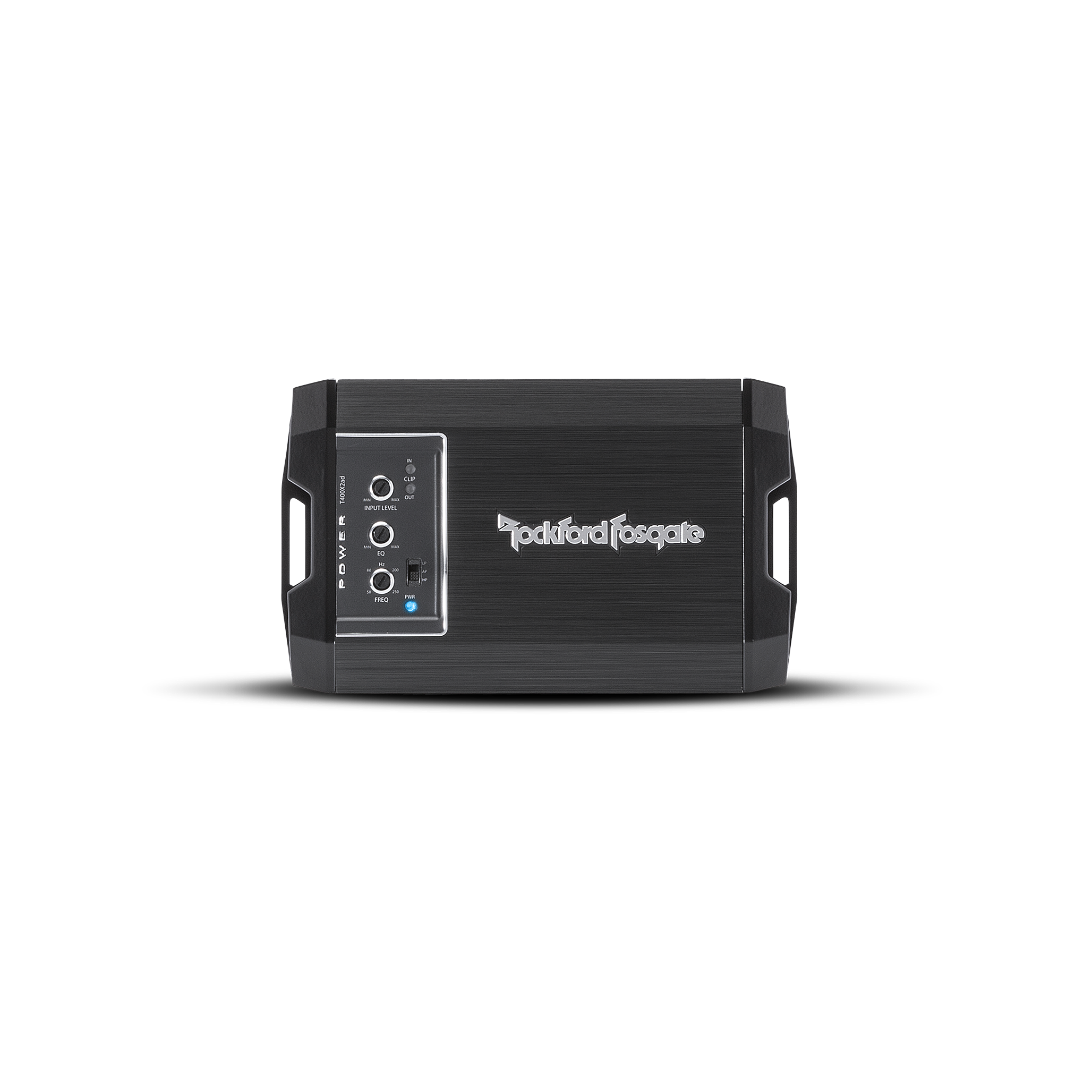

- Top mounted controls
- 2013 PLC2 remote ready
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Dual fan cooled
- Real time thermal sensing
- Dual extruded heat sinks
- Discrete surface mount technology
SPECIFICATIONS:
- CTA-2006 Compliant: -
- Number of Channels : 2
- Total Power (Sum of Rated Power) : 400 Watts
- Rated Power (RMS Continuous Power):
- 200 Watts x 2 @ 4-Ohm
- 200 Watts x 2 @ 2-Ohm
- 400 Watts x 1 @ 4-Ohm Bridged
- Dynamic Power (PVC/PowerCube®):
- 223 Watts x 2 @ 4-Ohm
- 248 Watts x 2 @ 2-Ohm
- 449 Watts x 1 @ 4-Ohm Bridged
- Bridgeable : Yes Terminals: Left (+) Right (-)
- Frequency Response : 20Hz - 20kHz +/-1dB
- Input Sensitivity : 150 mV - 12 V
- Circuit Topology Class : Class AD
- Efficiency (average) : >75%
- Total Harmonic Distortion (THD+Noise)
- 4-Ohm: <1.0%
- 2-Ohm: <1.0%
- Signal Input: High/Low Level Input: 4-Pin harness
- Signal Output: -
- Tone Controls:
- Treble: 0 to +14 dB @ 12.5 kHz
- Bass: 0 to +18 dB @ 45 Hz
- Crossover Controls:
- High-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
- Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
- All-Pass: Yes
- Remote Controls : Optional PLC2 provides Punch Level Control
- Visual Indicators:
- Power: Blue LED
- Protect: Red LED
- Input Clip: Red LED3
- Output Clip: Blue/Violet/Red LED1,2,3
- LED Color Legend:
- 1BLUE: <0.5% THD
- 2VIOLET: 1% THD
- 3RED: 10%+ THD
- Power Wire Gauge: 8 AWG
- Power Input Connector:
- Detachable Compression Terminal
- Replacement 1040-57997
- Speaker Wire Gauge: 16 AWG
- Speaker Output Connector: 4-Pin Harness
- Cooling : Dual Fan Cooled
- Heatsink : -
- Operating Voltage: 9 - 16 VDC
- Recommended Fuse (not included): 60 A
- Average Current Draw (13.8V Music): 23 A
- Max. Current Draw (13.8V Sinewave): 45 A
- Suggested Alternator: 75 A
INCLUDED IN THE BOX
- Dimensions (H x W x D): 1.6 x 4.3 x 7 (in.) ; 4.1 x 10.8 x 17.8 (cm)
- Shipping Weight: 2.9 Lbs. (1.31 Kg.)
