ROCKFORD FOSGATE T1S1-10

ROCKFORD FOSGATE

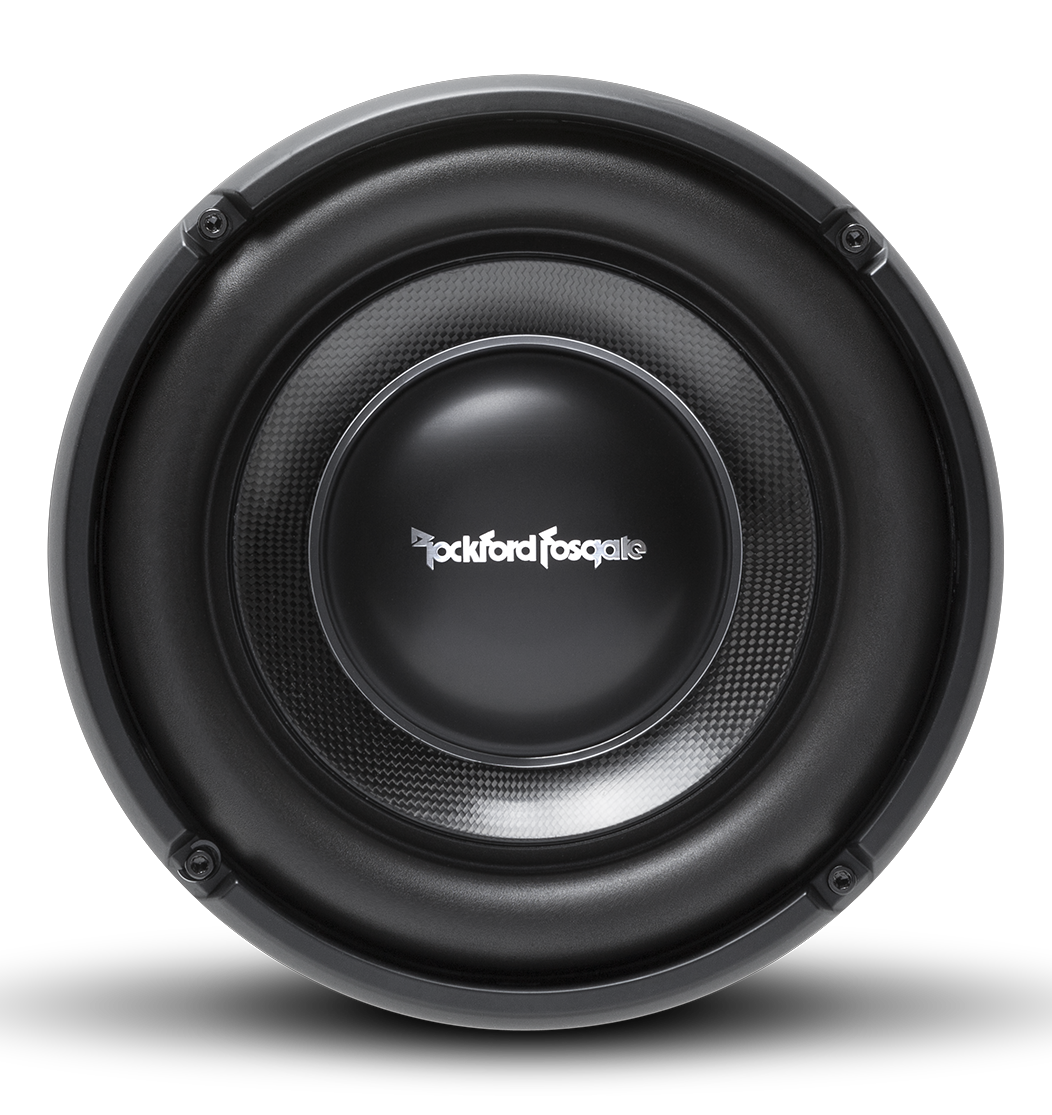

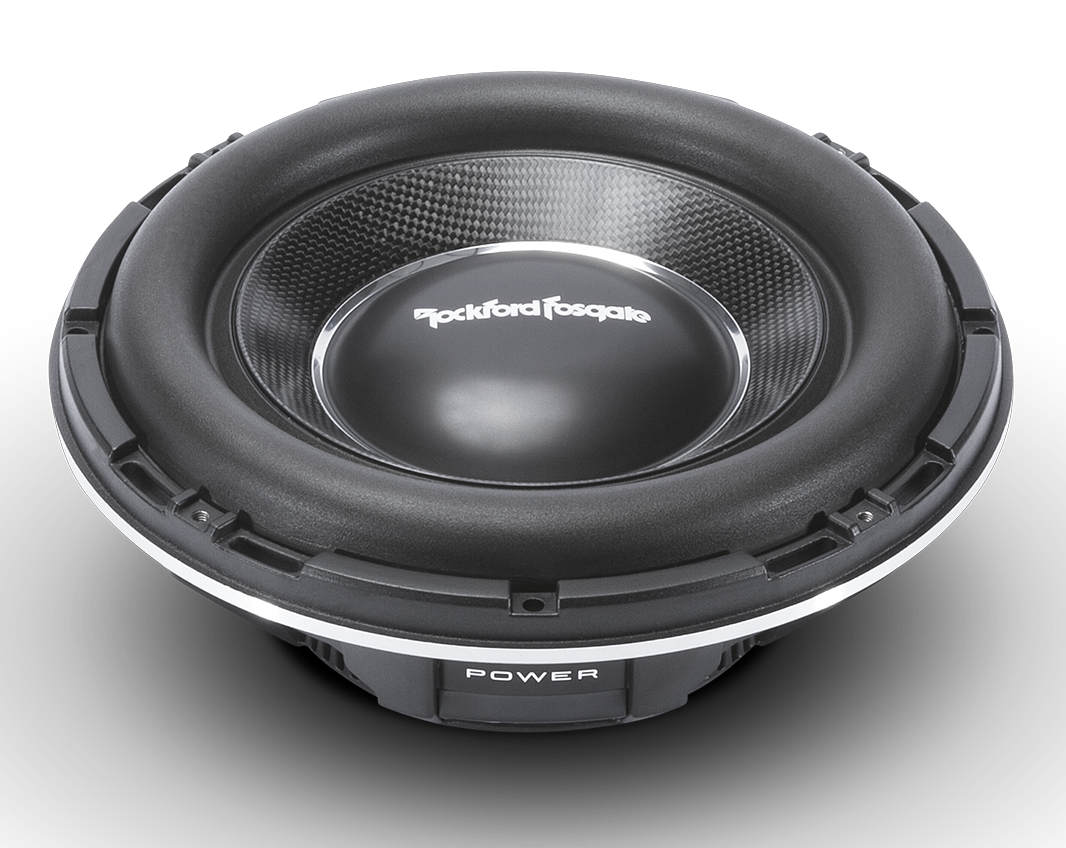

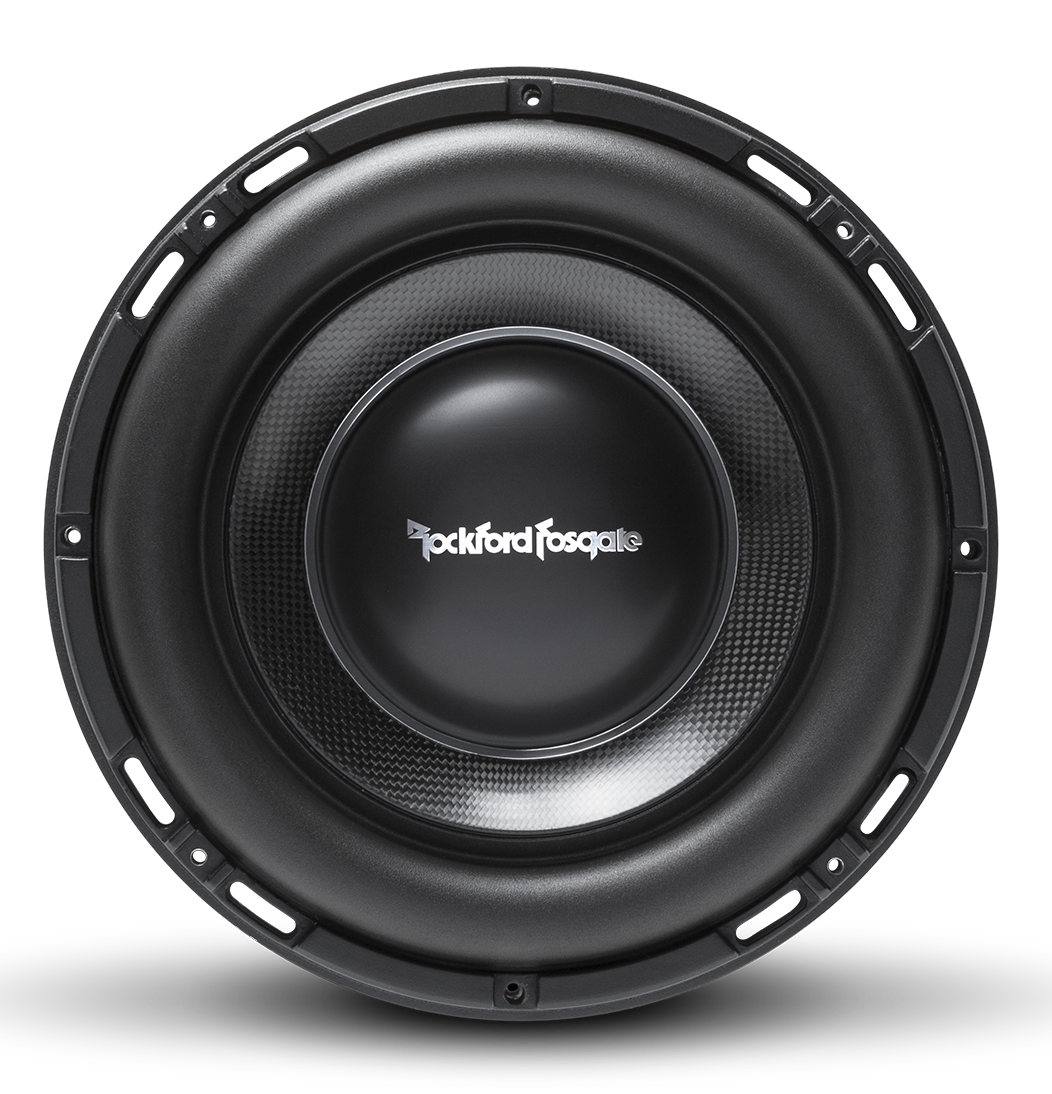

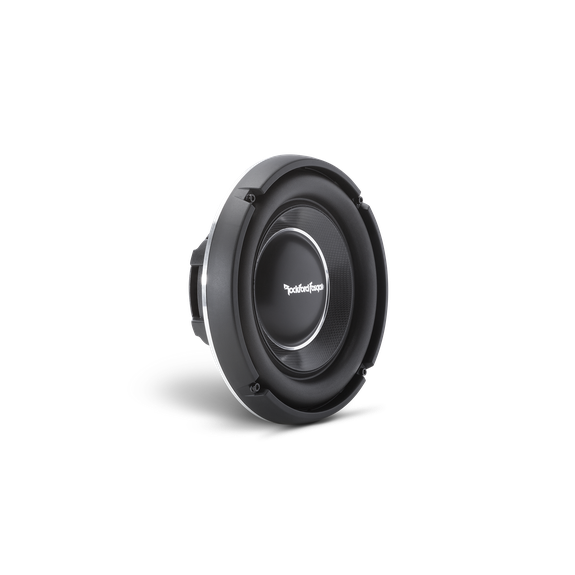

(T1S1-10) POWER 10" T1 SLIM SINGLE 1-OHM SUBWOOFER

The Power T1S1-10 is a slimline 10" subwoofer designed for spaces where traditional sized woofers will not fit. Features a single 1-ohm voice coil for simplified wiring configurations.

Need bass but don't have a lot of space? How about more power handling than your average shallow subwoofer? Well, the T1 "Slimline" subwoofers are not your average shallow, in fact, they have been painstakingly designed to near exact performance characteristics of traditional sized Power T1 subwoofers you're already familiar with.

We're calling these "slim" subwoofers because they don't take a lot of depth and offer bass response similar to a traditional sized model. How can this be true? Well, let's just say the Wizards-of-Fos engineered an ingenious slotted voice coil assembly that exhibits long excursion travel. Don't worry, you don't need to understand how it works, you just have to listen to how awesome they sound!

FEATURES:

• Carbon fiber/PMI/glass fiber cone with aluminum dustcap
• Dual Nomex progressive spiders with integrated lead wires
• Injection molded foam surround with VAST™
• Custom insulated push spring 10 AWG terminals

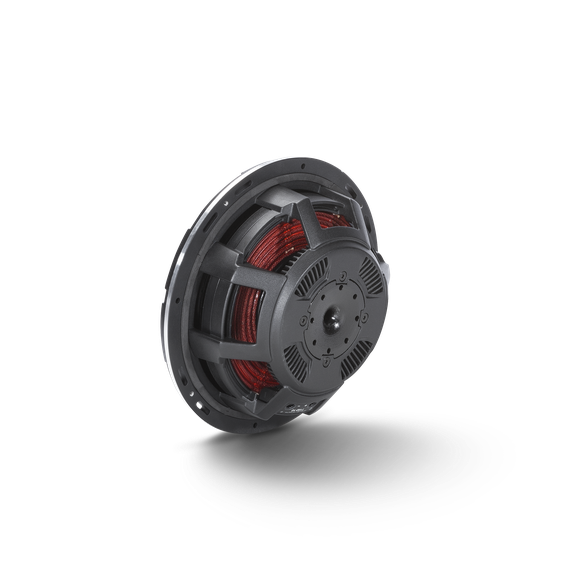

• Aluminum diecast frame with integrated heat sink fins
• Dual wound 2.5" voice coil with interior/exterior windings
• Encapsulating voice coil to former coupling technology (patent pending)
• Detachable die cast aluminum trim ring
• Vented pole piece
• High temp high energy neodymium motor structure
• Integrated copper cap heat sinking shorting ring (IDHS)
• Proprietary split yoke pass thru motor technology (patent pending)
• Optional grille insert available
• Optimized for sealed enclosures

TECHNOLOGIES:

• CEA-2031:  Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
• Klippel Verified:  Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
• Encapsulated Voice Coil Coupling:  Our EVCC (Encapsulated Voice Coil Coupling) technology connects to the woofers voice coil from both the top and bottom and provides a more secure mounting platform for both the dual spiders and cone assembly.
• Split Yoke Motor Technology:  The unique motor structure design allows full excursion capabilities of the woofers voice coil while allowing an overall reduction in woofer mounting depth.
• Inductive Damping Heat Sink:  Secures directly to the top of magnet structure to improve system efficiency by reducing both distortion and back EMF (Electo-Magnetic force). Also radiates heat to reduce voice coil temperature.
• VAST Surround - Subs:   The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
• FlexFit Basket - Subwoofer:  The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.
• Stitched Tinsel Leads:  Improved reliability and performance by reducing fatigue and possible shorting.
• Anodized Aluminum Voice Coil Former:  Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.

SPECIFICATIONS:

• Voice Coil Diameter:  2.28" (58 mm)
• Speaker Connector:  10 AWG slot loaded
• Subwoofer Type:  Shallow
• Size:  10"
• CEA-2031 Compliant:
• Fs (Hz):  42
• Sd (cm²):  356
• Le (mH):  0.28
• Nominal Impedance:  1-Ohm
• Qts:  0.95
• Power Handling (Watts RMS)
• 500 Watts RMS
• 1000 Watts Max
• Magnet Weight (oz):  15.10 oz. (0.43 Kg)
• Qes:  1.05
• Re (Ohms):  0.9
• Vas (Liters):  13.1
• Qms:  9.43
• Xmax (mm):  15
• Mounting Depth:  3.01 in. (76.5 mm)
• Voice Coil Type:  Single Voice Coil
• SPL (dB @ 1w/1m):  82
• SPL (dB @ 2.8v/1m):  85
• Cutout Diameter:  9.13 in. (232 mm)
• Woofer Displacement:  0.028 cu. ft. (0.82 Liters)
• Sealed Box Volume (Vb):  0.8 cu. ft. (22.6 Liters)
• Shipping Weight:  9.6 Lbs. (4.3 Kg.)
• Vented Box Volume (Vb):  1.5 cu. ft. (42.4 Liters)
