ROCKFORD FOSGATE T1000-4AD
- Description
ROCKFORD FOSGATE

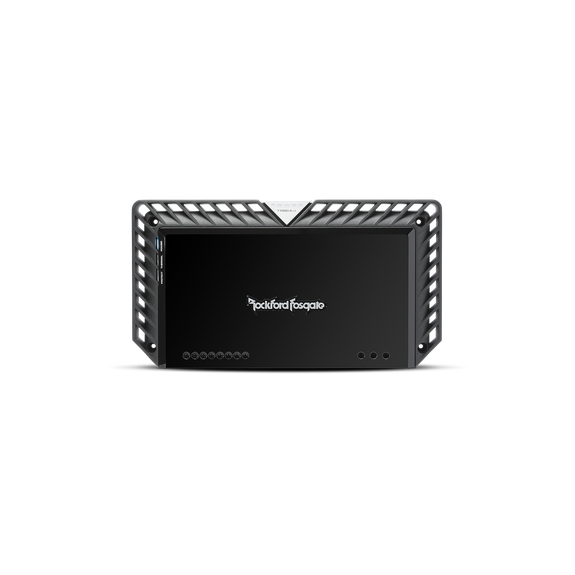

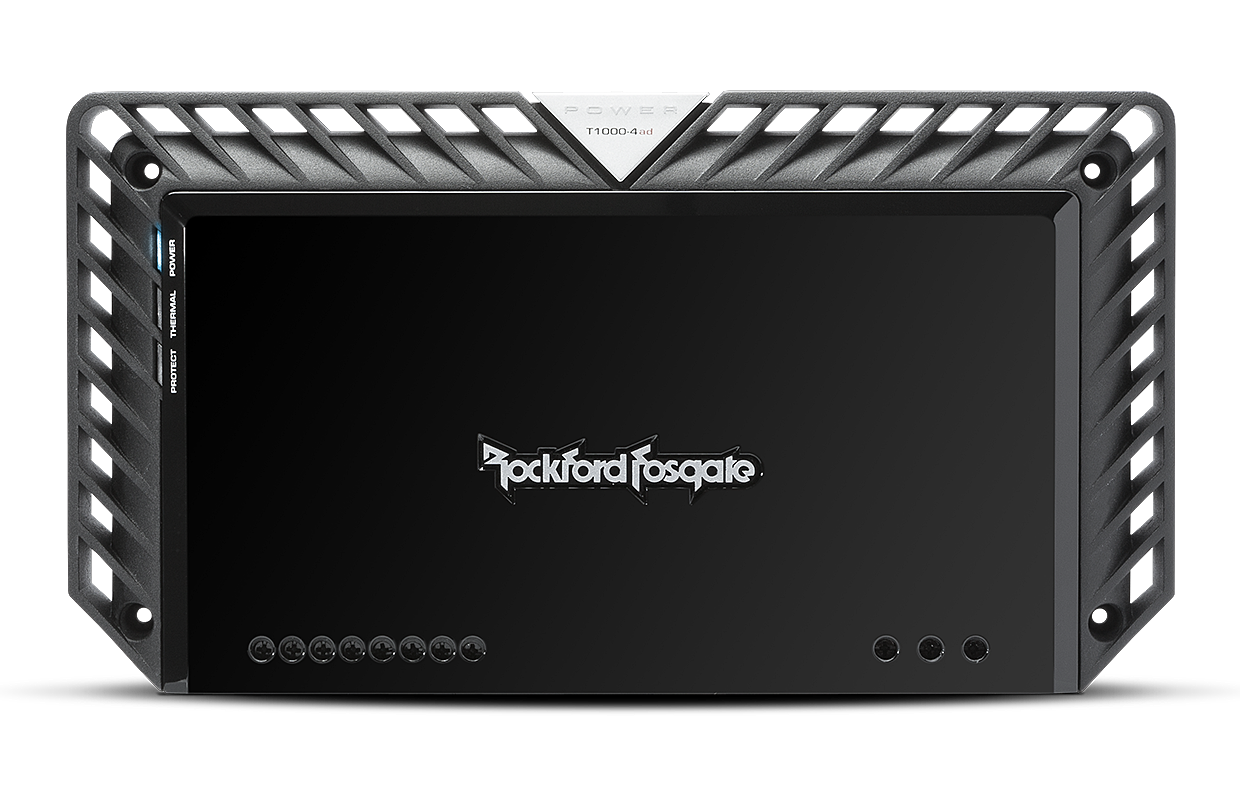

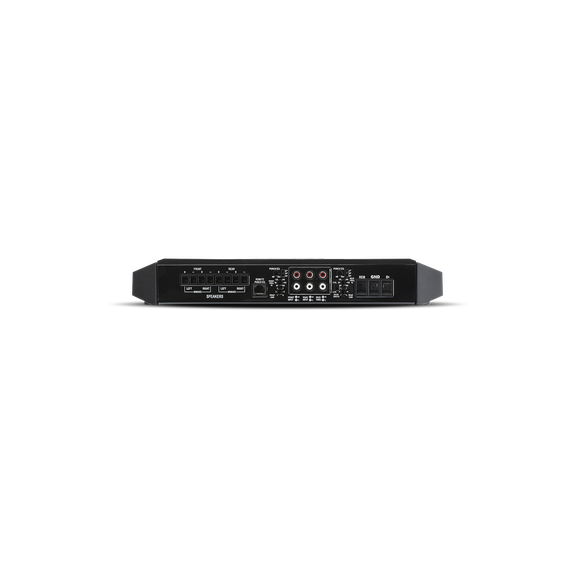

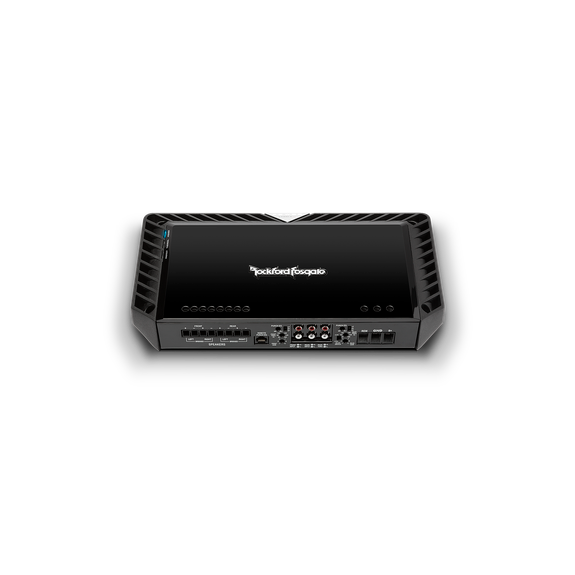

(T1000-4AD) POWER 1,000 WATT CLASS-AD FULL-RANGE 4-CHANNEL AMPLIFIER
The Power T1000-4ad is a 4-channel amplifier that combines the sound quality characteristics of a Class-A design with the efficiency of a Class-D in one remarkable package, offering high fidelity in a full-range configuration.
The T1000-4ad combines sound quality characteristics of Class-A designs with efficiency of a Class-D in one remarkable package. Superior sound quality is possible through the implementation dynamic switching frequency control. The addition of Constant Power circuitry produces optimized output at a range of impedances. Rockford Fosgate created Class-bd for brute power to run low frequency subwoofers, and now Class-ad offers high fidelity in a full-range configuration.
FEATURES:
- 2/4 channel input switch
- Audiophile grade speaker connections
- 24dB/octave crossover
- MOSFET power supply
- 4 Gauge power/ground connectors
- MOSFET output stage
- RCA pass-thru outputs
- 2-Year Warranty
TECHNOLOGIES:
- CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
- Class-AD: This technology allows the amplifier to produce more power with less current draw from the vehicle's charging system.
- Constant Power: Constant Power is a patented circuit topology that provides instantaneous delivery of output power over varying impedance loads.
- DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
- MEHSA3: MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
- NOMAD: NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
- Balanced Differential Inputs: Differential inputs eliminate noise picked up by signal cables.
- Punch EQ2: Onboard equalizer with up to +18dB @ 45Hz and/or up to +12dB boost at 12kHz.
- Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
-
4Ω/2Ω/1Ω Capable: Allows the amplifier to produce the same power into either a 4-ohm, 2-ohm or 1-ohm speaker load. Works with Constant Power to optimize power output at varying impedances.
SPECIFICATIONS:
- Cta-2006 Compliant:
- Number of Channels: 4
- Total Power (Sum of Rated Power): 1000 Watts RMS
- Rated Power (RMS Continuous Power)
- 250 Watts x 4 @ 4-Ohm
- 250 Watts x 4 @ 2-Ohm
- 250 Watts x 4 @ 1-Ohm
- 500 Watts x 2 @ 4-Ohm Bridged
- Dynamic Power (PVC/PowerCube®)
- 270 Watts x 4 @ 4-Ohm 0° Res
- 327 Watts x 4 @ 2-Ohm 0° Res
- 365 Watts x 4 @ 1-Ohm 0° Res
- 619 Watts x 2 @ 4-Ohm Bridged
- 654 Watts x 2 @ 2-Ohm Bridged
- Bridgeable: Yes
- Frequency Response: 20Hz to 20kHz +/-1dB
- Input Sensitivity: 150 mV to 5 V
- Circuit Topology Class: Class AD
- Efficiency (average)
- 84.1% @ 4-Ohm
- 81.6% @ 2-Ohm
- 81% @ 1-Ohm
- Total Harmonic Distortion (THD+Noise)
- 4-Ohm: <1.0%
- 2-Ohm: <1.0%
- Signal Input:
- Front Channels: 1 RCA pair
- Rear Channels: 1 RCA pair
- Input Switch: 2CH / 4CH
- Signal Output: 1 RCA pair
- Tone Controls
- Front Channels:
- Treble: 0dB to +12dB @ 12kHz
- Bass: 0dB to +18dB @ 45Hz
- Rear Channels:
- Treble: 0dB to +12dB @ 12kHz
- Bass: 0dB to +18dB @ 45Hz
- Function depends upon crossover setting (LP/AP/HP)
- Crossover Controls
- Front Channels:
- High-Pass (HP): 50Hz-500Hz @ 24dB/octave Butterworth
- Low-Pass (LP): 50Hz-500Hz @ 24dB/octave Butterworth
- Rear Channels:
- High-Pass (HP): 50Hz-500Hz @ 24dB/octave Butterworth
- Low-Pass (LP): 50Hz-500Hz @ 24dB/octave Butterworth
- Remote Controls: Optional Remote PEQ (overrides rear channel built-in Punch EQ)
- Visual Indicators
- Power (Blue LED)
- Thermal (Red LED)
- Protect (Yellow LED)
- Power Wire Gauge: 4 AWG
- Power Input Connector: Block
- Speaker Wire Gauge: 8 AWG to 16 AWG
- Speaker Output Connector: Block
- Cooling: Convection
- Heatsink: -
- Operating Voltage: 9 - 16 VDC
- Recommended Fuse (not included): 150 A
- Average Current Draw (13.8V Music): 60 A
- Max. Current Draw (13.8V Sinewave): 120 A
- Suggested Alternator: 75 A
- Included In The Box:
- Dimensions (H x W x D): 2.14 x 8.14 x 14.91 (in) 5.42 x 20.68 x 37.86 (cm)
- Shipping Weight: 14.45 Lbs. (6.55 Kg.)
