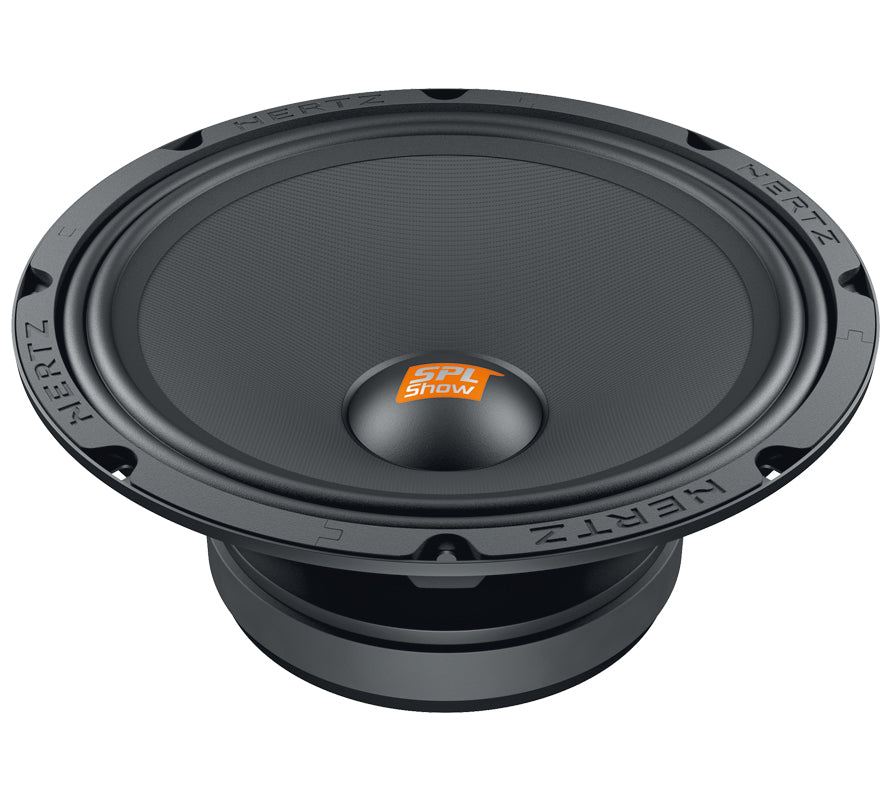

HERTZ SV 250.1

HERTZ

(SV250.1) SPL SHOW SERIES 10" 150W RMS (500W PEAK POWER HANDLING) 4-OHM IMPEDANCE CAR AUDIO MIDRANGE - SOLD INDIVIDUALLY

The SV 250.1 car audio midrange is the most versatile solution for SPL dedicated installations. Like the SX subwoofers, the SV 250.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.

FEATURES:

• High magnetic permeability plates provide constant, even flux.
• High density flux ferrite magnet, for top SPL performance.
• Double layer copper voice coil, wound on KSV former; for excellent thermal and mechanical capability.
• High current, tin-plated terminals.
• Damped fabric surround; for maximum lightness and extreme SPL.
• Water-repellent, pressed paper cone.

Specifications:

• Size mm (in.) : 250 (10)
• Power Handling - Peak W : 500
• Impedance : 4 ohms
• Frequency response Hz : 90 ÷ 7k
• Sensitivity dB SPL : 101
• Voice coil Ø mm (in.) : 50 (2)
• Magnet : High density flux ferrite
• Cone/Dome : Ultra light pressed paper

SPECIFICATIONS:

• Diameter : 10 Inch
• Maximum Power : 500 Watts
• Sensitivity : 101 dB
• Impedance : 4 Ohm
• Frequency Response : 90-7000 Hz
• Peak Power Handling : 500 Watts
• Top Mount Depth : 4 Inches
• RMS Power Handling : 150 Watts
