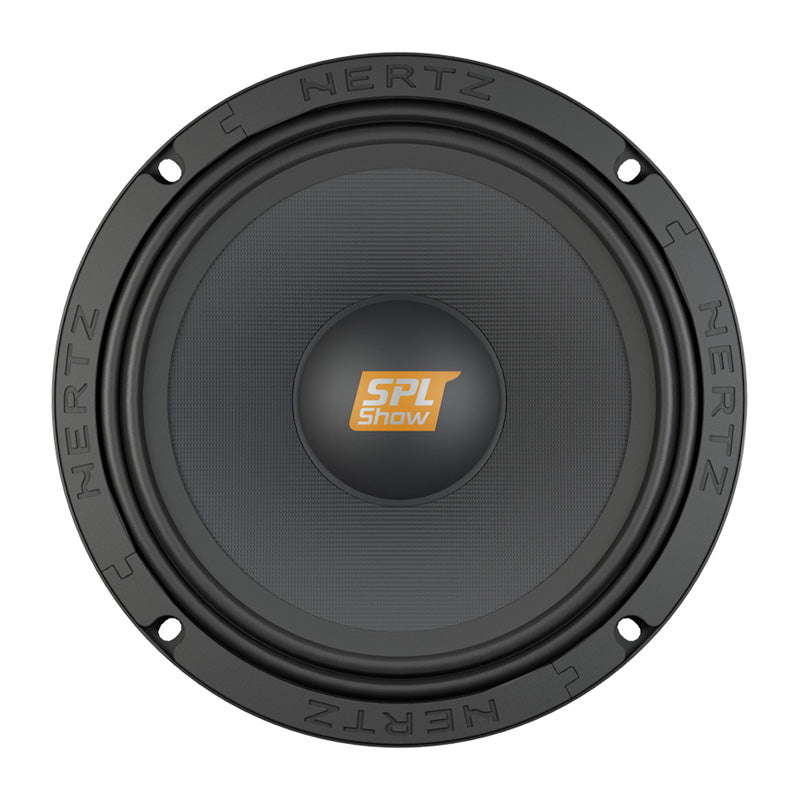

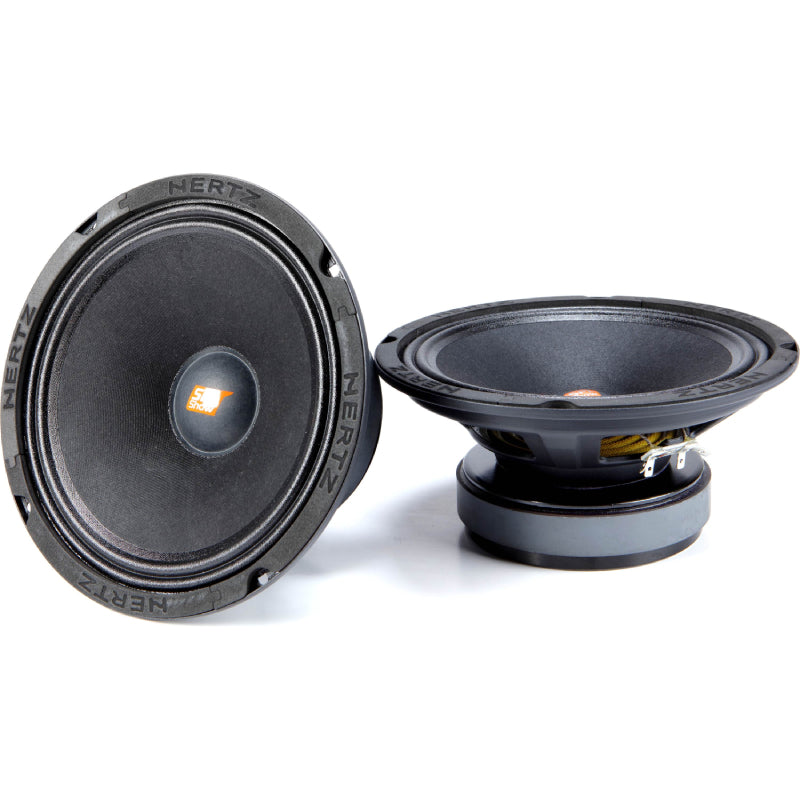

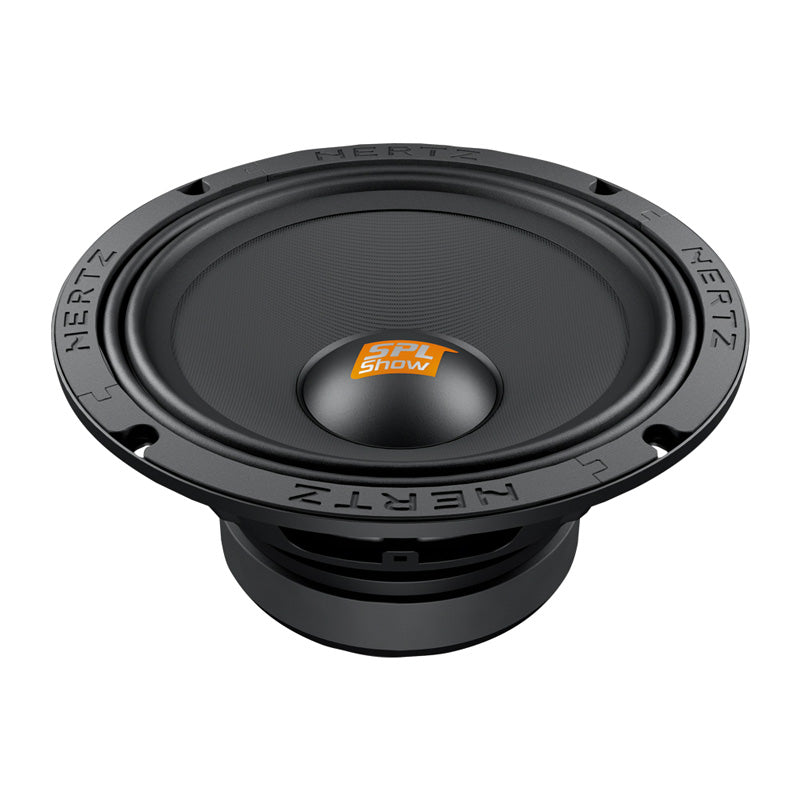

HERTZ SV 200.1

HERTZ

(SV200.1) SPL 8" (500W PEAK POWER HANDLING) MIDRANGE SPEAKERS 4-OHM

The SV 200.1 car audio midrange is the 200 mm (8 in.) midrange designed for SPL competitions. Like the SX subwoofers, the SV 200.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.

FEATURES:

• High magnetic permeability plates provide constant, even flux.
• High density flux ferrite magnet, for top SPL performance.
• Double layer copper voice coil, wound on KSV former; for excellent thermal and mechanical capability.
• High current, tin-plated terminals.
• Damped fabric surround; for maximum lightness and extreme SPL.
• Water-repellent, pressed paper cone.

Specifications:

• Size mm (in.) : 200 (8)
• Power Handling - Peak W : 500
• Impedance : 4 ohms
• Frequency response Hz : 100 ÷ 9k
• Sensitivity dB SPL : 100
• Voice coil Ø mm (in.) : 38 (1.5)
• Magnet : High density flux ferrite
• Cone/Dome : Ultra light pressed paper

SPECIFICATIONS:

• Diameter : 8 Inch
• Maximum Power : 500 Watts
• Sensitivity : 100 dB
• Impedance : 4 Ohm
• Frequency Response : 100-9000 Hz
• Peak Power Handling : 500 Watts
