JL AUDIO SB-T-TUNDCMAX/13TW5v2

JL AUDIO

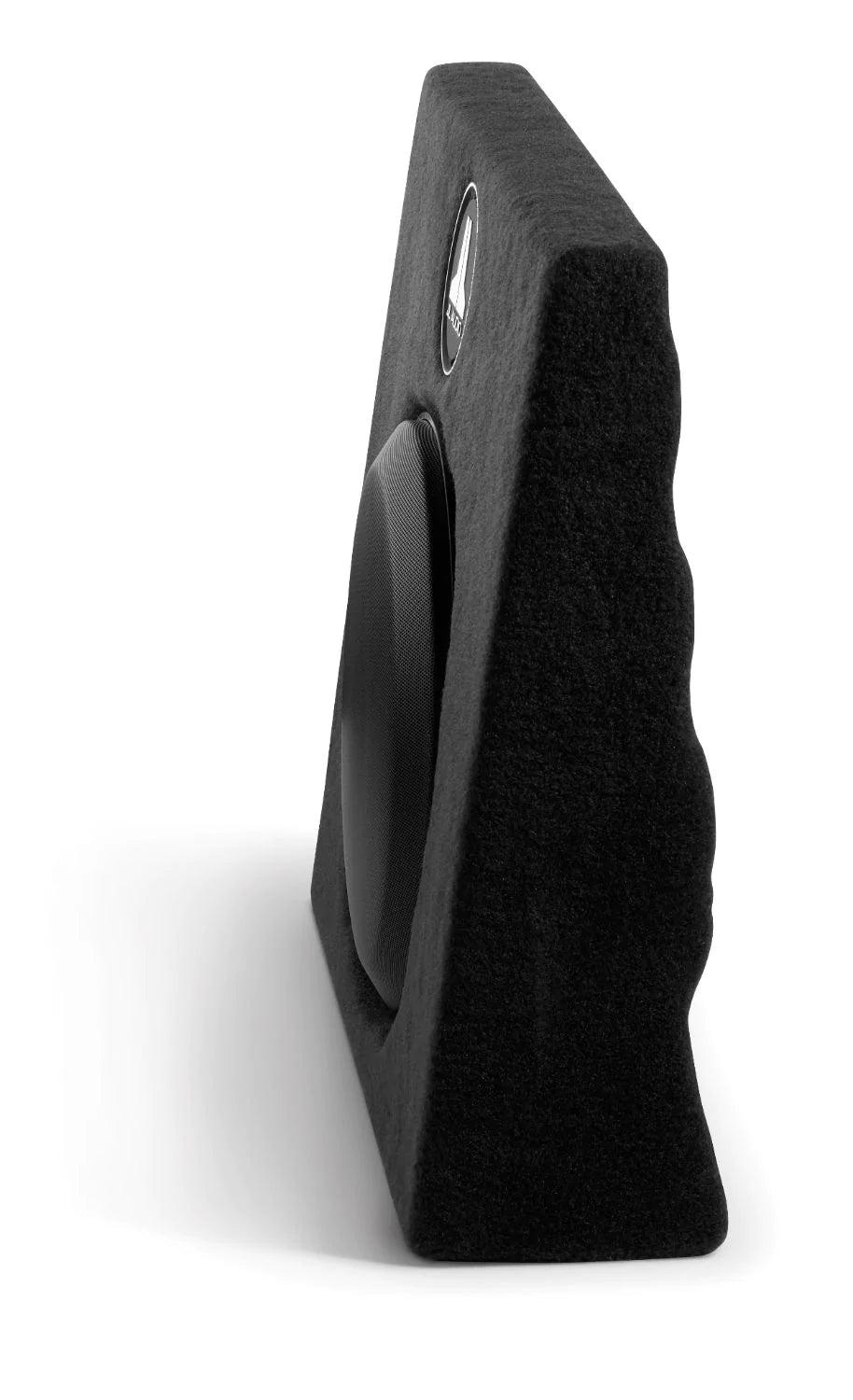

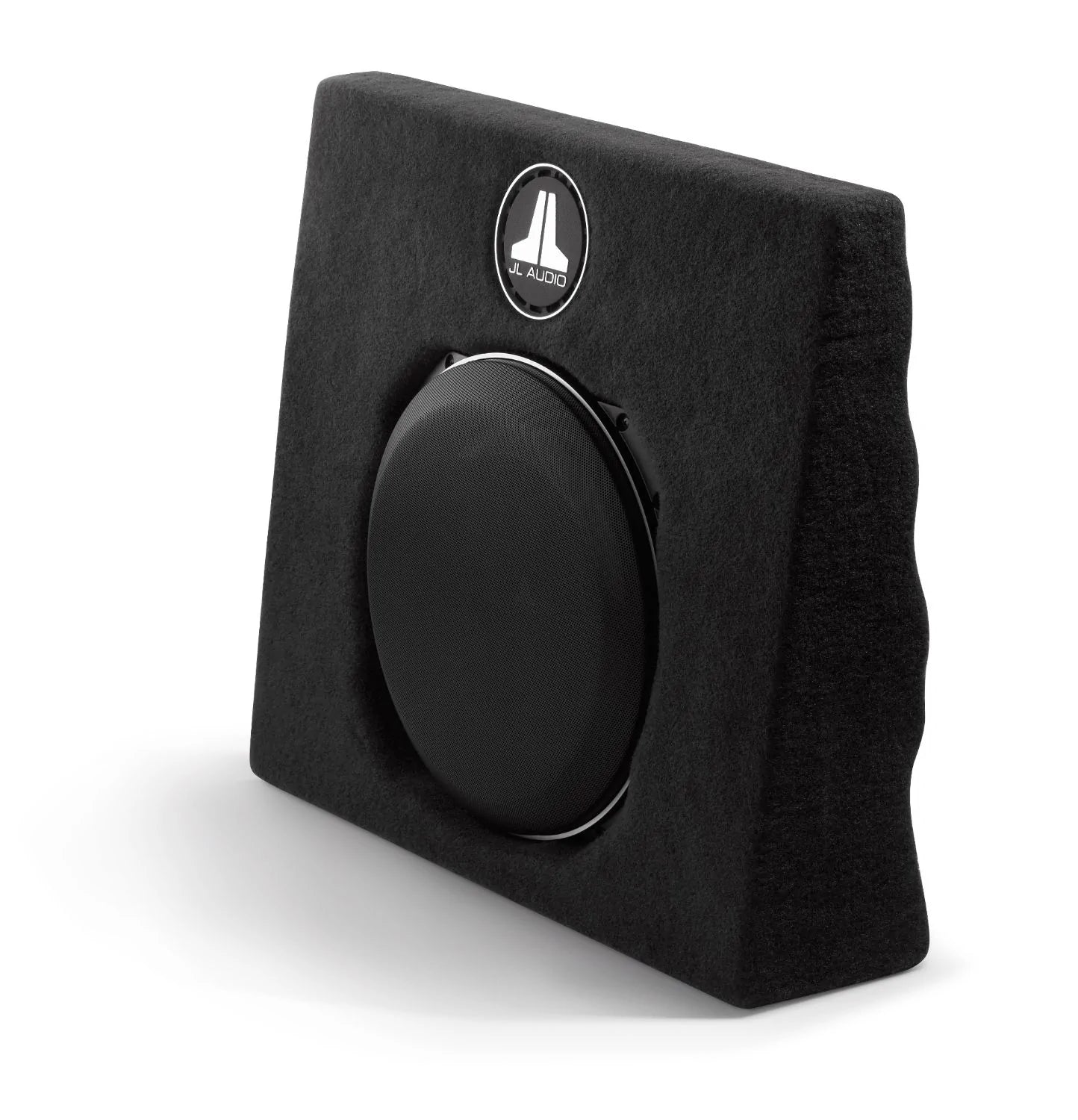

(SB-T-TUNDCMAX/13TW5V2) STEALTHBOX® FOR 2007-2013 TOYOTA TUNDRA CREWMAX

SUBWOOFER FEATURES:

• One JL Audio 12W3v3-4 Subwoofer:
• Power Handling:
• RMS: 600 watts
• Recommended Power Range: 250-600 watts
• Wired to a 4 ohm load
• Mica-filled polypropylene cone
• Santoprene surround
• Cast alloy basket
• 7-inch diameter voice coil
• Unique design allows for small airspace requirements
• 13% greater linear excursion capability over previous model
• Redesigned motor features an annular vent
• DMA-optimized motor designs
• Patented "floating cone attach method" technology
• Patented "concentric tube" architecture
• Frequency response: 20 - 200 Hz
• Sensitivity: 85.63 dB
• Xmax: 11 mm
• Matching Amplifier: JL Audio XD600/1v2

ENCLOSURE FEATURES:

• Compatible with 2007-2013 Toyota Tundra
• Forward-firing design
• Sealed enclosure

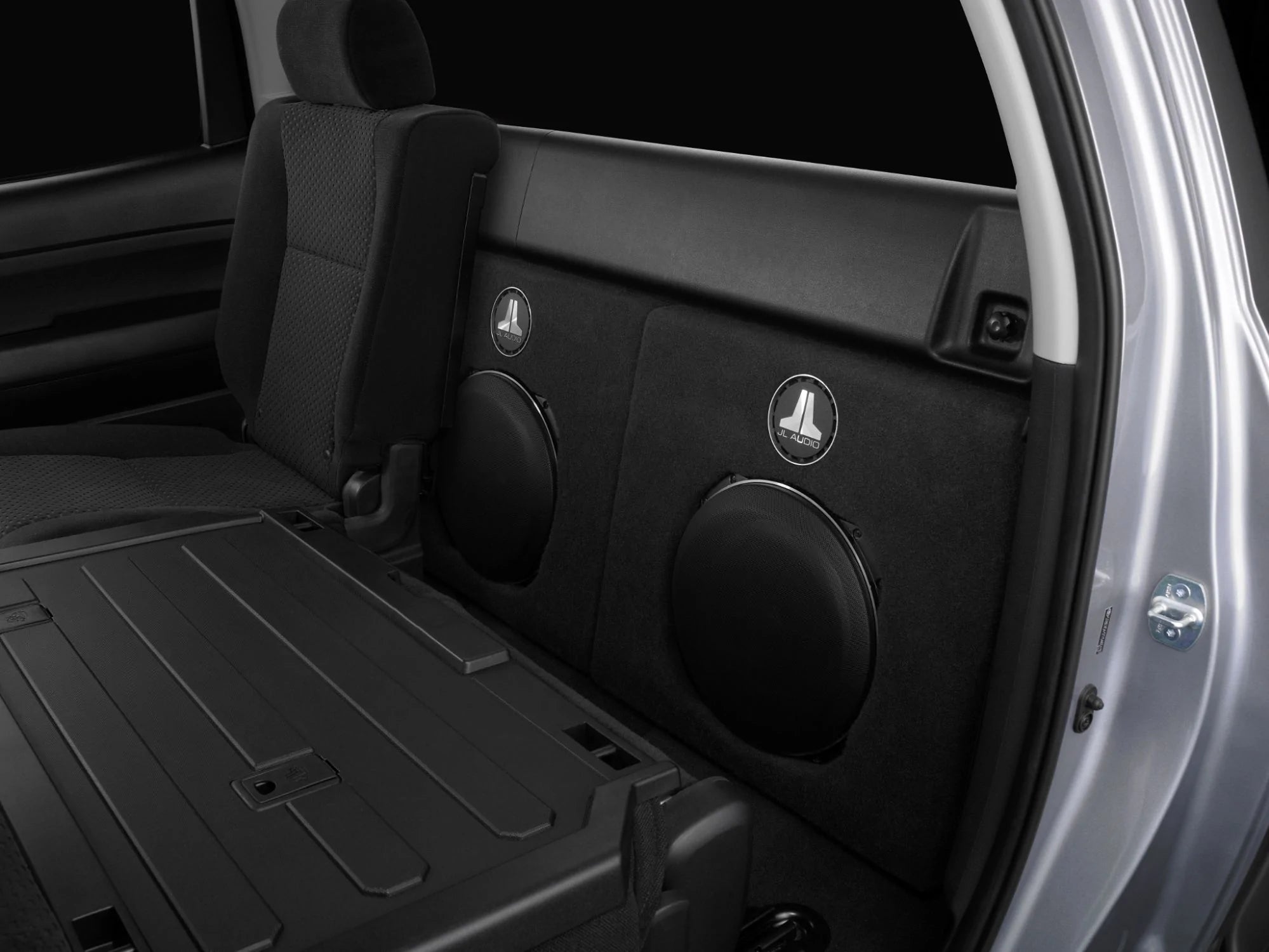

• Stealthbox® installs behind the rear bench
• Black steel mesh woofer grille is included
• Binding post terminals for secure and sturdy connection and installation
• One notch of seat travel is lost with installation and full-recline of the seat-back is only available when the seat is in its more forward positions
• JBL-Subwoofer equipped vehicles will require one of the following:
• Permanently modify (cut) the factory trim panel

• Obtain a replacement “no-subwoofer” trim panel from Toyota Parts prior to installation
• Installation leaves enough room for a Second identical Stealthbox®, providing the ability to deliver up to 6dB more output
• Adding a second Stealthbox® will provide a 2 ohm load with a recommended power range of 500-1200 watts
• OEM Color: All
• Color Match Grade: N/A

In-store Purchase only

SKU # 94410
