JL AUDIO SB-POL-ACE/10TW1

JL AUDIO

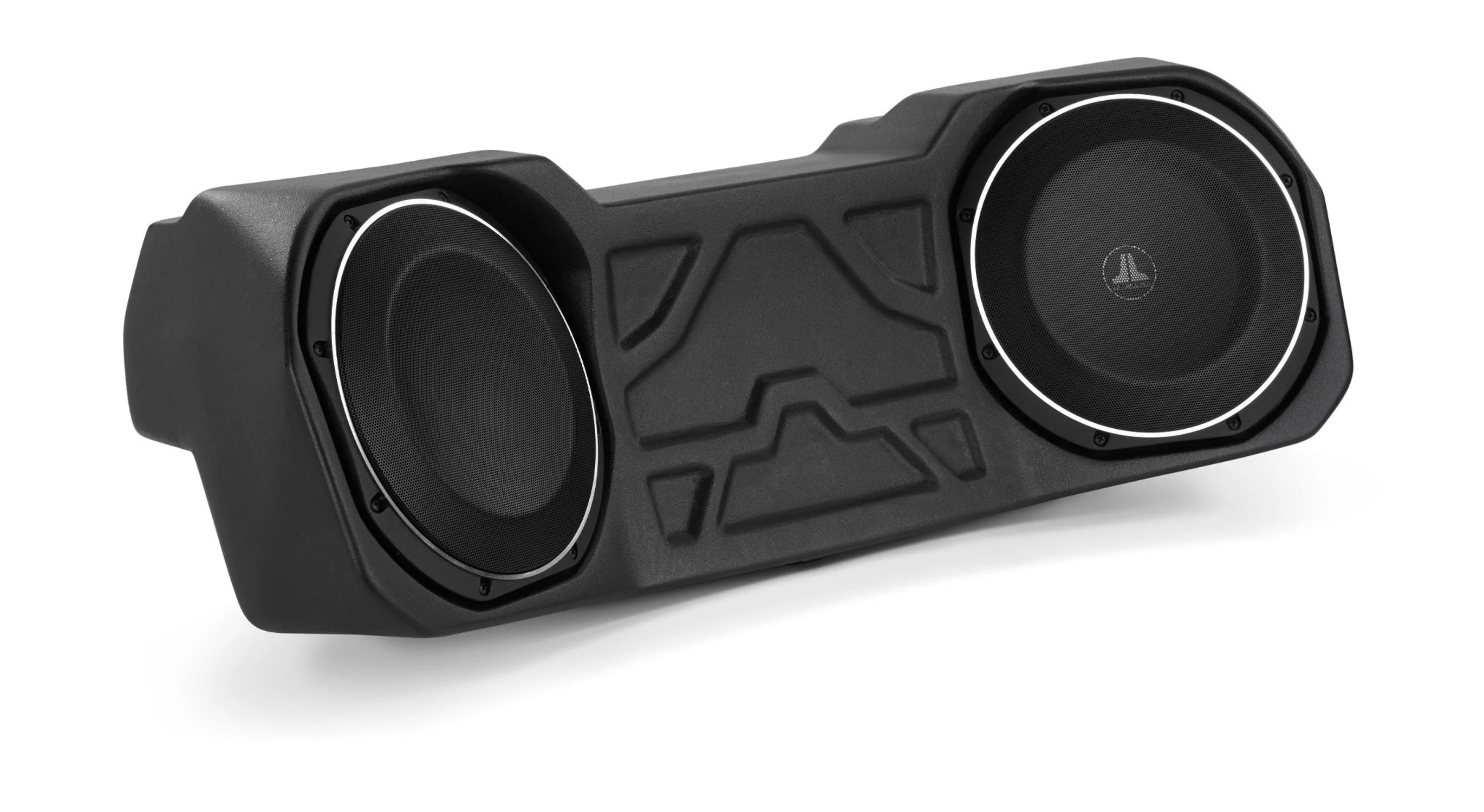

(SB-POL-ACE/10TW1) STEALTHBOX® FOR 2015-UP POLARIS ACE

SUBWOOFER FEATURES:

• Two 10" TW1 (Thin-Line) Series Shallow Mount Subwoofers
• Power Handling:
• RMS: 600 watts per pair/ 300 watts each
• Recommended Power Range: 75 - 300 watts
• Impedance: 4 Ohm
• Injection molded, mica-filled polypropylene cone
• Rubber surround
• No pole vent: permits mounting close to rear wall of enclosure.
• Ultra-compact sealed enclosure volume requirements
• Long linear excursion capability
• DMA-optimized motor designs
• Engineered Lead-Wire System
• Patented concentric tube architecture
• Patented floating cone attach method technology
• Cast alloy frame with flat edges for tight driver grouping
• Steel mesh grille included with each driver
• Mounting depth: 4.36 "
• Cutout dimensions: 9.0625 "
• Free Air Resonance (Fs): 38.09 Hz
• Sensitivity: 82.2 dB
• Xmax: 10.0 mm
• Equivalent Compliance (Vas): 12.15 L
• Frequency response: ~26 ~ 200 Hz
• Matching Amplifier:
• JL Audio MX500/1

ENCLOSURE FEATURES:

• Compatible with select 2016-2019 vehicles from Polaris,
• Fits Ace "base" and Ace 570 models
• Will not fit Ace 900 SP model

• Front-firing sealed enclosure
• Wired for a 2 ohm load
• 100% fiberglass with a rugged, weatherproof finish
• Loaded with one 10TW3-D4 subwoofer
• Mounted beneath the driver's seat
• Hidden-from view terminals for cleanest installation possible
• Binding post terminals for secure and sturdy connection and installation

*JL Audio Stealthboxes are special-ordered for each customer and usually ship within 7-14 business days. As such, orders for Stealthboxes cannot be canceled unless it is unavailable.

In-store Purchase only

SKU # 94628
