ROCKFORD FOSGATE R2SD4-12
- Description
ROCKFORD FOSGATE

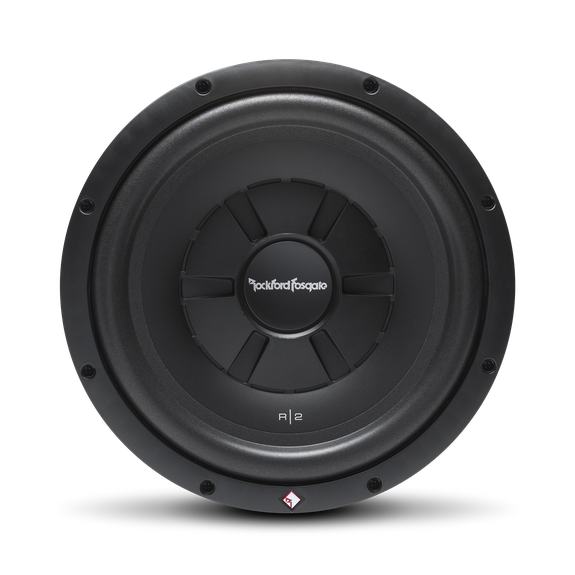

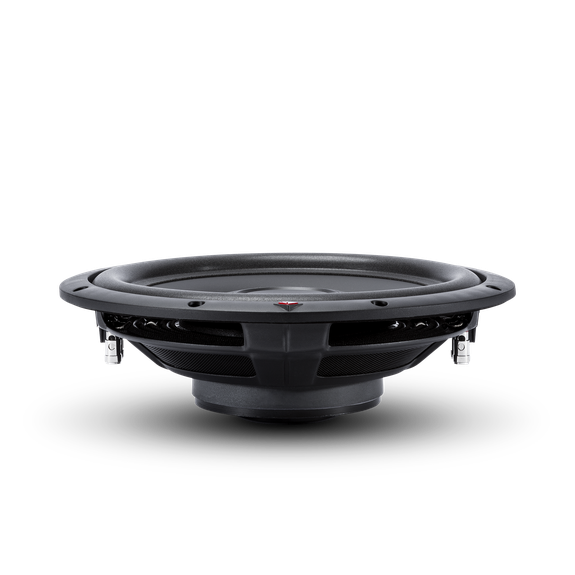

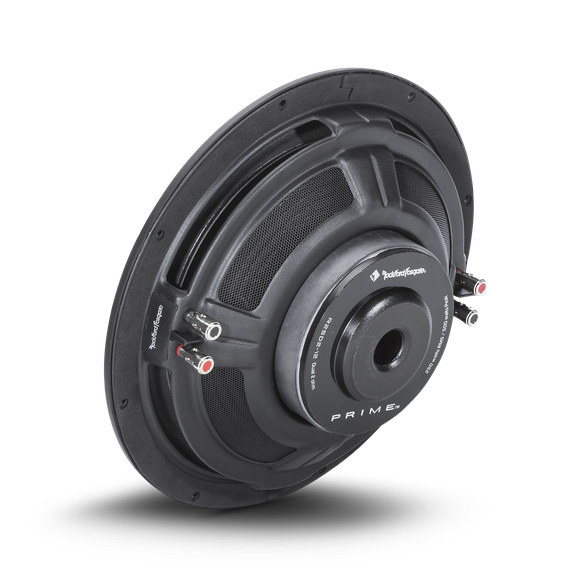

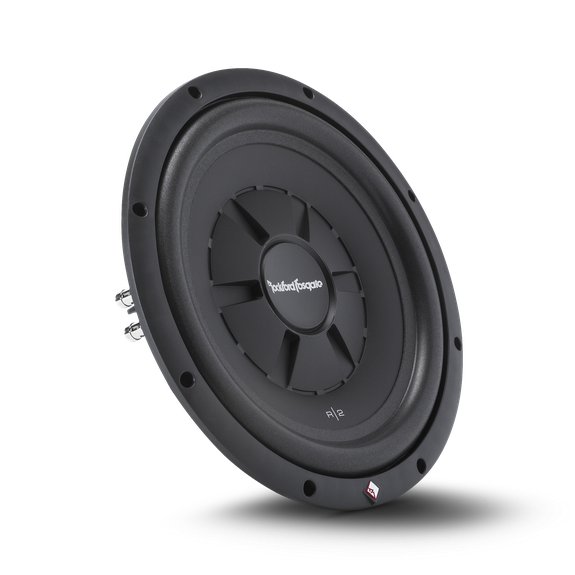

(R2SD4-12) PRIME 12" R2S 4-OHM DVC SHALLOW SUBWOOFER
When you have no space for bass, our Prime R2SD4-12 shallow subwoofer will satisfy your need. This 12” subwoofer handles 250 Watts RMS and the 4-Ohm Dual Voice Coil design lets you to wire them in various configurations.
When you have no space for bass, our R2 12" shallow subwoofer can help satisfy your need for low frequency music. These drivers can fit in tight spaces due to an elevated motor structure that reduces speaker depth. Mica injected polypropylene cones make sure bass notes are clean and accurate. Stamp-cast baskets feature spider venting typically reserved for traditional depth mounted models to keep the motor cool! These shallow subwoofers are optimized for sealed enclosures.
FEATURES:
- 12 AWG compression terminals
- Mica injected polypropylene cone
- Optimized for sealed enclosures
- Linear spider with embedded 16 AWG tinsel leads
- Anodized aluminum voice coil former
- StampCast basket with integrated spider venting
- Integrated PVC trim ring
- Shallow Motor Assembly
TECHNOLOGIES:
- CEA-2031: Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
- Anodized Aluminum Voice Coil Former: Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.
- Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
- Stitched Tinsel Leads: Improved reliability and performance by reducing fatigue and possible shorting.
SPECIFICATIONS:
- Nominal Impedance: Dual 4-Ohm
- Mounting Depth: 3.602 in. (91 mm)
- SPL (dB @ 1w/1m): 85
- CEA-2031 Compliant: Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
- Fs (Hz): 30.3
- Cutout Diameter: 11.25 in. (285 mm)
- Sd (cm2): 534.8
- Size: 12"
- Xmax (mm): 10
- Power Handling (Watts RMS):
- 250 Watts RMS
- 500 Watts Max
- Speaker Connector: Dual 12 AWG compression
- Voice Coil Diameter: 2" (50 mm)
- Shipping Weight: 12.013 Lbs. (5.44 kg.)
- Qts: 0.65
- Qms: 7.00
- Qes: 0.72
- Magnet Weight (oz): 51 oz. (1.45 kg.)
- Le (mH): 4.2
- Re (Ohms): 6.80
- Woofer Displacement: 0.039 cu. ft. (1.1 Liters)
- Vas (Liters): 65.4
- Subwoofer Type: Shallow
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 0.9 cu. ft. (25.4 Liters)
- Vented Box Volume (Vb): 1.79 cu. ft. (50.6 Liters)
