ROCKFORD FOSGATE R2-250X1

ROCKFORD FOSGATE

(R2-250X1) PRIME 250 WATT MONO AMPLIFIER

Primed for Performance, the R2-250X1 is a 250 watt, Class-D amplifier, capable of operating at 4Ω or 2Ω mono. This amplifier is extremely efficient because of its Class-D technology which reduces demand on the vehicles electrical system. The amp also features C.L.E.A.N. circuitry to help you adjust your gain settings, a P.O.W.E.R. supply that generates more power as voltage increases, and integrated Punch EQ that corrects for acoustic deficiencies while delivering up to 3X the bass. Perfect for subwoofers, a variable infrasonic filter and remote level control allows you to tune the bass for the desired level for the music.

The R2 models are developed for car audio fanatics that want a reliable amplifier – with all the power and performance you’ve come to expect from Rockford Fosgate – at an economical price. Rockford Fosgate amplifiers are renowned world-wide for being “under rated,” easily surpassing all specifications, and most importantly, generating more power than their ratings. These 3rd generation of Prime Series amplifiers are refined with the latest Rockford Fosgate technology for easy setup and configuration, making them perfect for use with factory audio or custom aftermarket systems.

FEATURES:

• Balanced Differential Inputs with RCA Pass Through Outputs
• Variable Input Gain adjustment level
• Auto-Sense bypass switch for vehicles with RAP (Retained Accessory Power)
• High Level Input Capable
• Features C.L.E.A.N. Set-up

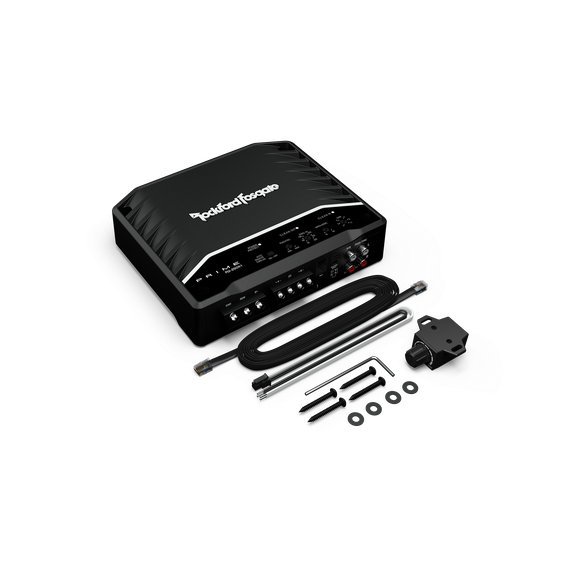

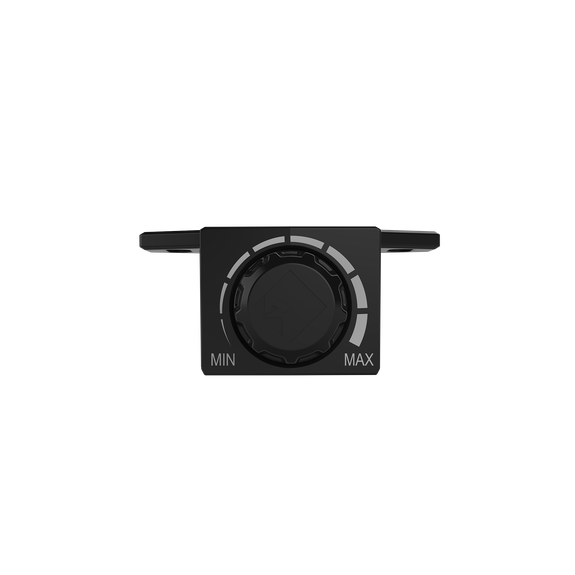

• Includes RLC remote Level Control

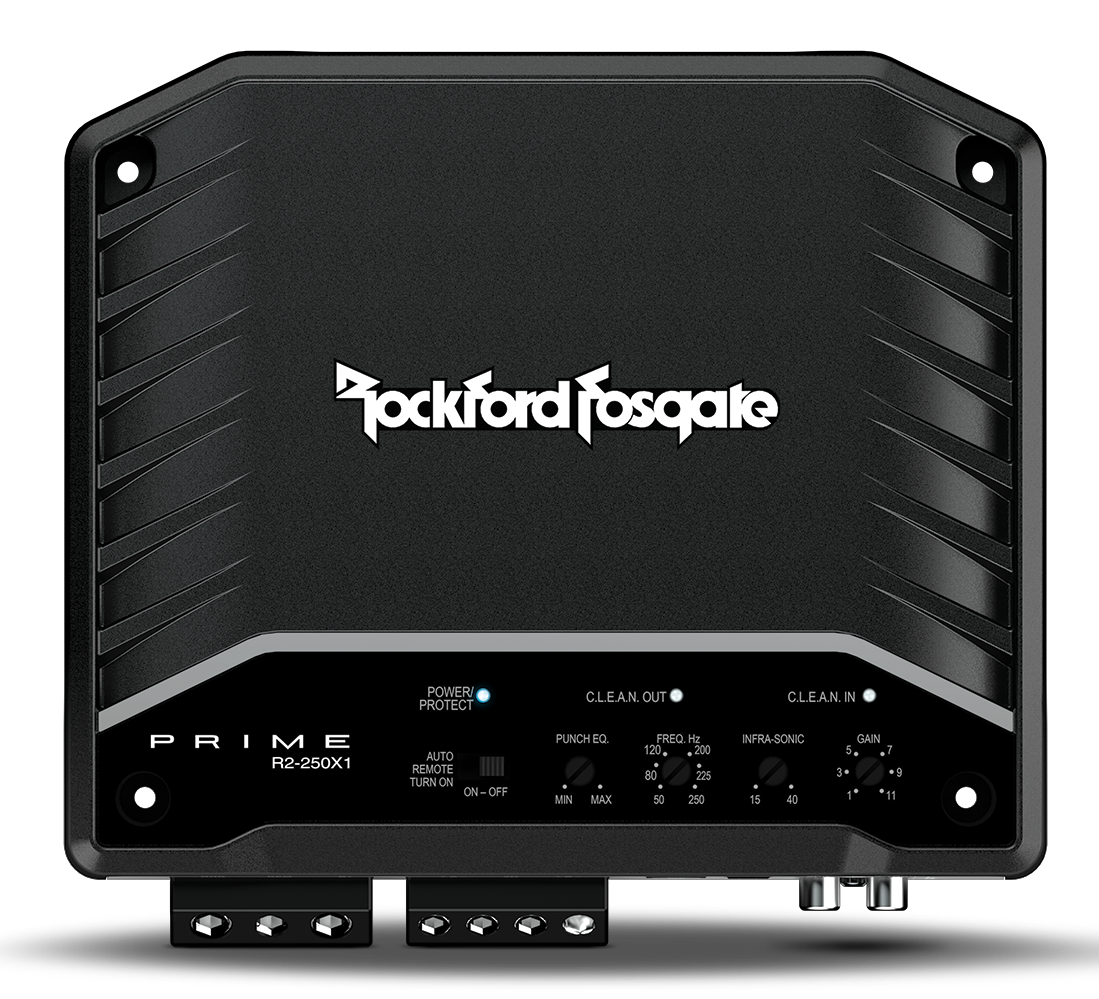

• Top Mounted Control Panel
• Variable Infrasonic Filter
• Continuously Variable On Board Punch EQ
• Short Circuit & Over Current Protection
• Cast aluminum heat sink
• CEA-2006 Compliant & CE Compliant
• Class-D Topology
• Rollback Protection
• Fully Adjustable 12 dB/octave High and Low pass Butterworth Crossovers

TECHNOLOGIES:

• CE Compliant:  This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
• CTA-2006 Compliant:  Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• P.O.W.E.R.:  Power supply circuit design that allows the amplifier to increase output power as voltage increases.
• Class-D:  High efficiency amplifier design that reduces current consumption from the charging system.
• Balanced Differential Inputs:  Differential inputs eliminate noise picked up by signal cables.
• MEHSA 4 (Maximum Efficiency Heat Sink Application):  MEHSA⁴ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
• NOMAD:  NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
• Rollback Protection:  During demanding musical conditions, the amplifier can dynamically reduce demand to prevent stress on the output devices.
• C.L.E.A.N. Set-Up:  C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
