ROCKFORD FOSGATE PS-8
- Description
ROCKFORD FOSGATE

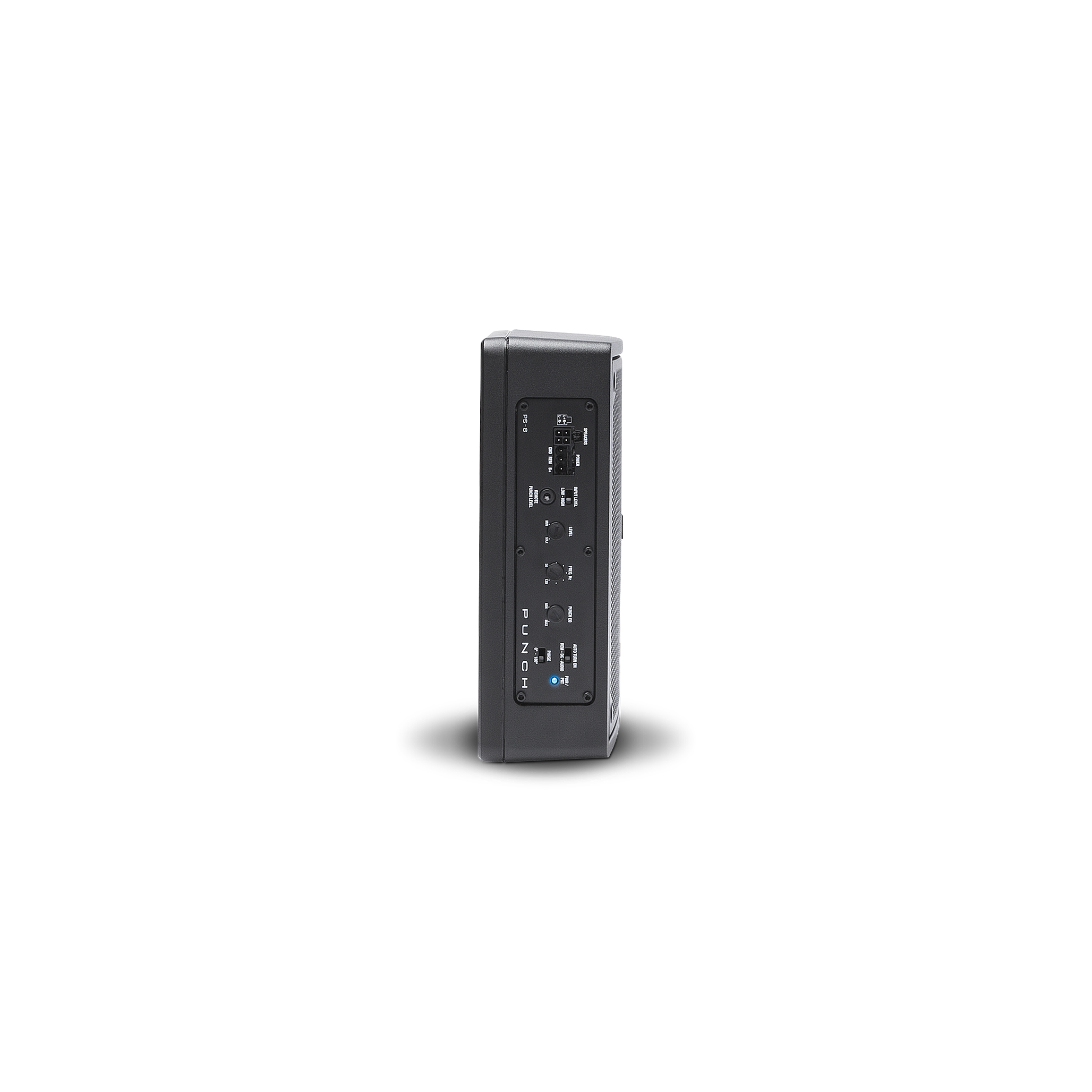

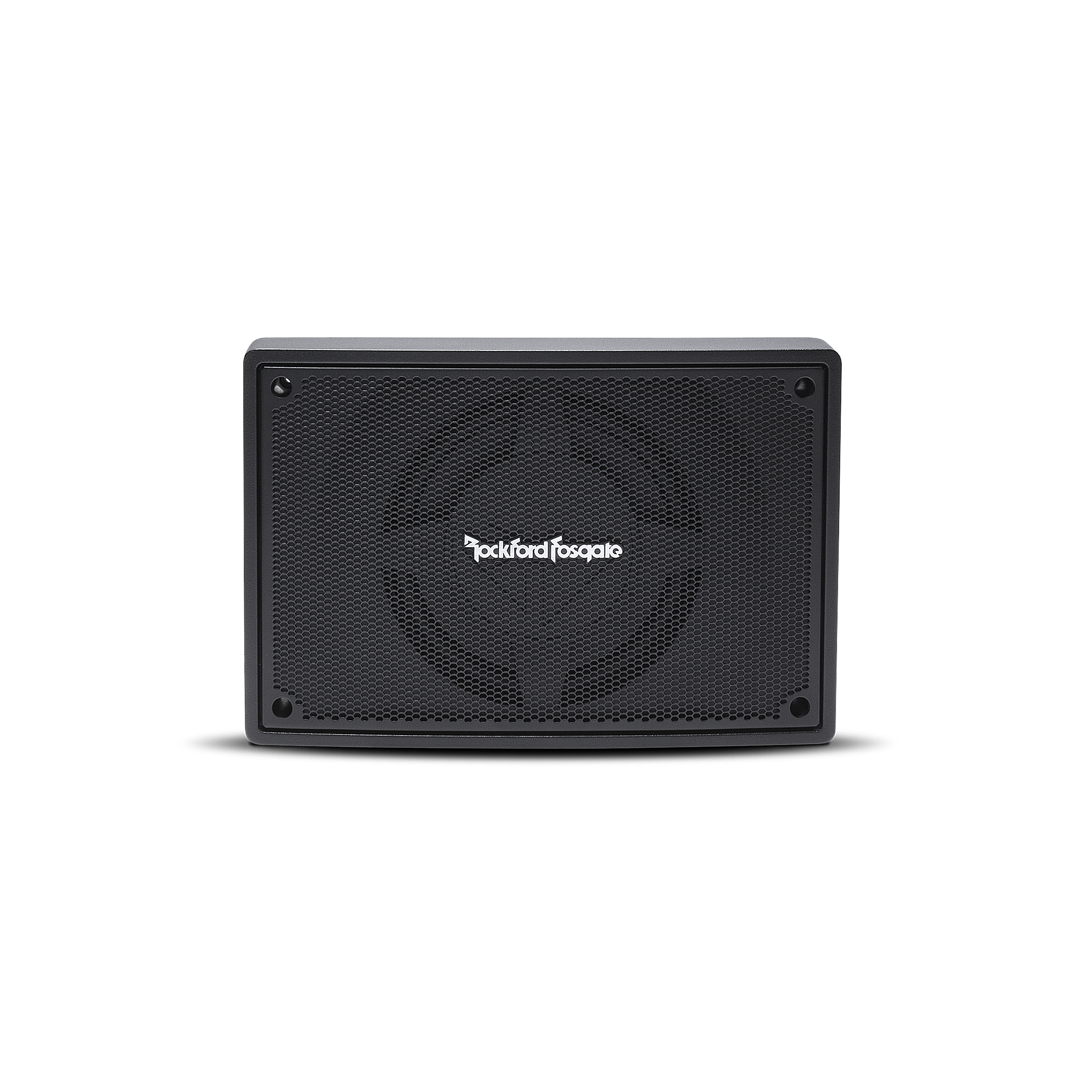

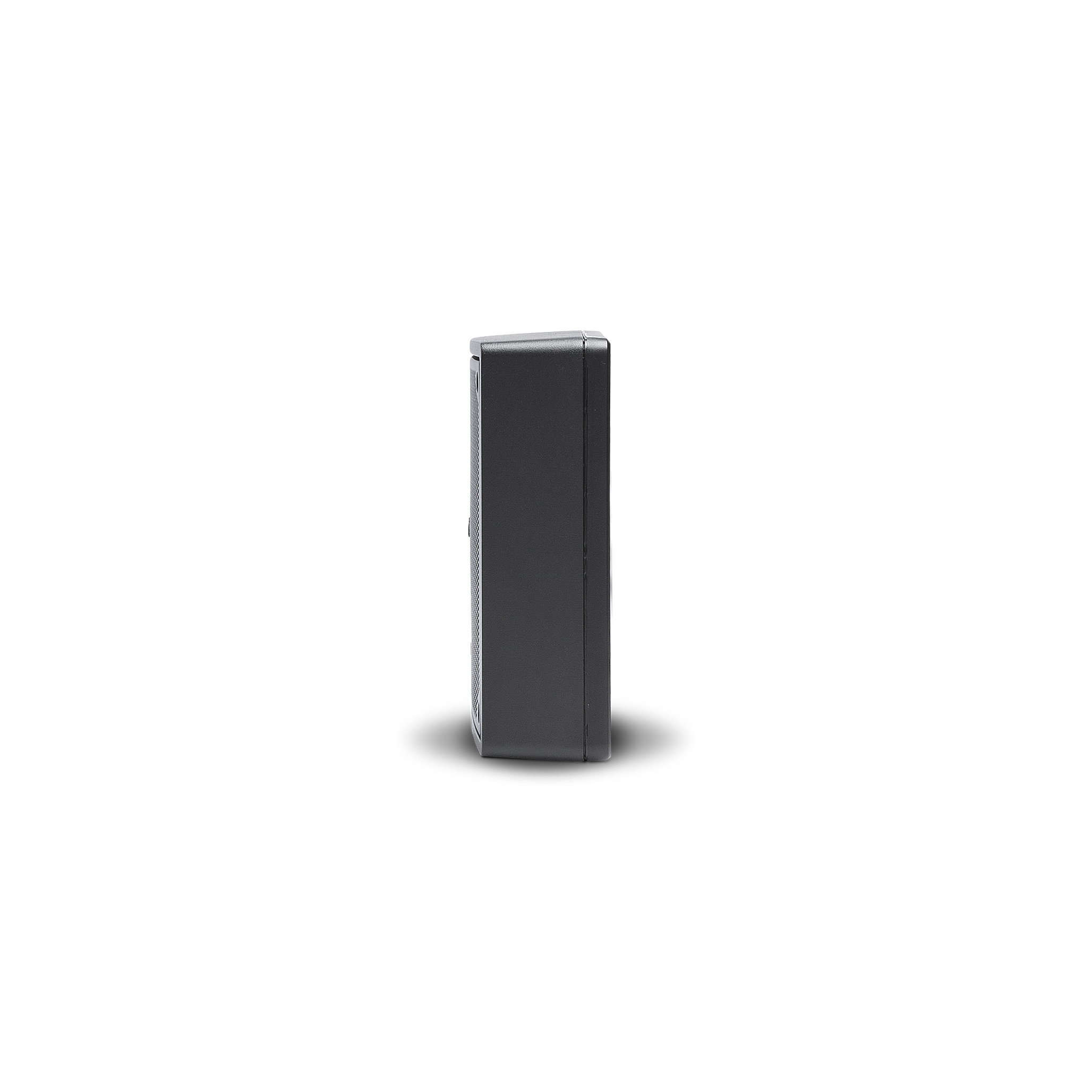

(PS-8) PUNCH SINGLE 8" AMPLIFIED LOADED ENCLOSURE
The Punch PS-8 is an self-contained amplified subwoofer system featuring a single Punch 8" driver in a sealed enclosure and a built-in 150 watt amplifier.
If you need to quickly add bass to a system but don't have much space or height to make it happen? Then the PS-8 is a perfect candidate! The PS-8 features a Punch 8” subwoofer in a custom sealed enclosure and is powered by a mighty 150 Watt amplifier. The system is all-inclusive, so you only need to run power, ground and a signal from the source to get this baby moving. Features a durable exterior that resists scrapes and bumps while in the trunk or cargo area.
FEATURES:
- "Closed-loop" design ensures optimum performance between woofer, amplifier and enclosure
- 150 Watt Class D Amplifier and 8" Shallow Woofer
- Built-in adjustable bass boost EQ
- Remote bass level control included
- Adjustable 12db/Octave low pass crossover
- Hi-level/low-level inputs
- Built-in 0°/180° phase switch
- Short circuit, thermal, and reverse polarity protection
- Remote/DC Offset/Signal Sense turn on select
- Quick disconnect power and signal connections
- Includes power, ground, and turn-on wires
- Includes mounting hardware
TECHNOLOGIES:
- CEA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards.
- CEA-2031: Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
- Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
SPECIFICATIONS:
- Enclosure Type: Amplified

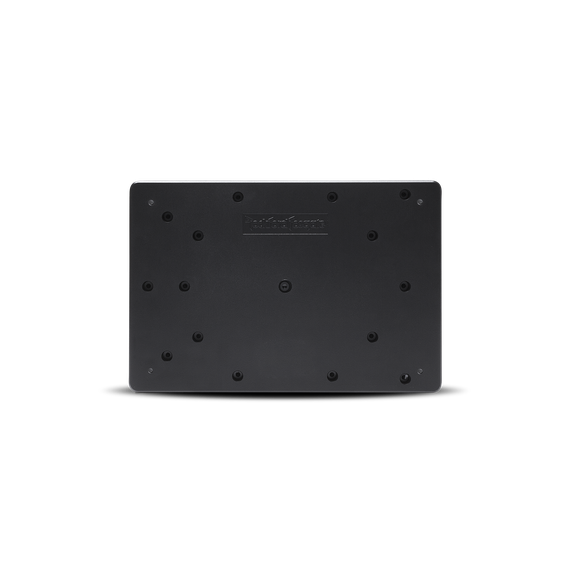

- Enclosure Material: Cast aluminum w/ ABS backplate
- Woofer Quantity: 1
- Woofer Series: Proprietary
- Woofer Size: 8"
- Nominal Impedance (ea): —
- Frequency Response: 25 Hz to 150 Hz
- Integrated Amplifier: 150 Watts RMS
- Power Handling (Watts RMS): 150 Watts RMS
- Speaker Connector: N/A

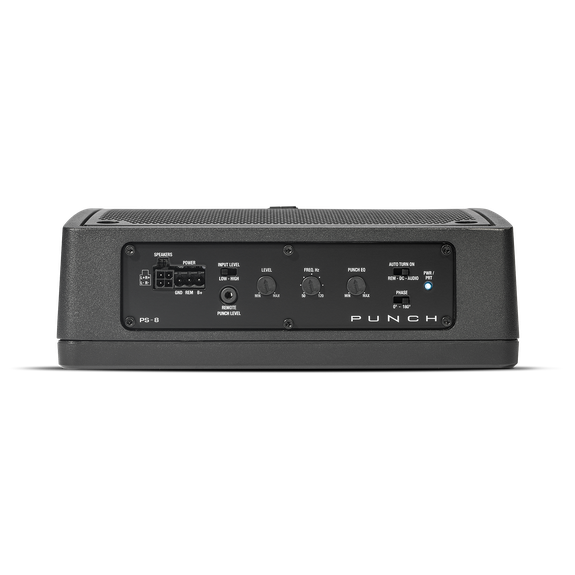

- Crossover Controls
- Variable 50 Hz to 120 Hz
- 12dB/Octave Butterworth
- Tone Controls: Gain & Bass Boost
- Signal Input
- Low-Level: 1 RCA Pair
- High-Level: Left/Right Summed Inputs
- Power Input Connector
- Removable Connector
- Power/Ground/Remote
- Replacement 1130-59232-01
- Remote Control: Included
- Power Wire Gauge: Included
- Visual Indicators: Power ; Protect
- Heat Sink Type: Cast Aluminum
- Cooling: Convection
- Circuit Topology Class: Class-D
- Shipping Weight:
- Dimensions:
- Box (H x W x D): 14.4 x 9.4 x 3.3 (in)
- Wedge (H x W x D1 x D2):36.5 x 23.8 x 8.3 (cm)
