ROCKFORD FOSGATE PMX-8DH
- Description
ROCKFORD FOSGATE
(PMX-8DH) PUNCH MARINE FULL FUNCTION WIRED 5" TFT DISPLAY HEAD

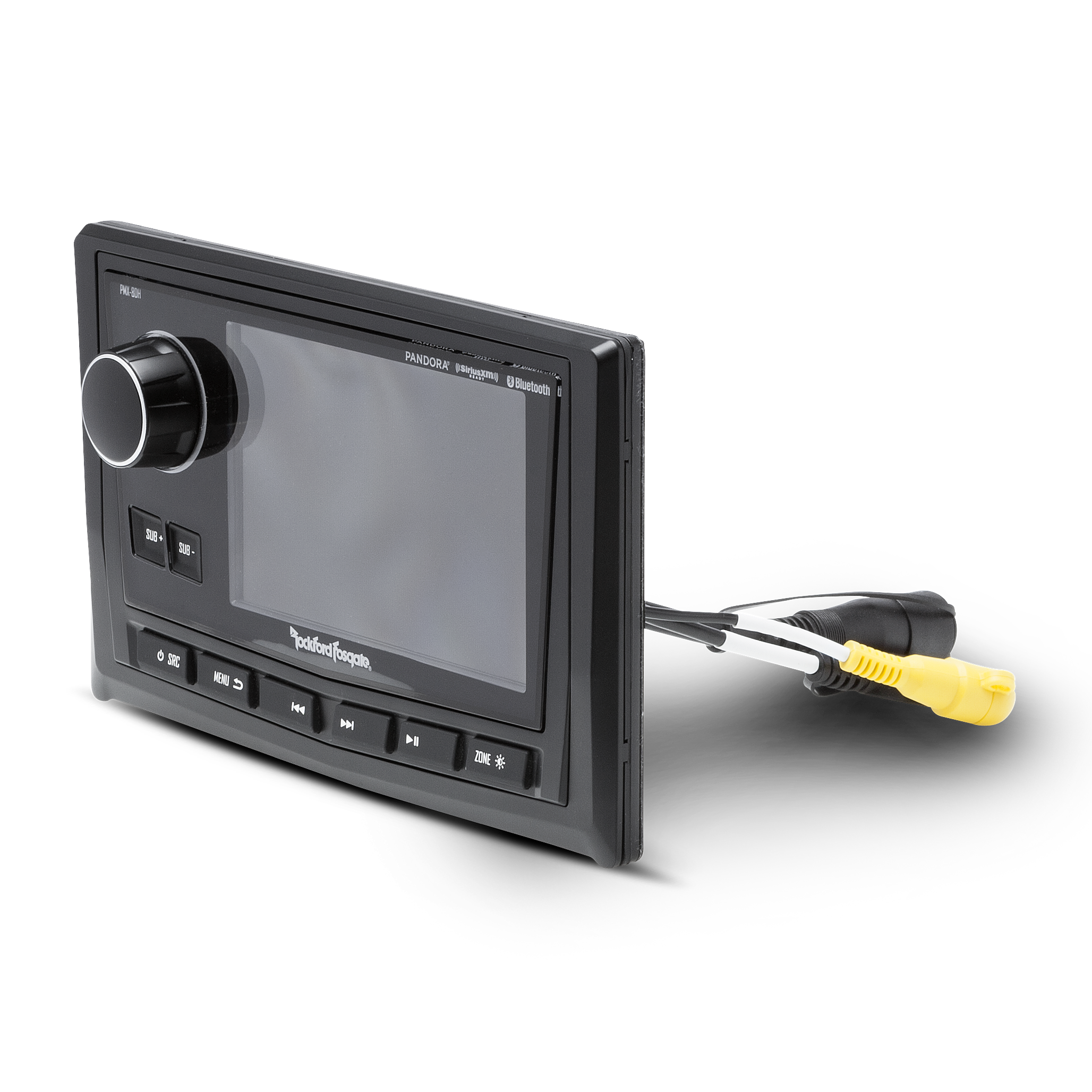

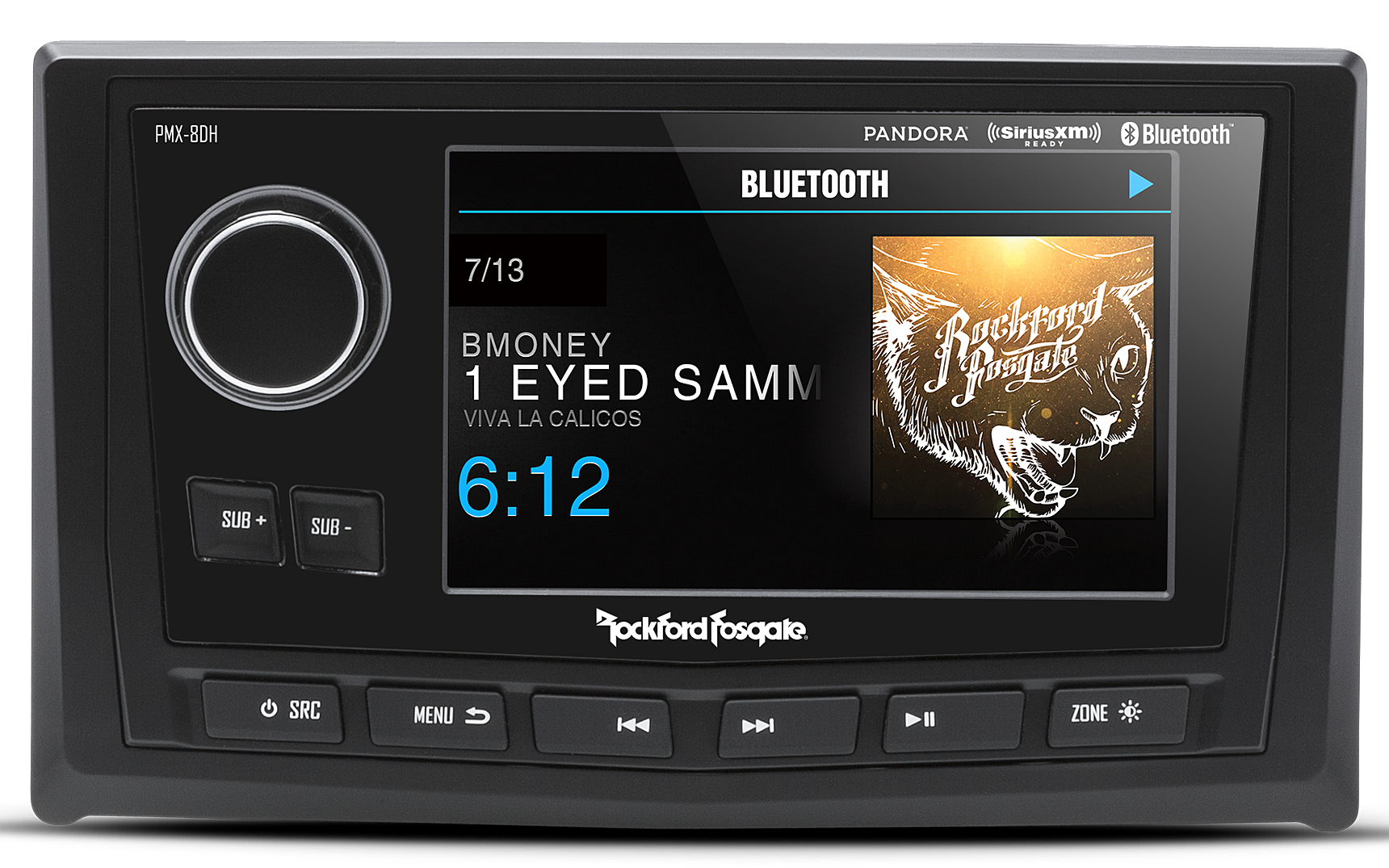

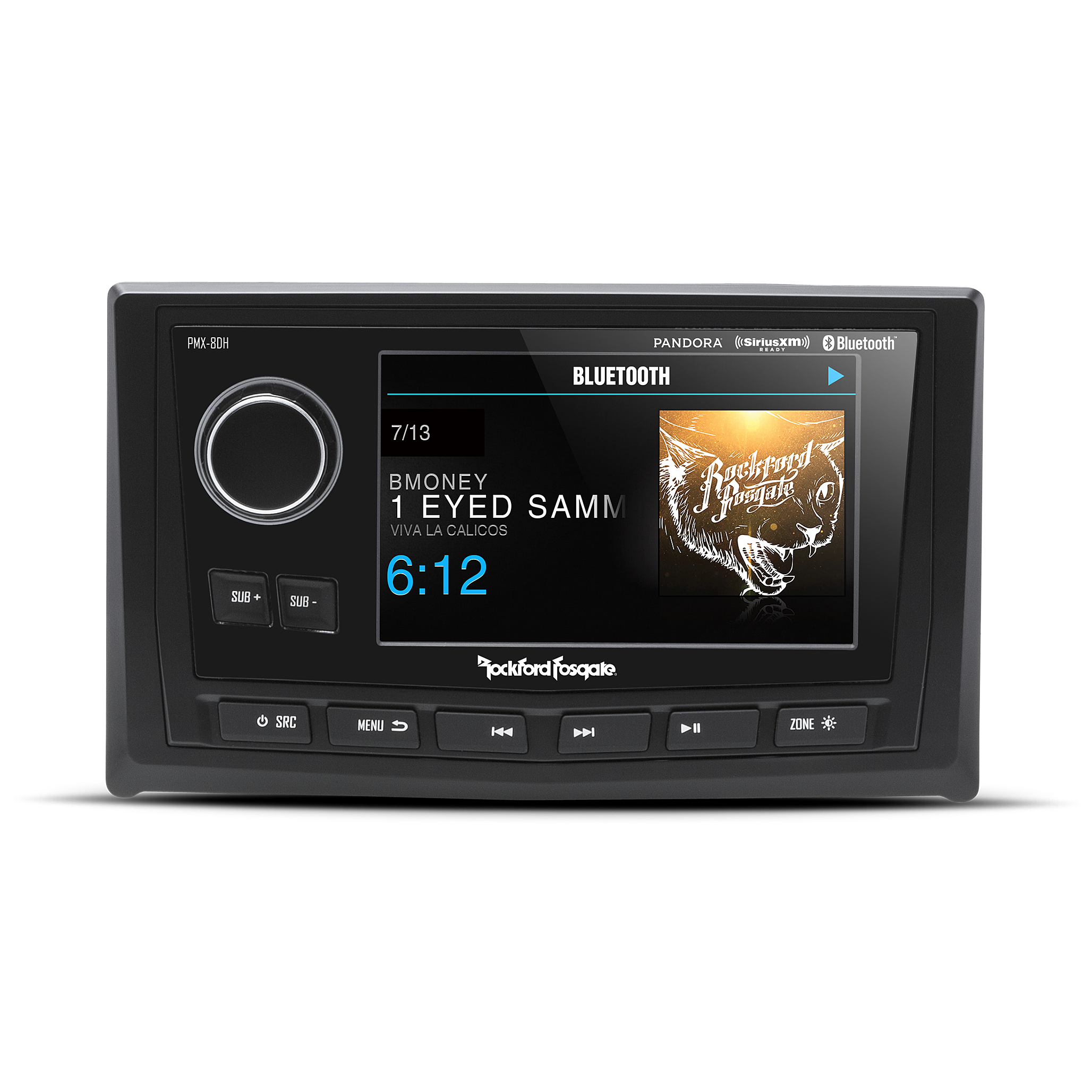

The PMX-8DH, used with the PMX-8BB hide away media receiver is a wired display head controller giving you access to all the receivers capabilities. It features a 5" ultra bright color TFT display for optimum viewing even in full sun that is optically wet bonded to prevent any dust or moisture penetration. It is IPX6 rated and uses a water resistant rotary encoder knob with white LED button illumination. Additionally it features front panel illumination and sub controls, composite video input as well as a conformal coated PCB for elemental protection.
Designed for use with the PMX-8BB, the PMX-8DH full function wired display head is the ultimate controller for your digital media system. The unit features a ultra bright 5" TFT display designed and chosen for its viewing ability even in full sunlight. The screen is optically wet bonded to the bezel to prevent any dust or moisture penetration ensuring it stays clean and clear.
Access to the Custom GUI interface is provided through the water resistant rotary encoder knob and white LED back-lit buttons allow you to easily adjust the illumination levels of the panel and provide instant sub level control at your fingertips. The display head also features a composite video input for video or camera systems and easy interconnection to the hide away unit with a multi-pin DIN connector.
The panel is IPX6 rated for water spray intrusion and features a conformal coated PCB circuit board protecting the vital electronics. We further validate the unit with 500 hours of testing under both the ASTM B117 and D4329 testing standards to make sure it will hold up under years of daily use exposed to the elements.
FEATURES:
- 5" Full color Thin Film Transistor display
- White LED button illumination
- Front Panel Sub Control
- Water resistant rotary encoder volume control
- Wet Bonded Faceplate: An epoxy layer between display and cover glass eliminates air gap to improve visual clarity and preventing dust build-up.
- Direct composite video input connection
- Epoxy coated circuit board for water resistance
- Two-piece mounting system to secure panel to mounting surface
- IPX6 Marine Grade for prevention of water intrusion
- American Society for Testing and Materials (ASTM): B117 Salt Fog Test Standard, D4329 UV Exposure of Plastics Test Standard
TECHNOLOGIES:
- Element Ready™ | Source Units: All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
- USB Playback: This source unit supports playback from a USB device.
- Pandora®: Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.
- Made for iPod/iPhone: This device supports the Apple "Made for iPod/iPhone" protocol.
- Built In Bluetooth®: Built In Bluetooth®
- SiriusXM-Ready®: This radio is ready to accept SiriusXM® programming.
- Made for Android: This device supports the Google "Made for Android" protocol.
- CANbus: CANbus allows communication with other devices.
SPECIFICATIONS:
- Speaker Impedance: No
- Speaker Outputs (Yes/No): No
- Power Output: No
- MEDIA PLAYER Audio Format Compatibility: No
- SPEAKER OUTPUTS: N/A
- Device Type: Digital-Media Display Head
- Display Size: 5” Color TFT
- Pandora® Internet Radio(Yes/No): Yes
- Bluetooth®(Yes/No): Yes; 3.0+EDR, A2DP 1.3
- USB Version: 2.0 (Firmware Updating Only)
- USB Output Current: 1A
- AUX Input(Yes/No): No
- Steering Wheel Control Ready(Yes/No): No
- FEATURES: N/A
- GENERAL: N/A
- Apple®/Android™ Compatible(Yes/No): No
- Operating Voltage: 10.5V - 16V
- Multi-Zone/Multi-Source(Yes/No): No
- Clock(Yes/No): No
- Video Input: (1) Female RCA Jack
- SiriusXM-Ready®(Yes/No): Yes; Requires SXV300
- USB Charging(Yes/No): Yes
- Included In The Box:
- (1) PMX-8DH display head
- (1) PMX10C
- Dimensions (HxWxD)
- H5.1" x W8.3" x D0.8"
- (130mm x 211mm x 20mm)
