ROCKFORD FOSGATE PMX-8BB
- Description
ROCKFORD FOSGATE

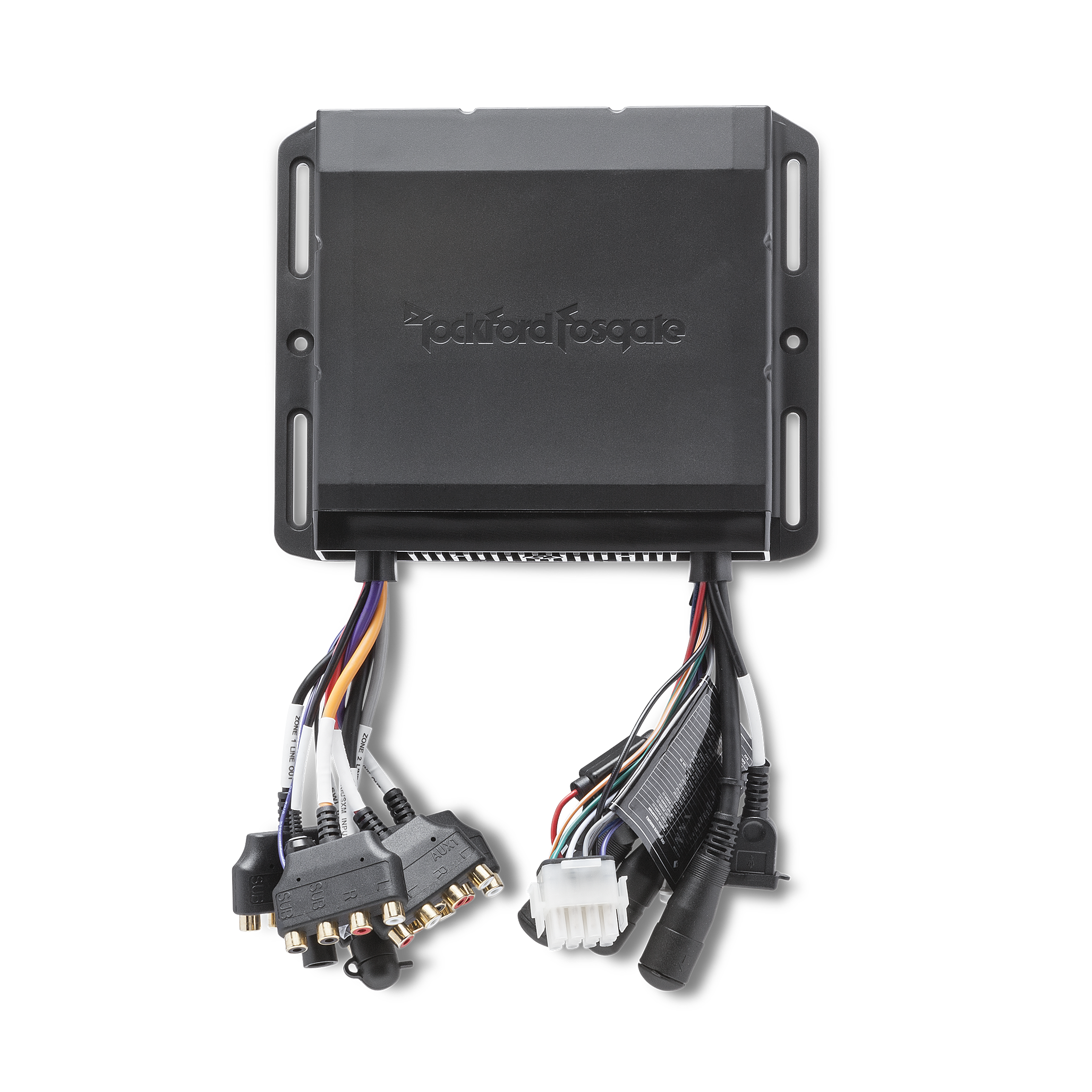

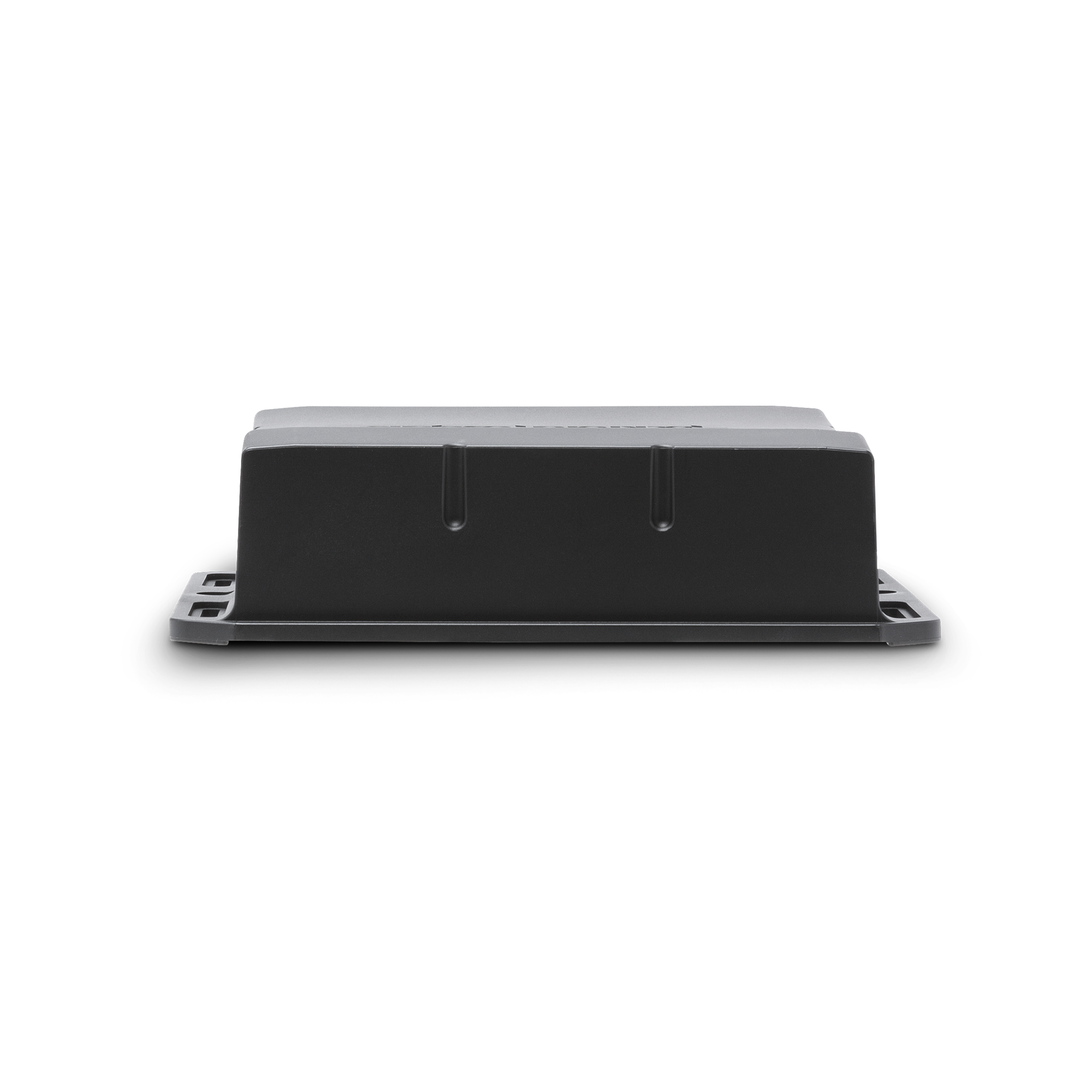

(PMX-8BB) PUNCH MARINE HIDE-AWAY AM/FM/WP MULTI-ZONE DIGITAL MEDIA RECEIVER
The PMX-8BB is a hide-away digital media receiver black box designed for use with the PMX-8DH controller. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using PMX-CAN.
Global AM/FM/WB Tuner, SiriusXM Ready, Full iOS/Andriod, Made for iPod, Dual USB Input w/ Video Playback, BLUETOOTH avrcp 1.5, 2-Source Zone Control, 4-Zone Volume Control, 6 Channel F/R/S 4V Zone 1&2 Preouts, 2 Channel Zone 3&4 4V Preouts, 7-Band Graphic Equalizer, Punch EQ, A/V Input, Video Output, CAN Ready, EEPROM Non-Volatile Memory,Wired Illumination Control, Steering Wheel Control Ready. Features CANbus functionality for connection to Raymarine MFD (Multi-Function Display) systems using the PMX-CAN adaptor (see Accessories tab.)
FEATURES:
- Automotive grade AM/FM Radio, Weatherband Radio digital tuner. Supports Radio Data System (RDS) to receive and display broadcast information
- Bluetooth, A2DP only, AVRCP 1.4
- Made for iPhone apple certified
- Licensed Pandora control (apple direct USB or BT/ android via bluetooth)
- Simple secure pairing bluetooth profile for android & iOS
- Display album art from connected iPhones on the radios display
- 4 sets (Zones) RCA out; 4 active with 4 channels per zone (2 full range + 2 sub) 4V signal output
- Folder browsing via BT connected iPhones
- Internal power amplifier 4x50w 2 ohm stable
- Selectable crossover slopes of 12dB or 24 dB for each independant zone
- Selectable high pass and low pass crossover points for each independent zone
- Dedicated DSP audio processors for each zone with independent 7 Band EQ+Punch EQ
- Adjustable input gain for each source
- Electrically Erasable Programmable Read-Only Memory (EEPROM) is a type of non-volatile memory used in electronic devices to store data that must be saved when power is removed
- Integrated voltage gauge w/ low voltage alert
- Wired remote ready (up to 3 remotes)
- Rear aux-in (L/R)
- External steering wheel remote control interface compatible
- External trigger input to activate reverse camera mode
- Wired illumination control
- Optional CAN-BUS transceiver ready (PMX-CAN)
- Rear USB with 1a charging (supports album art on USB connected iPhones)
- Epoxy coated circuit board
- Upgradeable Firmware and Bluetooth Software via USB
- IPX5 Water Intrusion Rating: Water projected from nozzles from any direction shall have no harmful effects.
- CANbus (Controller Area Network) compatible. Requires PMX-CAN accessory
- Compatible with a Multi-Function Display using NMEA2K entertainment standard. See our MFD Compatibility Chart
- *Antenna not included
TECHNOLOGIES:
- Element Ready™ | Source Units: All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.
- USB Playback: This source unit supports playback from a USB device.
- Pandora®: Pandora® (also known as Pandora Internet Radio) is a music streaming and automated music recommendation service.
- Made for iPod/iPhone: This device supports the Apple "Made for iPod/iPhone" protocol.
- Built In Bluetooth®: Built In Bluetooth®
- SiriusXM-Ready®: This radio is ready to accept SiriusXM® programming.
- Made for Android: This device supports the Google "Made for Android" protocol.
- CANbus: CANbus allows communication with other devices.
- FLAC: The Free Lossless Audio Codec is an audio format similar to MP3, but lossless, meaning that audio is compressed in FLAC without any loss in quality.
SPECIFICATIONS:
- Display Size: N/A
- Device Type: Digital-Media Black Box
- Frequency Response: 20 Hz - 20 kHz
- General: N/A
- Operating Voltage: 10.5V - 16V
- Remote Capacity: (see Compatibility Chart)
- Fuse Rating: 15A
- Speaker Outouts: YES
- Power Output:
- CEA-2006 Power Rating
- 25W x 4 @ 4Ω RMS
- ≤1.0% THD+N
- Speaker Impedance: 2-Ohms
- Features: N/A
- Clock (Yes/No): No
- Speaker Outputs (Yes/No): Yes
- Bluetooth® (Yes/No): Yes 3.0+EDR, A2DP 1.3
- SiriusXM-Ready® (Yes/No): Yes Requires SXV300
- Multi-Zone/Multi-Source (Yes/No): Yes
- Steering Wheel Control Ready (Yes/No): Yes
- Pandora® Internet Radio (Yes/No): Yes
- Apple®/Android™ Compatible (Yes/No): Yes
- AUX Input (Yes/No): Yes
- USB Charging (Yes/No): Yes
- TUNER: N/A
- TUNER Number Of Presets: 18 FM / 12 AM / 6 WB
- FM TUNER Frequency Range: 87.5 MHz - 107.9 MHz
- AM TUNER Frequency Range: 530 kHz - 1710 kHz
- WB TUNER Frequency Range: 162.40 - 162.55 (US & Canada)
- MEDIA PLAYER Audio Format Compatibility: MP3, WMA, FLAC
- USB Version: 2.0
- MEDIA PLAYER: N/A
- USB Capacity
- 32Gb max
- 999 Folders max
- 999 Songs max
- USB Output Current: 1A
- Android Compatibility: Bluetooth® Only
- RCA OUTPUTS: N/A
- RCA Output Voltage: 4V
- RCA Output Impedance: 500Ω
- Dimensions (HxWxD)
- H4.25" x W8.3" x D2.2"
- (108mm x 211mm x 56mm)
- Made for iPod Models
- iPod Touch (5th generation)
- iPod Touch (4th generation)
- iPod Nano (7th generation)
- iPod Nano (6th generation)
-
Made for iPhone ModelsiPhone XS (pending)
- iPhone XS Max
- iPhone XR (pending)
- iPhone X
- iPhone 8
- iPhone 8 Plus
- iPhone 7
- iPhone 7 Plus
- iPhone 6s
- iPhone 6s Plus
- iPhone 6
- iPhone 6 Plus
- iPhone 5S
- iPhone 5C
- iPhone 5
- iPhone 4
- iPhone 4S
- Phone 3GS
