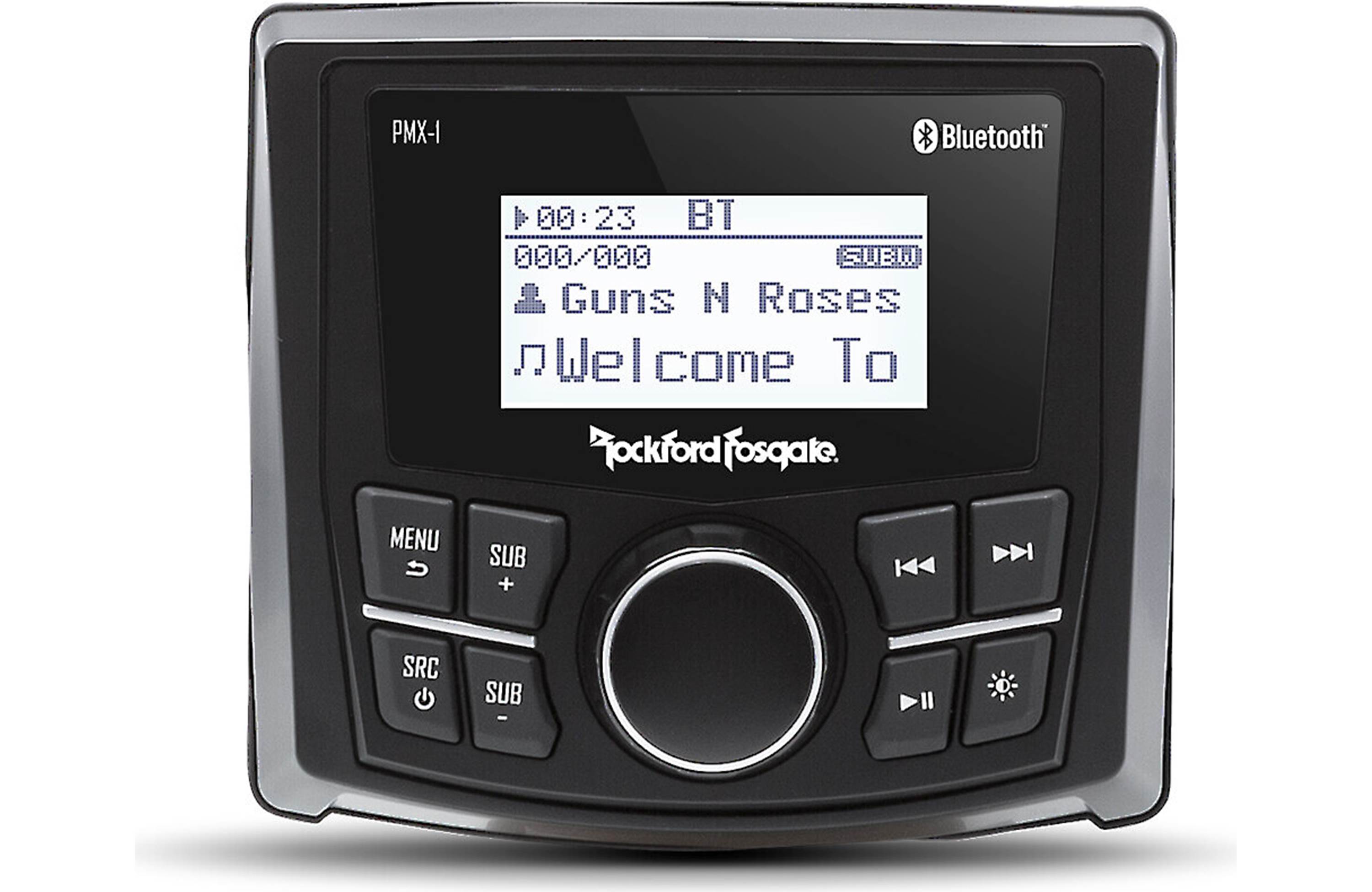

ROCKFORD FOSGATE PMX-1R

ROCKFORD FOSGATE

(PMX-1) MARINE DIGITAL MEDIA RECEIVER WITH BLUETOOTH® (DOES NOT PLAY CDS)

EASY TO USE, EASY TO READ

You don't need a full-sized receiver to enjoy a full suite of features on your boat or ATV. Rockford Fosgate's PMX-1 digital media receiver gives you lots of entertainment options in a remarkably compact package that fits into a standard 3" gauge opening and is designed for marine and outdoor use.

BUILT-IN BLUETOOTH AND MORE

The PMX-1 offers all the functionality you'd expect from a digital media receiver, including built-in Bluetooth connectivity. Keep up with the changing weather or the big game on the AM/FM/Weather Band radio or connect your music player, or thumb drive to the USB input. This receiver works with Apple® or Android™ smartphones to let you enjoy downloaded music via Bluetooth, and the 2.3" dot-matrix display is easy to read, even in bright sunlight.

BUILT TOUGH FOR OUTDOOR USE

This Element Ready™ receiver is made for marine and off-road use, with a durable front panel that stands up to moisture, dust, and broiling sunlight. Backlit control buttons make it easy to choose the right tunes for a midnight cruise. The PMX-1 is perfect for smaller boats and any dash panel where space is tight.

Bluetooth note: Use of this receiver's Bluetooth features will depend upon your phone's Bluetooth capabilities. Learn more in our article explaining Bluetooth profiles.

iPod/smartphone note: If you're going to use your iPod or smartphone with this receiver, be sure to check "Details" for compatibility information.

GENERAL FEATURES:

• Marine digital media receiver with AM/FM/WB tuner (Does Not Play CDs)
• Built-in amplifier (25 watts RMS CTA-2006/50 peak x 4 channels)
• Built-in Bluetooth for music streaming (will not make calls)
• 2.3" Dot matrix display
• Fits into a standard 3" gauge opening

Audio Features:

• Plays MP3/WMA/AAC/DRM files
• Global AM/FM/Weather tuner
• 7-Band graphic equalizer

Expandability:

• Inputs: rear USB port, rear aux input (RCA)
• Outputs: 4-channel preamp outputs (4-volt front and selectable rear/sub)
• Compatible with optional wired remotes

Other Features and Specs:

• IPX-6 Front panel for excellent water resistance
  • Scratch-resistant display with tempered glass screen
  • Element Ready design for protection against water, dust, and UV rays
• Backlit LED buttons
• Compact chassis
• Frequency response: 20-20,000 Hz
• Dimensions: 4-1/2"W x 4-1/4"H x 2-15/16"D
• Cutout diameter: 2.975"
• Warranty: 2 years

FEATURES & SPECIFICATIONS

Expandability

• AUX Input:  RCA (rear)
• Audio/video Input:  ---
• USB Input:  Rear
• USB Port Power:  1A
• Backup Camera Input:  No
• Second Camera Input:  No
• CarPlay:  No
• Android Auto:  No
• Siri Control:  No
• Alexa Voice Control: N
• Android Control:  Yes
• Memory Card Slot:  USB memory
• Bluetooth Compatible:  Built-in
• Satellite Radio Ready:  No
• HD Radio:  No
• Navigation:  ---

iPod Compatibility

• Full size:  No
• Nano:  No
• Touch:  No
• iPhone:  No

General

• RMS Power (CTA-2006):  25 watts
• RMS Power (Manufacturer):  ---
• Peak Output:  50 watts
• RMS Power Bandwidth:  20-20kHz
• Preamp Outputs:  4-channel
• Sub Preamp Outputs:  No
• Switchable Rear Preamp Outputs:  Yes
• Video Screen:  No
• Navigation App Compatible (iOS)
• Navigation App Compatible (Android)
• Preamp Voltage:  4 volts
• Screen Size:  0
• Display Color:  White
• Key Button Color:  White
• EQ Bands:  7
• Wireless Remote:  No
• Steering Wheel Control Compatible:  No
• Parts Warranty:  2 Years
• Labor Warranty:  2 Years

Tuner

• FM Sensitivity:  ---
• European Tuning:  Yes
• Seek/Scan:  Seek
• Radio Data System:  No

File Playback

• Music File Playback:  MP3, WMA
• High-res Playback:  N
• Second Camera Input Lane Watch:  N
