ROCKFORD FOSGATE P500X2
- Description
ROCKFORD FOSGATE

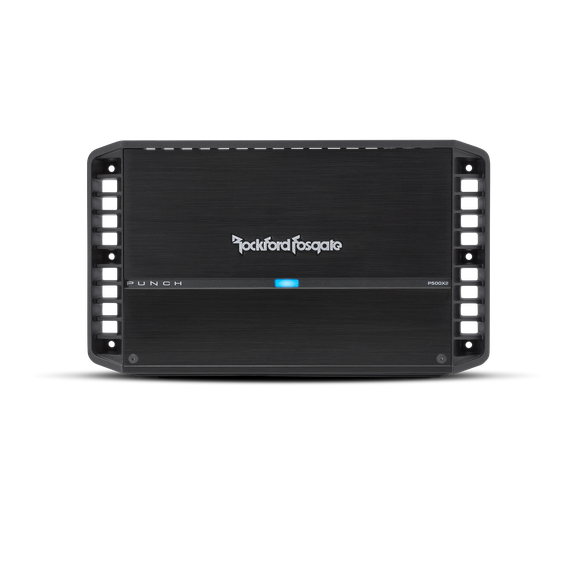

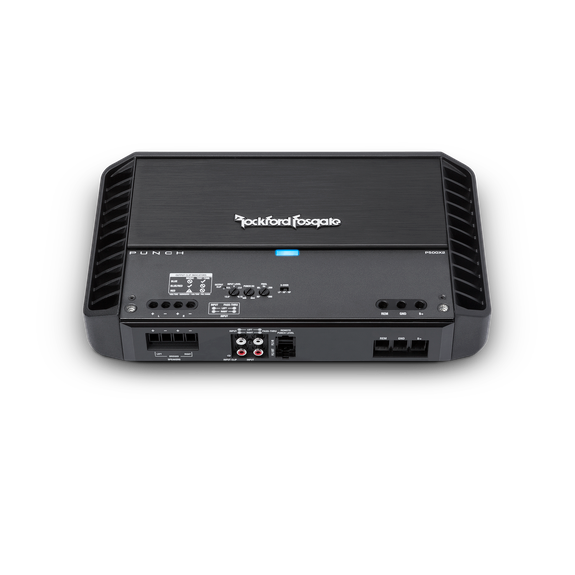

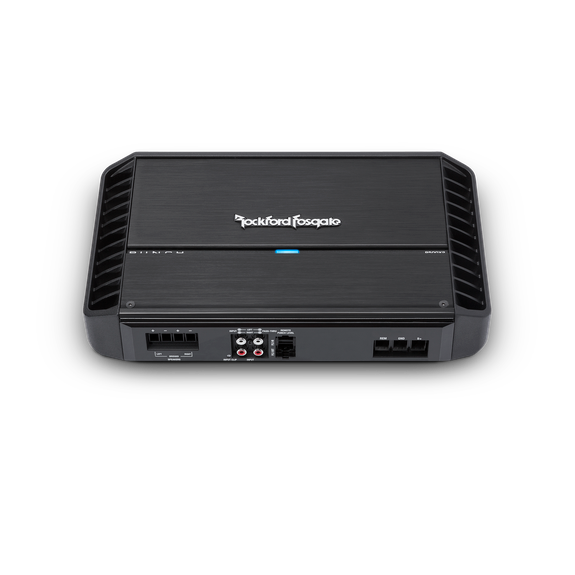

(P500X2) PUNCH 500 WATT 2-CHANNEL AMPLIFIER
The Punch P500X2 is a 2-channel stereo amplifier capable of producing 250 Watts into each channel at 2-Ohms. The P500X2 amplifier is great with full-range or component systems or can be bridged for use with several subwoofers.
The P500X2 is an excellent way to PUNCH up your sound system without monopolizing your entire trunk - that way you have more room for subs! With its massive output stage, this amplifier is best suited for driving a pair of 8-ohm SVC subwoofers or four 2-ohm DVC subwoofers. Remember to utilize the recommended power and speaker cables to optimize power delivery.
FEATURES:
- High level input capable with Auto Turn-On circuit
- RCA pass-thru outputs
- 12dB/octave Butterworth crossover
- Features C.L.E.A.N. Set-up
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- On-board Punch EQ with +18dB boost @ 45Hz
- Cast aluminum heatsink
- Muted turn on

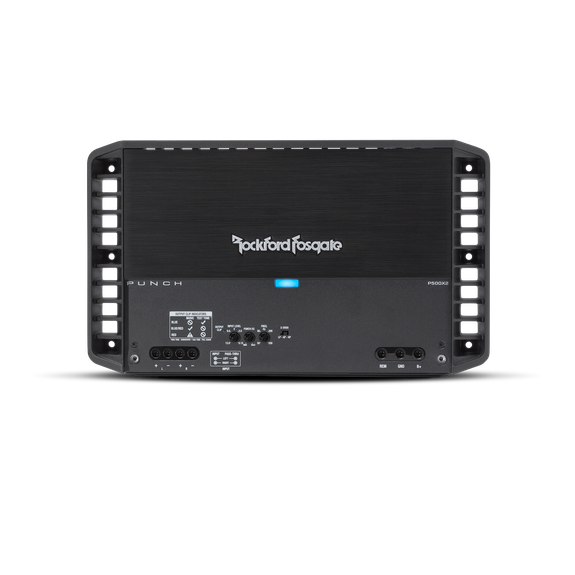

- Stealth top mounted control panel
- Short circuit protection
- Over current protection
TECHNOLOGIES:
- CE Compliant: This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
- CTA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
- TRANS•ana: Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
- Balanced Differential Inputs: Differential inputs eliminate noise picked up by signal cables.
- DTM: Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
- DSM: DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
- MEHSA3: MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
- NOMAD: NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
- Engineered In The USA: These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
- C.L.E.A.N. Set-Up: C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
SPECIFICATIONS:
- Cta-2006 Compliant: -
- Number of Channels: 2
- Total Power (Sum of Rated Power): 500 Watts
- Rated Power (RMS Continuous Power)
- 150 Watts x 2 @ 4-Ohm
- 250 Watts x 2 @ 2-Ohm
- 500 Watts x 1 @ 4-Ohm Bridged
- Dynamic Power (PVC/PowerCube®)
- 223 Watts x 2 @ 4-Ohms 0° Res
- 365 Watts x 2 @ 2-Ohms 0° Res
- Bridgeable: Yes
- Frequency Response: 20Hz to 20kHz +/- 1.0dB
- Input Sensitivity: 150 mV - 12 V
- Circuit Topology Class: Class A/B
- Efficiency (average): 73% @ 4-Ohm
- Total Harmonic Distortion (THD+Noise)
- 4-Ohm: <1.0%
- 2-Ohm: <1.0%
- Signal Input: Hi/Low level: 1 RCA pair
- Signal Output: Low level: 1 RCA pair
- Tone Controls
- Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
- Punch EQ2 Treble: 0dB to +12dB @ 12kHz
- Function depends upon LP/AP/HP switch position
- Crossover Controls
- High-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
- Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
- All-Pass: Yes
- Remote Controls: Optional Punch Level Control (PLC2) Ready
- Visual Indicators
- Power/Protect/Thermal LED
- Input Clip LED3
- Output Clip LED1,2,3
- LED Color Legend:
- 1BLUE: <0.5% THD
- 2VIOLET: 1% THD
- 3RED: 10%+ THD
- Power Wire Gauge: 4 AWG
- Power Input Connector: Captive C-Clamp
- Speaker Wire Gauge: 8 AWG to 18 AWG
- Speaker Output Connector: Captive C-Clamp
- Cooling: Convection
- Heatsink: -
- Operating Voltage: 9 - 16 VDC
- Recommended Fuse (not included): 80 A
- Average Current Draw (13.8V Music): 40 A
- Max. Current Draw (13.8V Sinewave): 80 A
- Suggested Alternator: 75 A
- Included In The Box:
- Dimensions (H x W x D): 2.38 x 7.76 x 13.28 (in) 6.05 x 19.71 x 33.73 (cm)
- Shipping Weight: 12.3 Lbs. (5.57 Kg.)
