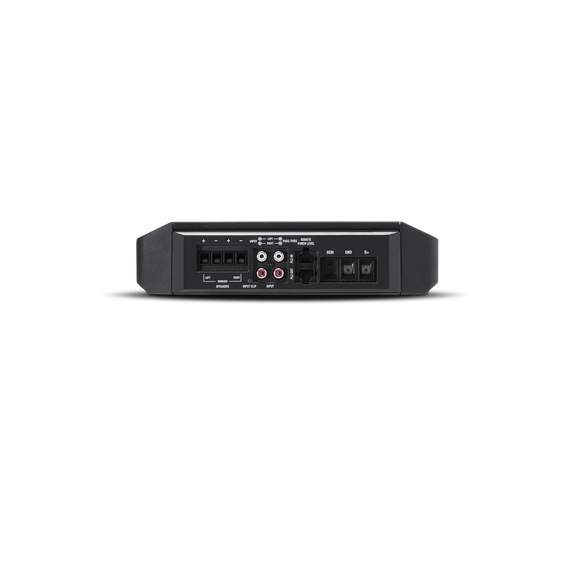

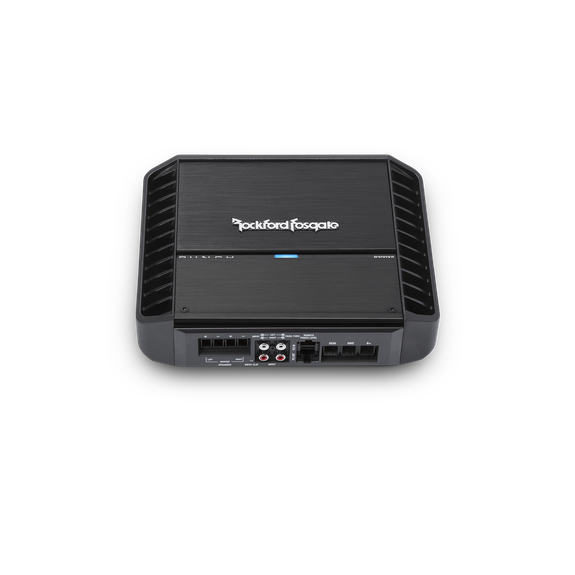

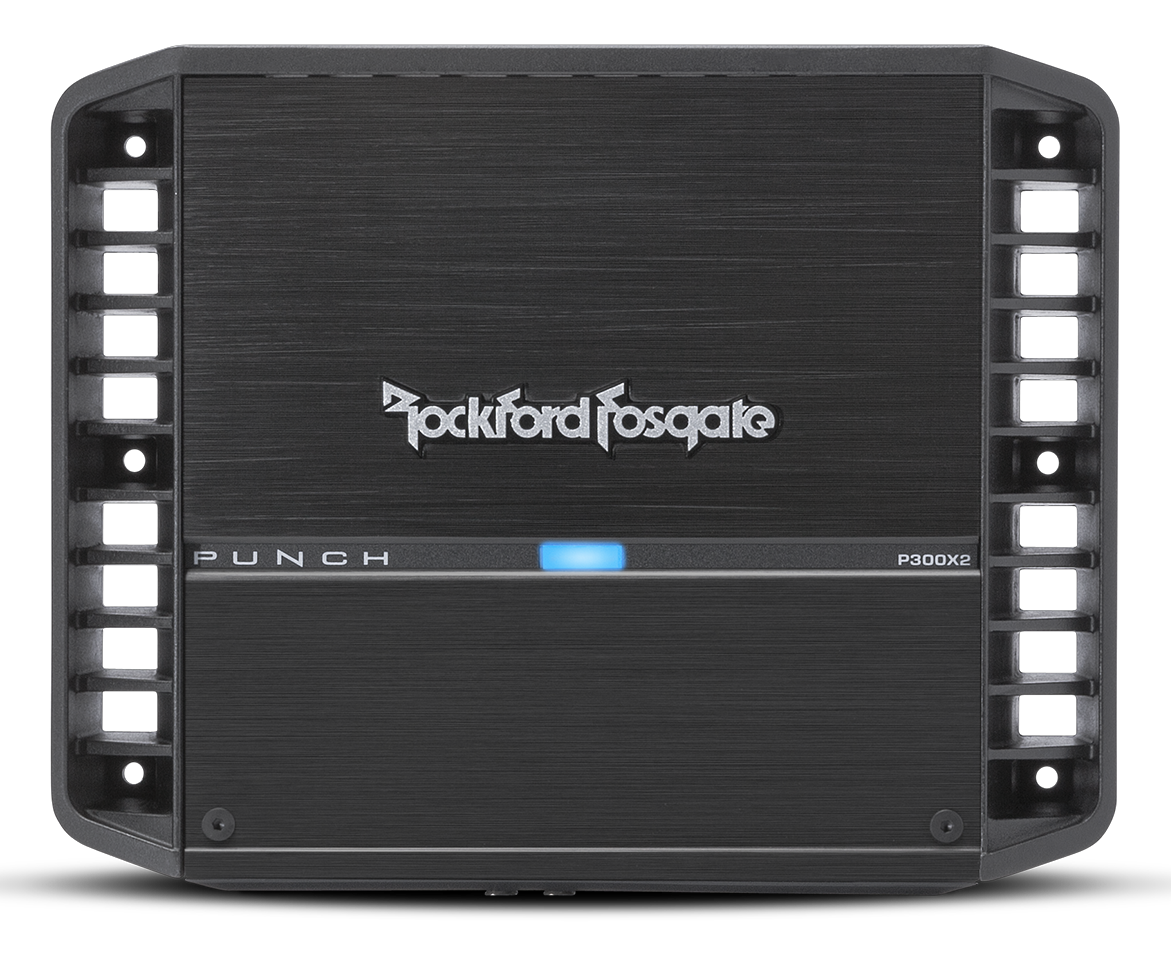

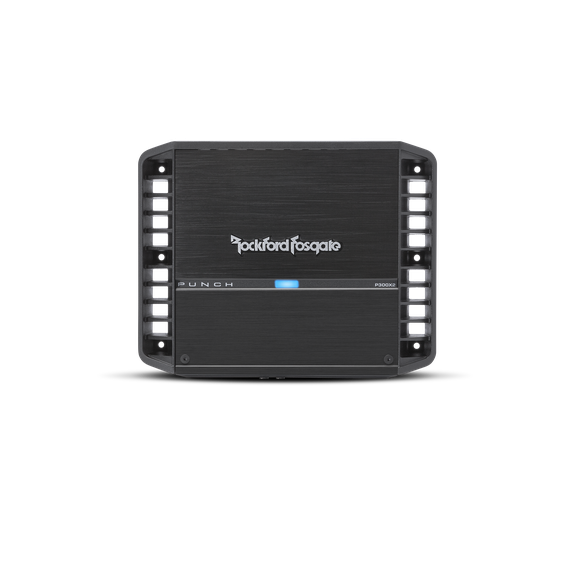

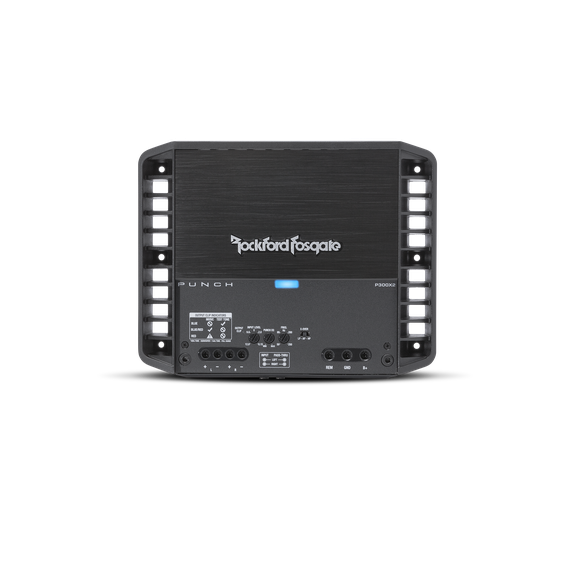

ROCKFORD FOSGATE P300X2

$249.99
  • Description

ROCKFORD FOSGATE

(P300X2) PUNCH 300 WATT 2-CHANNEL AMPLIFIER

The Punch P300X2 is a 2-channel stereo amplifier capable of producing 150 Watts into each channel at 2-Ohms. The P300X2 amplifier is great with full-range or component systems and can be bridged for use with smaller subwoofers.

The P300X2 is a solid choice if you're looking to drive a pair of coaxial speakers, component speakers, or a single subwoofer. The amplifier can also be run in stereo/mono mode simultaneously when using passive crossovers (not supplied) on all speakers. With proven PUNCH technology, the P300X2 delivers real Rockford Fosgate power from a small design and is flexible to accommodate any moderately sized system.

FEATURES:
  • High level input capable with Auto Turn-On circuit
  • 12dB/octave Butterworth crossover
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • RCA pass-thru outputs
  • On-board Punch EQ with +18dB boost @ 45Hz
  • Cast aluminum heatsink
  • Muted turn on
  • Stealth top mounted control panel
  • Short circuit protection
  • Over current protection
TECHNOLOGIES:
  • CE Compliant:  This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
  • CTA-2006 Compliant:  Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
  • TRANS•ana:  Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
  • Balanced Differential Inputs:  Differential inputs eliminate noise picked up by signal cables.
  • DTM:  Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
  • DSM:  DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
  • MEHSA3:  MEHSA3 reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
  • NOMAD:  NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
  • Engineered In The USA:  These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
  • C.L.E.A.N. Set-Up:  C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.
SPECIFICATIONS:
  • Cta-2006 Compliant:
  • Number of Channels:  2
  • Total Power (Sum of Rated Power):  300 Watts
  • Rated Power (RMS Continuous Power)
    • 100 Watts x 2 @ 4-Ohm
    • 150 Watts x 2 @ 2-Ohm
    • 300 Watts x 1 @ 4-Ohm Bridged
  • Dynamic Power (PVC/PowerCube®)
    • 120 Watts x 2 @ 4-Ohms 0° Res
    • 203 Watts x 2 @ 2-Ohms 0° Res
  • Bridgeable:  Yes
  • Frequency Response:  20Hz-20kHz
  • Input Sensitivity:  150 mV - 12 V
  • Circuit Topology Class:  Class A/B
  • Efficiency (average):  69% @ 4-Ohm
  • Total Harmonic Distortion (THD+Noise)
    • 4-Ohm: <1.0%
    • 2-Ohm: <1.0%
  • Signal Input:  Hi/Low Level: 1 RCA Pair
  • Signal Output:  Low Level: 1 RCA Pair
  • Tone Controls
    • 0dB to +14dB @ 12.5kHz
    • 0dB to +18dB @ 45Hz
  • Crossover Controls
    • High-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
    • Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
    • All-Pass: Yes
  • Remote Controls:  Optional Punch Level Control (PLC2) Ready
  • Visual Indicators:
    • Power/Protect/Thermal LED
    • Input Clip LED3
    • Output Clip LED1,2,3
  • LED Color Legend:
    • 1BLUE: <0.5% THD
    • 2VIOLET: 1% THD
    • 3RED: 10%+ THD
  • Power Wire Gauge:  8 AWG to 4 AWG
  • Power Input Connector:  Captive C-Clamp
  • Speaker Wire Gauge:  8 AWG to 18 AWG
  • Speaker Output Connector:  Captive C-Clamp
  • Cooling:  Convection
  • Heatsink:  -
  • Operating Voltage:  9 - 16 VDC
  • Recommended Fuse (not included):  50 A
  • Average Current Draw (13.8V Music):  23 A
  • Max. Current Draw (13.8V Sinewave):  45 A
  • Suggested Alternator:  75 A
  • Included In The Box:  -
  • Dimensions (H x W x D):  2.38 x 7.76 x 9.86 (in) 6.05 x 19.71 x 25.04 (cm)
  • Shipping Weight:  9.5 Lbs. (4.3 Kg.)
