ROCKFORD FOSGATE P300X1

ROCKFORD FOSGATE

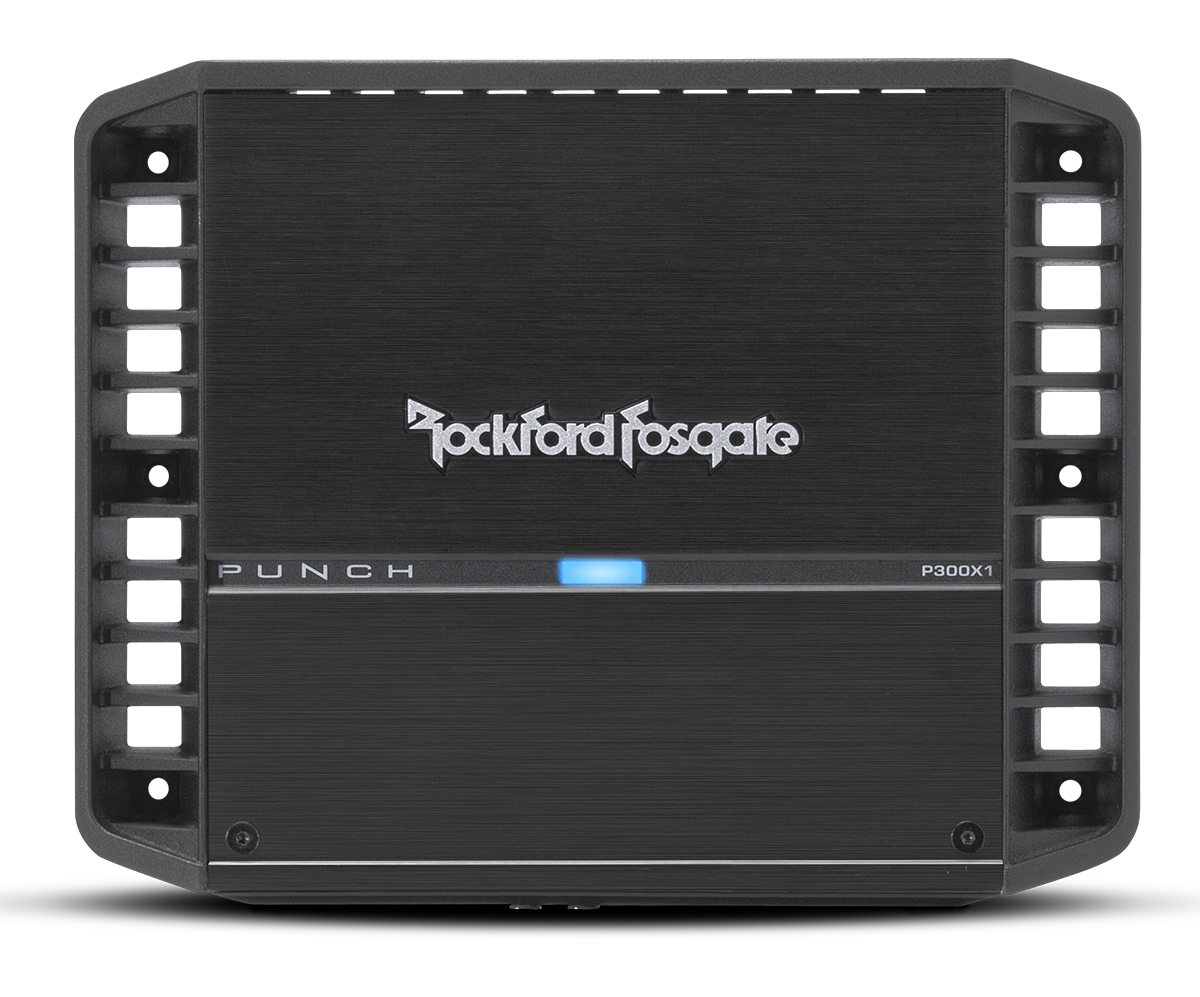

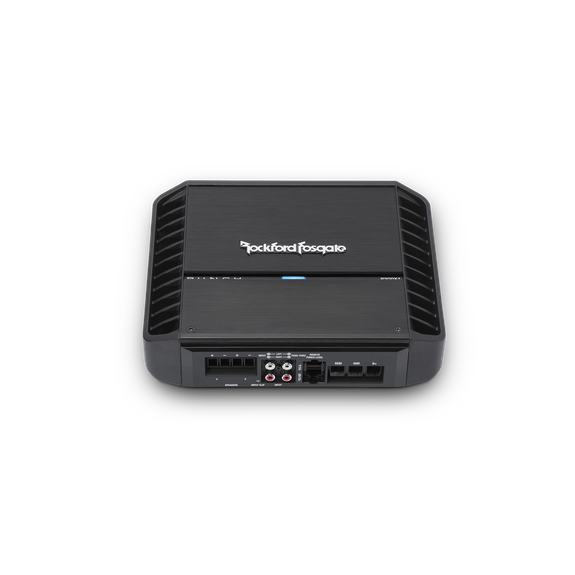

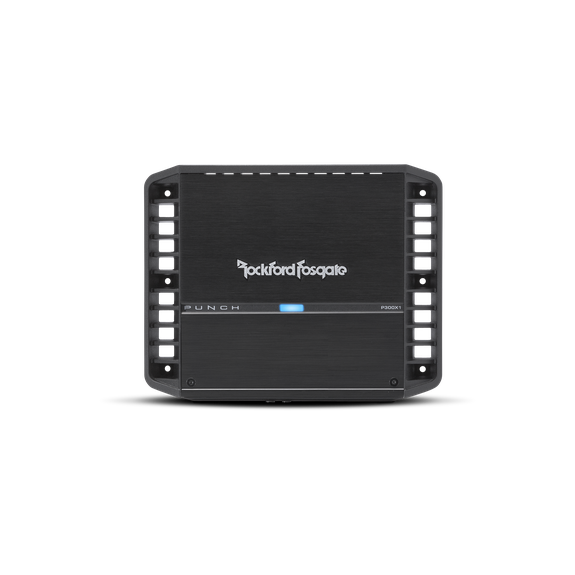

(P300X1) PUNCH 300 WATT FULL-RANGE MONO AMPLIFIER

The Punch P300X1 is a mono amplifier capable of producing 300 Watts into a 2-Ohm load. The P300X1 full-range frequency response makes it perfect for a subwoofer system or for powering a dedicated center channel speaker.

The P300X1 is perfect for use as a dedicated subwoofer or center channel amplifier. Regardless if you're driving multiple speakers or just one, the hefty 2-ohm capability will deliver the right amount of PUNCH that you want! Now, thanks to its small chassis design, it will also fit where traditional amplifiers cannot.

FEATURES:

• High level input capable with Auto Turn-On circuit
• 12dB/octave Butterworth crossover
• Features C.L.E.A.N. Set-up
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• RCA pass-thru outputs
• On-board Punch EQ with +18dB boost @ 45Hz
• Cast aluminum heatsink
• Muted turn on

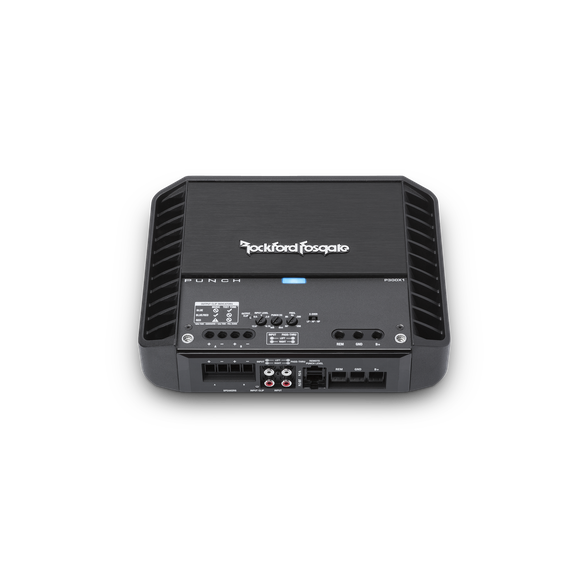

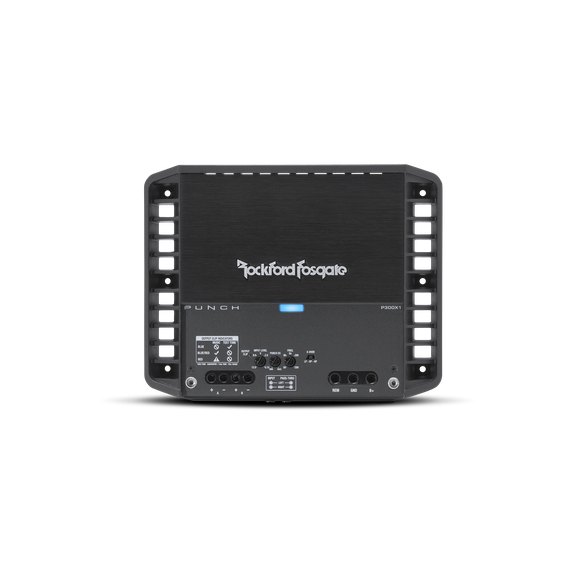

• Stealth top mounted control panel
• Short circuit protection
• Over current protection

TECHNOLOGIES:

• CE Compliant:  This product fulfills all essential safety and environmental requirements as defined in the European Directives (768/2008 EC).
• CTA-2006 Compliant:  Power ratings on Rockford Fosgate amplifiers conform to CTA-2006 industry standards. These guidelines mean your amplifier's output power ratings are REAL POWER numbers, not inflated marketing ratings.
• TRANS•ana:  Trans•ana is a Class A/B topology that simplifies the signal path of the amplifier allowing the signal to travel through the amplifier at a lower voltage. The result is greater reliability and exceptional sound quality.
• Balanced Differential Inputs:  Differential inputs eliminate noise picked up by signal cables.
• DTM:  Dynamic Thermal Management evenly distributes excess heat across entire amplifier heatsink.
• DSM:  DSM utilize 1% tight-tolerances improving efficiency of the circuit, decreases cross-talk from other discrete components and lowers operating temperature.
• MEHSA^3:  MEHSA³ reduces MOSFET temperatures, lowers distortion, increases durability and prolongs the output device life span.
• NOMAD:  NOMAD is a "real time" analog computer that protects your amplifier from shorting speaker wires and dangerously low speaker impedances.
• Engineered In The USA:  These Avatars are a personal signature from the Rockford Fosgate team member(s) who designed and engineered this fanatic product. This statement illustrates our commitment to being Designed and Engineered in the U.S.A.
• C.L.E.A.N. Set-Up:  C.L.E.A.N. (Calibrated Level Eliminates Audible Noise) is a patented circuit with in/out clip LEDs to help match a source to amp and optimize output.

SPECIFICATIONS:

• CTa-2006 Compliant:
• Number of Channels:  1
• Total Power (Sum of Rated Power): 300 Watts
• Rated Power (RMS Continuous Power)
• 200 Watts x 1 @ 4-Ohm
• 300 Watts x 1 @ 2-Ohm
• Dynamic Power (PVC/PowerCube®)
• 260 Watts x 1 @ 4-Ohms 0° Res
• 444 Watts x 1 @ 2-Ohms 0° Res
• Bridgeable:  No
• Frequency Response:  20Hz to 20kHz +/- 1.0dB
• Input Sensitivity:  150 mV - 12 V
• Circuit Topology Class:  Class A/B
• Efficiency (average):  74% @ 4-Ohm
• Total Harmonic Distortion (THD+Noise)
• 4-Ohm: <1.0%
• 2-Ohm: <1.0%
• Signal Input:  Hi/Low level: 1 RCA pair
• Signal Output:  Low Level: 1 RCA Pair
• Tone Controls:
• Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
• Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
• Function depends upon LP/AP/HP switch position
• Crossover Controls:
• High-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
• Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
• All-Pass: Yes
• Remote Controls:  Optional Punch Level Control (PLC2) Ready
• Visual Indicators:
• Power/Protect/Thermal LED
• Input Clip LED³
• Output Clip LED^1,2,3
• LED Color Legend:
• ¹BLUE: <0.5% THD
• ²VIOLET: 1% THD
• ³RED: 10%+ THD
• Power Wire Gauge:  8 AWG to 4 AWG
• Power Input Connector:  Captive C-Clamp
• Speaker Wire Gauge:  8 AWG to 18 AWG
• Speaker Output Connector:  Captive C-Clamp
• Cooling:   Convection
• Heatsink:
• Operating Voltage:  9 - 16 VDC
• Recommended Fuse (not included):  50 A
• Average Current Draw (13.8V Music):  23 A
• Max. Current Draw (13.8V Sinewave):  45 A
• Suggested Alternator:  75 A
• Included In The Box:  -
• Dimensions (H x W x D):  2.38 x 7.76 x 9.86 (in) 6.05 x 19.71 x 25.04 (cm)
• Shipping Weight:  9.5 Lbs. (4.30 Kg.)
