ROCKFORD FOSGATE P500-12P
- Description
ROCKFORD FOSGATE

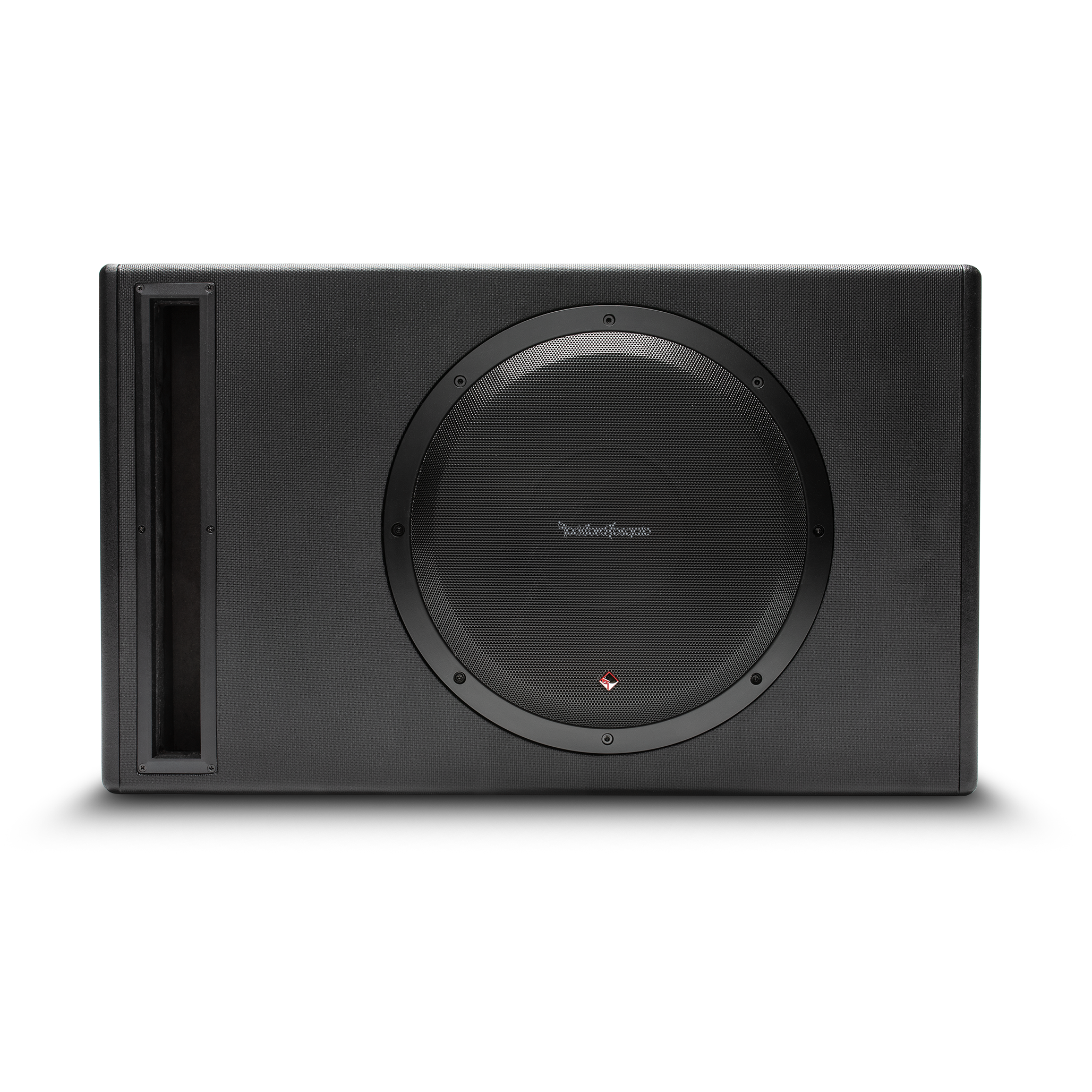

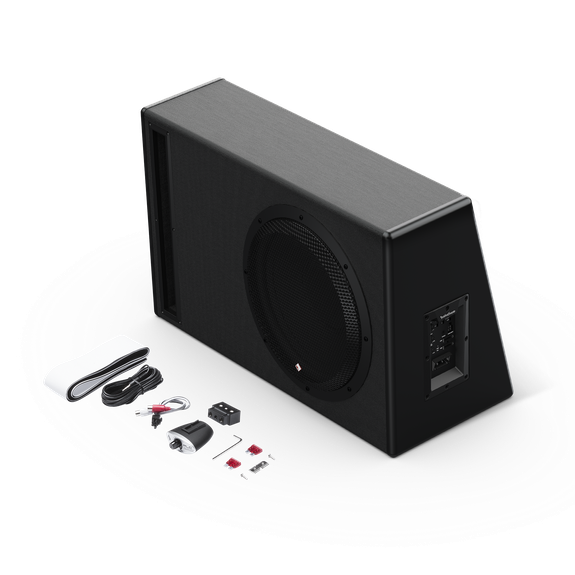

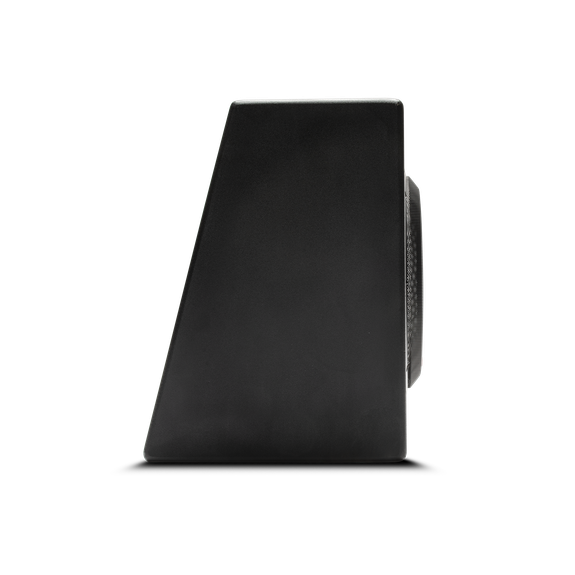

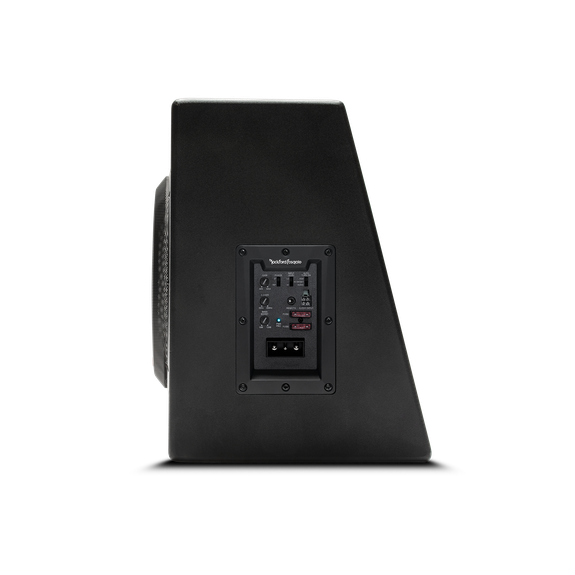

(P500-12P) PUNCH 12" 500-WATT POWERED ENCLOSURE
The Punch P500-12P is an "all in one" solution for adding serious bass to Hatchbacks, Sedans, and SUVs. This model features a 12" high output woofer with a 500-watt internal amplifier and a high output vented enclosure that's great for sedan and hatchback applications. The enclosure features quick release input and power connectors for easy removal when extra space is required.
The Punch 500-12P is a self-contained subwoofer enclosure with built-in amplifier. This "all in one" solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 12" high output subwoofer is impedance optimized for the built in 500-watt class-D amplifier that features a low-pass crossover, bass EQ and phase switch. You can change the amount of bass on the fly with the included remote level control. The slot port provides powerful output at lower frequencies for enhanced bass reproduction. The enclosure can be connected via speaker level inputs for connection to factory systems, or traditional line level inputs for aftermarket systems. It also features an intelligent auto turn-of/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with heat activated vinyl finish to resist marks. The enclosure also features a quick-release connectors for easy removal when you need extra cargo space.
FEATURES:
- Optimized 12" Low Impedance Woofer
- 500 Watt Class-D Amplifier with Optimized "Closed Loop" Design
- Adjustable 12db/Octave low pass crossover
- Intelligent auto turn on/off function
- On Board Phase Switch
- Robust Power/Ground connections
- Quick Input Connections for Easy Removal
- Remote bass level control included
- On Board Adjustable Bass EQ
- Separate low level and speaker level inputs
- Thermal and over/under voltage protection
- Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
- Designed For Hatchback, Sedan, and SUV Applications
TECHNOLOGIES:
- CEA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards.
- CEA-2031: Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
- Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
SPECIFICATIONS:
- Frequency Response: 20 Hz to 200 Hz
- Woofer Quantity: 1
- Woofer Size: 12"
- Woofer Series: Proprietary
- Power Handling (Watts RMS): 500 Watts RMS
- Nominal Impedance: —
- Enclosure Type: Ported
- Speaker Connector: —
- Integrated Amplifier: 500 Watts RMS
- Enclosure Material: 5/8" MDF (Medium Density Fiberboard)
- Crossover Controls
- Variable 50 Hz to 200 Hz
- 12dB/Octave Butterworth
- Tone Controls
- Bass Boost
- 0 dB to +12 dB @ 45 Hz
- Phase Control: 0° to 180°
- Remote Control:
- Punch Level Control (Included)
- Replacement Part: 1130-59232-01
- Auto Turn-On Selector
- Remote Trigger
- DC Offset Sense
- Audio Sense
- Input Switch
- High-Level (Speaker Line)
- Low-Level (RCA)
- Signal Input
- Low/High-Level: 1 RCA Pair (L/R Summed)
- Replacement Part: 1130-59232-01
- Input Impedance: 20k Ohms
- Power Input Connector
- Quick Disconnect
- Replacement Part: 1130-59232-01
- Power Wire Gauge
- B+/GND: 8 AWG
- REM: 18 AWG
- Heatsink Type: Extruded Aluminum
- Input Sensitivity
- Low-Level: 150 mV to 6 V
- High-Level: 300 mV to 12 V
- Circuit Topology Class: Class-D
- Cooling: Convection
- Visual Indicators: Power/Protect LED
- Fuses: 30 Amp (2 x 15 Amp ATO Fuse)
- Dimensions:
- Box H x W x D: 15.00” x 24.76” x 10.91 x 7.71”
- Wedge H x W x D1 x D2: (38.1 cm x 62.9 cm x 27.7 cm x 189.2 cm)
- Shipping Weight: 48.2 Lbs. (21.9 kg)
