ROCKFORD FOSGATE P300-10T
- Description
ROCKFORD FOSGATE

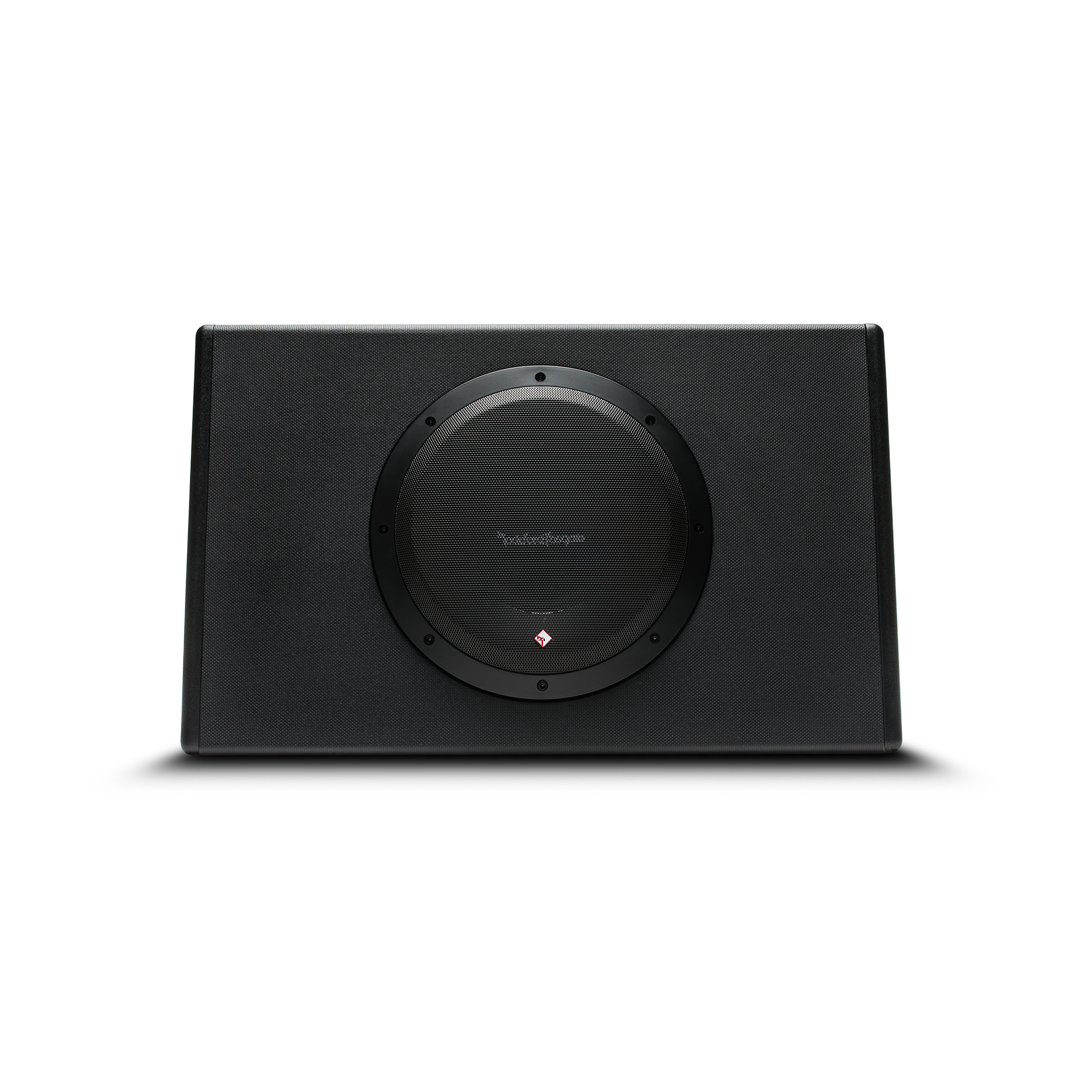

(P300-10T) PUNCH 10" 300-WATT POWERED TRUCK ENCLOSURE
The Punch P300-10T is a universal "all in one" solution for dropping Bass in any factory or aftermarket system. This model features a 10" high output woofer with a 300-watt internal amplifier in a slim design enclosure that's great for universal truck applications. The enclosure features quick release input and power connectors for easy removal when extra space is required.
The Punch 300-10T is a self-contained subwoofer enclosure with built-in amplifier. This "all in one" solution is great for systems that need extra Punch on the low-end of the frequency spectrum. The 10" high output subwoofer is impedance optimized for the built in 300-watt class-D amplifier that features a low-pass crossover, bass EQ and phase switch. The enclosure can be connected via speaker level inputs for connection to factory systems, or traditional line level inputs for aftermarket systems. It also features an intelligent auto turn-on/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with heat activated vinyl finish to resist marks.
FEATURES:
- High-Efficiency, Low Current Amplifier Design
- Optimized 10" Low Impedance Woofer
- 300 Watt Class-D Amplifier with Optimized "Closed Loop" Design
- On Board Phase Switch
- Adjustable 12db/Octave low pass crossover
- Intelligent auto turn on/off function
- Quick Input Connections for Easy Removal
- On Board Adjustable Bass EQ
- Robust Power/Ground connections
- Remote bass level control included
- Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
- Separate low level and speaker level inputs
- Thermal and over/under voltage protection
- Slim Design For Truck Applications
- 1 Year Warranty
TECHNOLOGIES:
- CEA-2006 Compliant: Power ratings on Rockford Fosgate amplifiers conform to CEA-2006 industry standards.
- CEA-2031: Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
- Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.
SPECIFICATIONS:
- Frequency Response: 25 Hz to 200 Hz
- Woofer Quantity: 1
- Woofer Size: 10"
- Woofer Series: Proprietary
- Nominal Impedance: —
- Power Handling (Watts RMS): 300 Watts RMS
- Enclosure Type: Sealed
- Enclosure Material: 5/8" MDF (Medium Density Fiberboard
- Speaker Connector: —
- Integrated Amplifier: 300 Watts RMS
- Crossover Controls
- Variable 50 Hz to 200 Hz
- 12dB/Octave Butterworth
- Tone Controls
- Bass Boost
- 0 dB to +12 dB;
- Phase Control: 0° to 180°
- Remote Control
- Punch Level Control (Included)
- Replacement Part: 1130-59232-01
- Auto Turn-On Selector
- Remote Trigger
- DC Offset Sense
- Audio Sense
- Input Switch
- High-Level (Speaker Line)
- Low-Level (RCA)
- Signal Input
- Low/High-Level: 1 RCA Pair (L/R Summed)
- Replacement Part: 1130-59232-01
- Input Sensitivity
- Low-Level: 150 mV to 6 V
- High-Level: 300 mV to 12 V
- Input Impedance: 20k Ohms
- Power Input Connector
- Quick Disconnect
- Replacement Part: 1130-59232-01
- Power Wire Gauge
- B+/GND: 8 AWG
- REM: 18 AWG
- Circuit Topology Class: Class-D
- Heatsink Type: Extruded Aluminum
- Cooling: Convection
- Visual Indicators: Power/Protect LED
- Fuses: 20 Amp (2 x 10 Amp ATO Fuse)
- Dimensions
- Box H x W x D: 13.3" x 21.7" x 4.8" x 7.9"
- Wedge H x W x D1 x D2: 338 mm x 552 mm x 122 mm x 201 mm
- Shipping Weight: 25 lbs. (11.3 kg)
