ROCKFORD FOSGATE P2D4-15
- Description
ROCKFORD FOSGATE

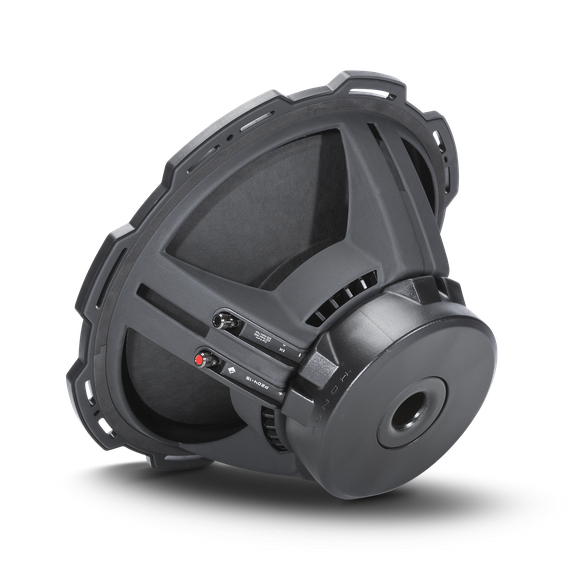

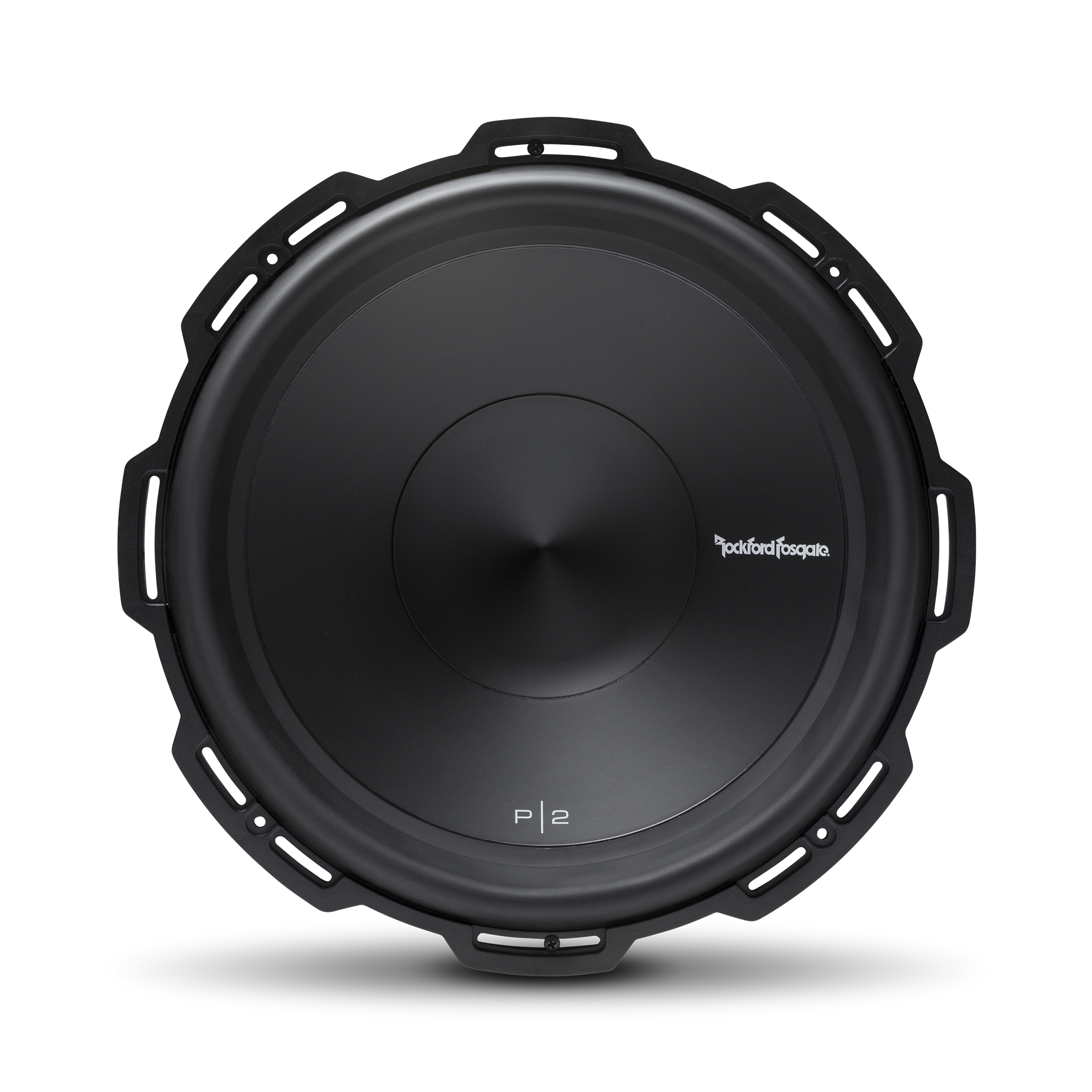

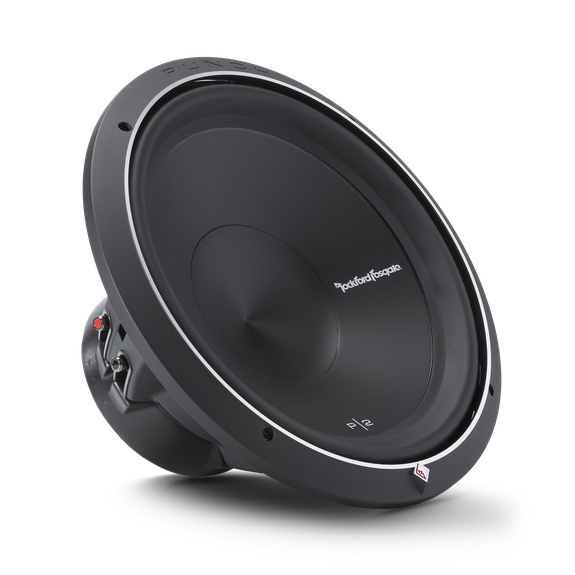

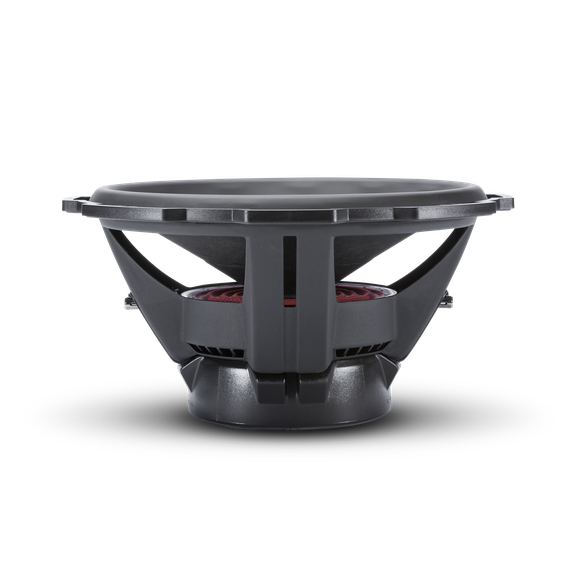

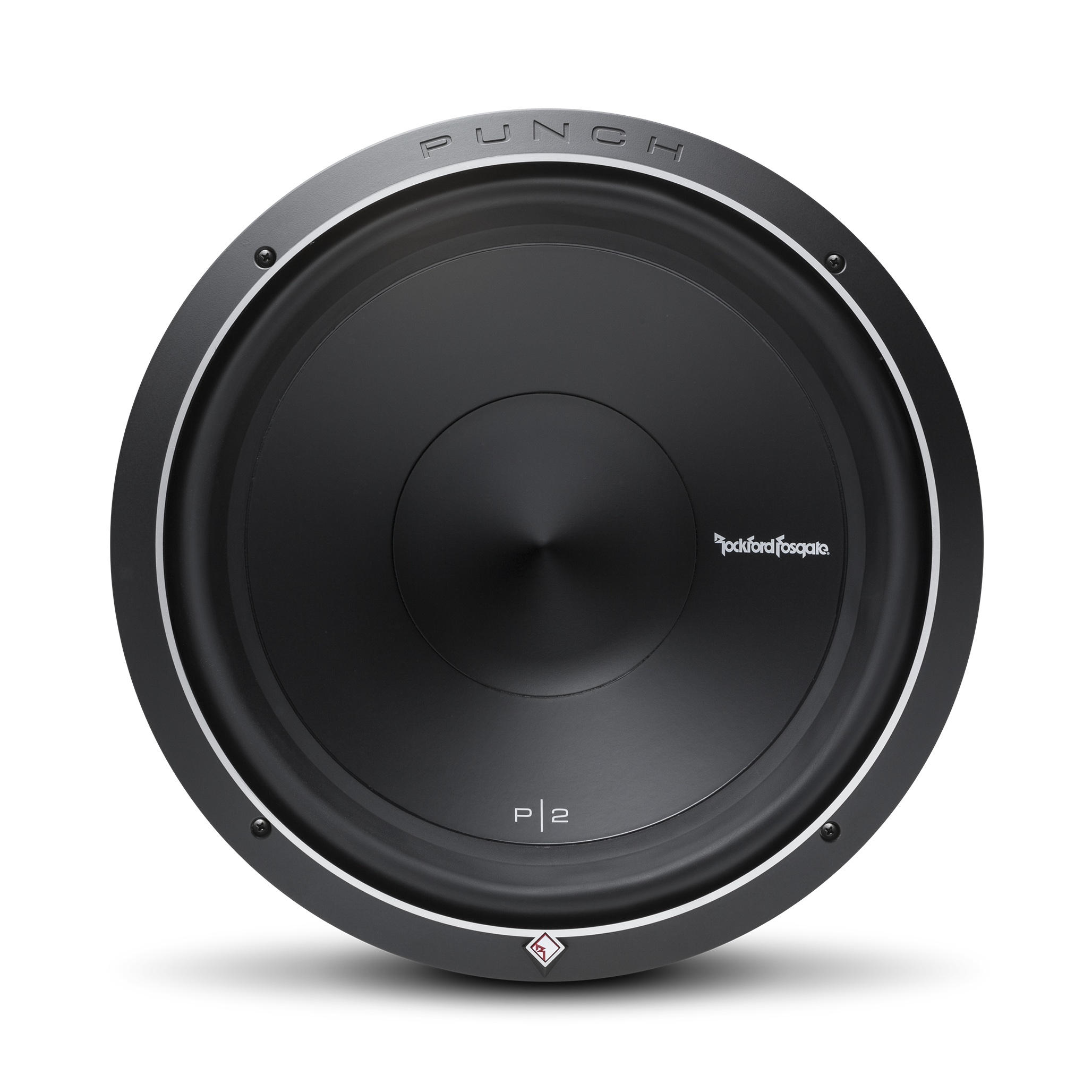

(P2D4-15) PUNCH 15" P2 4-OHM DVC SUBWOOFER
The Rockford Fosgate P2 15” subwoofer continues “The PUNCH” tradition. The P2D4-15 features a Dual 4-Ohm voice coil, 400 Watts RMS power handling, and can accommodate a grille insert using the included cast aluminum trim ring.
Rockford Fosgate has always been known as "The PUNCH" and the P2 15" subwoofer certainly continues with the tradition. Kevlar fiber reinforced paper cones deliver bass impact you can feel along with VAST technology to increase surface cone area up to 25%. The P2 subwoofers perform best in standard sealed and vented enclosures. Includes diamond cut cast aluminum trim ring. Optional grille insert available.
TECHNOLOGIES
- CEA-2031: Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
- Anodized Aluminum Voice Coil Former: Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.
- Stitched Tinsel Leads: Improved reliability and performance by reducing fatigue and possible shorting.
- VAST Surround - Subs: The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.
- Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.FlexFit Basket - Subwoofer: The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.
FEATURES:
- Dual linear spider with embedded 16 AWG tinsel leads
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Extended pole piece and bumped vented backplate
- Protective PVC textured magnet cover
- Custom 10-AWG nickel plated push terminals
- Kevlar fiber reinforced paper cone
- StampCast basket with integrated spider venting
- Diamond cut cast aluminum trim ring with optional grille
- 1 Year Warranty
SPECIFICATIONS:
- Power Handling (Watts RMS): 400 Watts RMS ; 800 Watts Max
- Size: 15"
- Speaker Connector: Dual 10 AWG compression
- Shipping Weight: 17.9 Lbs. (8.11 kg)
- SPL (dB @ 1w/1m): 86
- Cutout Diameter: 13.9 in. (353 mm)
- Re (Ohms): 6.40
- Le (mH): 5.4
- Nominal Impedance: Dual 4-Ohm
- Magnet Weight (oz): 81 oz. (2.30 kg.)
- Voice Coil Diameter: 2.25" (57.15 mm)
- Mounting Depth: 7.34 in. (186.5 mm)
- Fs (Hz): 20.9
- Qts: 0.66
- Qes: 0.74
- Qms: 5.70
- Vas (Liters): 219.6
- Woofer Displacement: 0.134 cu. ft. (3.8 Liters)
- CEA-2031 Compliant: Speakers Standard
- Xmax (mm): 12.2
- Sd (cm2): 894
- Subwoofer Type: Standard
- Voice Coil Type: Dual Voice Coil
- Sealed Box Volume (Vb): 1.58 cu. ft. (44.7 Liters)
- Vented Box Volume (Vb): 2.66 cu. ft. (75.3 Liters)
