ROCKFORD FOSGATE P1S4-12
- Description
ROCKFORD FOSGATE

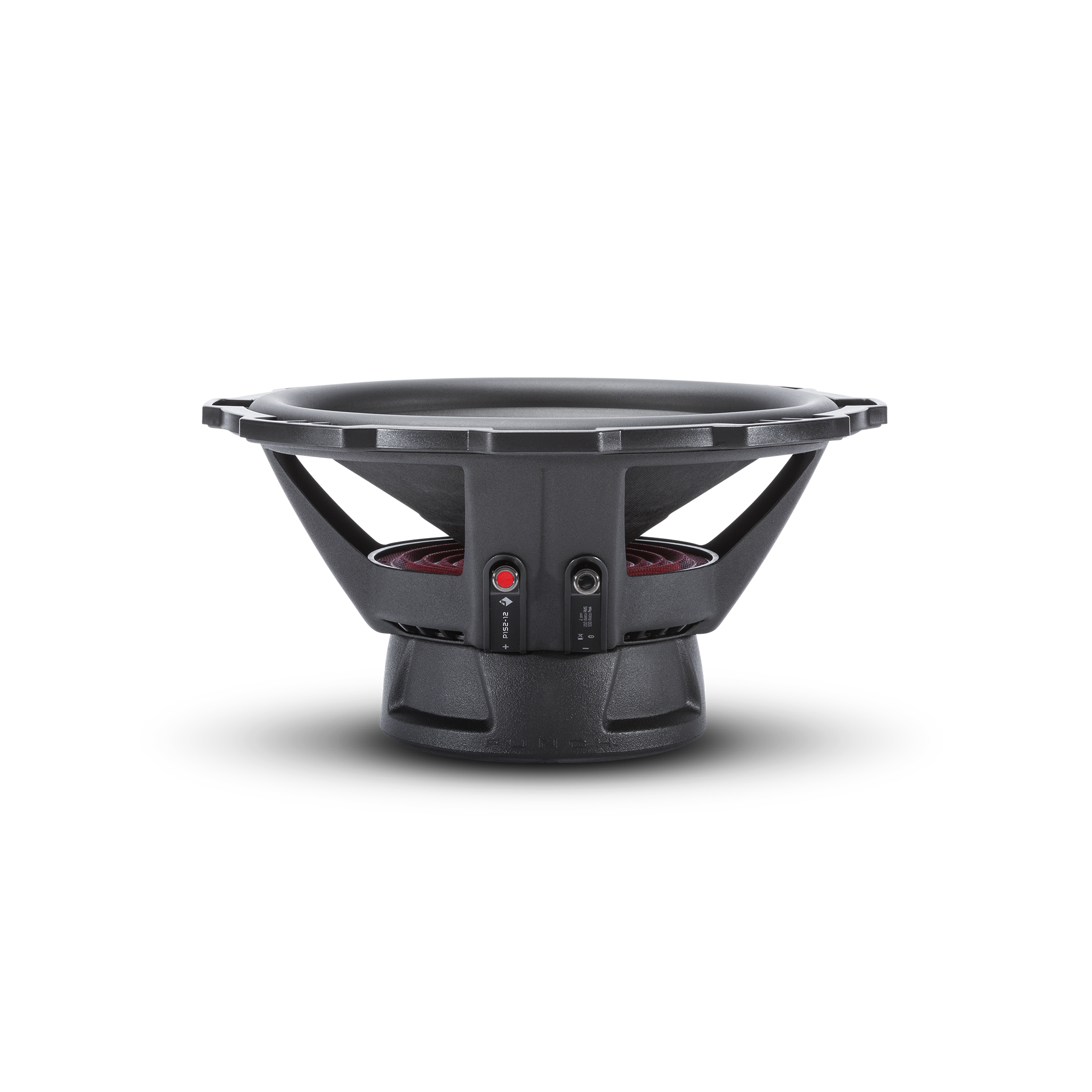

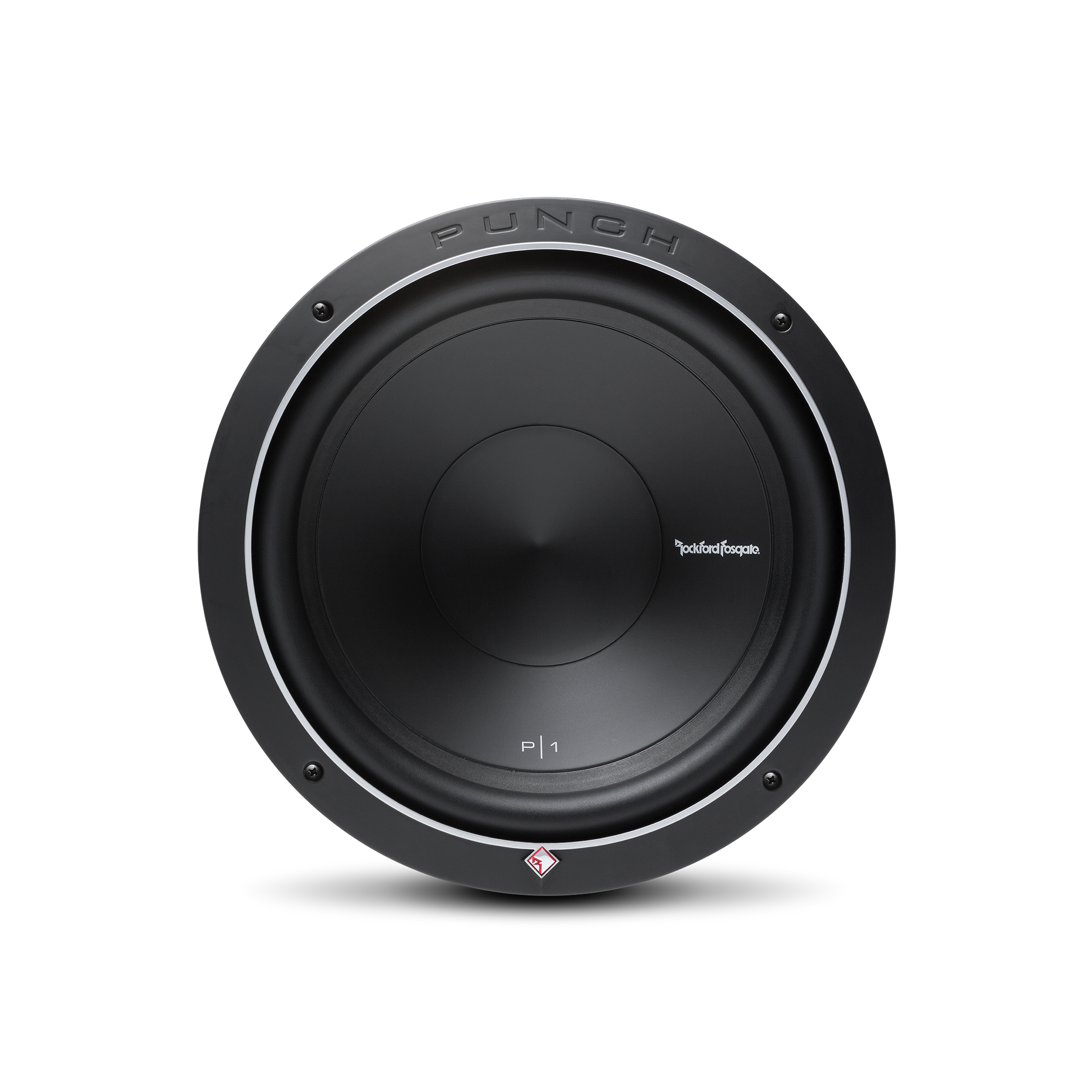

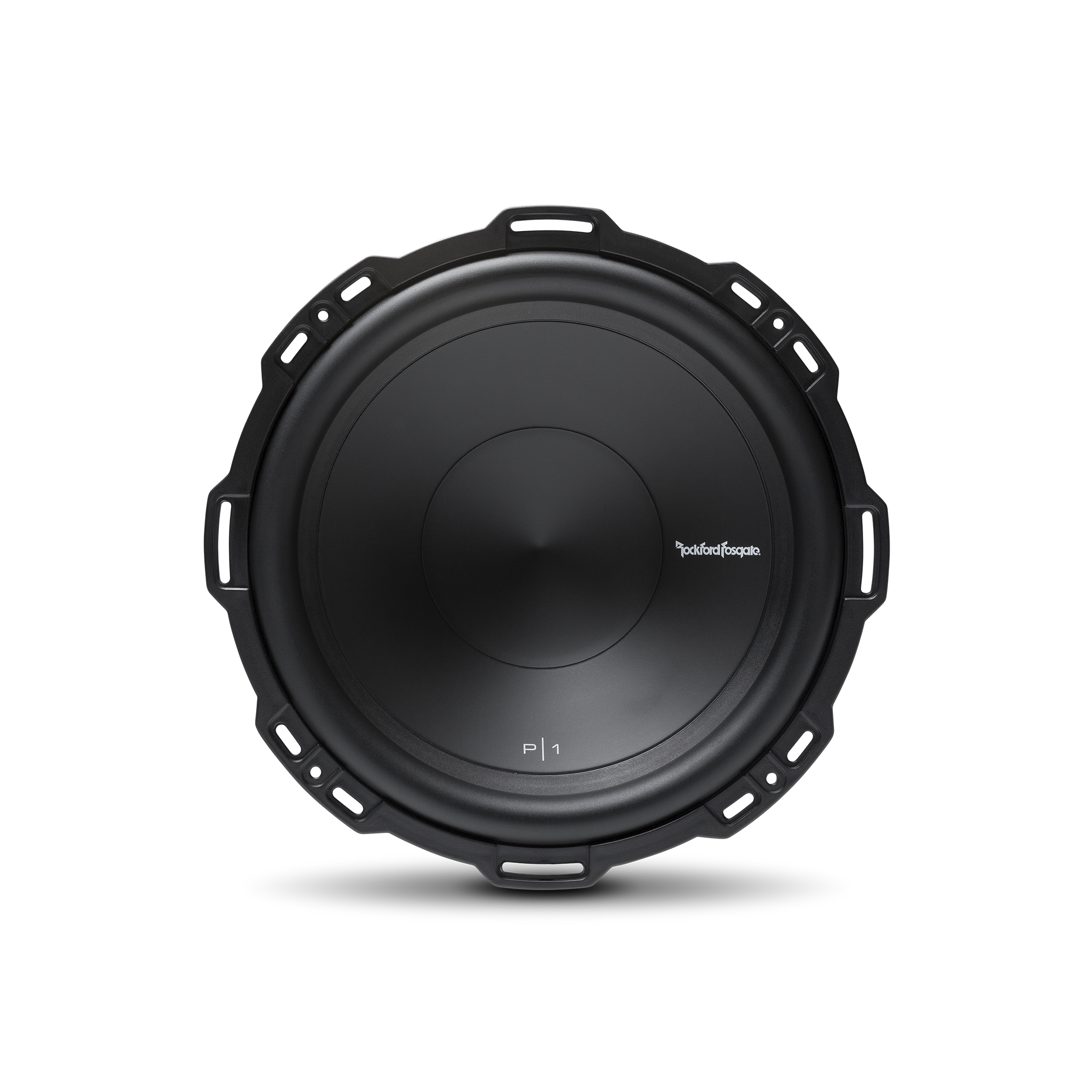

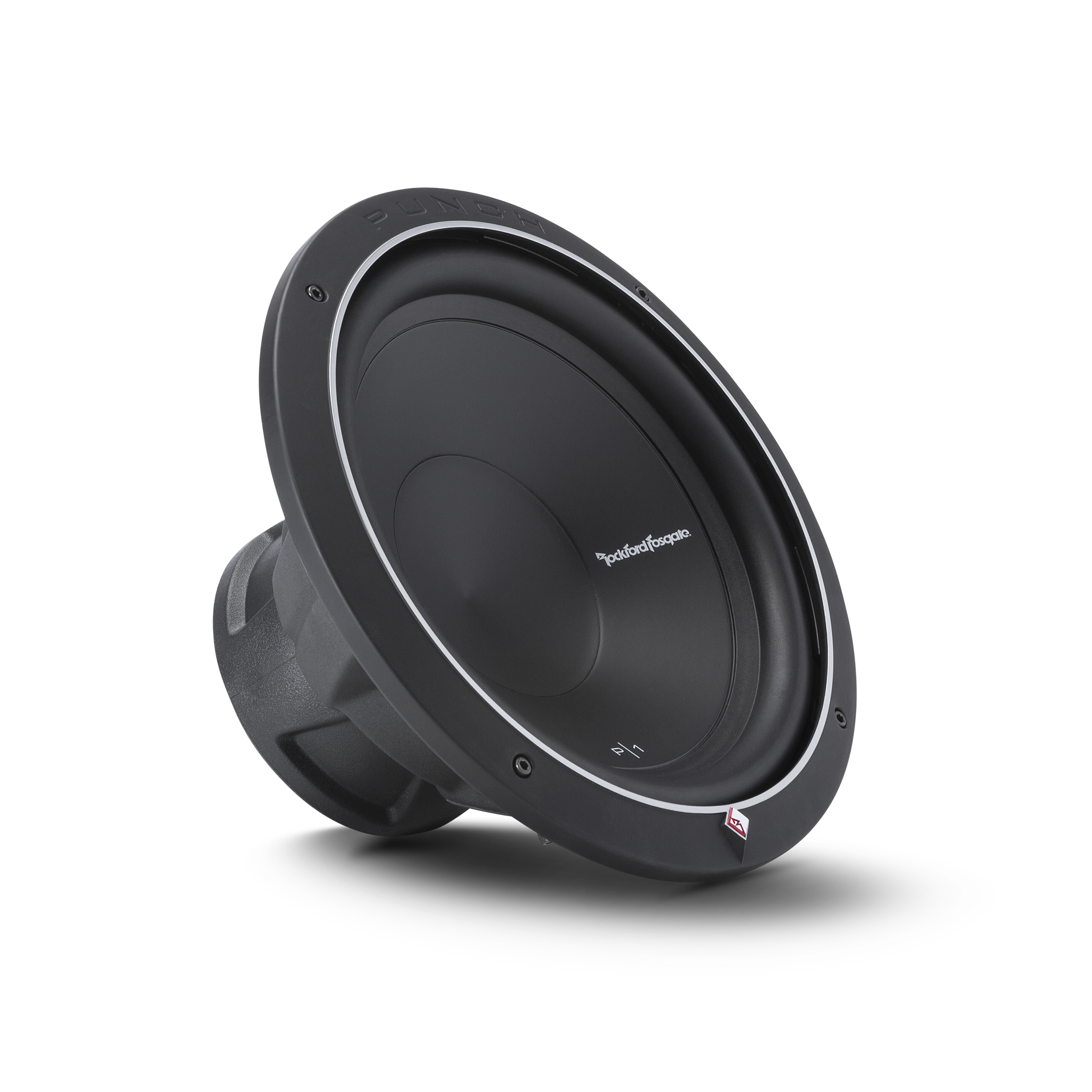

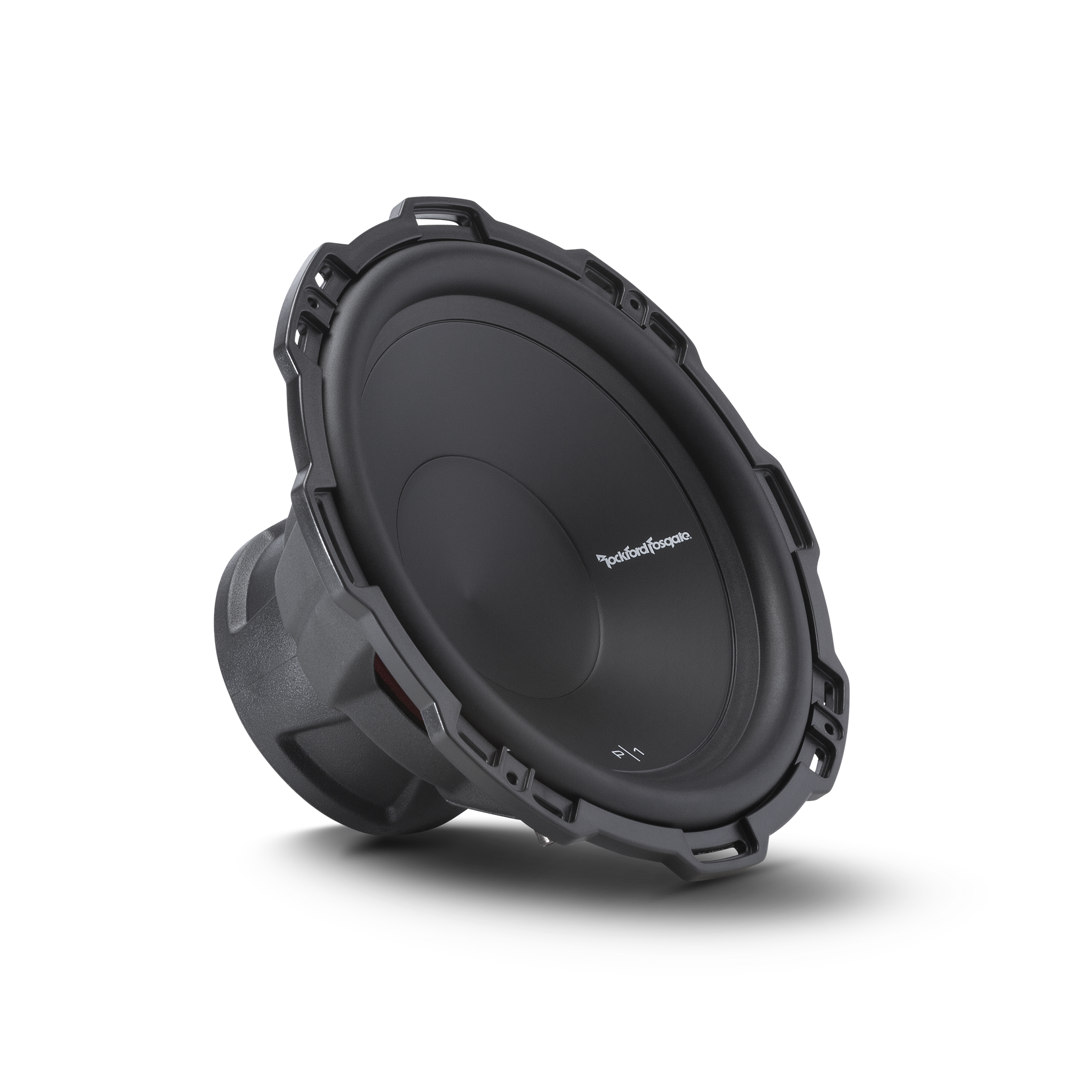

(P1S4-12) PUNCH 12" P1 4-OHM SVC SUBWOOFER
Rockford Fosgate P1 12” is the first in a family of famous “Punch” subwoofers for cars and trucks. The P1S4-12 features a 4-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring. The P1S4 12 inch car subwoofer also includes:
Rockford Fosgate P1 12" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology in the Punch P1 woofer increases woofer surface cone area by up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.
TECHNOLOGIES
- CEA-2031: Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
- Anodized Aluminum Voice Coil Former: Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.
- Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.FlexFit Basket - Subwoofer: The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.
- FlexFit Basket - Subwoofer: The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.
- Stitched Tinsel Leads: Improved reliability and performance by reducing fatigue and possible shorting.
FEATURES:
- Linear spider with embedded 16 AWG tinsel leads
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Kevlar fiber reinforced paper cone
- StampCast basket with integrated spider venting
- Rubberized ABS trim ring with optional grille
- Custom 10-AWG nickel plated push terminals
- Extended pole piece and bumped vented backplate
- 1 Year Warranty
- Protective PVC textured magnet cover
SPECIFICATIONS:
- Power Handling (Watts RMS): 250 Watts RMS ; 500 Watts Max
- CEA-2031 Compliant: Speakers Standard
- Subwoofer Type: Standard
- Nominal Impedance: 4-Ohm
- Size: 12"
- Magnet Weight (oz): 45 oz. (1.28 kg.)
- Voice Coil Diameter: 2.0" (51.6 mm)
- Speaker Connector: Dual 10 AWG compression
- Voice Coil Type: Single Voice Coil
- Le (mH): 3.01
- Fs (Hz): 25
- Qts: 0.55
- Qes: 0.56
- Xmax (mm): 9.0
- Qms: 3.40
- Vas (Liters): 88.3
- Re (Ohms): 3.6
- Sd (cm2): 548
- SPL (dB @ 1w/1m): 86
- SPL (dB @ 2.8v/1m): 89
- Cutout Diameter: 11.22 in. (285 mm)
- Mounting Depth: 6.0 in. (152.4 mm)
- Woofer Displacement: 0.081 cu. ft. (2.3 Liters)
- Sealed Box Volume (Vb): 1.02 cu. ft. (28.8 Liters)
- Vented Box Volume (Vb): 1.79 cu. ft. (50.6 Liters)
- Shipping Weight: 11.7 Lbs. (5.3 kg)
