ROCKFORD FOSGATE P1S2-12
- Description
ROCKFORD FOSGATE

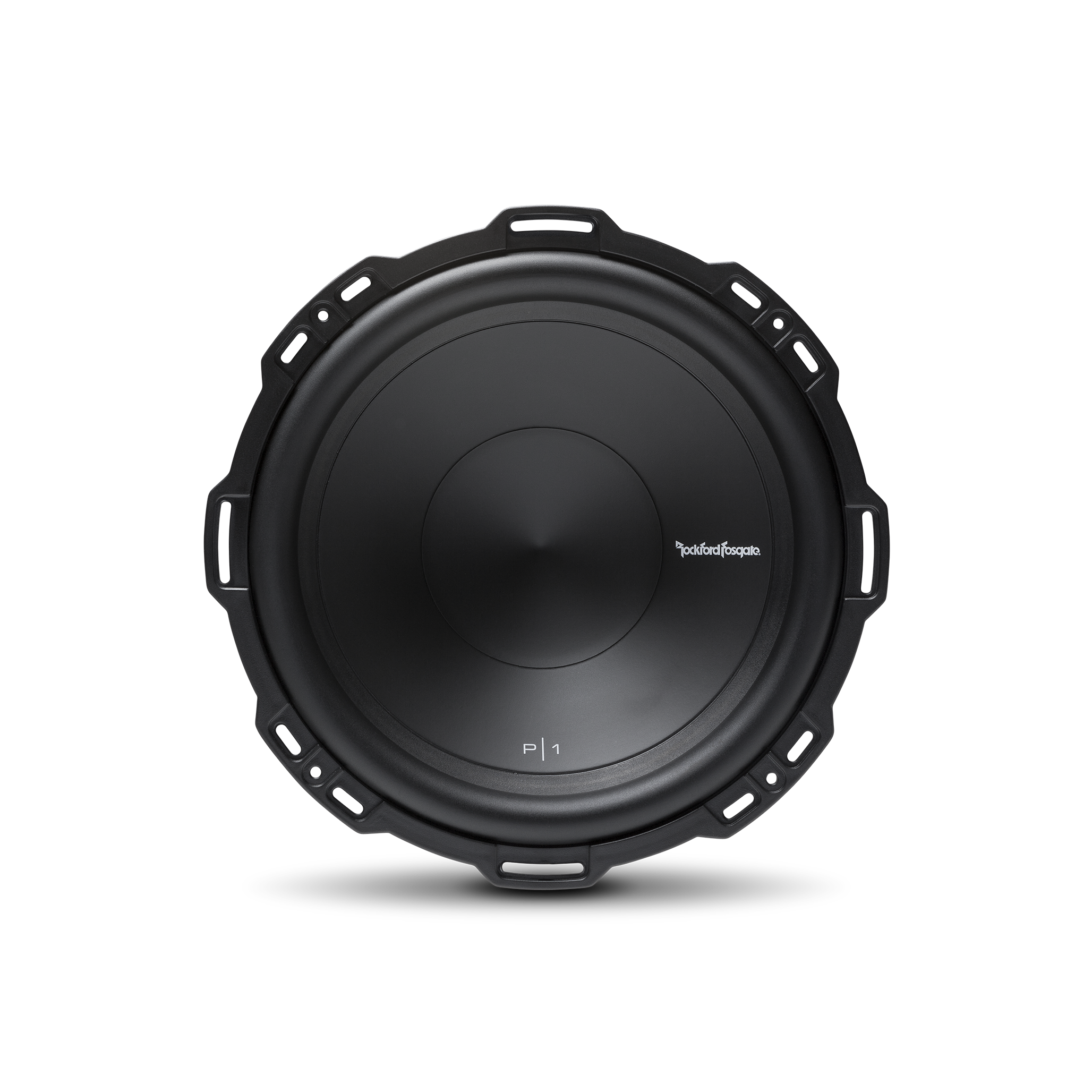

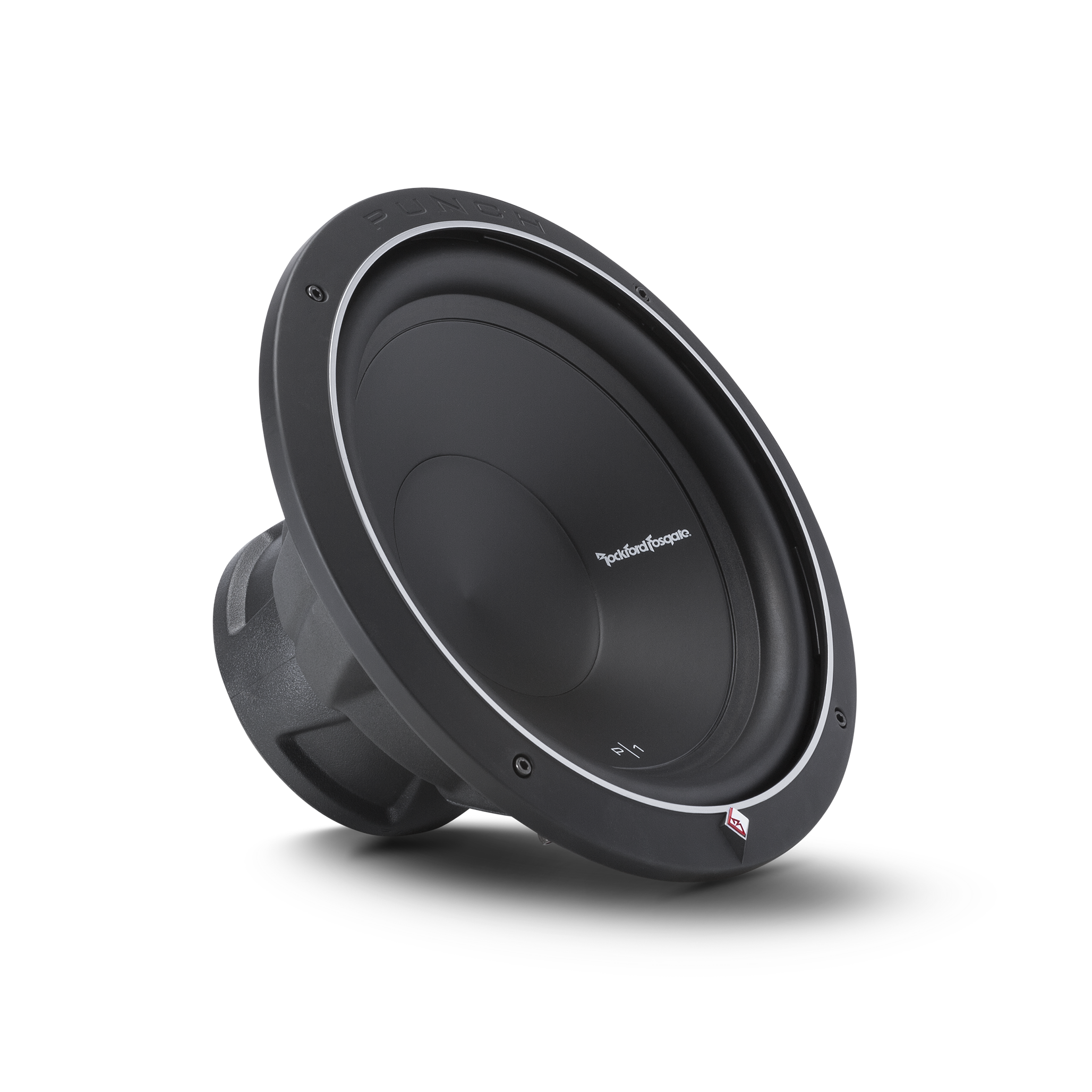

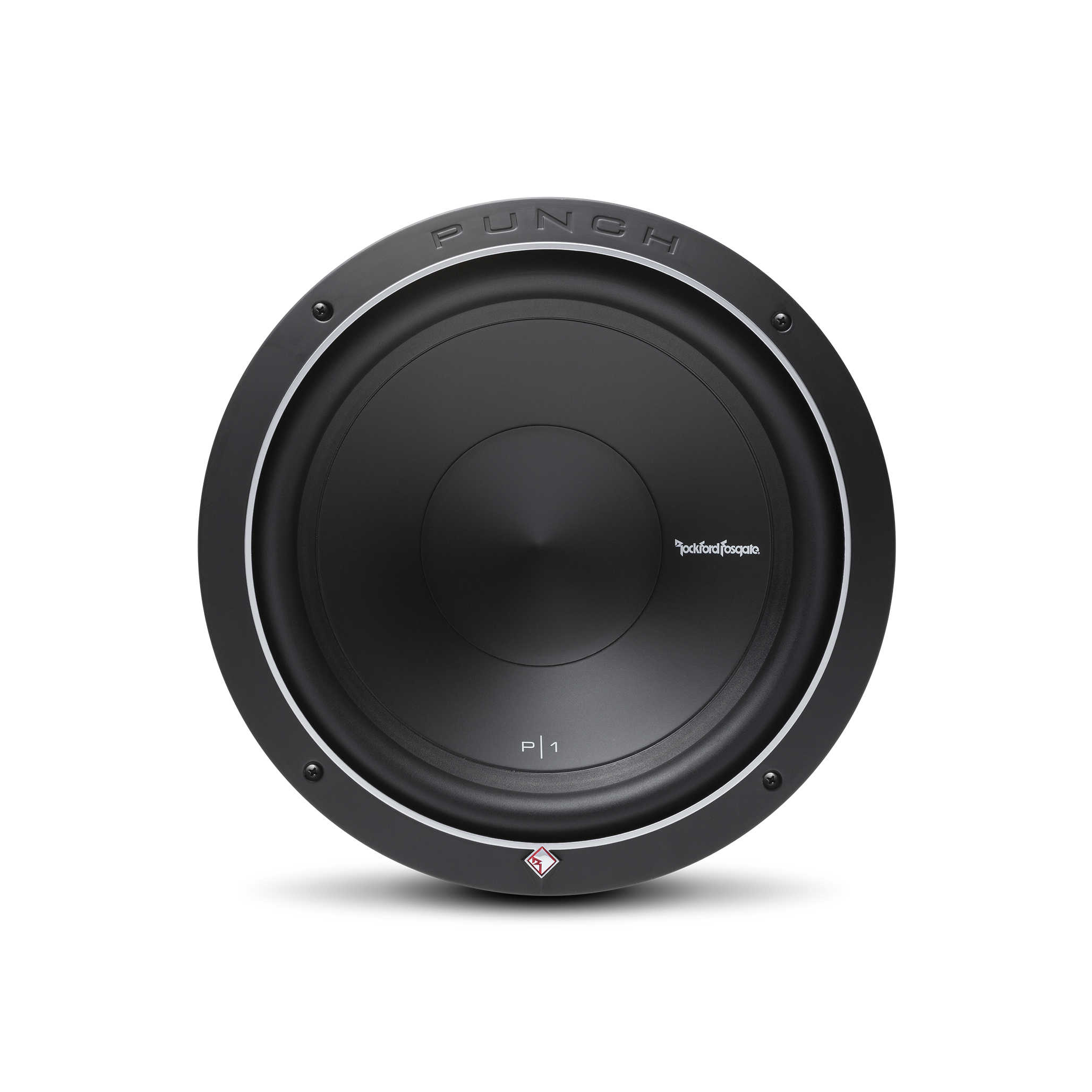

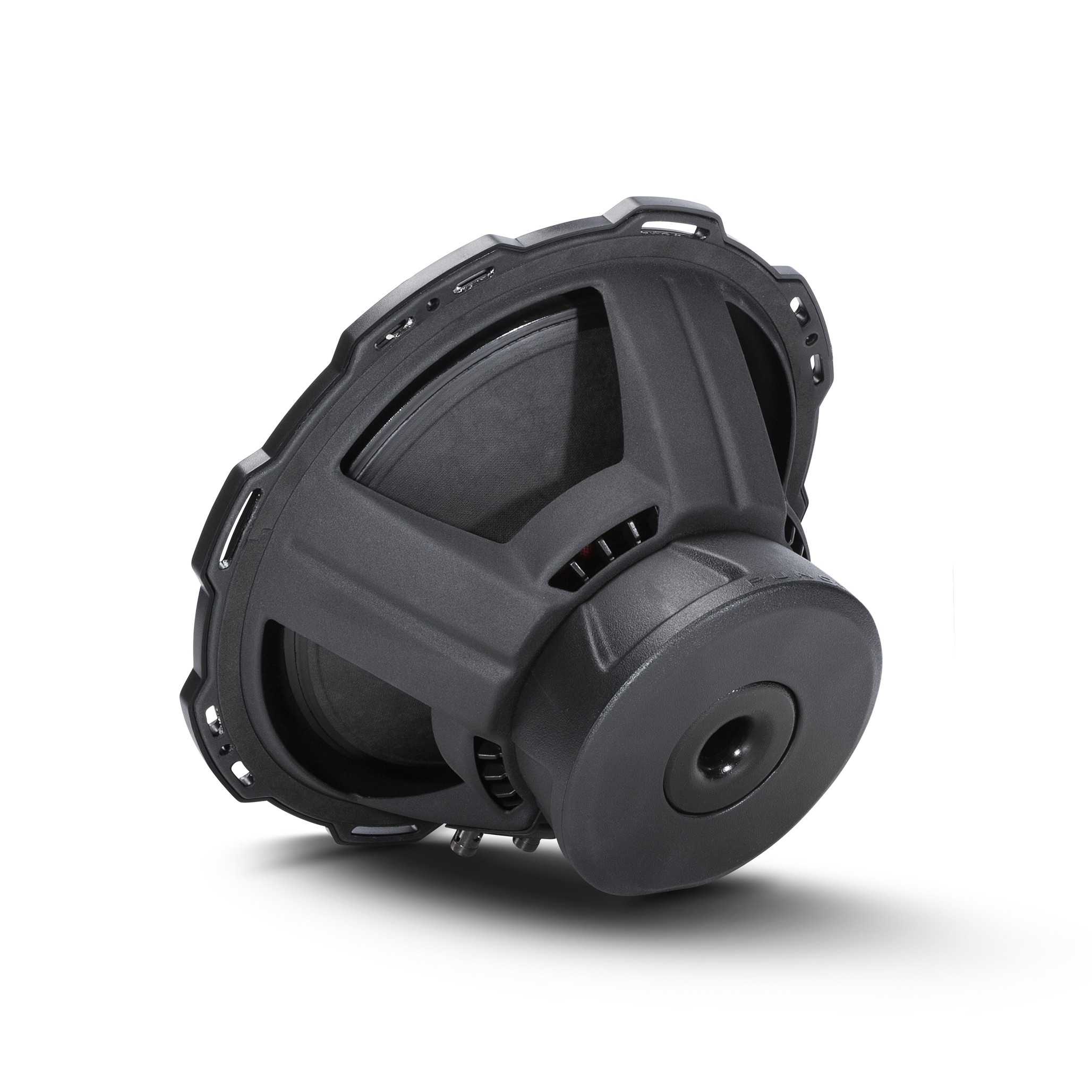

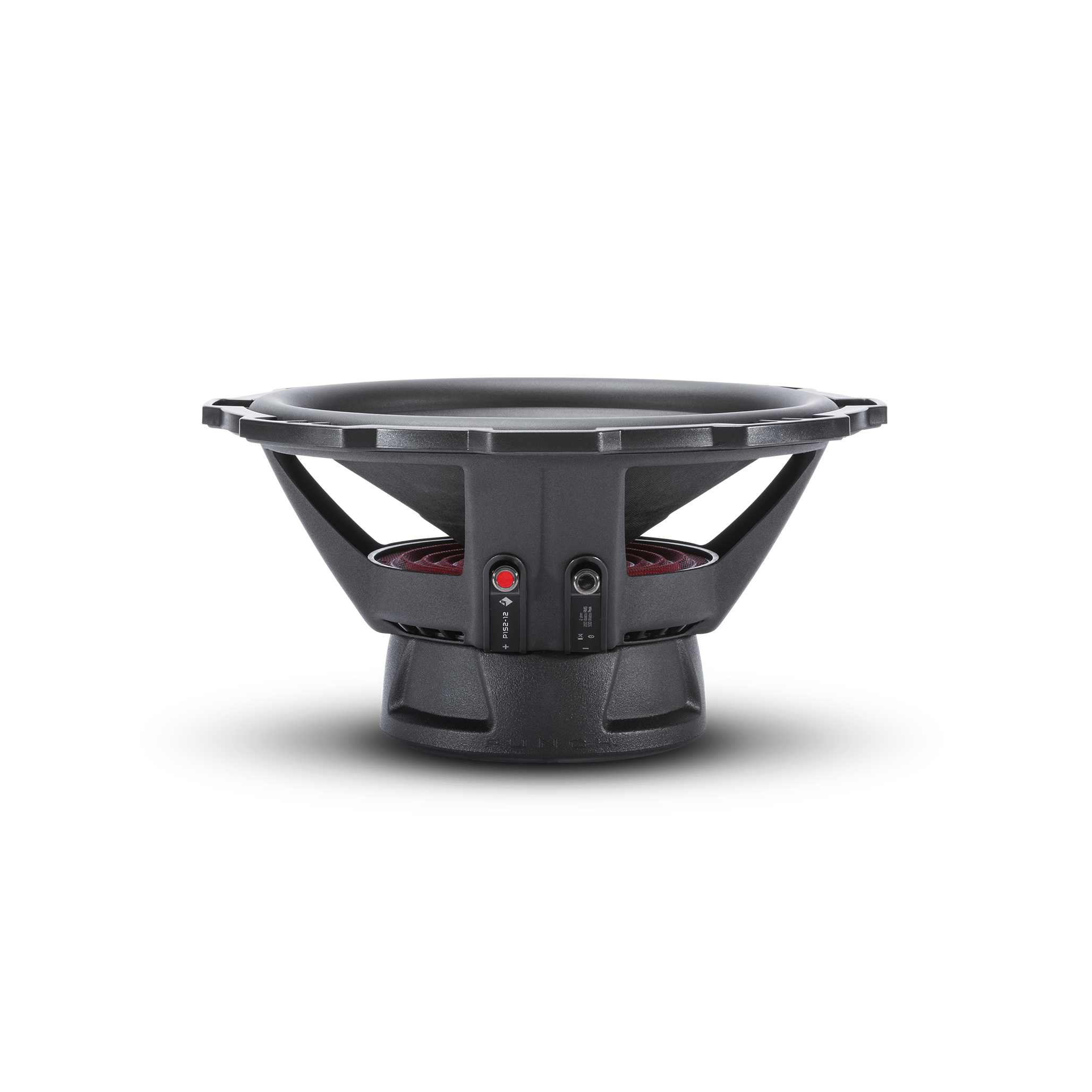

(P1S2-12) PUNCH 12" P1 2-OHM SVC SUBWOOFER
Rockford Fosgate P1 12” is the first in a family of famous “Punch” subwoofers. The P1S2-12 features a 2-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.
Rockford Fosgate P1 12" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.
TECHNOLOGIES
- CEA-2031: Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
- Anodized Aluminum Voice Coil Former: Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.
- Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.FlexFit Basket - Subwoofer: The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.
- FlexFit Basket - Subwoofer: The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.
- Stitched Tinsel Leads: Improved reliability and performance by reducing fatigue and possible shorting.
FEATURES:
- Linear spider with embedded 16 AWG tinsel leads
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Kevlar fiber reinforced paper cone
- StampCast basket with integrated spider venting
- Rubberized ABS trim ring with optional grille
- Custom 10-AWG nickel plated push terminals
- Extended pole piece and bumped vented backplate
- 1 Year Warranty
- Protective PVC textured magnet cover
SPECIFICATIONS:
- Size: 12"
- Nominal Impedance: 2-Ohm
- Subwoofer Type: Standard
- CEA-2031 Compliant: Speakers Standard
- Speaker Connector: Dual 10 AWG compression
- Power Handling (Watts RMS): 250 Watts RMS ; 500 Watts Max
- Voice Coil Diameter: 2.0" (51.6 mm)
- Magnet Weight (oz): 45 oz. (1.28 kg.)
- Voice Coil Type: Single Voice Coil
- Re (Ohms): 1.8
- Sd (cm2): 548
- Qts: 0.55
- Vas (Liters): 88.3
- Qms: 3.39
- Qes: 0.84
- Le (mH): 1.17
- Fs (Hz): 25
- Xmax (mm): 9.0
- SPL (dB @ 1w/1m): 86
- SPL (dB @ 2.8v/1m): 89
- Cutout Diameter: 11.22 in. (285 mm)
- Mounting Depth: 6.0 in. (152.4 mm)
- Woofer Displacement: 0.081 cu. ft. (2.3 Liters)
- Sealed Box Volume (Vb): 1.02 cu. ft. (28.8 Liters)
- Vented Box Volume (Vb): 1.79 cu. ft. (50.6 Liters)
- Shipping Weight: 12.5 Lbs. (5.66 Kg)
