ROCKFORD FOSGATE P1S2-10
- Description
ROCKFORD FOSGATE

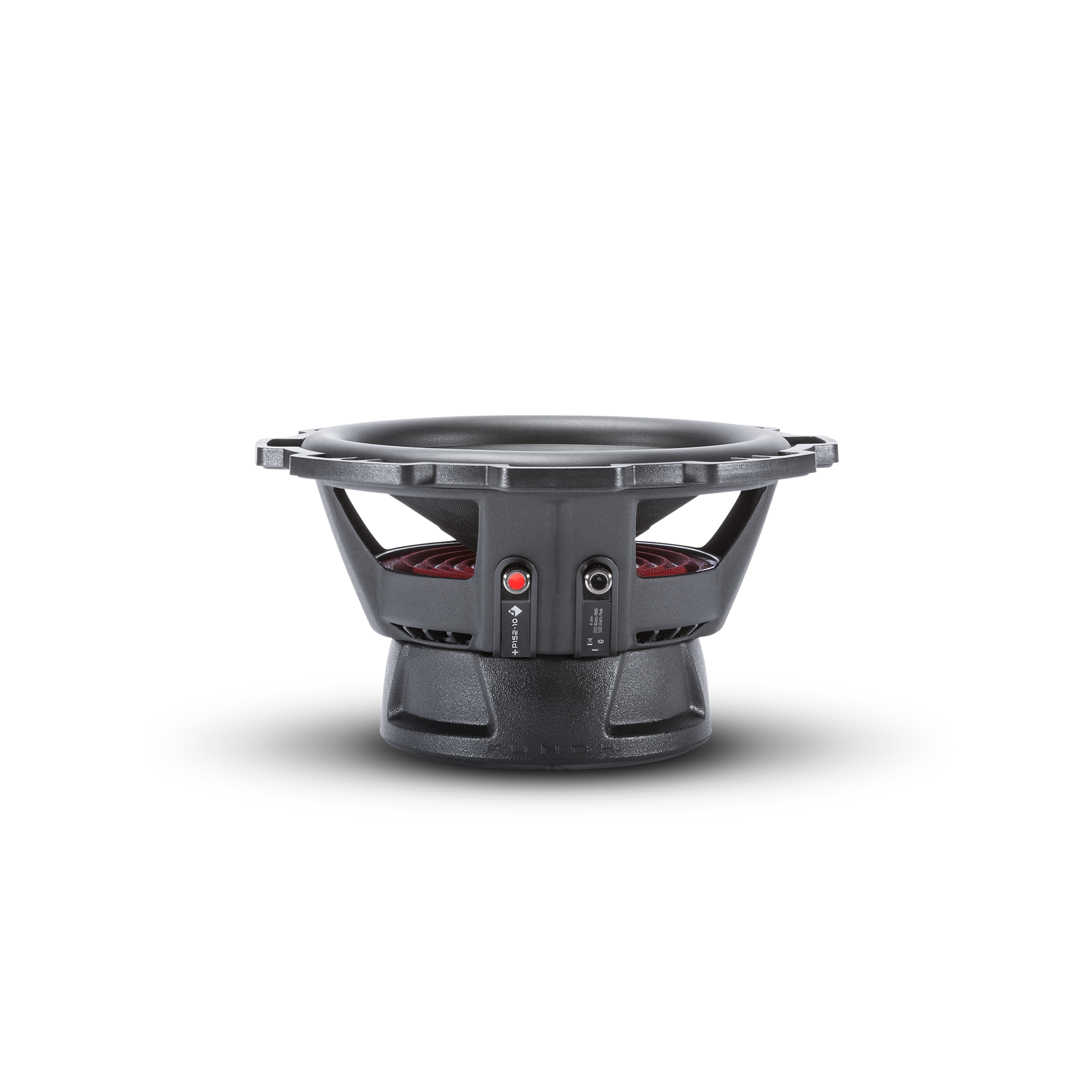

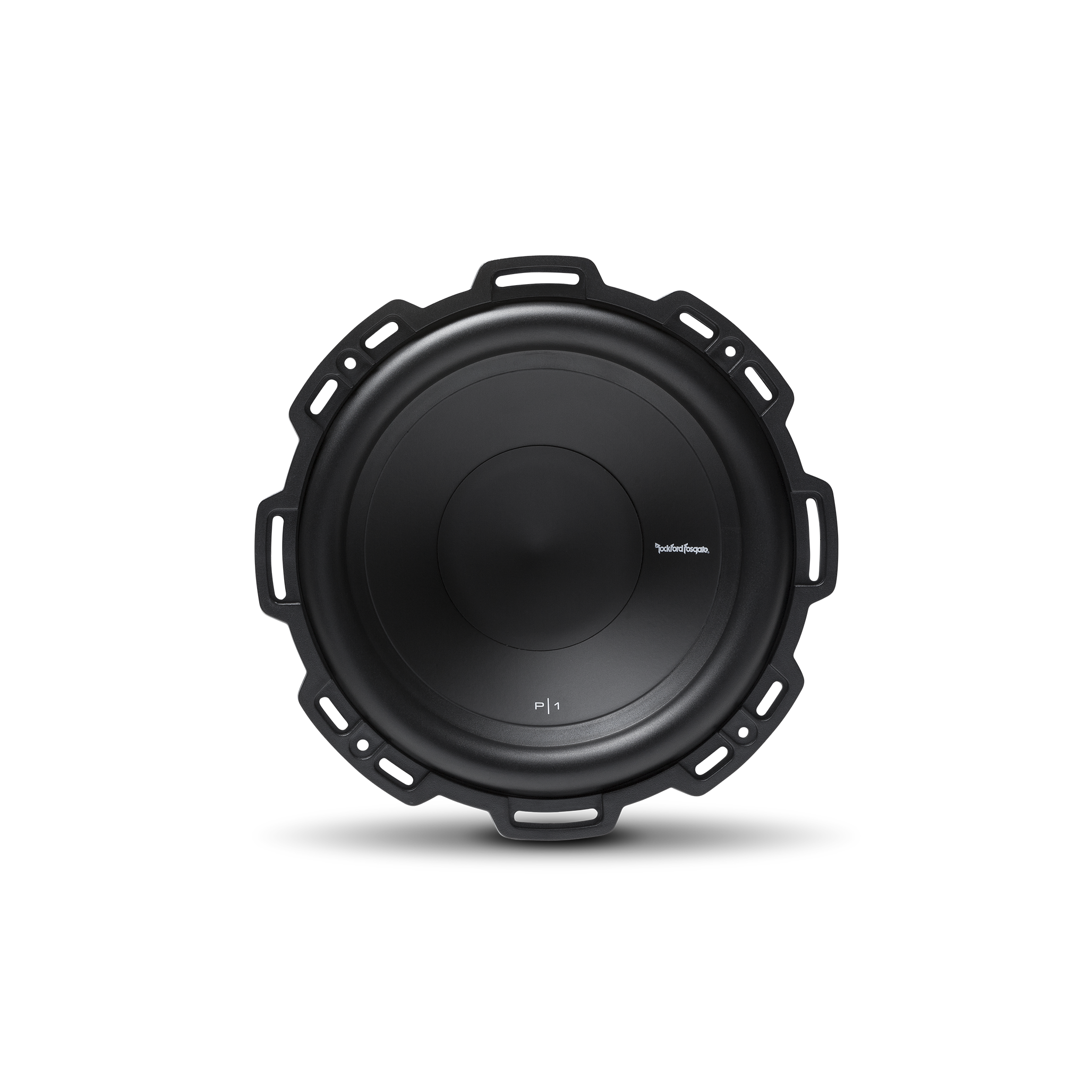

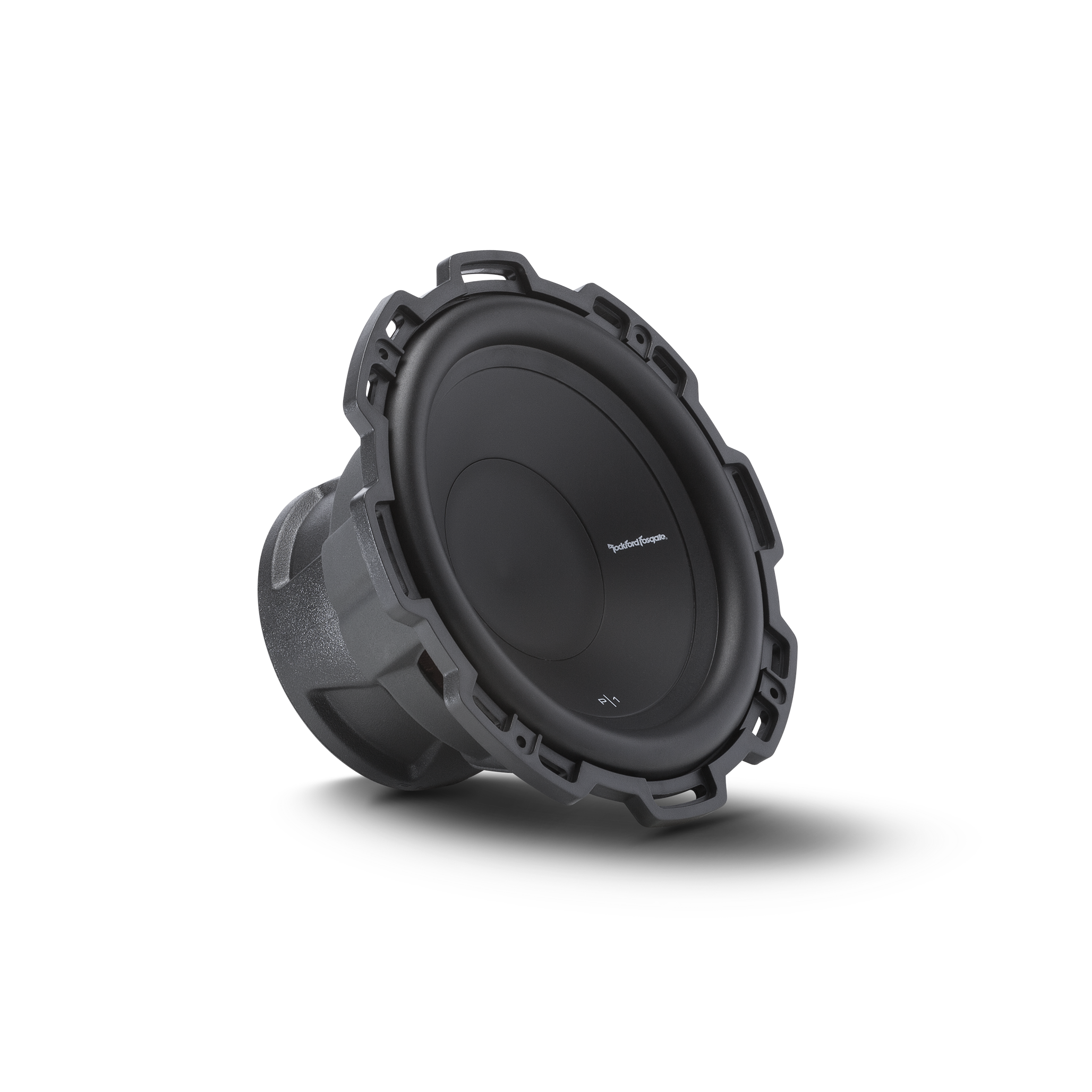

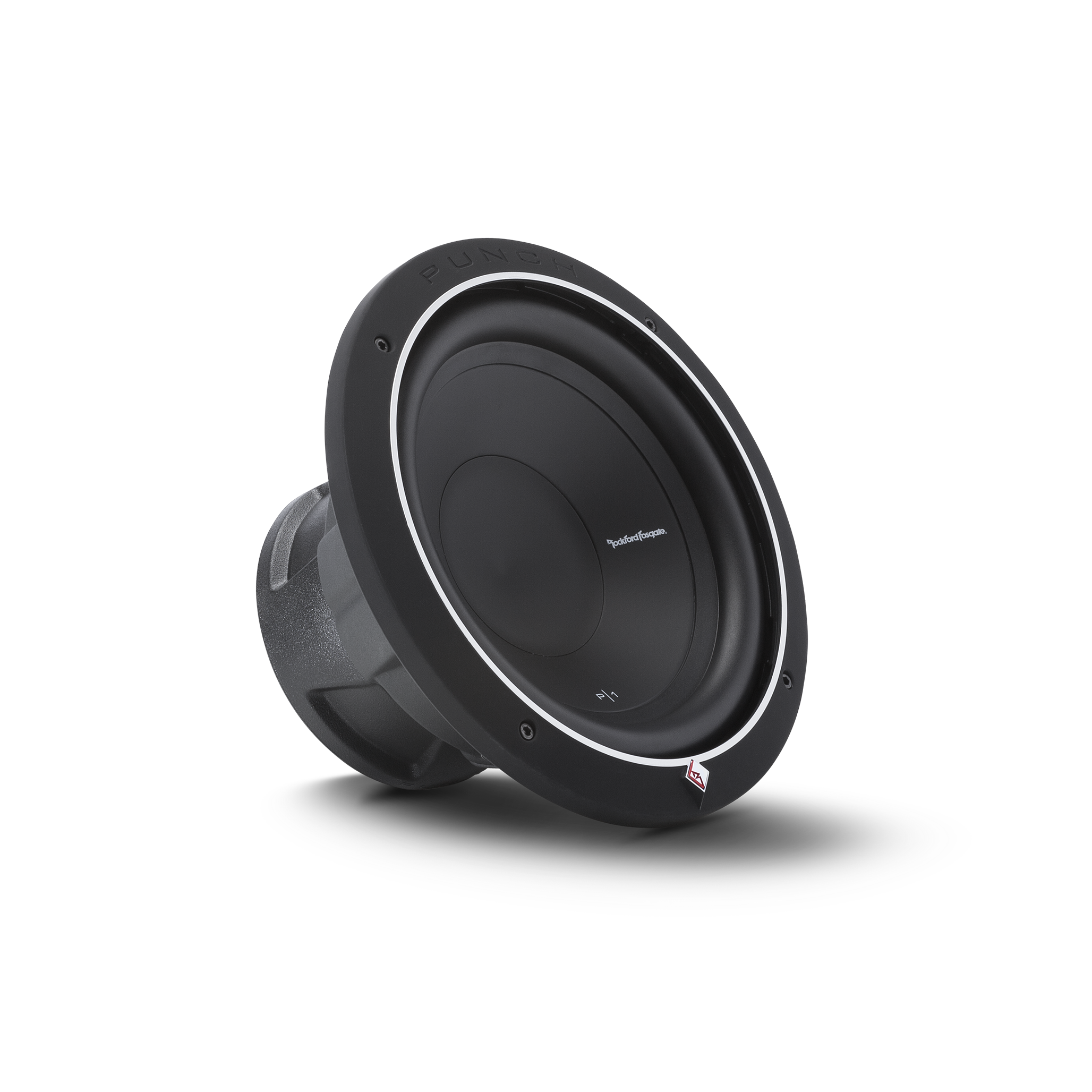

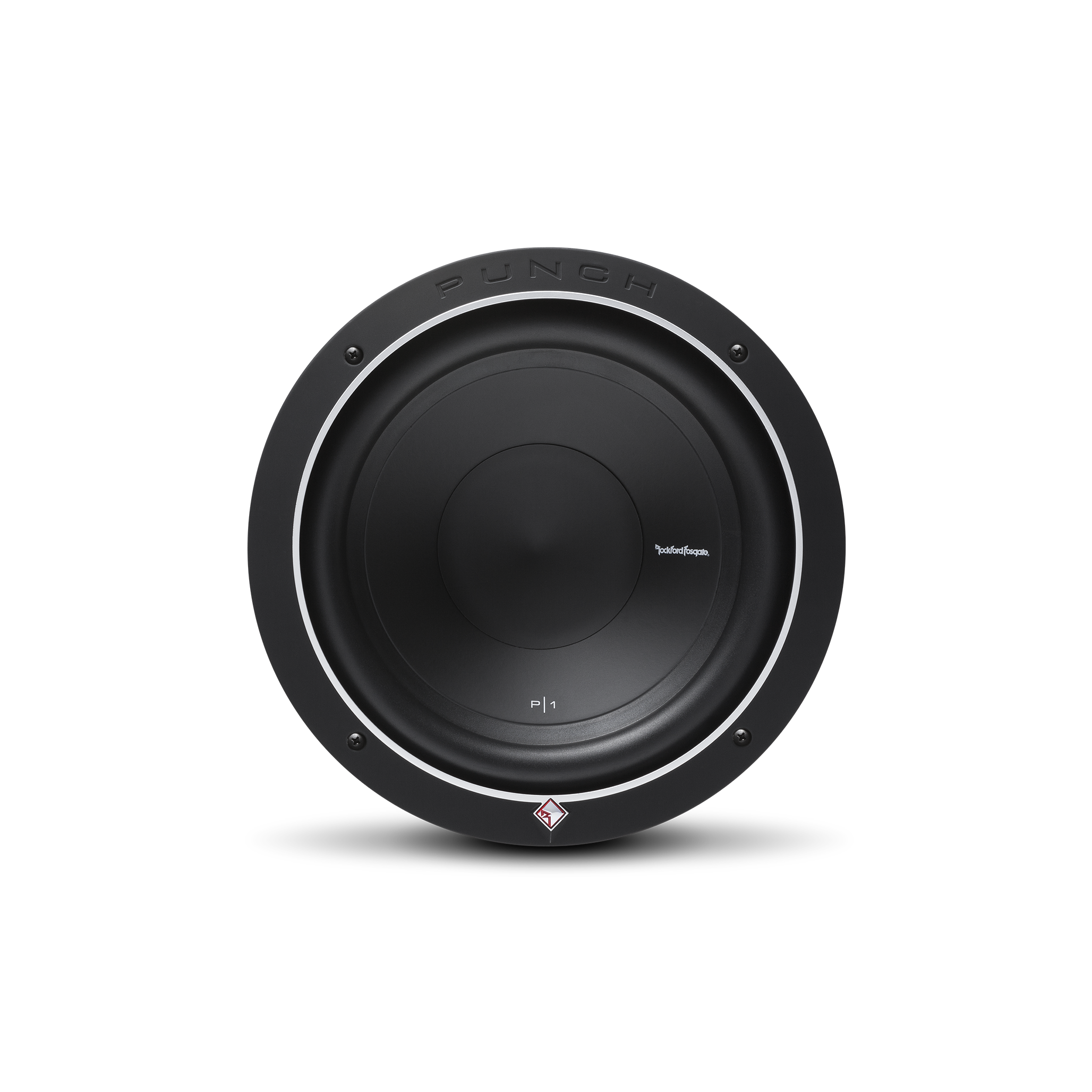

(P1S2-10) PUNCH 10" P1 2-OHM SVC SUBWOOFER
Rockford Fosgate P1 10” is the first in a family of famous “Punch” subwoofers. The P1S2-10 features a 2-Ohm voice coil, 250 Watts RMS power handling, and can accommodate a grille insert using the included soft touch ABS trim ring.
Rockford Fosgate P1 10" are the first in a family of world famous subwoofers called "The Punch". During their inception in the 1980's, they quickly became "The Woofer of Choice" for fanatic car audio systems, with a continued tradition today. Kevlar fiber reinforced paper cones deliver bass impact you can feel, and our VAST technology increases surface cone area up to 25%. Best in standard sealed and vented enclosures. Includes soft touch ABS trim ring.
TECHNOLOGIES
- CEA-2031: Power handling on Rockford Fosgate speakers conform to CEA-2031 industry standards.
- Anodized Aluminum Voice Coil Former: Rockford Fosgate subwoofers use anodized aluminum voice coil formers that provide superior heat dissipation (up to 100° at full power levels). Unlike traditional plastic substitutions, aluminum acts like a heat-sink to quickly dissipate thermal build-up on the voice coil. This keeps subwoofers cool during high SPL conditions.
- Stitched Tinsel Leads: Improved reliability and performance by reducing fatigue and possible shorting.
- FlexFit Basket - Subwoofer: The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.
- Klippel Verified: Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.FlexFit Basket - Subwoofer: The slot mounted frame pattern allows fine-tuning of the subwoofer's mounting position.
FEATURES:
- Linear spider with embedded 16 AWG tinsel leads
- Kevlar fiber reinforced paper cone
- StampCast basket with integrated spider venting
- Rubberized ABS trim ring with optional grille
- Custom 10-AWG nickel plated push terminals
- High-temp voice coil with spun-laced Nomex® re-inforcement collar
- Extended pole piece and bumped vented backplate
- 1 Year Warranty
- Protective PVC textured magnet cover
SPECIFICATIONS:
- Power Handling (Watts RMS): 250 Watts RMS ; 500 Watts Max
- Size: 10"
- Subwoofer Type: Standard
- CEA-2031 Compliant: Speakers Standard
- Nominal Impedance: 2-Ohm
- Magnet Weight (oz): 45 oz. (1.28 kg.)
- Voice Coil Type: Single Voice Coil
- Voice Coil Diameter: 2.0" (51.6 mm)
- Fs (Hz): 30
- Qms: 2.70
- Re (Ohms): 1.60
- Xmax (mm): 9.0
- Qts: 0.52
- Speaker Connector: Dual 10 AWG compression
- Qes: 0.75
- Vas (Liters): 35.4
- Le (mH): 1.16
- Mounting Depth: 5.33 in. (135.4 mm)
- Sd (cm2): 370
- SPL (dB @ 1w/1m): 85
- Cutout Diameter: 9.14 in. (232 mm)
- SPL (dB @ 2.8v/1m): 88
- Woofer Displacement: 0.056 cu. ft. (1.6 Liters)
- Sealed Box Volume (Vb): 0.59 cu. ft. (16.7 Liters)
- Vented Box Volume (Vb): 1.4 cu. ft. (39.6 Liters)
- Shipping Weight: 11.1 Lbs. (5.03 kg)
