MB QUART NA2-400.2

MB QUART

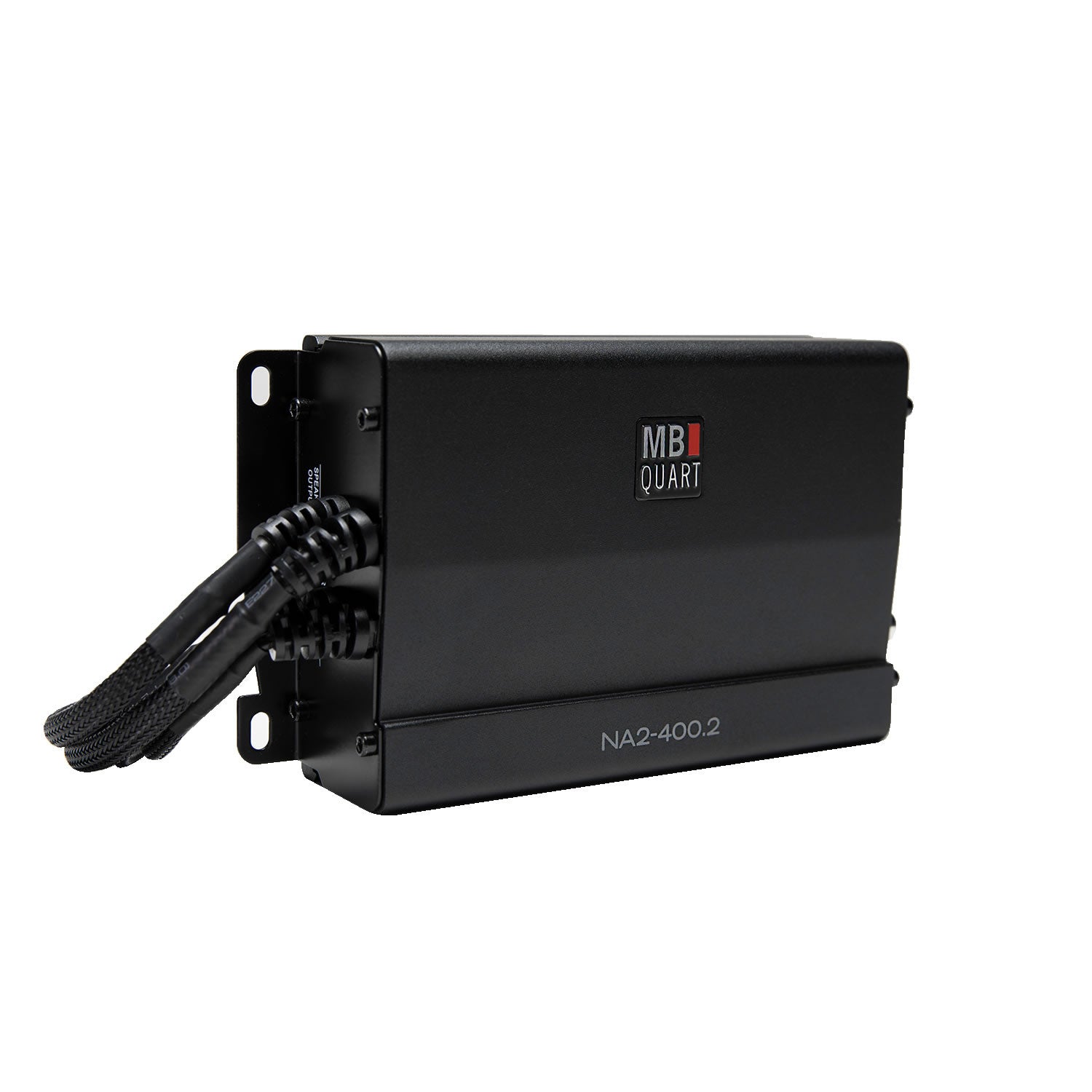

(NA2-400.2) COMPACT NAUTIC 2 CHANNEL 400 WATTS POWER SPORT AMPLIFIER

MB Quart compact Two Channel, 400 watt Powersports amplifier with on-board equalization and simple installation with quick release connectors.

FEATURES & BENEFITS:

• MARINE GRADE PROTECTION:  YES/  Amplifiers are ABYC & ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture.
• PRE-AMP CIRCUITRY:  Q-Stasis Pre Amplifier Stage The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise      from source units dramatically improving sound quality
• INPUTS:  2 Pair, RCA Nickel-PlatedHigh temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
• OPERATION MODE:  Mono operationDeisgned to power 1 subwoofer or subwoofer system

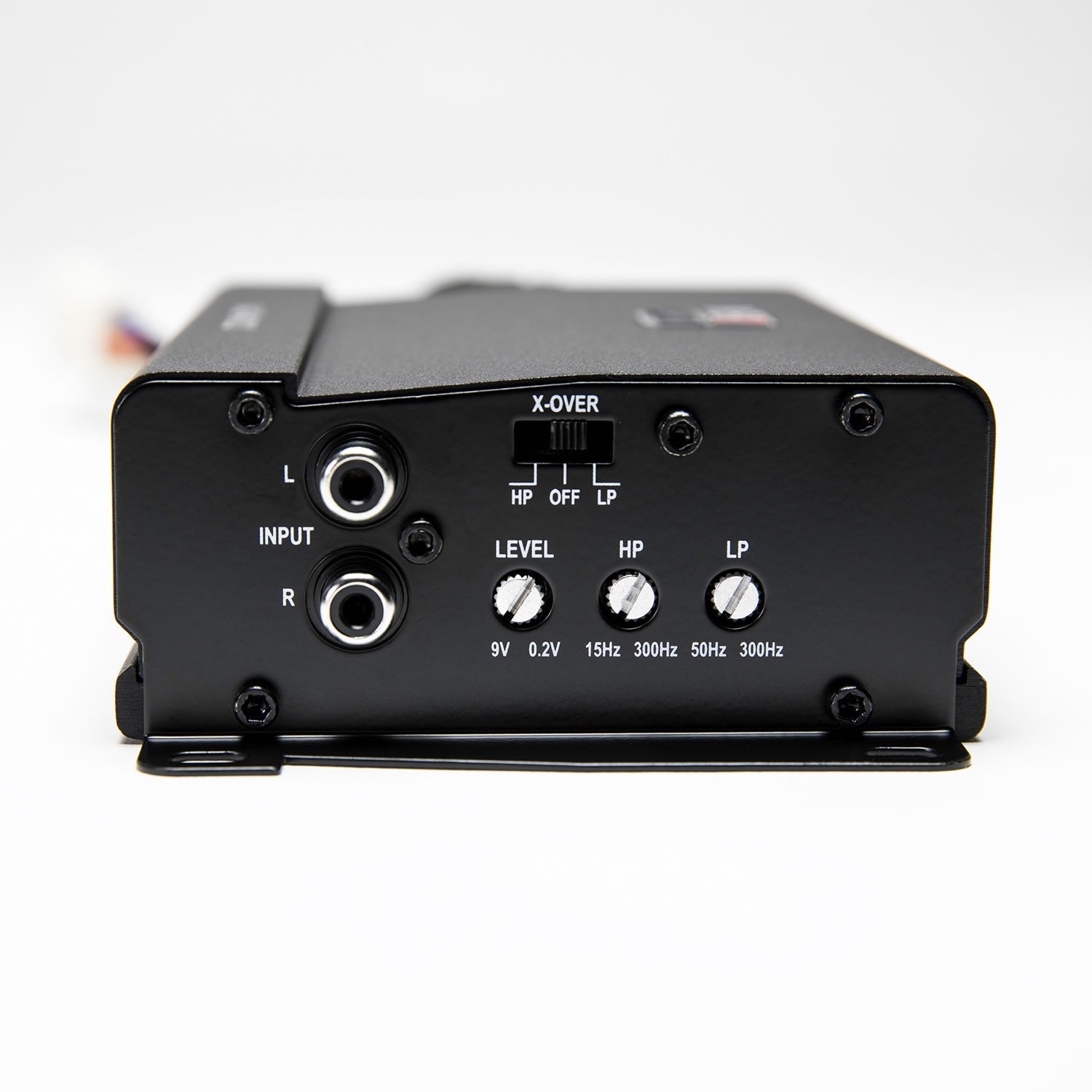

• CROSSOVER / SIGNAL SHAPING:  LPFComplete control of amplifier signal, essential when using two or more amplifiers
• CLASS / TOPOLOGY:  Full Range Class DHighly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
• OUTPUT DEVICES TECHNOLOGY:  PWM MOSFET Power SupplyStable power through the PC board with minimal heat generation
• HEAT SINK:  AluminumQuickly dissapates heat to allow the amplifer to run lower impedance for longer duration
• POWER SUPPLY:  Simpatico Coil DesignThe dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices
• BASS REMOTE:  IncludedWired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle.

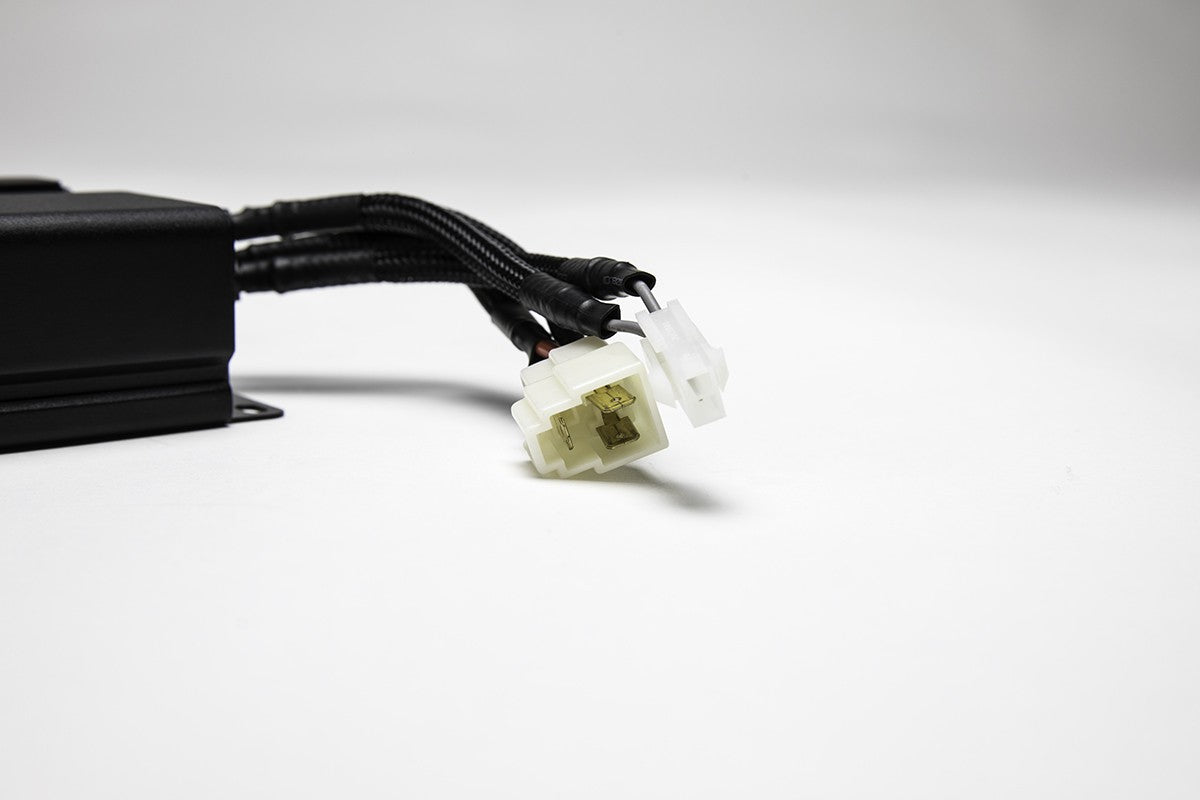

• OUTPUT CONNECTIONS: Quick Dissconect Wires, RCA ConnectionsQuickly remove amplifer when you are putting machine up for the winter of as a security precaution
• CONNECTIONS TYPE: Gold-plated connectionsGold-plated power, ground, speaker and RCA corrosion resistant connections

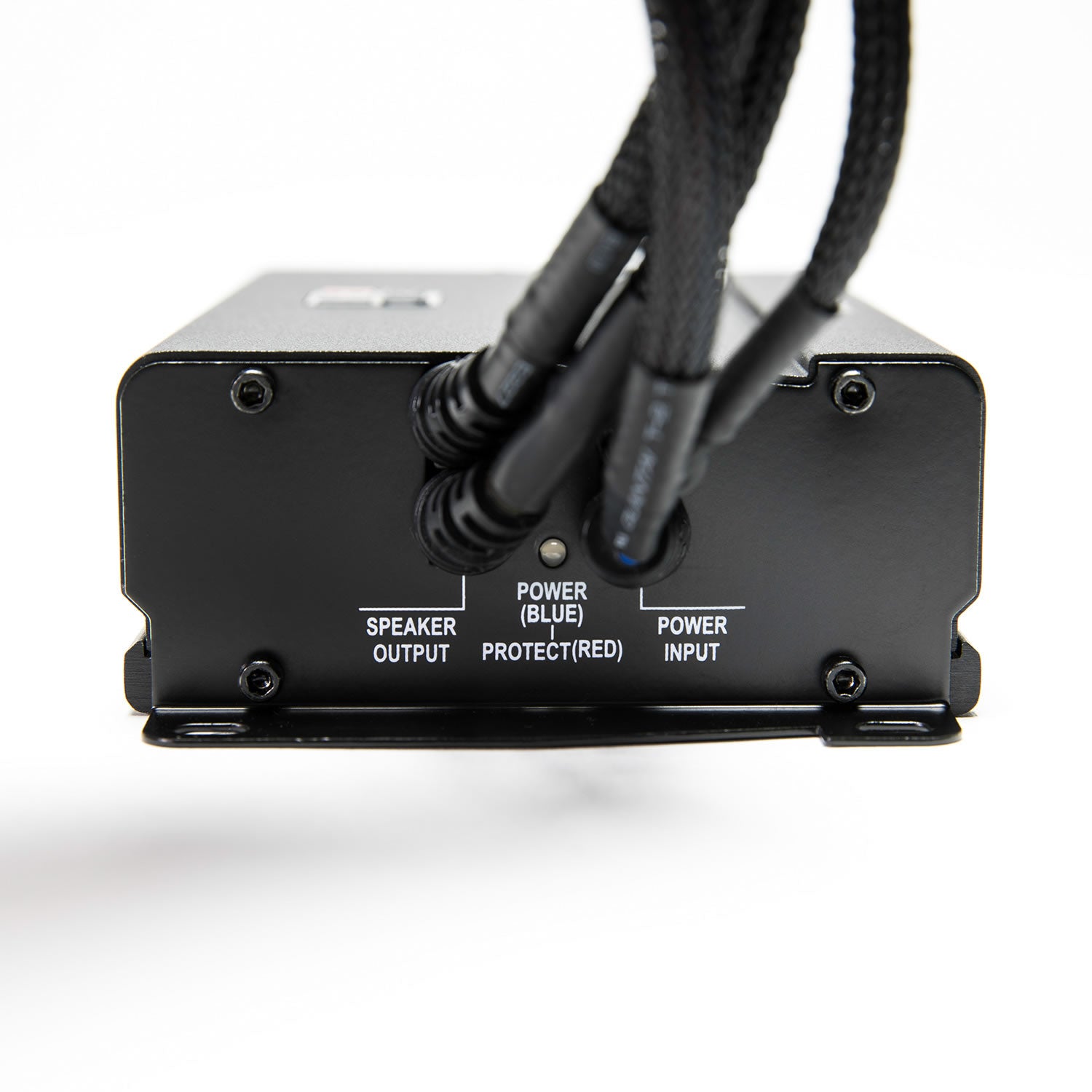

• DIAGNOSTICS: Three-stage protection circuitsMonitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel
• MARINIZED / WATERPROOF: YESWater resistant for durability in any environment

SPECIFICATIONS:

• Class Full Range:  Class D
• Variable Voltage:  0.2V~9V
• Signal To Noise Ratio:   >90dB
• Frequency Response:  20Hz-20kHz
• Crossover Type Electronic:  12dB Per Octave
• Low Pass Crossover Switch Low Pass:  300 HZ
• Bass Boots:  0-12dB@45Hz
• Subsonic Filter:  60Hz
• Power @ 2-OHMS:  2 x 250W
• Power @ 4-OHMS:  2 x 125W
• Total Channels:  2
• Audio Inputs:  RCA
• Power Terminal:  12V/GND Molex 10 ga
• Speaker Terminal Wire Gauge Molex Plug Connector
• Fusing: 1 x 30 Amps
• Certifications:  Marine & Powersports
• Dimensions:  3.70 X 5.51 X 1.77 in, 9.4 X 14.0 X 4.5 cm
• Weight: 2.12 lbs (0.96 kg)
