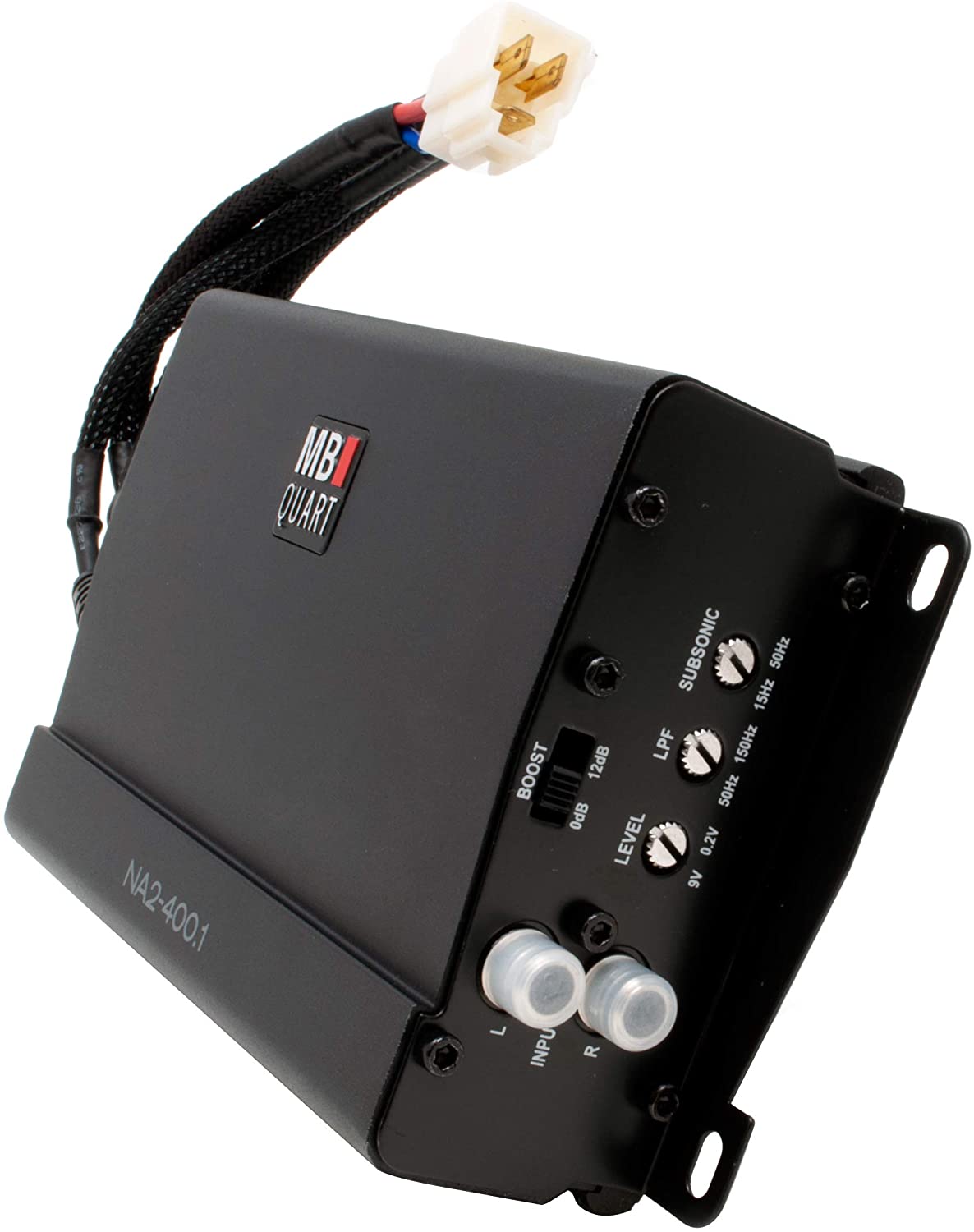

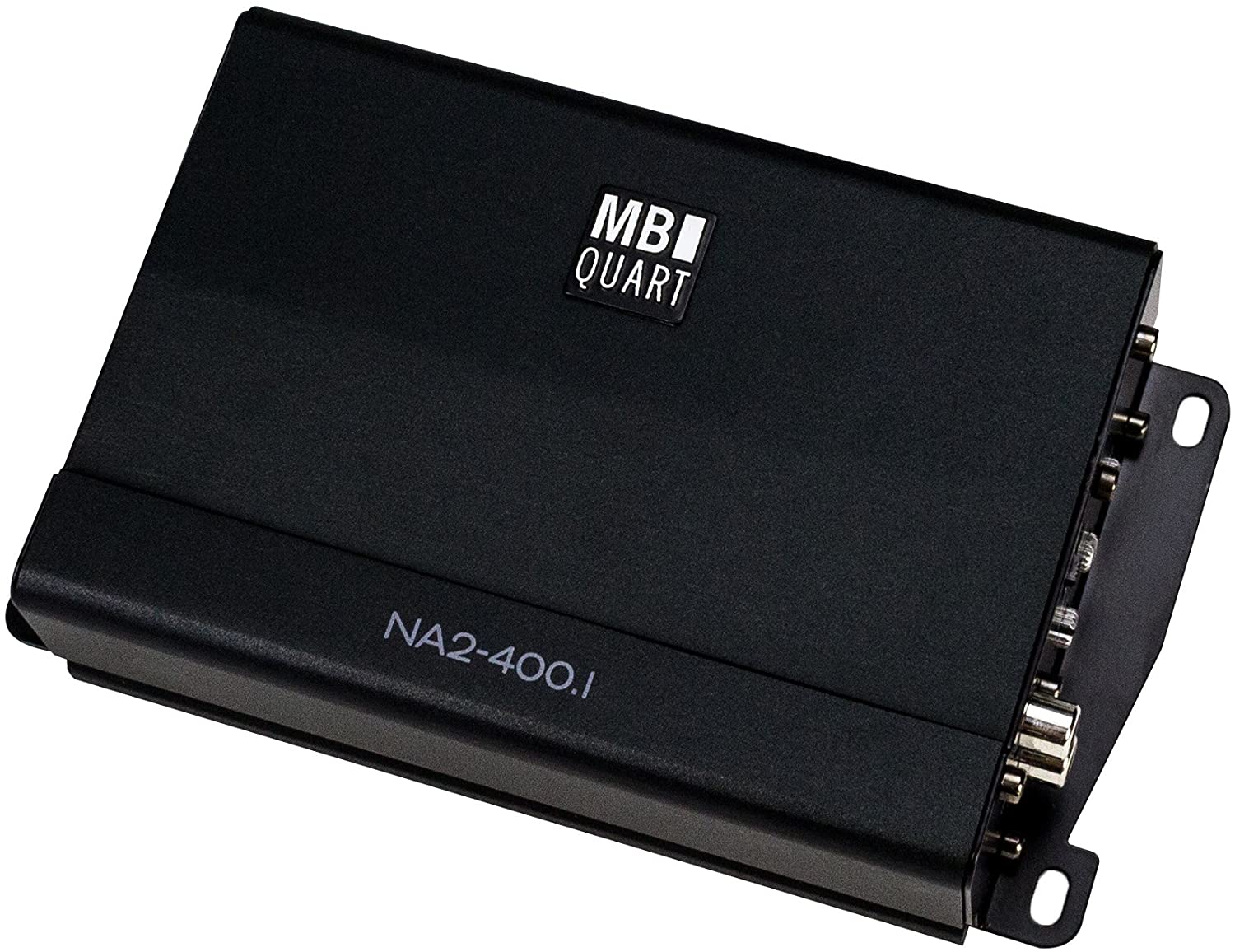

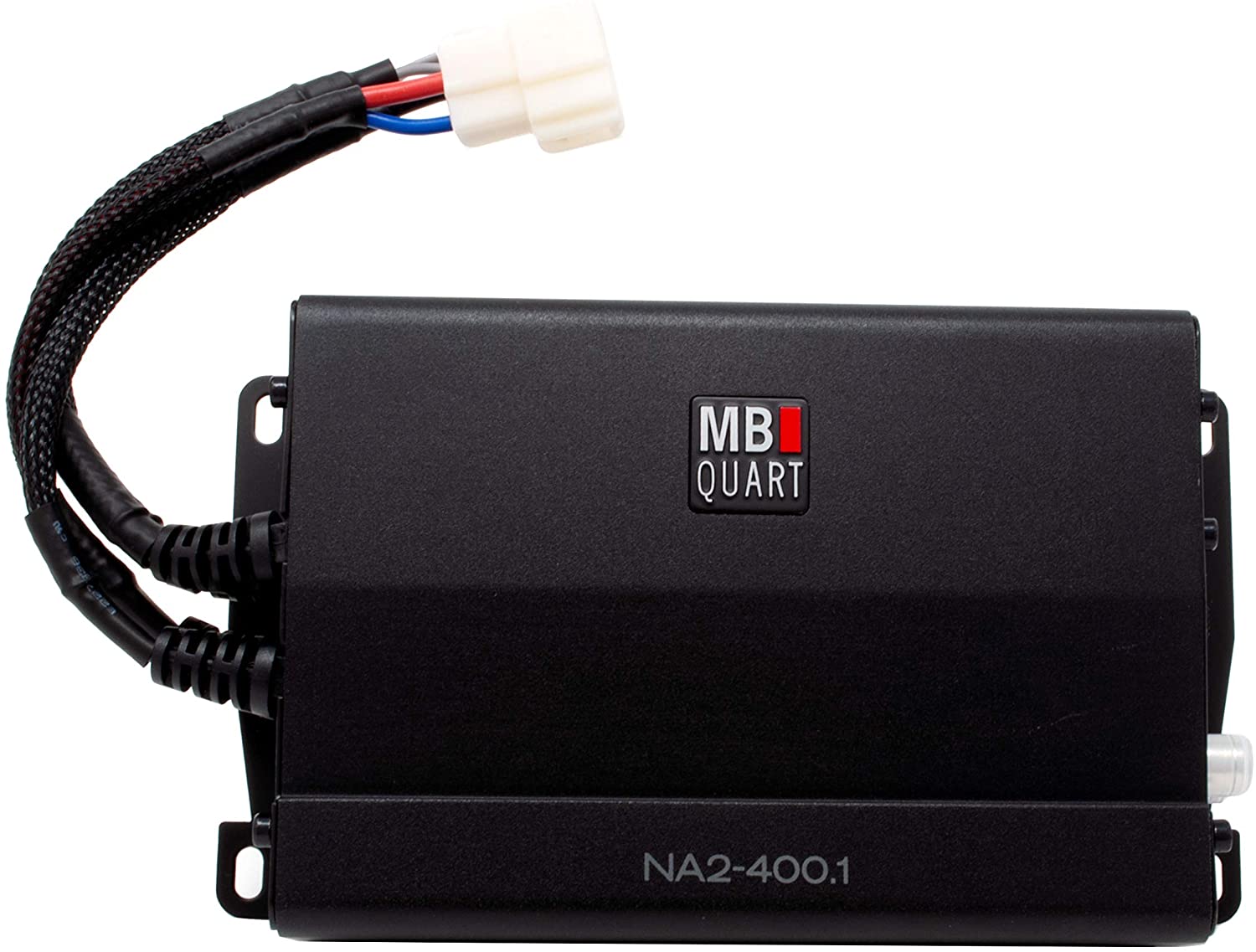

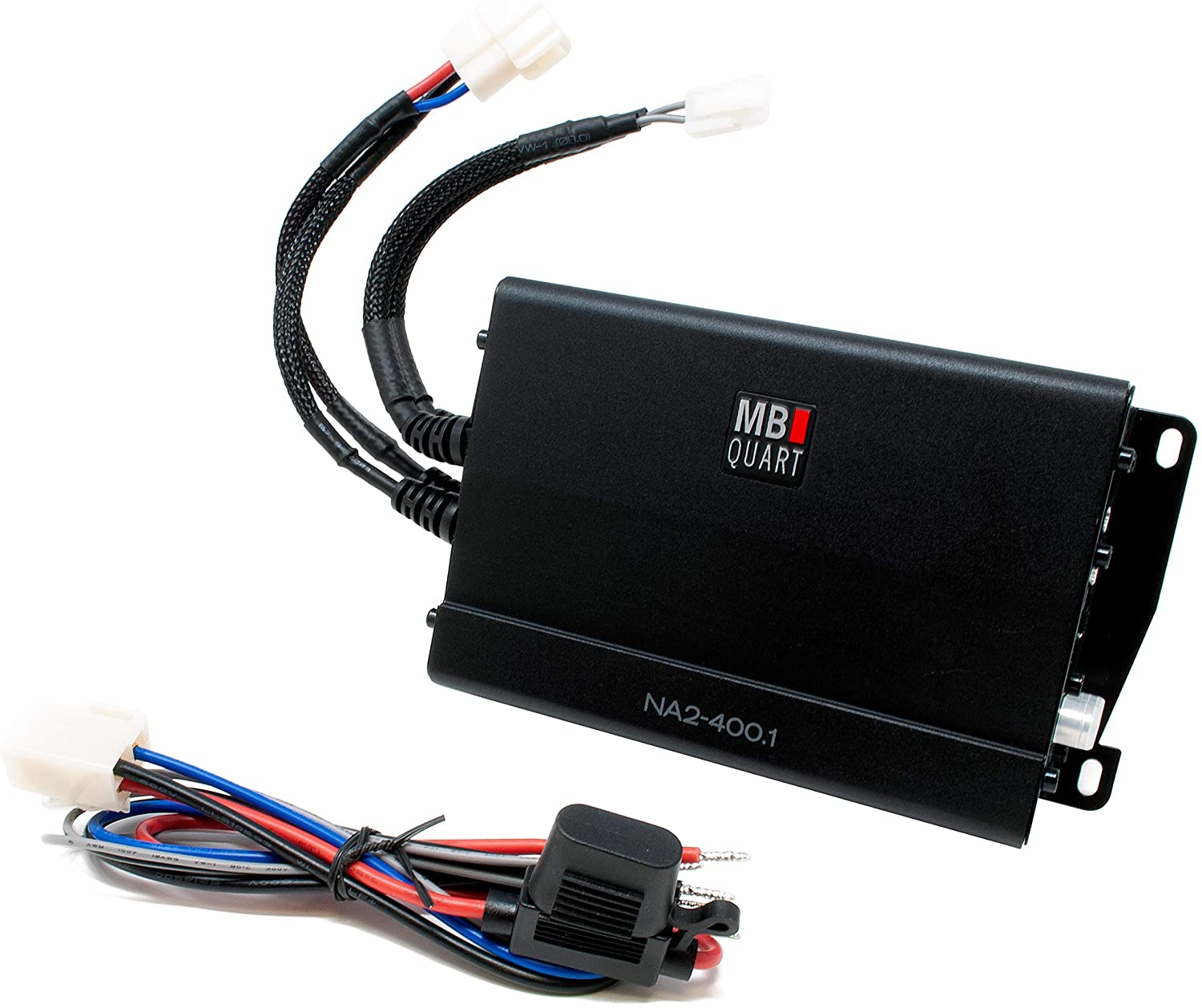

MB QUART NA2-400.1

MB QUART

(NA2-400.1) COMPACT 400 WATTS MONO POWER SPORTS AMPLIFIER TO FOR A SUBWOOFER

MB Quart compact 400 watt mono Powersports amplifier to for a subwoofer with on-board equalization and simple installation with quick release connectors.

FEATURES & BENEFITS:

• MARINE GRADE PROTECTION/IPX RATING:  Amplifiers are ASTM certified which defines that marine amplifiers must use conformal coated PC boards to resist corrosion from salt spray & moisture
• LOW NOISE PREAMPLIFIER CIRCUIT:  Q-Stasis Pre Amplifier Stage: The highly engineered Q-Stasis pre-amplifier stage reduces incoming noise from source units dramatically improving sound quality.
• RCA INPUTS:  2 Pair RCA Nickel-Plated: High temperature impact resistant with hex screw terminals that allow for secure connections and is erosion resistant
• OPERATION MODE:  Mono operation: Designed to power 1 subwoofer or subwoofer system
• CLASS/ TOPOLOGY:  Full Range Class D: Highly efficient circuit topology which helps the amplifer develop a lot of power in a very small heatsink.
• OUTPUT DEVICE TECHNOLOGY:  PWM MOSFET Power Supply: Stable power through the PC board with minimal heat generation.
• HEAT SINK:  Aluminum: Quickly dissapates heat to allow the amplifer to run lower impedance for longer duration.
• POWER SUPPLY:  Simpatico Coil Design: The dual coil Pulse Width Modulated power supply keeps voltage constant through the Ultra-Fi output devices
• CONNECTION TYPE:  Nickel-plated connections: Nickel plated corrosion resistant connections.

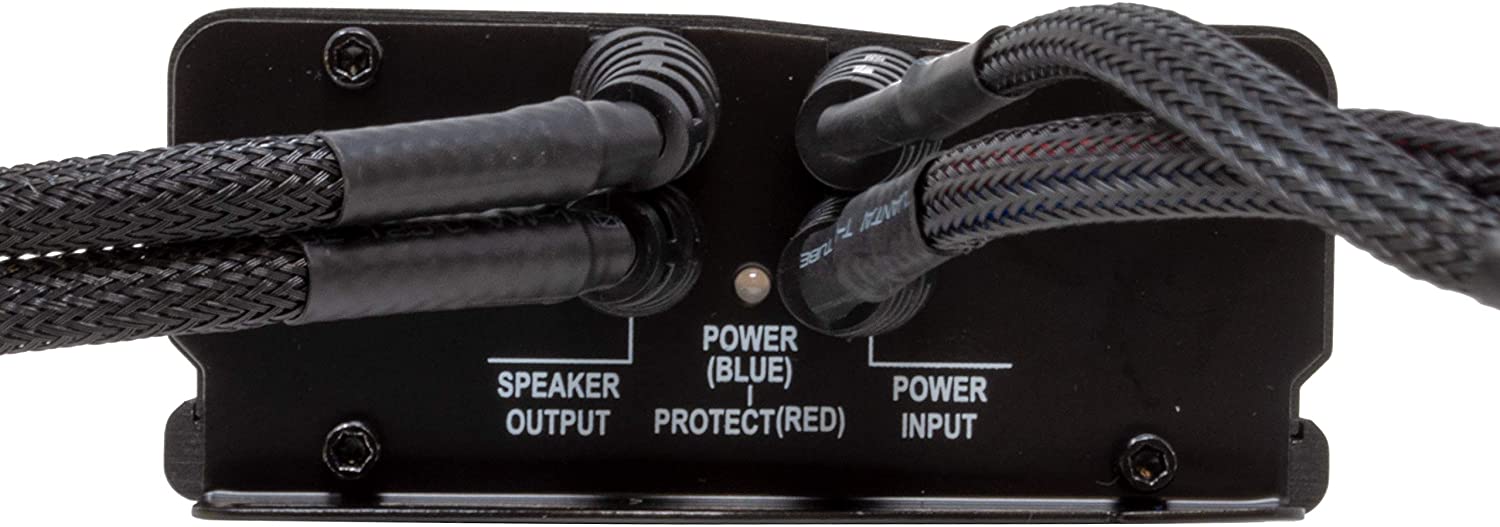

• LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS:  Three-stage protection circuits: Monitor thermal, overload, DC, and speaker short protection with lighted indicators on the amplifier end panel.
• CROSSOVER / SIGNAL SHAPING:  Complete control of amplifier signal, essential when using two or more amplifiers
• OUTPUT CONNECTIONS:  When you are putting machine up for the winter of as a security precaution

SPECIFICATIONS:

• Class Full Range:  Class D
• Variable Voltage:  0.2V~9V
• Signal To Noise Ratio:   >100dB
• Frequency Response:  10Hz-300kHz
• Crossover Type Electronic:  12dB Per Octave
• Low Pass Crossover Switch Low Pass:  300 HZ
• Bass Boots:  0-12dB@45Hz
• Subsonic Filter:  60Hz
• Power @ 2-OHMS:  1 x 500W
• Power @ 4-OHMS:  1 x 250W
• Total Channels:  Mono
• Audio Inputs:  RCA
• Power Terminal 12V/GND: Molex Plug Connector
• Speaker Terminal Wire Gauge Molex Plug Connector
• Fusing: 1 x 30 Amps
• Certifications:  Marine & Powersports
• Dimensions:  3.70 X 5.51 X 1.77 IN ( 9.4X14.0X4.5CM)
• Weight: 2.098 lbs (0.95 kg)
