JL AUDIO MX600/3

JL AUDIO

(MX600/3) 3-CHANNEL CLASS D SYSTEM AMPLIFIER, 75 WATTS X 2 + 250 W X 1 @ 4 OHM / 100 WATTS X 2 + 400W X 1 @ 2 OHM - 14.4V

OVERVIEW:

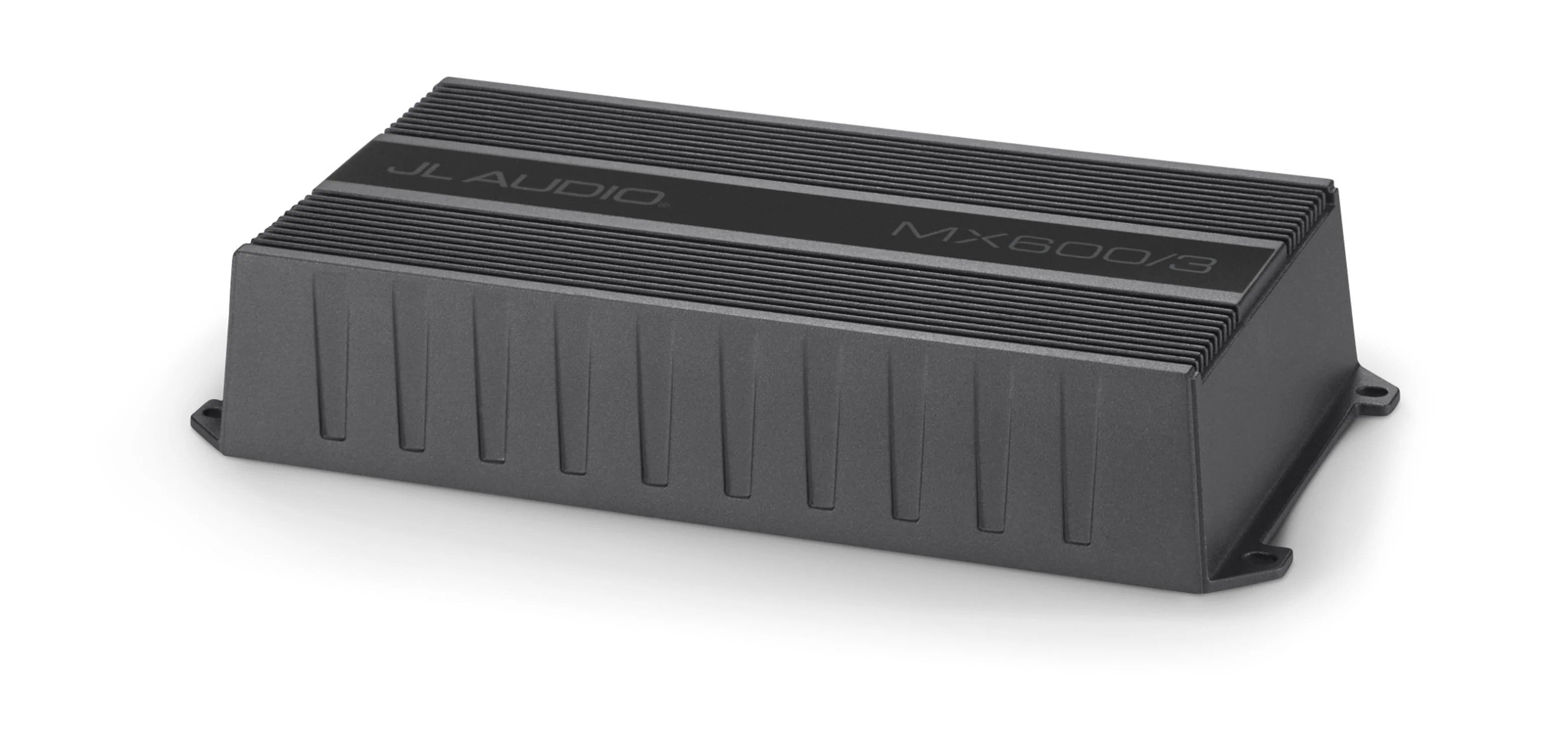

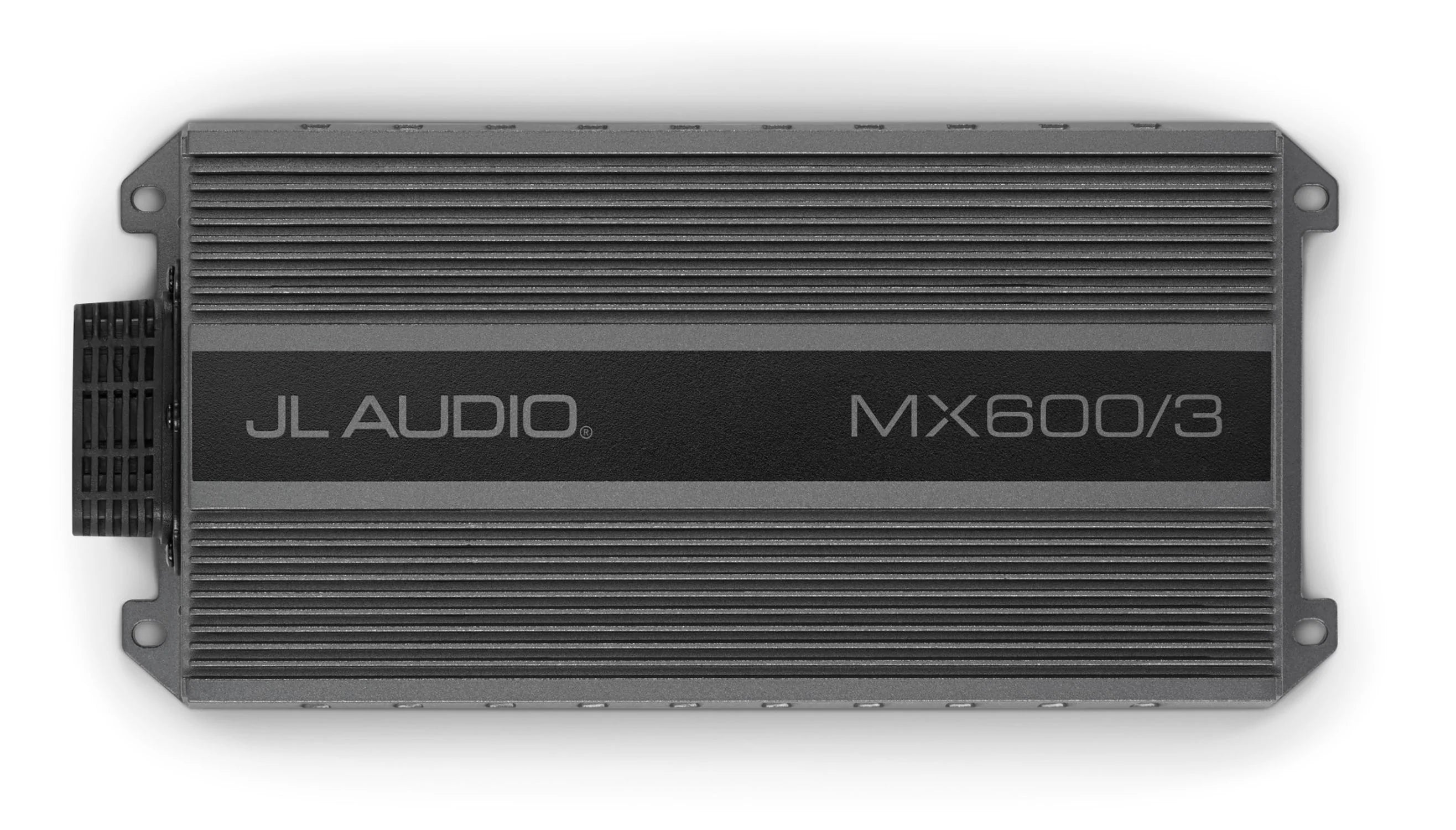

• Engineered specifically for powersports applications, the 3-channel MX600/3 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum housing is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
• Generating a potent 75W x 2 into 4 ohms, plus a solid 400 watts for a subwoofer system, the MX600/3 makes a great all-in-one solution for driving a complete audio system from a single, ultra-compact chassis.

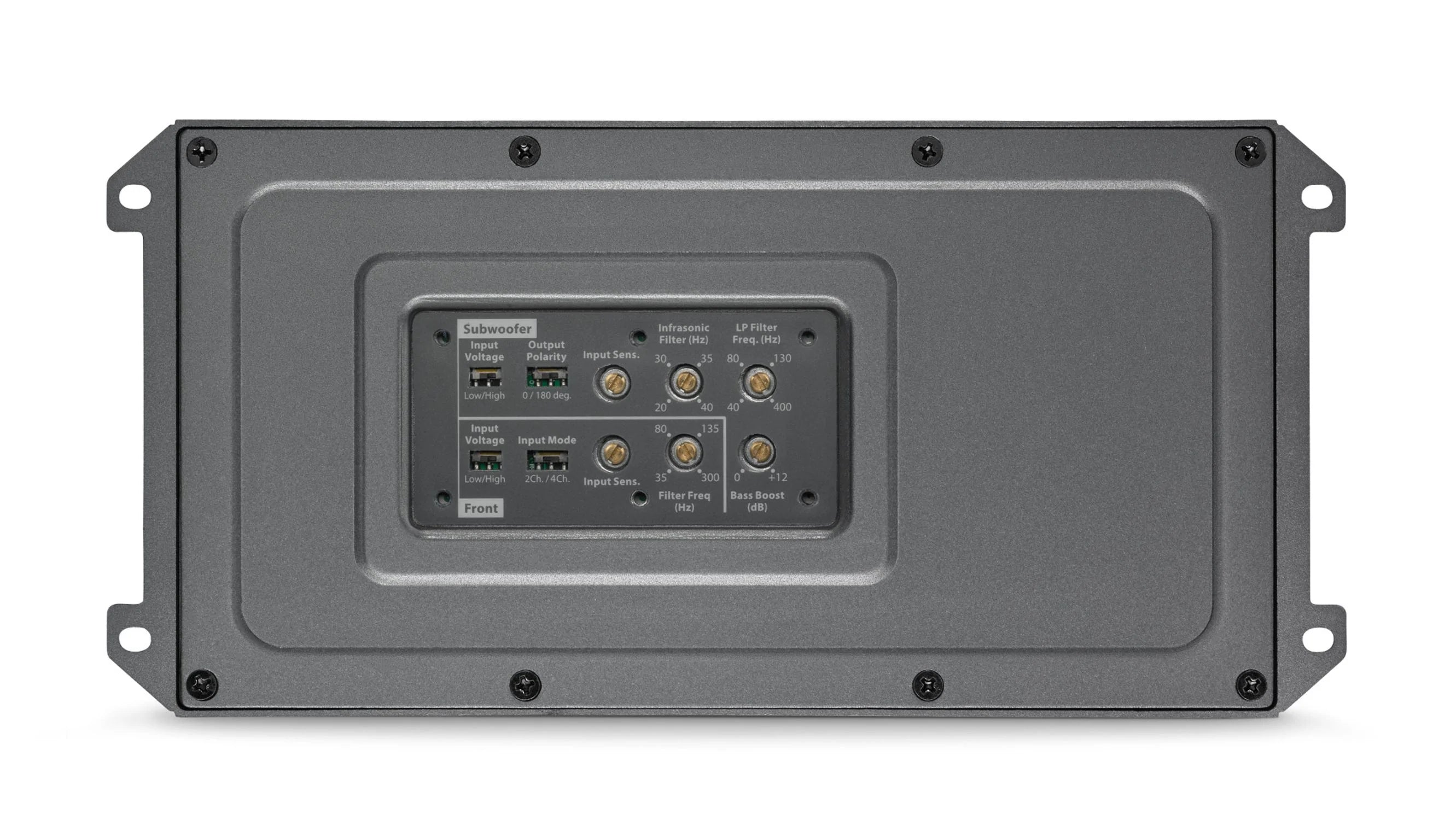

• Onboard filters include a 12 dB / octave high-pass crossover on the main channels and a dedicated 24 dB / octave low-pass crossover for the subwoofer channel. Other features include a bass boost EQ, variable infrasonic filter and subwoofer output polarity switch. A dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
• This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

RATED CONTINUOUS (RMS) POWER @ 14.4 V

• Main Channels @ 4 Ω : 75 W RMS x 2
• Main Channels @ 2 Ω : 100 W RMS x 2
• Main Channels - Bridged @ 4 Ω : 200 W RMS x 1
• Subwoofer Channel @ 4 Ω : 250 W RMS x 1
• Subwoofer Channel @ 3 Ω : 300 W RMS x 1
• Subwoofer Channel @ 2 Ω : 400 W RMS x 1
• Subwoofer Channel @ 1.5 Ω : N/A

RATED CONTINUOUS (RMS) POWER @ 12.5 V

• Main Channels @ 4 Ω : 50 W RMS x 2
• Main Channels @ 2 Ω : 80 W RMS x 2
• Main Channels - Bridged @ 4 Ω : 100 W RMS x 1
• Subwoofer Channel @ 4 Ω : 200 W RMS x 1
• Subwoofer Channel @ 3 Ω : 250 W RMS x 1
• Subwoofer Channel @ 2 Ω : 300 W RMS x 1
• Subwoofer Channel @ 1.5 Ω : N/A

GENERAL SPECIFICATIONS:

• Frequency Response : 20 Hz - 12 kHz (+0, -1dB)
• S/N Ratio, referred to highest rated power : >88 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W : >68 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω : >92 / 50 Hz
• Damping Factor @ 2 Ω : >43 / 50 Hz
• THD+N @ Rated Power (Main Channels) : <1% @ 2 Ω per Ch.
• THD+N @ Rated Power (Subwoofer Channels) : <1% @ 2 Ω per Ch.
• Input Voltage Range @ RCA Inputs : Switchable from 250 mV - 4 V RMS (Low) to 580 mV - 14 V RMS (High)
• Min.Copper Power / Ground Wire Gauge : 4 AWG wire
• Fuse Rating : 60 A (AFS, AGU or MaxiFuse™)

SIGNAL PROCESSING:

• Filter Slope(s) : 12 dB/octave
• Filter Frequency Range: Channels 1 & 2 (front) : 35 Hz - 300 Hz
• Filter Frequency Range: Subwoofer Channel : 40 Hz - 400 Hz
• Filter Mode(s): Channels 1 & 2 (front) : High-Pass only
• Filter Mode(s): Subwoofer Channel : Low-Pass only
• Detented, Calibrated Filter Freq. Potentiometers : Yes
• Filter Defeat Function : Yes
• Remote Subwoofer Level Control : Optional (RBC-1)
• Remote Level Modes : N/A
• Channel Input Mode Switch : Yes (2/4 ch.)
• Pass-Through Preamp Output : None
• Source Channel Selection for PreOuts : N/A

PHYSICAL SPECIFICATIONS:

• Height (H) : 1.77 in / 45 mm
• Width (W) : 9.33 in / 237 mm
• Depth (D) : 4.50 in / 115 mm

In-store Purchase only

SKU # 98409
