JL AUDIO MX500/1

JL AUDIO

(MX500/1) MONOBLOCK CLASS D FULL-RANGE AMPLIFIER, 300 WATTS X 1 @ 4 OHM / 500 WATTS X 1 @ 2 OHM - 14.4V

OVERVIEW:

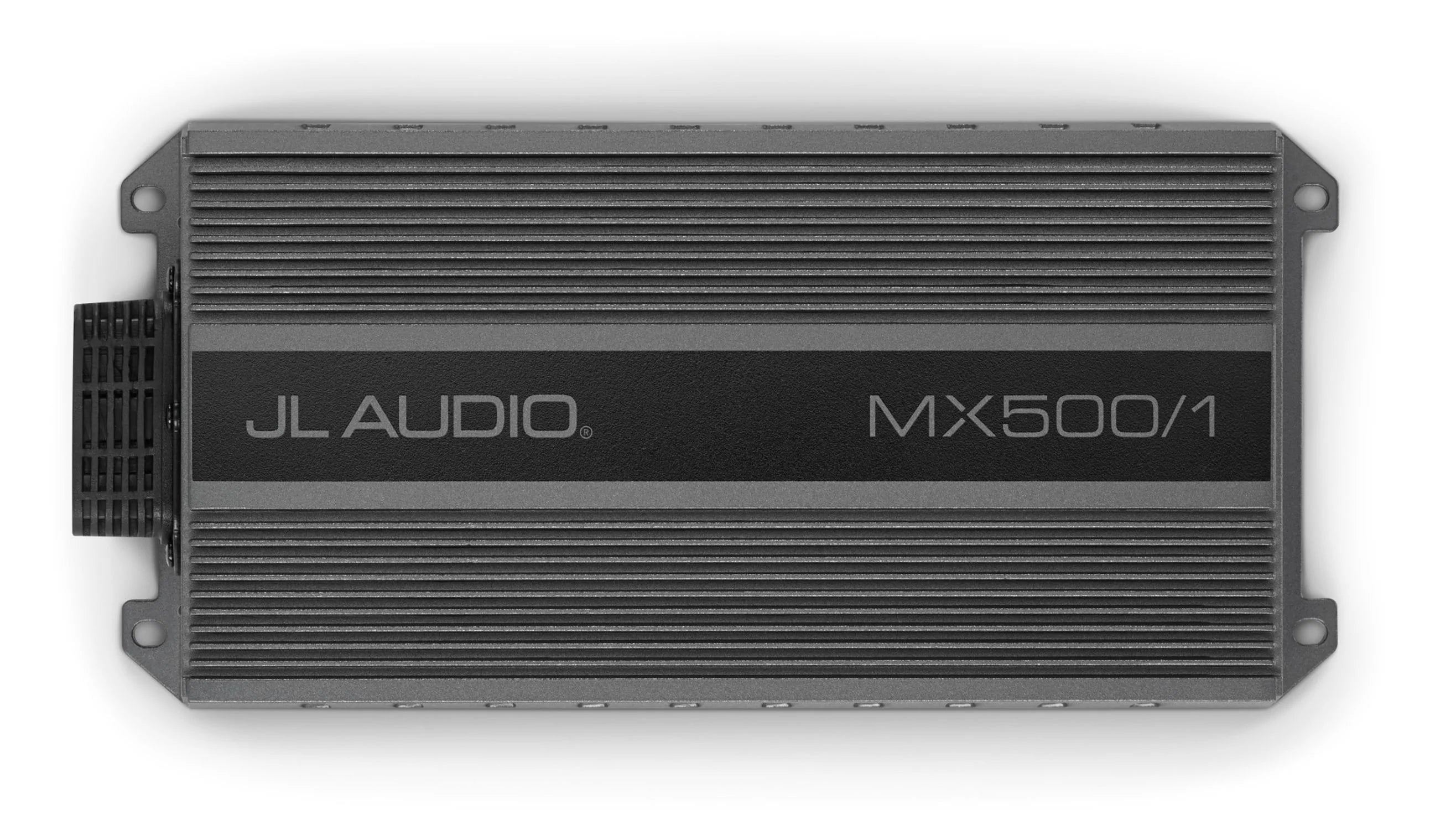

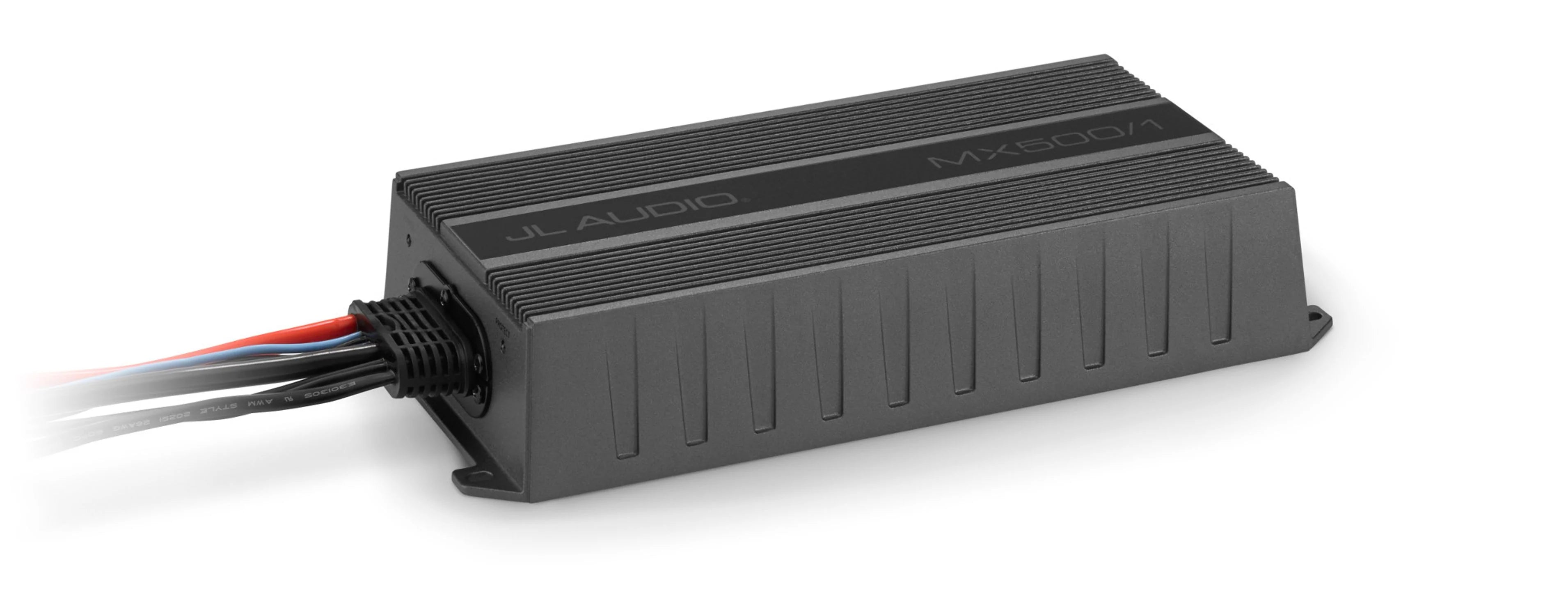

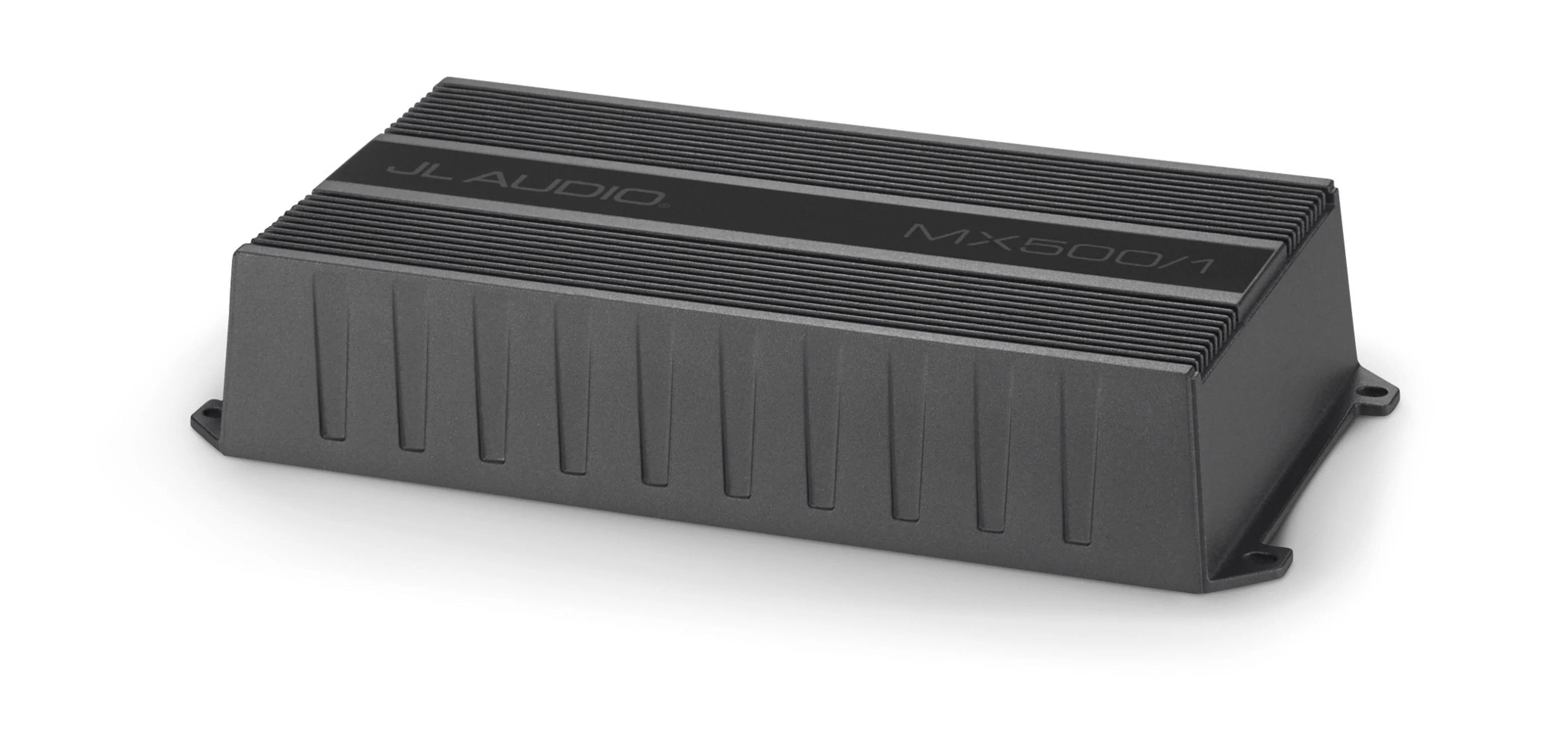

• Engineered specifically for powersports applications, the MX500/1 monoblock amplifier employs our high-speed NexD™ switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
• With a robust 500W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX500/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.
• Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat.

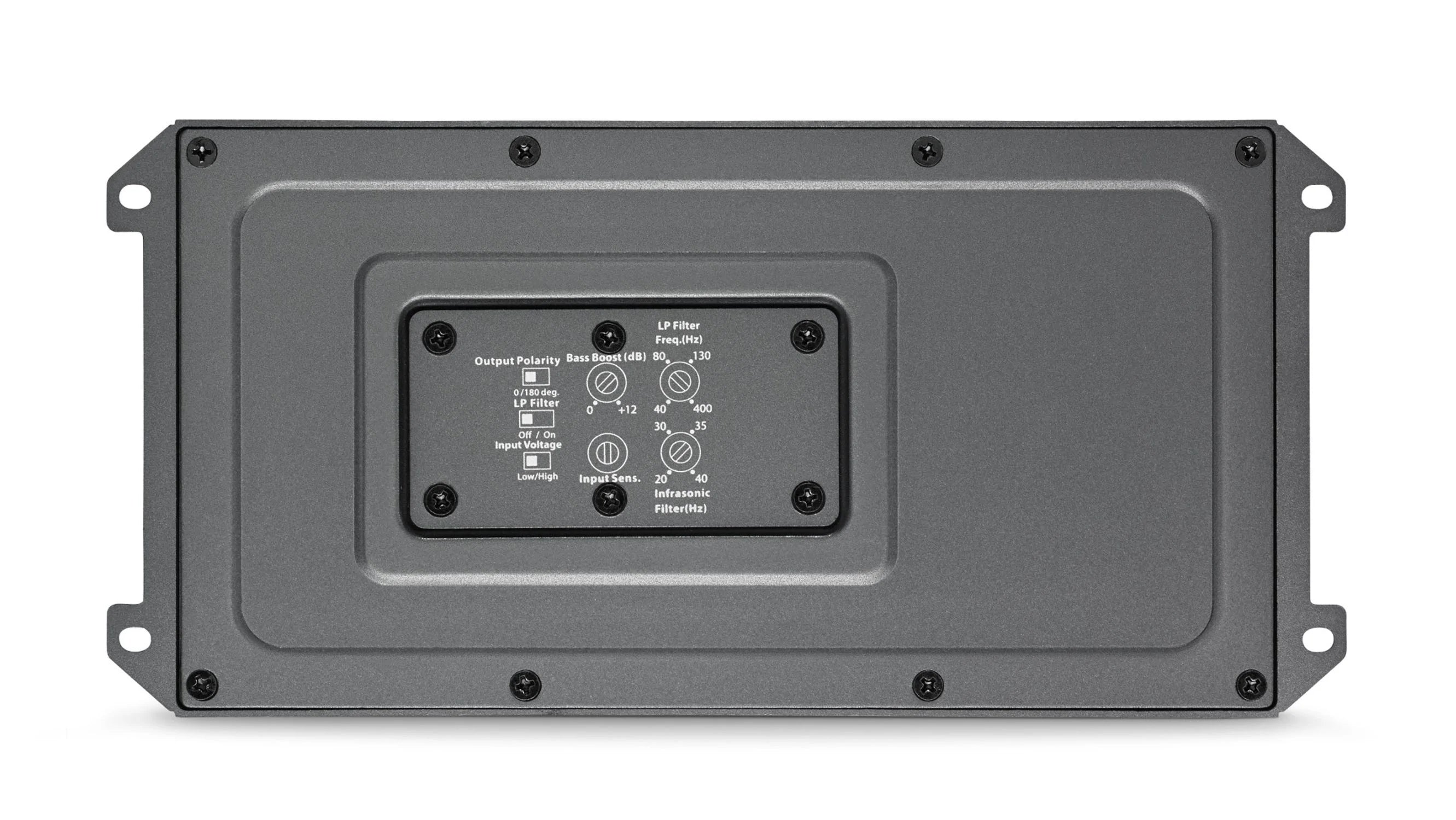

• This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.

RATED CONTINUOUS (RMS) POWER @ 14.4 V

• @ 4 Ω : 300 W RMS x 1
• @ 3 Ω : 400 W RMS x 1
• @ 2 Ω : 500 W RMS x 1
• @ 1.5 Ω : N/A

RATED CONTINUOUS (RMS) POWER @ 12.5 V

• @ 4 Ω : 250 W RMS x 1
• @ 3 Ω : 300 W RMS x 1
• @ 2 Ω : 400 W RMS x 1
• @ 1.5 Ω : N/A

GENERAL SPECIFICATIONS:

• Frequency Response : 20 Hz - 12 kHz (+0, -1dB)
• S/N Ratio, referred to highest rated power : >97 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W : >70 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω : >115 / 50 Hz
• Damping Factor @ 2 Ω : >54 / 50 Hz
• THD+N @ Rated Power : <1% @ 2 Ω per Ch.
• Input Voltage Range @ RCA Inputs : Switchable from 250 mV - 4 V RMS (Low) to 750 mV - 15 V RMS (High)
• Min.Copper Power / Ground Wire Gauge : 4 AWG wire
• Fuse Rating : 50 A (AFS, AGU or MaxiFuse™)

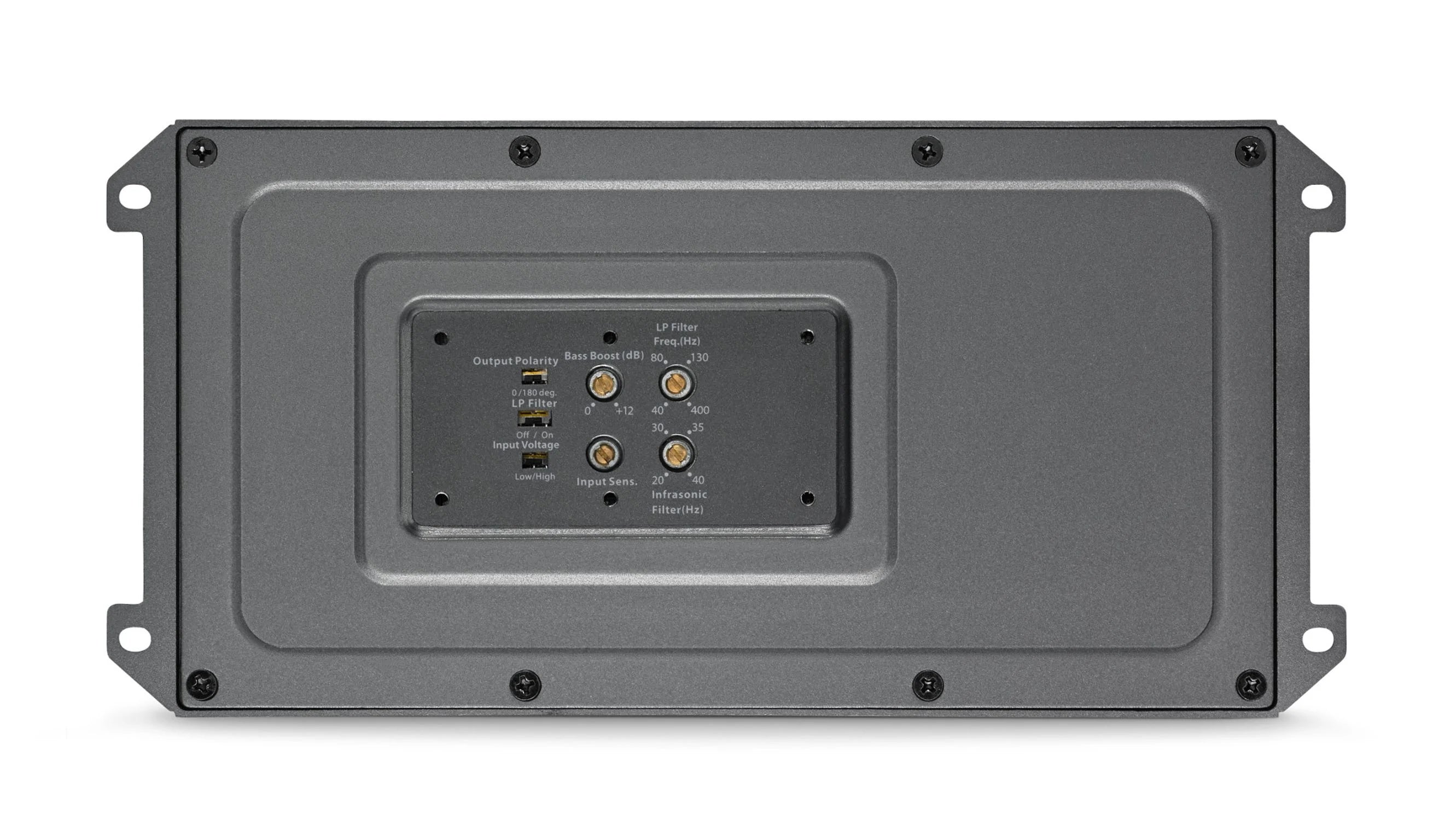

SIGNAL PROCESSING:

• Filter Mode(s) : Low-Pass only
• Filter Slope(s) : 24 dB/octave
• Filter Frequency Range : 40 Hz - 400 Hz
• Detented, Calibrated Filter Freq. Potentiometers : Yes
• Filter Defeat Function : Yes
• Infrasonic Filter : 20 Hz - 40 Hz, variable
• Bass Boost EQ : 0 to +12 dB @ 43 Hz
• Output Polarity Switch : Yes
• Remote Subwoofer Level Control : Optional (M-RBC-1)
• Remote Bass EQ Boost Control : No
• Pass-Through Preamp Output : None

PHYSICAL SPECIFICATIONS:

• Height (H) : 1.77 in / 45 mm
• Width (W) : 9.33 in / 237 mm
• Depth (D) : 4.50 in / 115 mm

In-store Purchase only

SKU # 98407
