HERTZ MP 70.3

HERTZ

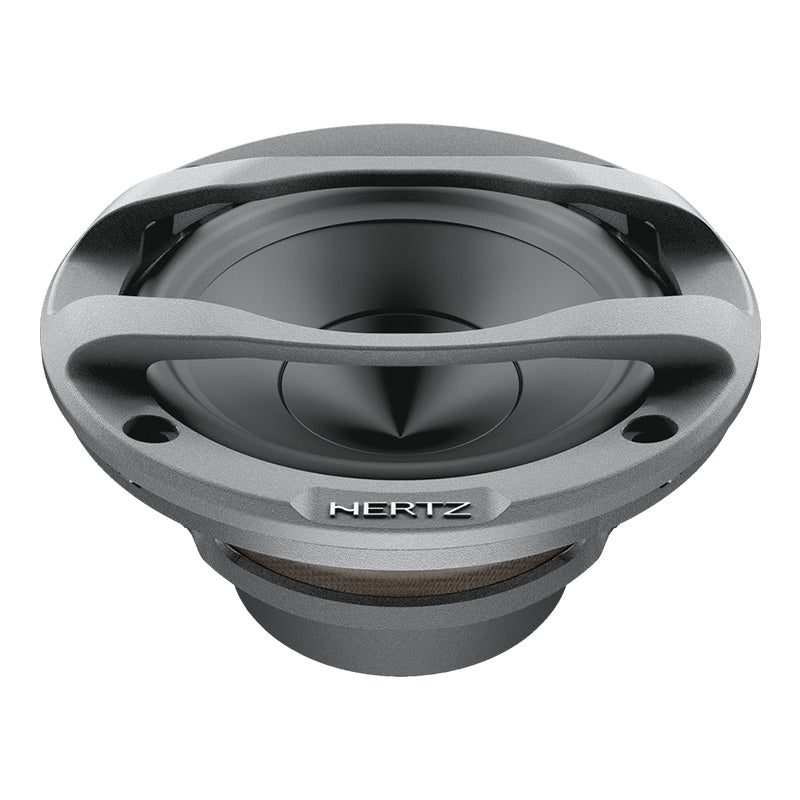

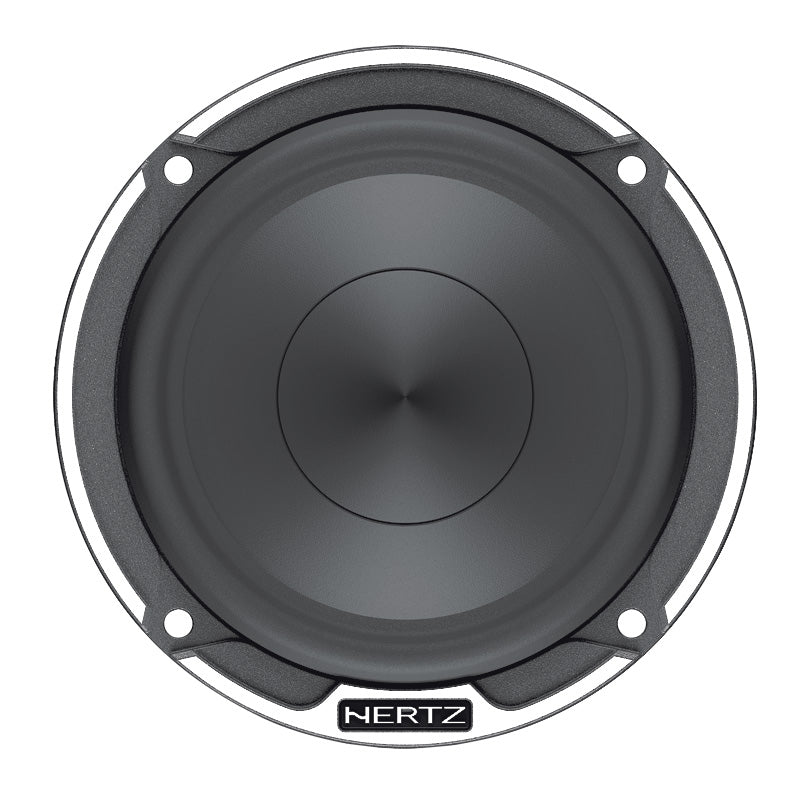

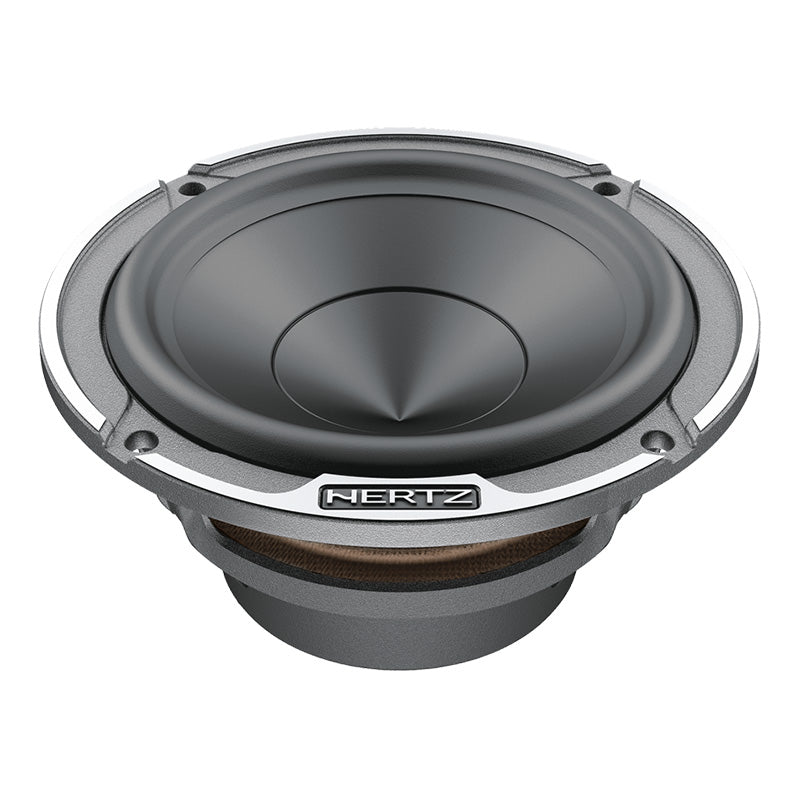

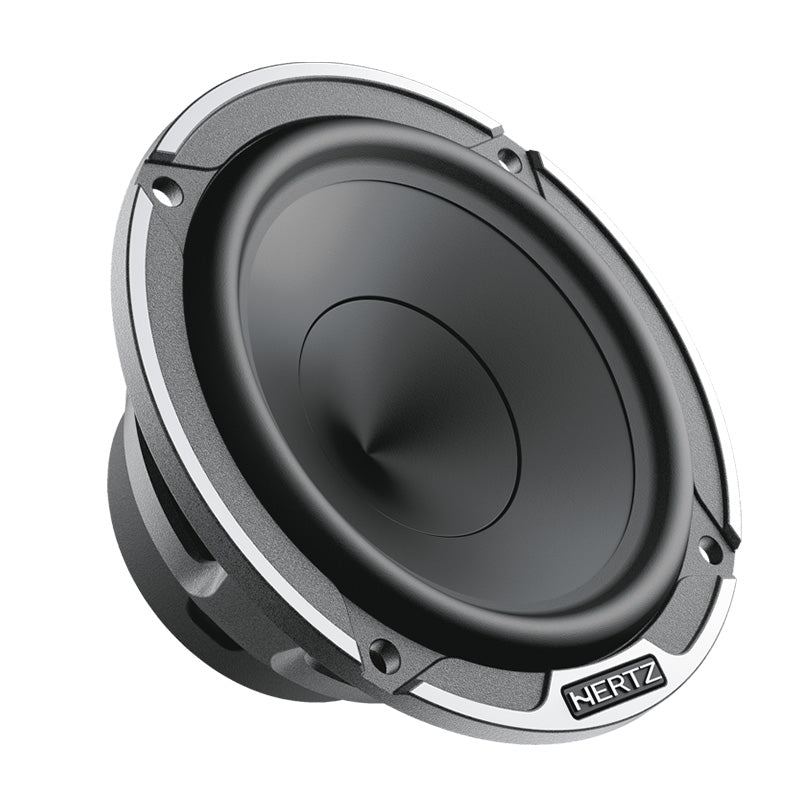

(MP 70.3) MILLE SERIES 3" 50W RMS (100W PEAK POWER HANDLING) MID-RANGE SPEAKER

The MP 70.3 car audio mid-range speakers featuring Neodymium double magnet inside the coil produces an enthralling mid range, perfect to combine with the powerful mid-low of the MP 165P.3 woofer as well as with the detailed high range of the MP25.3 tweeter. The 20 mm coil of the MP 70.3 maximizes the dynamics; the V-cone® profile enhances off-axis dispersion and the Boundary Free Surround allows for a wider extension towards the low frequency range.

FEATURES:

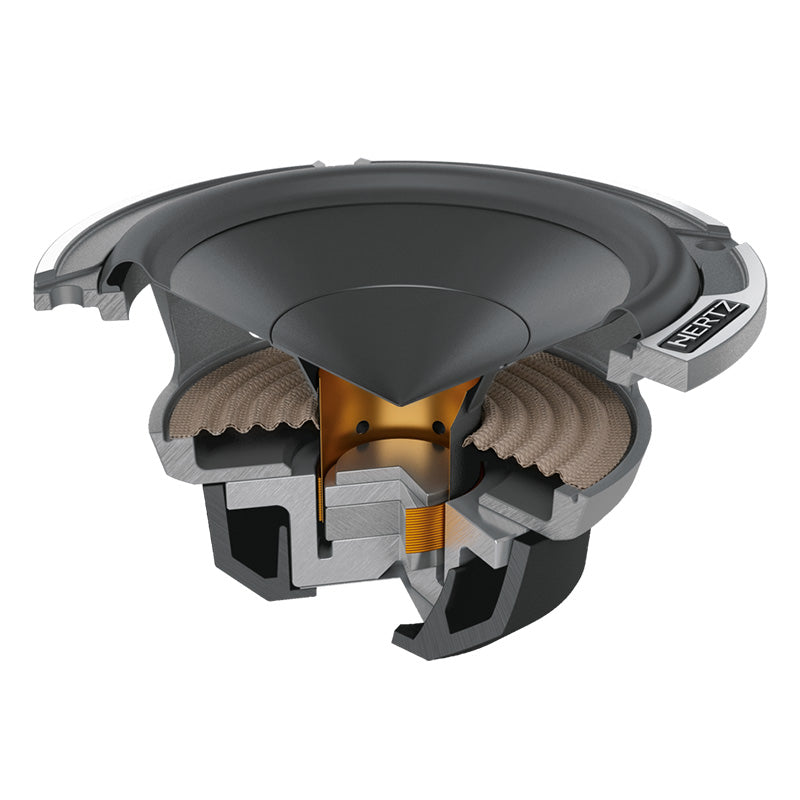

• Symmetrical dual Neodymium magnet structure specifically developed with FEM (Finite Element Modeling) simulations, for superior dynamics and control.
• 20 mm CCAW double layer voice coil wound on a Polyamide former with 8 decompression holes, for exceptional power handling and compression-free reproduction.
• Exponential V-cone® profile pressed-pulp cone with cotton fibers, combining stiffness and lightweight for a wide frequency response. Cone profile geometrically optimized for utmost linearity and dispersion in the mid-high frequency range.
• “Boundary Free” rubber surround, for better efficiency and wider mid-bass frequency.
• Anti-vibration rubber magnet cover, to damp spurious vibrations, removable to fit limited mounting depth installations.
• Acoustically transparent aluminium alloy basket with elegant diamond cutting and featuring the aluminium Hertz logo.
• Full protection metal mesh grill featuring the aluminium Hertz logo and attractive look mineral powder coated inner grill are included for several install combinations.

SPECIFICATIONS:

• Size mm (in.): 70 (3)

• Power Handling - Peak W: 100 (Hi-Pass filtered @250Hz - 12 dB Oct.)

• Impedance: 4-Ohms

• Frequency response Hz: 180 ÷ 18k

• Sensitivity dB SPL: 88

• Voice coil Ø mm (in.): 20 (0.8)

• Magnet: Neodymium

• Cone/Dome: Pressed-pulp cone with cotton fibers

• Diameter : 3 Inch

• Sensitivity : 88 dB

• Impedance : 4 Ohm

• Frequency Response : 180-8000 Hz

• Peak Power Handling : 100 Watts

• RMS Power Handling : 50 Watts
