JL AUDIO MMR-40

JL AUDIO

(MMR-40) WIRED, FULL-FUNCTION NMEA 2000® NETWORK CONTROLLER WITH FULL-COLOR LCD DISPLAY FOR USE WITH MEDIAMASTER®

OVERVIEW

Full-function, NMEA 2000® network wired remote controller with full color LCD display

The MMR-40 is a NMEA 2000® Network Controller engineered to add full-function, auxiliary control to MediaMaster® source units.

Outfitted with a NMEA 2000® Micro-C connector, the MMR-40 connects to a host MediaMaster® source unit in two ways:

• Direct interface with a vessel's NMEA 2000® network using applicable NMEA 2000® cables and connectors (not included)
• Direct connection of one MMR-40 with one host MediaMaster® source unit using MMC-PN2K powered network cables (sold separately) to simulate an isolated, stand-alone NMEA 2000® network

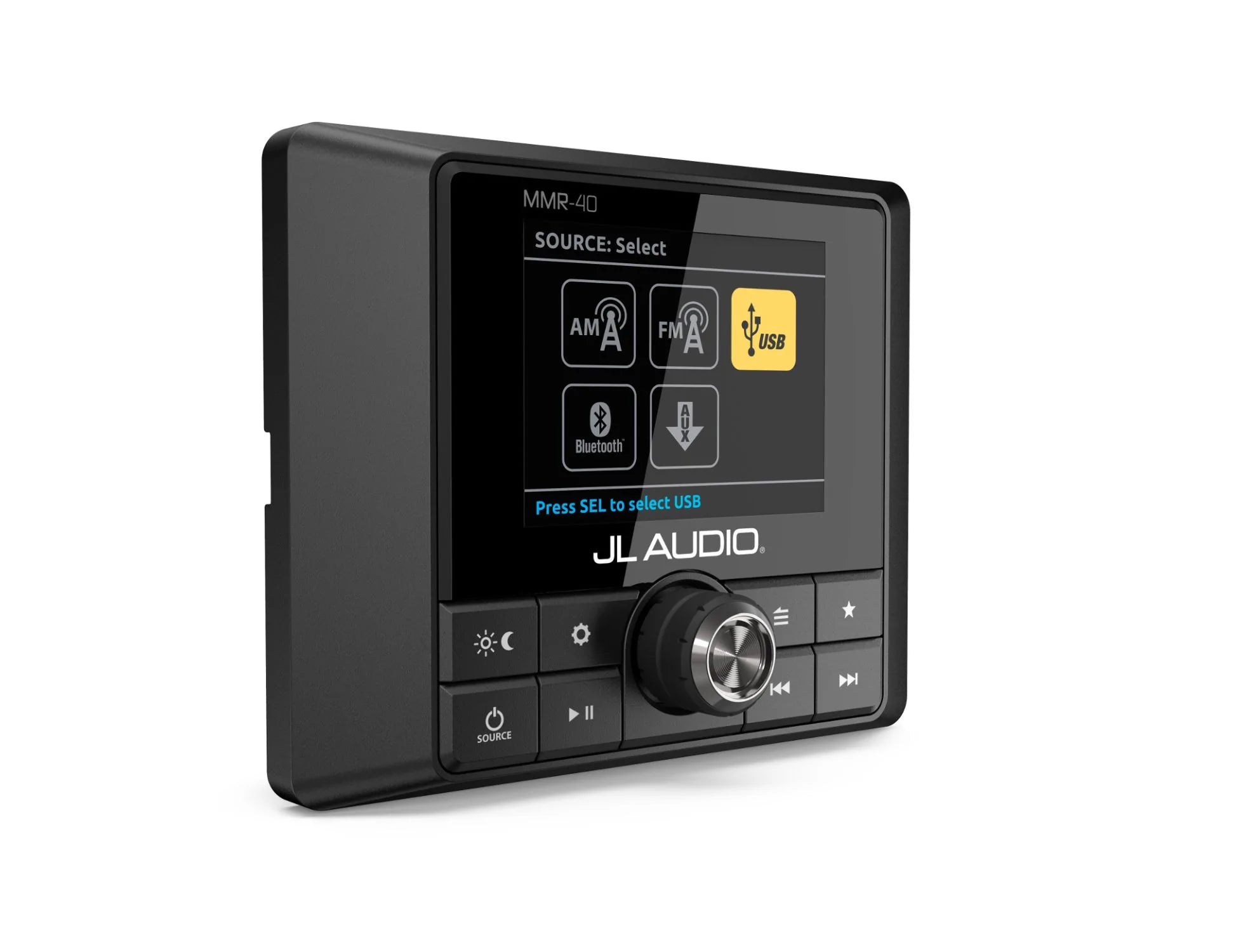

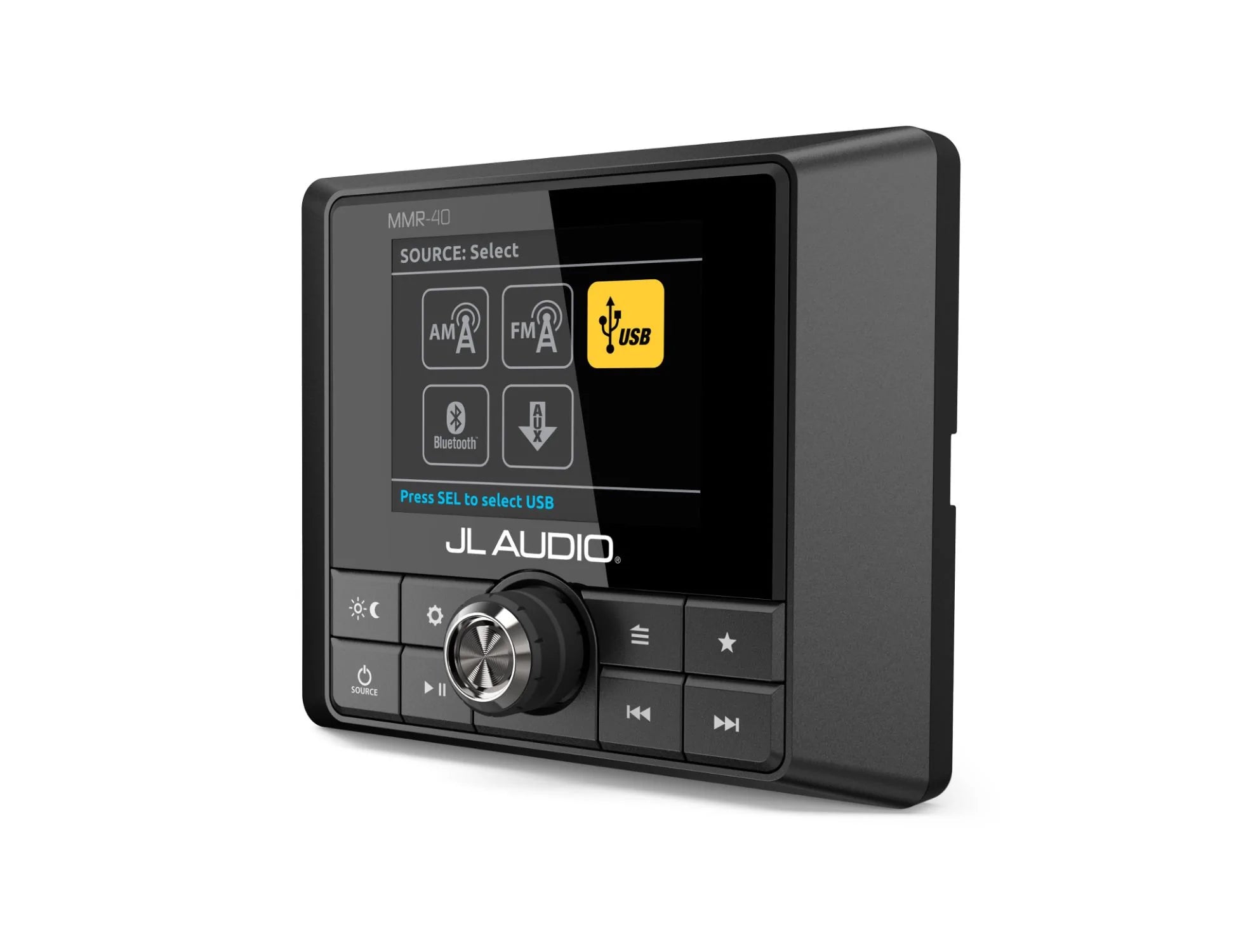

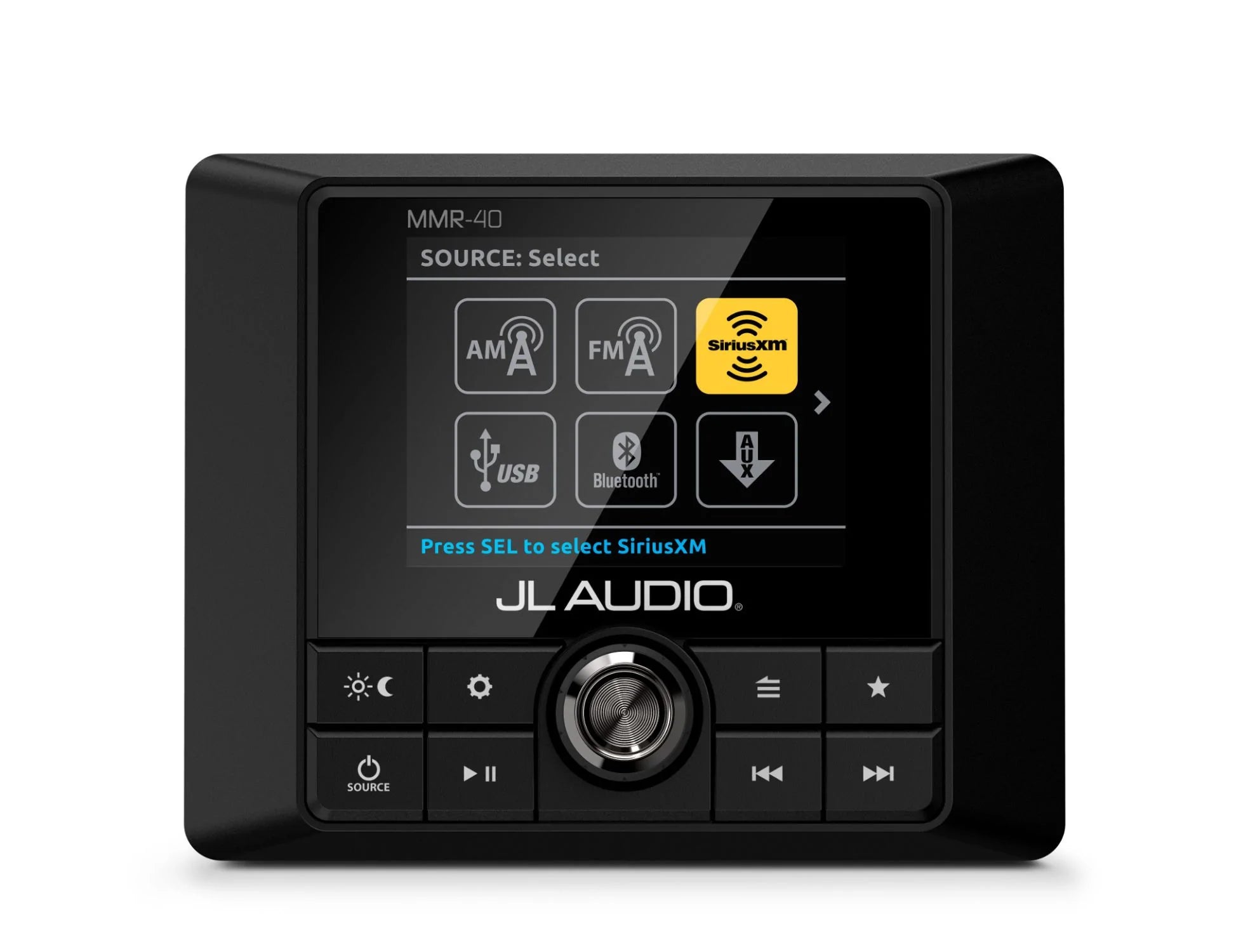

Once connected, the MMR-40 automatically recognizes the host MediaMaster® source unit and will then mirror all host source unit controls and screen info onto the MMR-40's full-color, 2.8-inch LCD display, resulting in a complete MediaMaster® user experience.

The MMR-40 is equipped with independent display theme and lighting controls for maximum mounting location flexibility, regardless of the settings on the host source unit. Engineered for real-world marine (and many outdoor) applications, its weatherproof (IP66 rated) chassis is built to withstand the harshest environments.

THE MMR-40 INCLUDES THE FOLLOWING FEATURES:

• NMEA 2000® Certified (LEN 4)
• Easy-to-read, high-brightness, 2.8-inch full-color LCD display with large backlit controls
• Independent day/night display themes and lighting controls
• IP66 rated for real marine duty
• Protective Sun Cover included

Note : The MMR-40 is not a stand-alone receiver and does not function without a connected MediaMaster® source unit. All remote control functionality of the MMR-40 is solely derived from the host source unit. Functionality of the MMR-40 requires connection to a NMEA 2000® network or use of MMC-PN2K powered network cables (sold separately).

GENERAL SPECIFICATIONS:

• Operating Temperature Range : -4 F to +158 F (-20 C to +70 C)
• Display Size / Type : 2.8-inch / TFT LCD backlighted
• Display Resolution : 320 x 240

PHYSICAL SPECIFICATIONS:

• Height (H) : 3.74 in / 95 mm
• Width (W) : 4.65 in / 118 mm
• Depth (D1) : 0.55 in / 14 mm
• Depth (D2) : 1.96 in / 50 mm
• Mounting Hole Height (A) : 3.12 in / 80 mm
• Mounting Hole Width (B) : 3.74 in / 95 mm
• Net Weight

SKU # 99910
