JL AUDIO MMR-11W

JL AUDIO

(MMR-11W) WIRELESS, NMEA 2000® REMOTE CONTROLLER SYSTEM FOR USE WITH MEDIAMASTER® (CONNECTS TO YOUR MEDIAMASTER® ONLY)

Wireless, NMEA 2000® Remote Controller System for use with MediaMaster®
(Note: This product is designed to connect directly to the NMEA 2000® connector of your MediaMaster® only.)

Utilizing state-of-the-art, wireless technology, the MMR-11W NMEA 2000® Remote Controller System delivers the ultimate in handheld control functionality for your MediaMaster®.

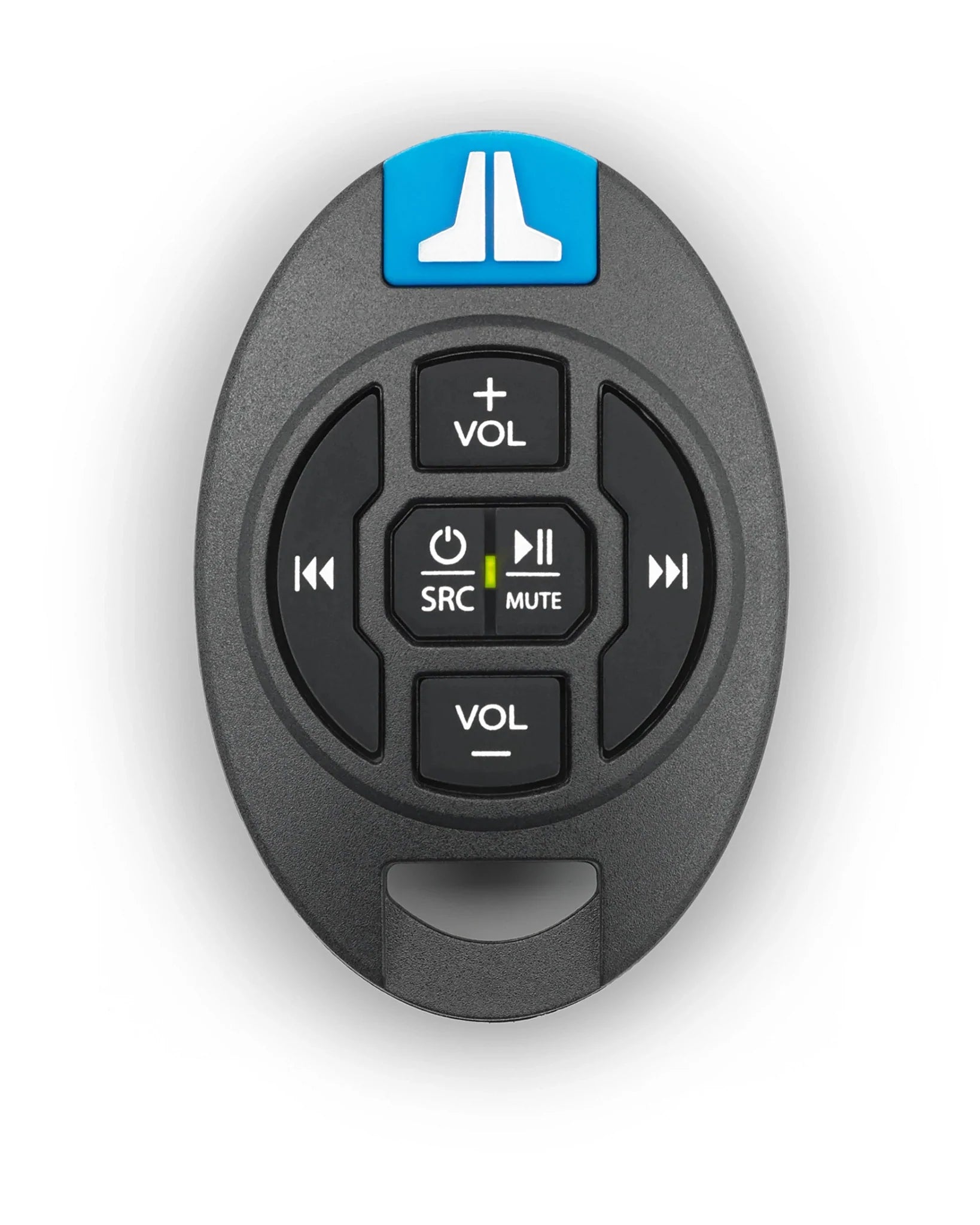

Operating at an ultra-high frequency of 2.4 GHz, the MMR-11W’s key-fob style transmitter and receiver module permit long-range, wireless control of your NMEA 2000® equipped MediaMaster® source unit, from up to 150 ft. (45 m) away. The MMR-11W transmitter features a sealed, water-resistant (IP67 rated) design, that floats with large, raised buttons for easy, on-the-move access. A verification LED is also integrated within the transmitter to provide real-time, visual confirmation (2-way) of broadcasted signals. The hideaway receiver module easily connects directly to your MediaMaster® and is programmable, with the ability to add additional (up to twenty) MMR-11W-Remote transmitters (sold separately).

Both transmitter and receiver module are constructed using UV and salt-water rated materials and built to withstand the outdoor elements. For added convenience, a quick-release lanyard and mounting cradle are also included. The cradle’s versatile design permits installation to any flat surface or a tubular structure, such as a pipe/rail or steering wheel. MMR-11W transmitter includes replaceable CR2032 battery.

MEDIAMASTER® REMOTE CONTROL FUNCTIONS INCLUDE:

• Power On/Off
• Source Select
• Volume Up/Down
• Track Up/Down (USB & BT)
• Track Fast-Forward/Fast-Rewind (USB)
• Favorite Up/Down (Tuner)
• Play/Pause (USB & BT)
• Mute/Unmute (Tuner & Aux)

SYSTEM SPECIFICATIONS
