HERTZ ML POWER 1

HERTZ

(ML POWER 1) 1000WX1 RMS @ 1 OHM, CLASS D MONO SUBWOOFER AMPLIFIER

Mille power amplifiers are born to fully enhance the outstanding performance of the Mille speakers. The new ADC (ADVANCED D-CLASS TECHNOLOGY) ensures pure listening pleasure while keeping a compact size with unmatched power efficiency. The heat sink, engineered with double technology, extrusion and aluminium die-casting, enables the Mille Power amplifiers to work constantly at full power without ever overheating, further maximizing thermal efficiency. The powerful mono Hertzaudio car amplifier ML Power 1 (1000 W – stable at 1 Ω) is perfect to drive the Mille subwoofers.  The filters combination adopted for the Mille Power line is extremely flexible and ensures they can be used in any configuration. The active crossovers of MLPower 1 feature a 24 dB/Oct. adjustable slope Lo-Pass filter to adapt to every need. The control section, protected by a removable panel, can be accessed from the top for an effortless tuning.

FEATURES:

• ADC (ADVANCED D-CLASS TECHNOLOGY) ensures hi-end acoustic response with unmatched power efficiency;
• Thermally optimized double extruded heat sink featuring die-cast aluminium ergonomic terminals;
• Stable at 1Ω to drive safely Mille subwoofers;
• Optional HRC BM for subwoofer volume control;
• 24 dB/Oct. continuously adjustable (50 to 500Hz) Lo-Pass filters and 24dB/Oct. subsonic filter (18 to 40Hz);
• Variable phase control with 0–180°continuity to optimize low frequencies;

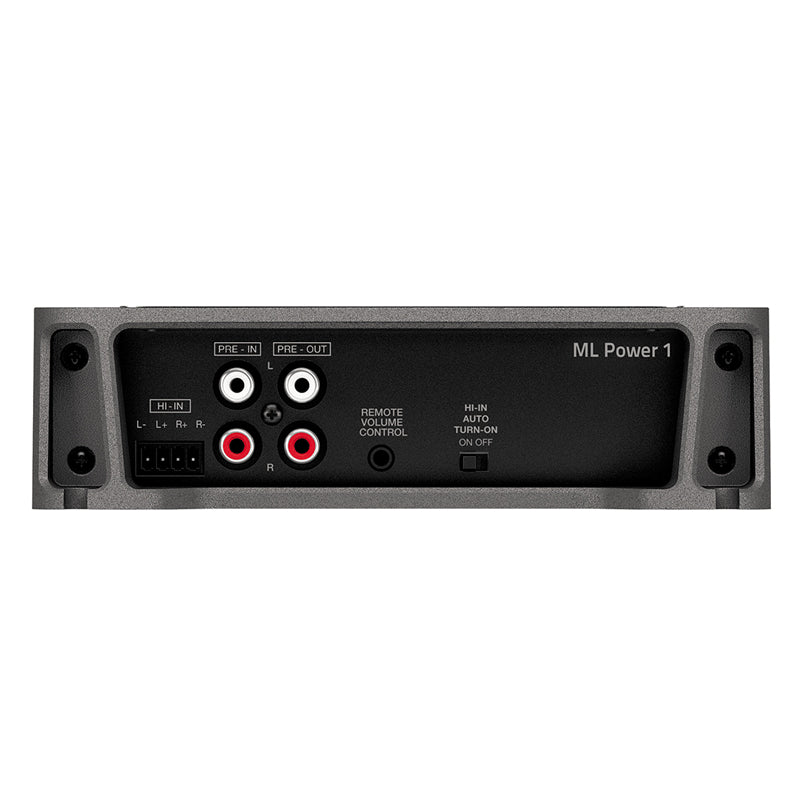

• ML Power IN with balanced Speaker In inputs for an increased noise rejection and RCA In;
• Operating status real time monitoring through 4 LEDs ;
• Pre-out full range outputs also available with Speaker In inputs;
• ART™ (Automatic Remote Turn On-Off).

Specifications:

• Channel Mode : 1
• Output Power RMS @ 14.4 VDC:
  • 1 Ch 600 W x 1 (4Ω)
  • 1 Ch 1000 W x 1 (2Ω)
  • 1 Ch 1000 W x 1 (1Ω)
• Filters
  • Bypass : Yes
  • Lo-Pass : 40 ÷ 500 Hz @ 24 dB/Oct.
  • Subsonic : 18 ÷ 40 Hz @ 24 dB/Oct.
• Distortion - THD (100Hz @ 4ohms) : 0.08 %
• S/N Ratio (A weighted @ 1V) : 105 dB
• Damping factor (100Hz @ 4ohms) : 100
• Size W x D x H mm (in.) : 170 x 349 x 46.70 (6.69 x 13.74 x 1.84)

SPECIFICATIONS:

• Maximum Power : 1000 Watts
• Low Frequency Response : 40-500 Hz
• Number of Channels : 1
• Frequency Response : 18-500 Hz
• Built In Crossovers : Yes
• RMS Power Output : 1000x1 Watts
• Channel Separation : No
• Amplifier Class : D

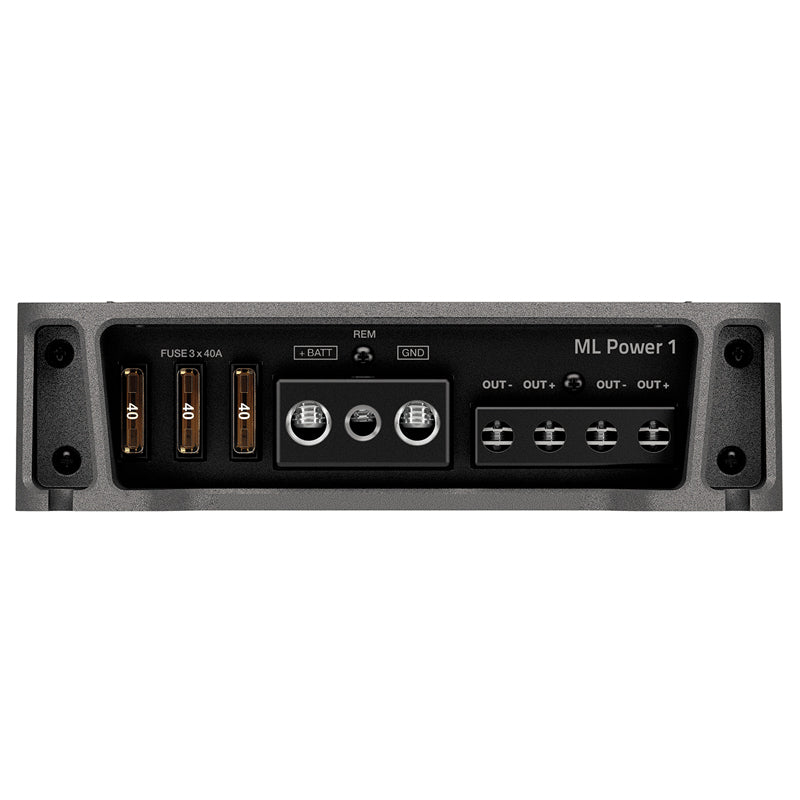

• Fuse Rating : 40x3 A
