PANAMAX MD2AV

PANAMAX

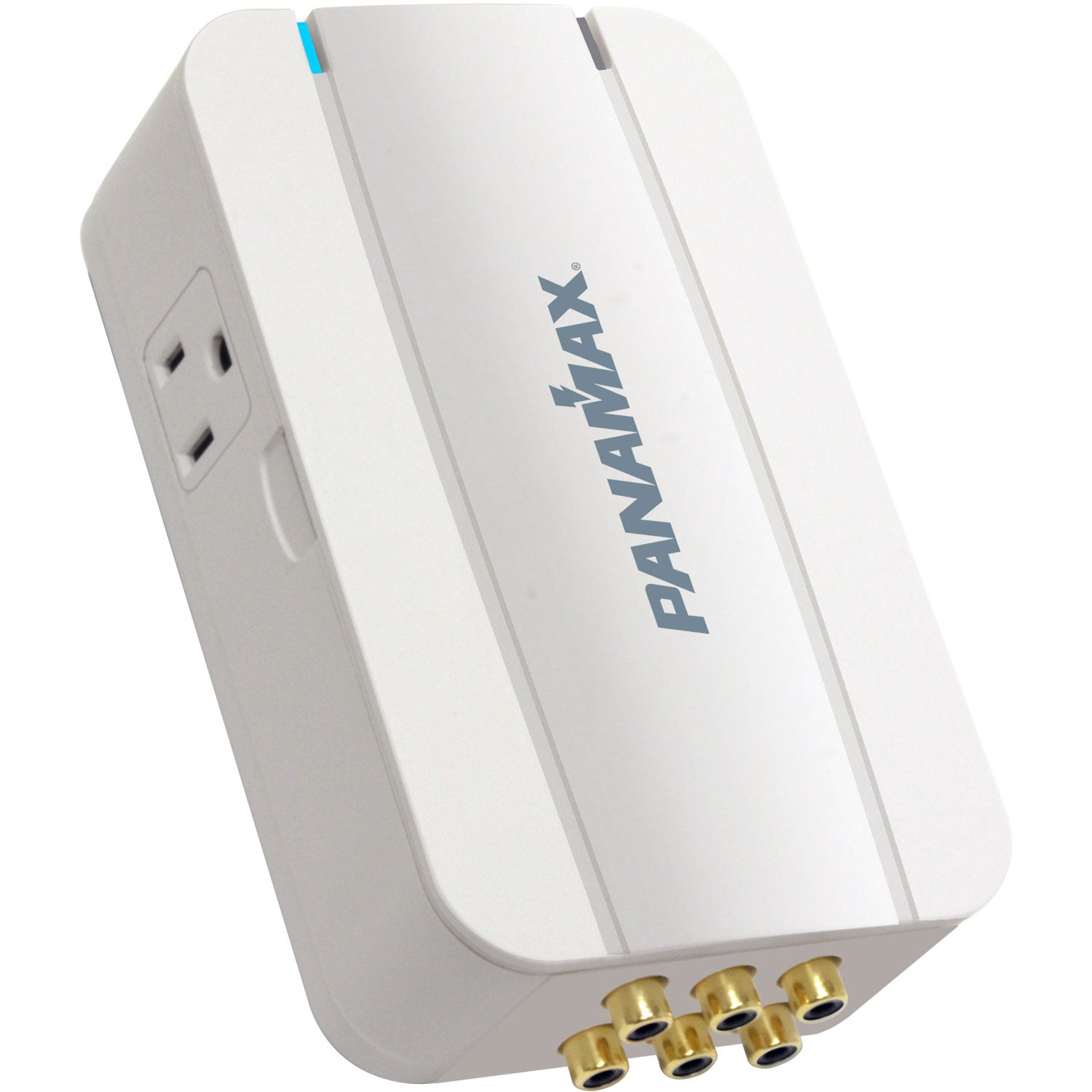

(MD2AV) 2 OUTLET END-TO-END SURGE PROTECTOR KIT FOR REMOTE SUBS/EQUIP. (REPLACES MD2-RCA)

• Exclusive Protect or Disconnect™ Circuitry
• Safeguards equipment against all surges. In the event of a catastrophic surge such as lightning, it completely disconnects AC power to connected equipment.
• Noise Filtration Circuit
• EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.
• RCA Line Level Protection

FEATURES:

• EMI/RFI Filtration Circuitry for Clean, Unimpeded Power.
• Protect-or-Disconnect™ Circuitry
• 3 Circuits RCA Input/Outputs.
• Removable, paintable cover ensures seamless fit with any décor.

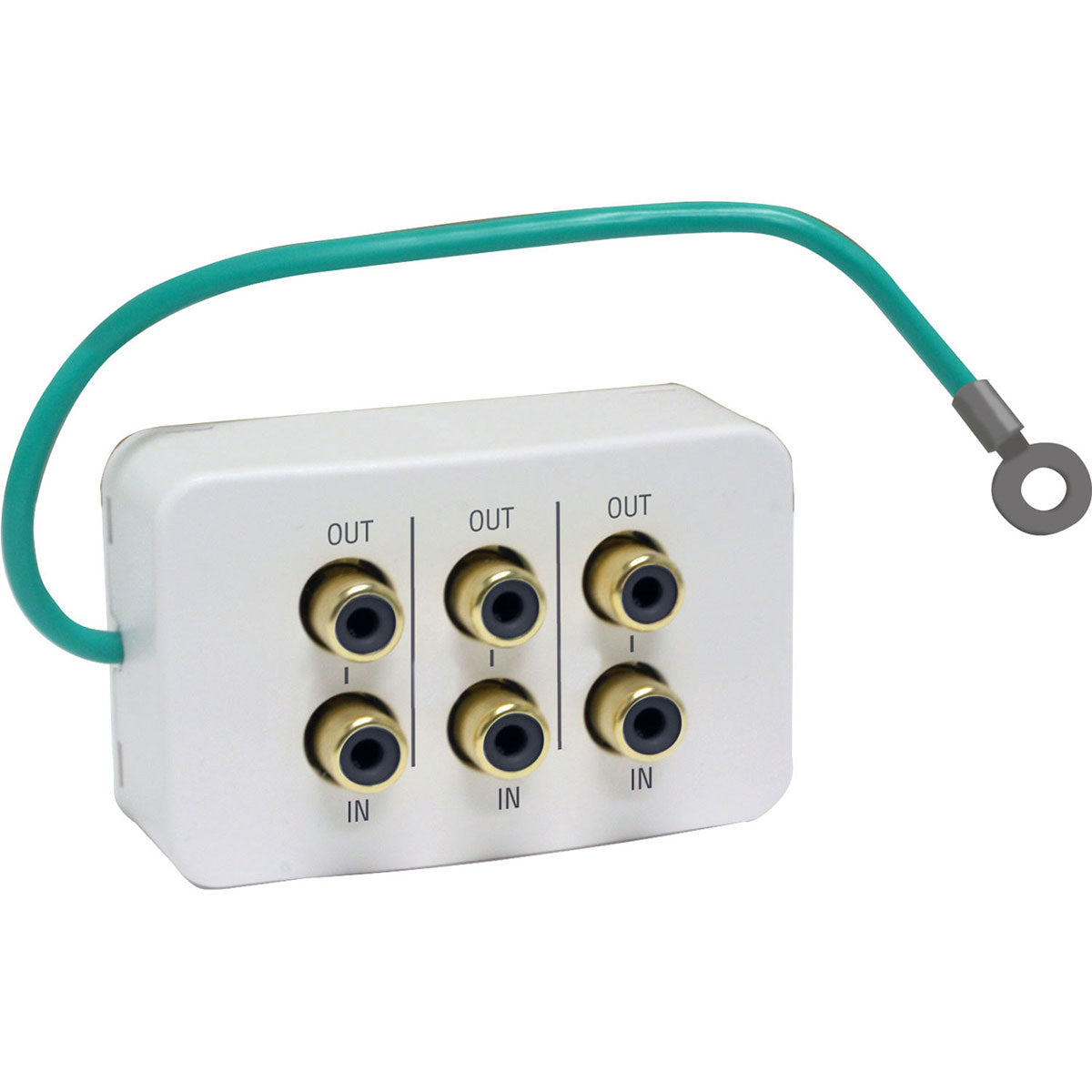

• Includes module to deliver signal from source component to MD2-AV to remote AV equipment.
• Two Diagnostic Lights (LED) Power On/Protection OK and Line Fault.
• Thin Profile – Only 1.5″ inches deep.
• Convenient display feature; turn cover around to hide diagnostic lights.

SPECIFICATIONS:

• Voltage Protection Rating (UL 1449 3rd Edition, 3,000A): L-N 400V, L-G 500V, N-G 400VThermal Fusing: YesSingle Pulse Energy Dissipation: 1350 JoulesResponse Time: <1 nsPeak Impulse Current: 60,000 ANominal Discharge Current: 3,000 A
• A/V Line-Level SpecificationsConnectors: RCA, FemaleClamping Level: 8VAttenuation: 0.06dB from 10Hz-6MHz
