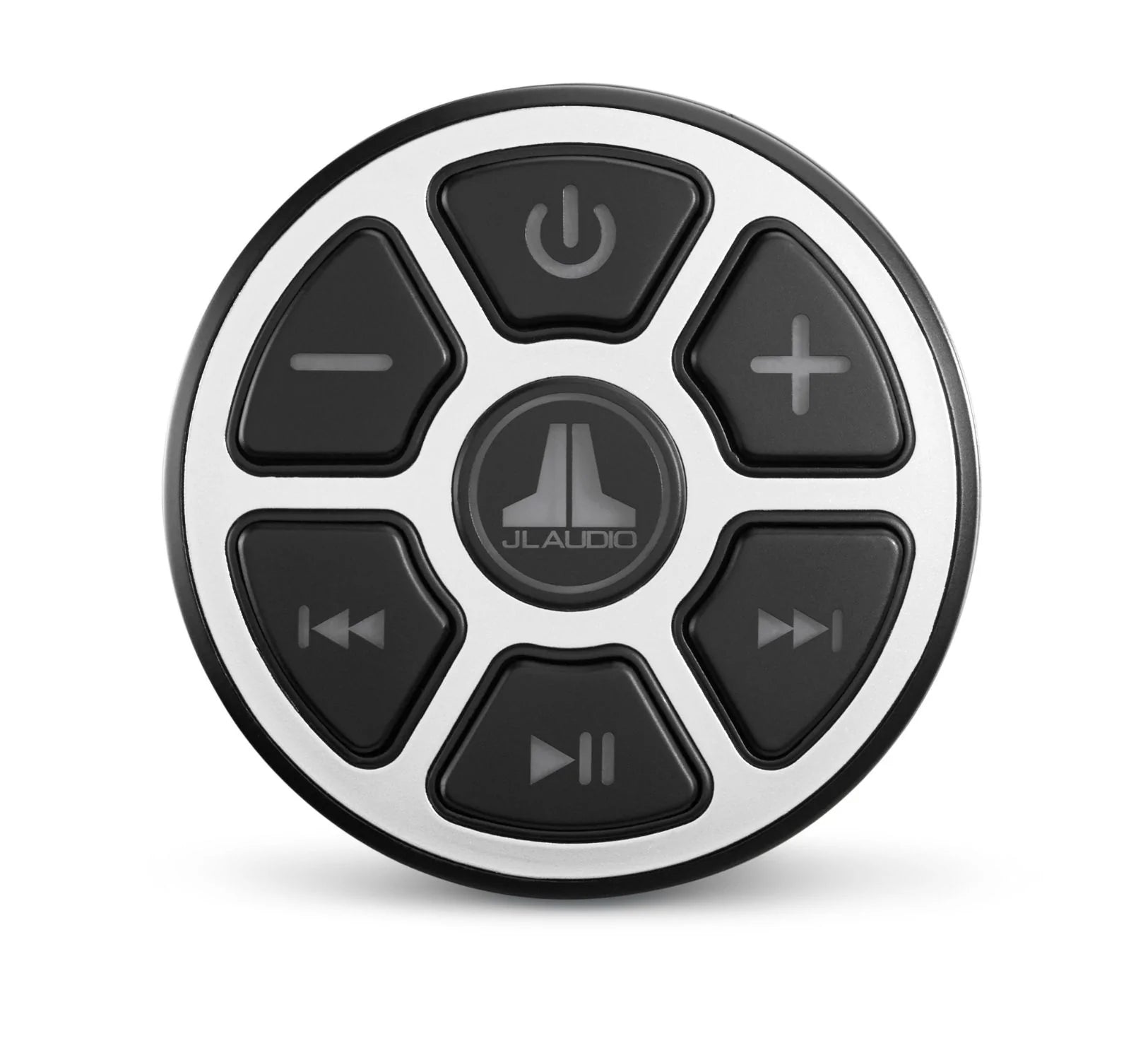

JL AUDIO MBT-CRXv2

JL AUDIO

(MBT-CRXV2) MARINE BLUETOOTH® CONTROLLER/ RECEIVER

OVERVIEW:

• Designed for marine and powersports applications, the MBT-CRXv2 Bluetooth® Controller/Receiver delivers your favorite music from a Bluetooth® equipped device directly to your audio system.

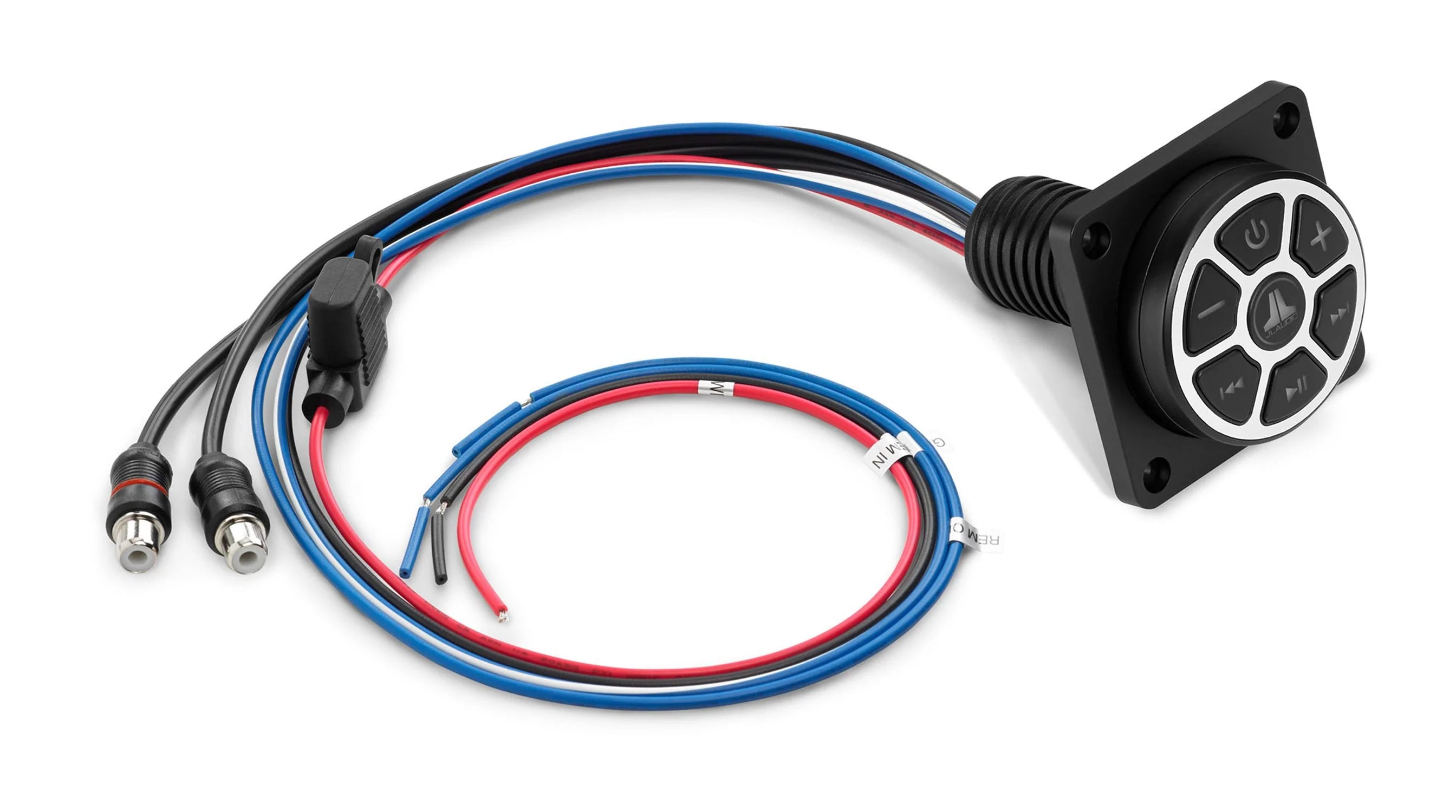

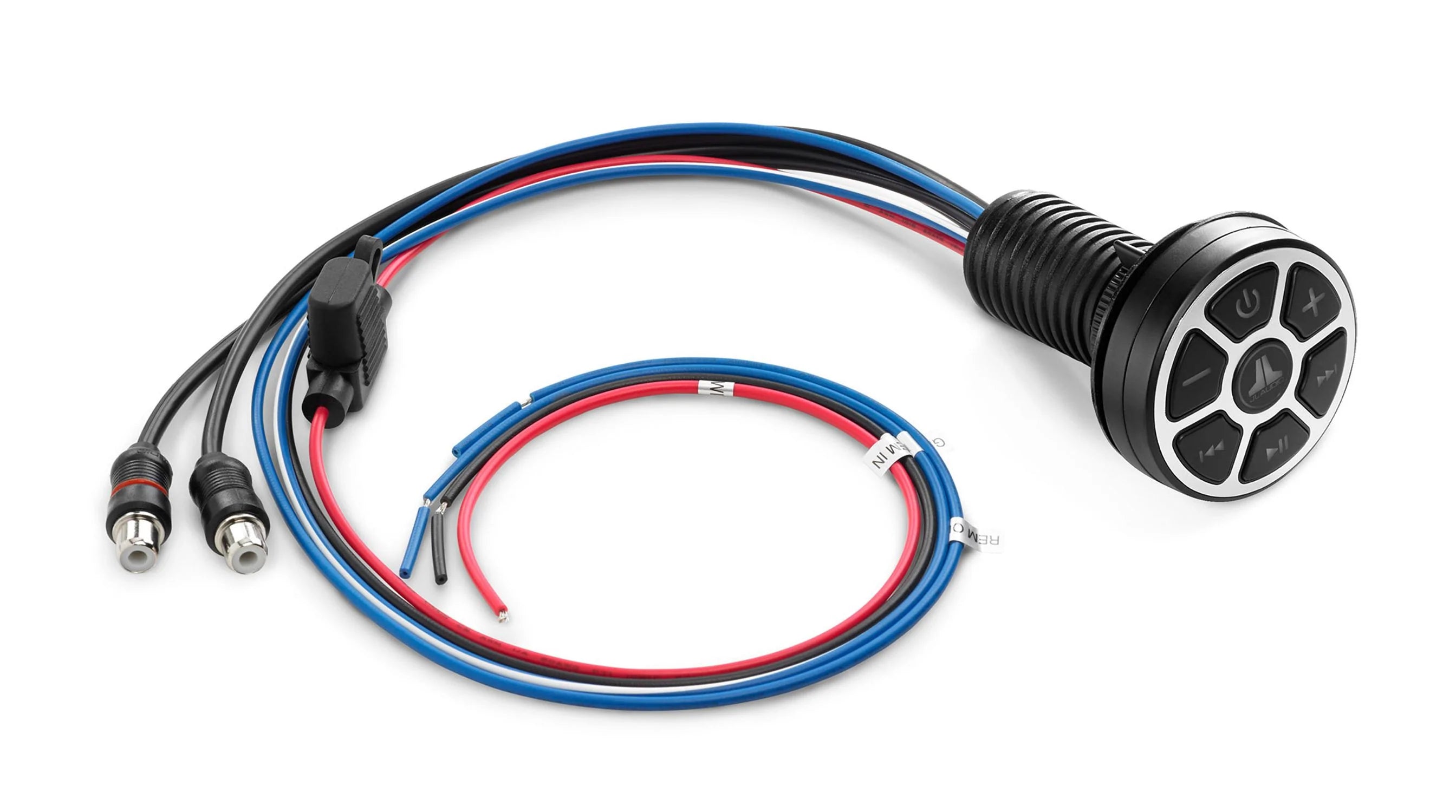

• With an IP67 water resistance rating, the MBT-CRXv2 is ideal for small watercraft, motorcycles, ATV’s or other utility vehicles. Add Bluetooth® connectivity to any source unit with line-level/auxiliary inputs or connect directly to an amplifier and use it as a stand-alone source unit/receiver. Large LED backlit push-button controls are easy-to-see and easy-to-use, day or night. A small footprint and clever, one-hole design makes installation a breeze. An adaptor plate is also included for easy front mounting or where rear access is limited or not possible.
• Equipped with Bluetooth® v4.0 and the Qualcomm® aptX™ audio codec, the MBT-CRXv2 sends top-quality audio and performance from compatible devices to deliver dynamic, CD-like sound without any cables. With a wireless connection range of up to 35 ft., you can conveniently control the connected audio without returning to your Bluetooth® device. This means your device can stay safely tucked-away from the elements.
• When you’re ready to set sail or tackle your next adventure, great sound is waiting for you with the MBT-CRXv2 Bluetooth® Audio Controller/Receiver.
• ** The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by JL Audio is under license.
• *** Qualcomm aptX is a product of Qualcomm Technologies, Inc. and/or its subsidiaries. Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries. aptX is a trademark of Qualcomm Technologies International, Ltd., registered in the United States and other countries. Use of such marks by JL Audio is under license.

GENERAL SPECIFICATIONS:

• Bluetooth® Core Specification : Version 4.0 with Qualcomm® aptX™ audio
• Current Draw : 48 mA (at idle) / 64 mA (at full output)
• Input Operating Voltage : 8 - 28 VDC
• Fuse Rating : 2A Mini ATC
• Current Draw : 20 mA (at idle) / 32 mA (at full output)
• Output Voltage : 2V RMS
• Frequency Response : 20 Hz - 18 kHz (±1dB)
• Connection Range* : Up to 35 ft / 11 m
• S/N Ratio : 93 dB (20 Hz - 20 kHz)
• Remote Turn-on Output Capacity : 350 mA (max)
• Bluetooth® Profile : A2DP (High-Quality, Stereo Audio)
• Outputs : One Stereo Pair, Low-Level RCA Plugs
• *** Maximum range is achieved in line-of-sight installations. Actual range will vary based on installation specifics.

PHYSICAL SPECIFICATIONS:

• Height (H) : 2.15 in / 55 mm
• Width (W) : 2.15 in / 55 mm
• Depth (D) : 0.74 in / 19 mm
• Mounting Depth (A) : 2.36 in / 60 mm
• Mounting Hole Diameter : 1.125 in / 29 mm (minimum diameter for mounting with rear of panel access) 1.875 in / 48 mm (maximum for front mounting with plate)

In-store Purchase only

SKU # 91369
