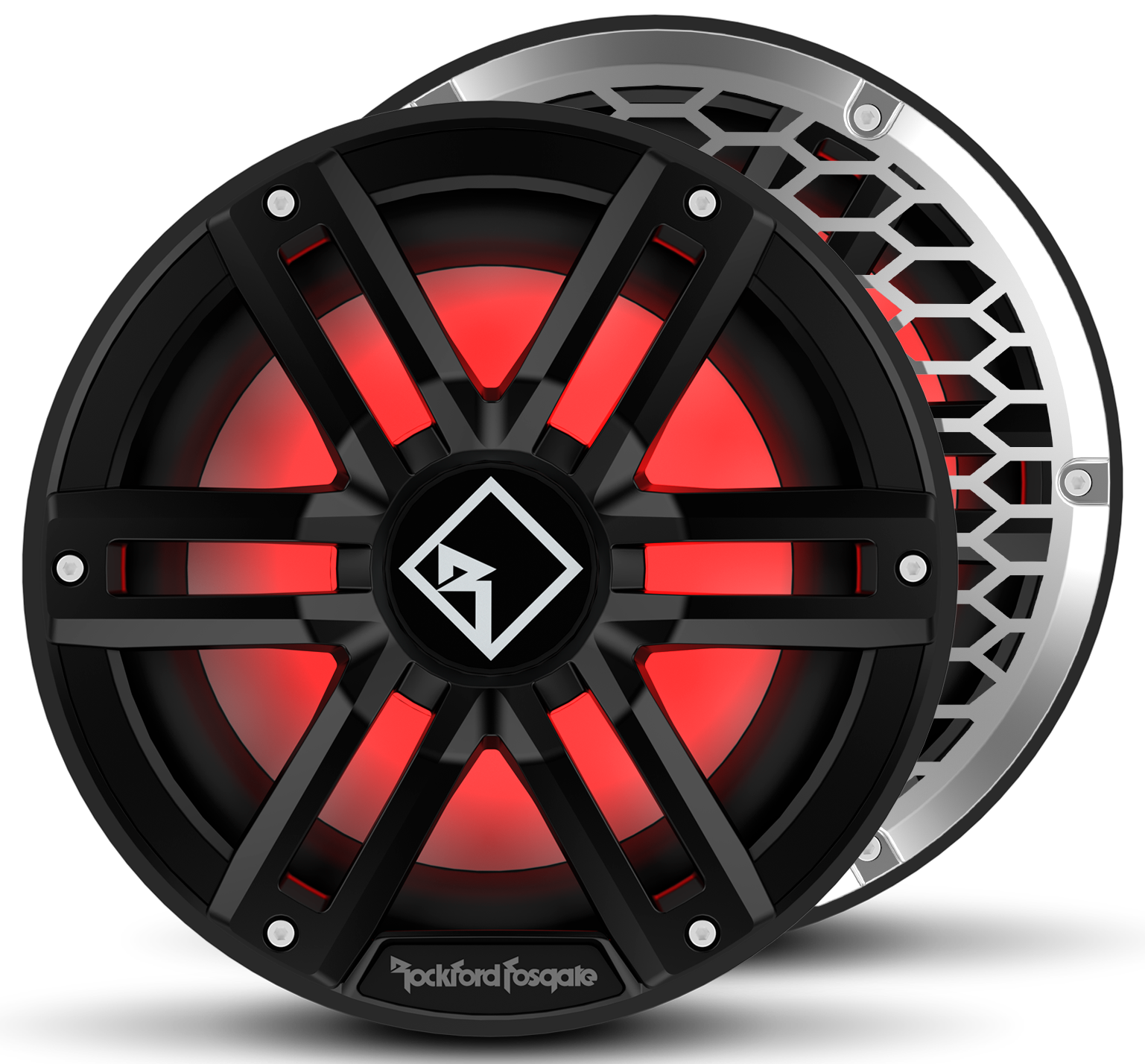

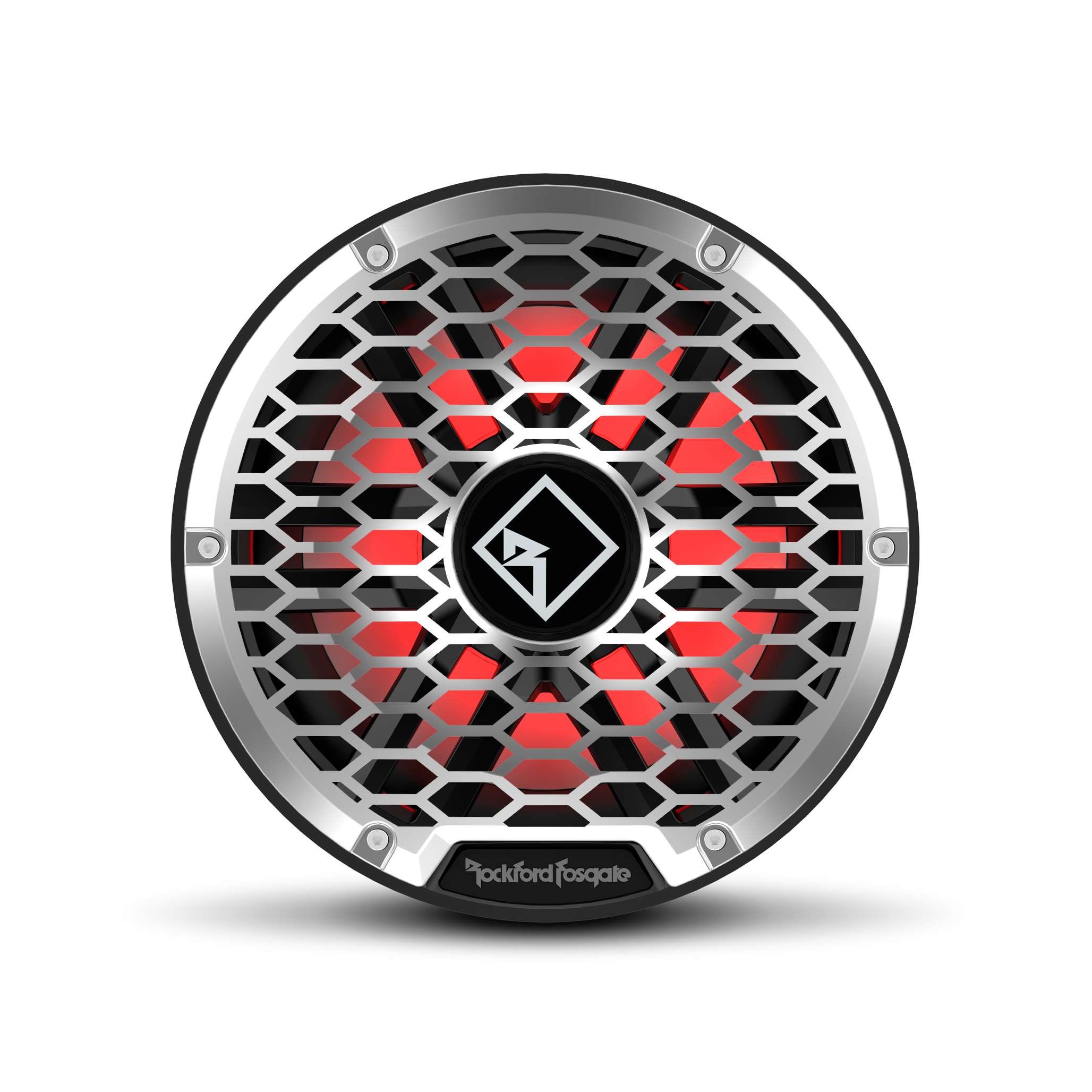

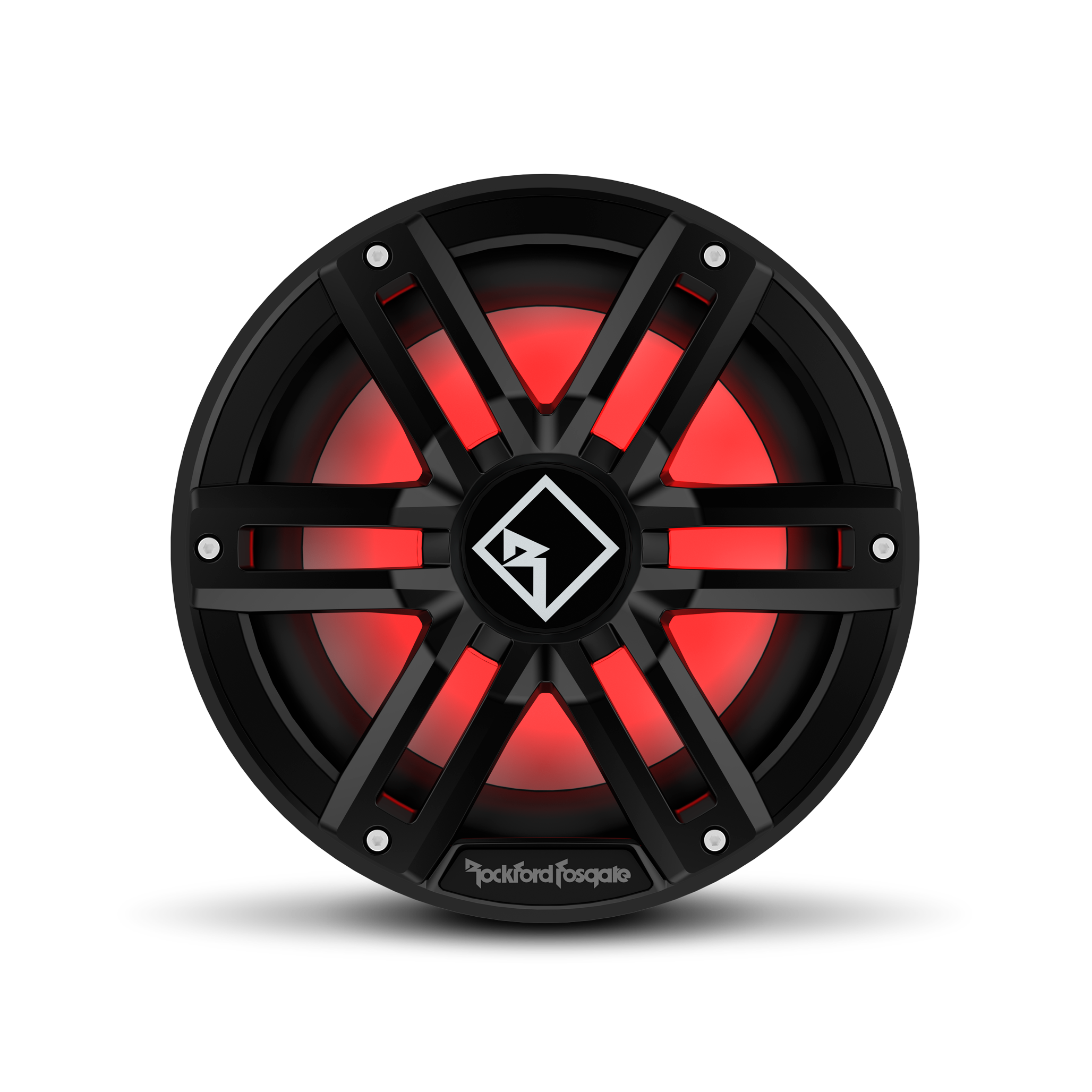

ROCKFORD FOSGATE M2D4-10IB

The M2 series of Element Ready™ subwoofers are designed to pair with the Rockford Fosgate Color Optix™ Controller and RF Connect App through its Deutsch™ and Amphenol™ connectors integrated into the basket. This combined with their IP67 certification make these speakers Element Ready™ and truly purpose built for marine applications. To compliment the plug and play connectivity and streamline installation, M2 subwoofers are equipped with a VersaSwitch™ to make changing impedance between 2 and 8 ohms as easy as flipping a switch. This subwoofer is optimized for Infinite Baffle installations, where an enclosure is not required. A mounting baffle is required to isolate any interaction between the front and rear wavelengths to prevent cancellation.

FEATURES:

• 2" (50mm) High Temp Kapton™ Woofer Voice Coil Former
• Ultra-high temperature PA66 with 30% glass fill injection-molded frame with UV inhibitors
• Industry’s first molded in-frame connectors for simple connectivity in addition to conventional spade terminals
• Gold plated Marine grade brass terminals provide a corrosion resistant connection
• Vented motor design with water-repelling nano coated mesh screen
• Integrated Deutsch™/Amphenol™ connectors make wiring connections simple and error proof
• 100% UV Stable Centrex plastic grill
• Fully insulated silicone tinsel leads
• Injection molded UV stable foam surround
• Linear Aramid-Polyester Composite Spider
• VAST vertical attach surround technique increases effective radiating cone area up to 25%
• Injection molded mineral filled polypropylene cone body with UV inhibitors
• Co-molded surround and mineral filled polypropylene cone body
• Optically clear UV stable RGB Lighting Encapsulation
• Ultra-bright wide-angle RGB LEDs provide rich, reliable illumination
• VERSA impedance switch quickly allows series or parallel configuration without additional wiring
• Optimized for infinite baffle applications when an enclosure is not an option
• 2-Year Warranty

TECHNOLOGIES

• Element Ready™ | Amps:  All components are protected against harsh outdoor elements like Dust, UV, Temperature, Water, Corrosion & Vibration.

• Klippel Verified:  Klippel is a speaker certification program allowing us to deliver the best possible subwoofers.

• ASTM B117 Testing:  ASTM B117 500Hr Salt/Fog Testing Standards

• ASTM G154 Testing:  ASTM G154 500Hr Accelerated UV testing

• ISO60068-2-64 Testing:  ISO60068-2-64 Vibration testing standards ensure the product is durable and can withstand vibrations found on watercraft and motorsport applications.

• VAST Surround - Marine:  The Vertical Attach Surround Technique significantly increases a subwoofer's effective radiating cone area up to 25%.

• VERSA Switch:  Allows you to easily switch Dual Voice Coils into a Series or Parallel configuration.

• IPX6 Water Intrusion Rating:  Water projected in powerful jets from any direction shall have no harmful effects.

SPECIFICATIONS:
