HERTZ HMD8 DSP

HERTZ

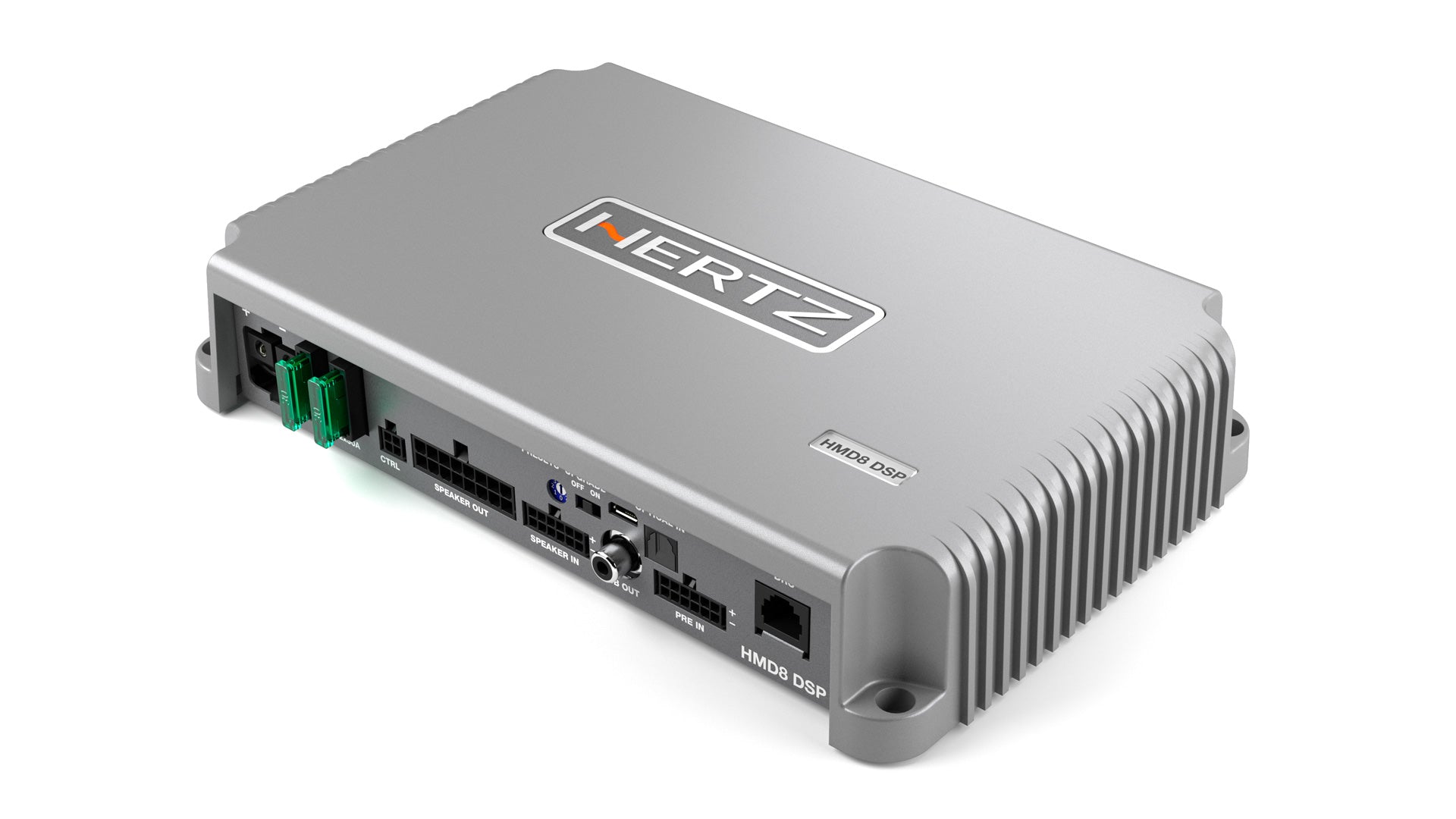

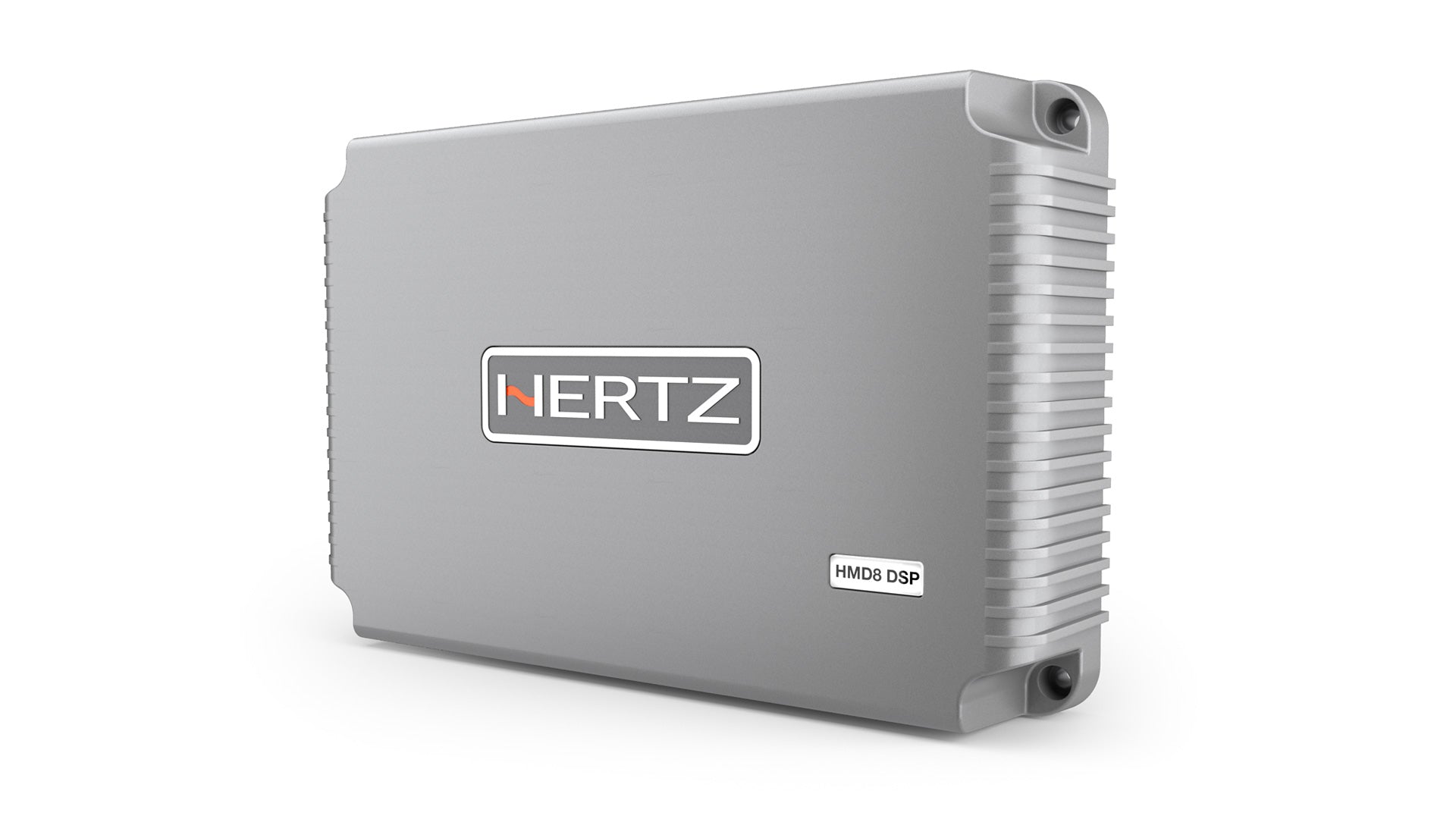

(HMD8 DSP) 1040W RMS 8-CHANNEL 2-OHM CLASS D MARINE AMPLIFIER WITH DSP

The HMD8 DSP, powered by Hertz Marine DSP technology, rich new highs of listening pleasure during navigation. DSP user friendly PC-Software interface make the setup process a breeze, exploiting every single pills of performance from the installed speaker system. The amazing power of 8 * 85 W or 4 * 260 W (RMS@ 4Ω) gives the HMD 8DSP the capability to drive with authority the complete speaker system generating tons of crystal clear SPL up to 3 different zone of the vessel. "Power for the Waves” design philosophy features a sturdy enclosure made of extruded aluminum with an anti-corrosion treated PCB to ensure years of listening pleasure in open water.

FEATURES:

• Class D 2 ohms Stable 5-Channel Amplifier
• RMS Power Rating:
• 4 ohms : 85 watts x 8 channel
• 2 ohms : 130 watts x 8 channel
• Bridged : 260 watts x 4 channel @ 4 ohms
• Total power output : 1040 watts
• Multi zone setup
• Graphic parametric EQ
• LED Power/Protect Light
• Speaker-level (high-level) inputs
• Corrosion Resistant
• 3-way protection circuitry (thermal, overload, and speaker short protection)
• Input sensitivity:
• Low level : 0.6 - 6 volts
• High level : 2.2 - 22 volts
• Frequency Response : 10 - 22 Hz
• Total Harmonic Distortion (THD) : 0.06%
• Signal to Noise Ratio : 100 dB
• Variable high-pass filter : 20 - 20,000 Hz, 24 dB/octave
• Variable low-pass filter : 20 - 20,000 Hz, 24 dB/octave
• Fuse Rating : 60
• 8 AWG gauge power and ground wiring is recommended for installation.
• Dimensions : 1.95" W x 9.37" L x 6.1" H
