HERTZ HMD1
- Description
HERTZ

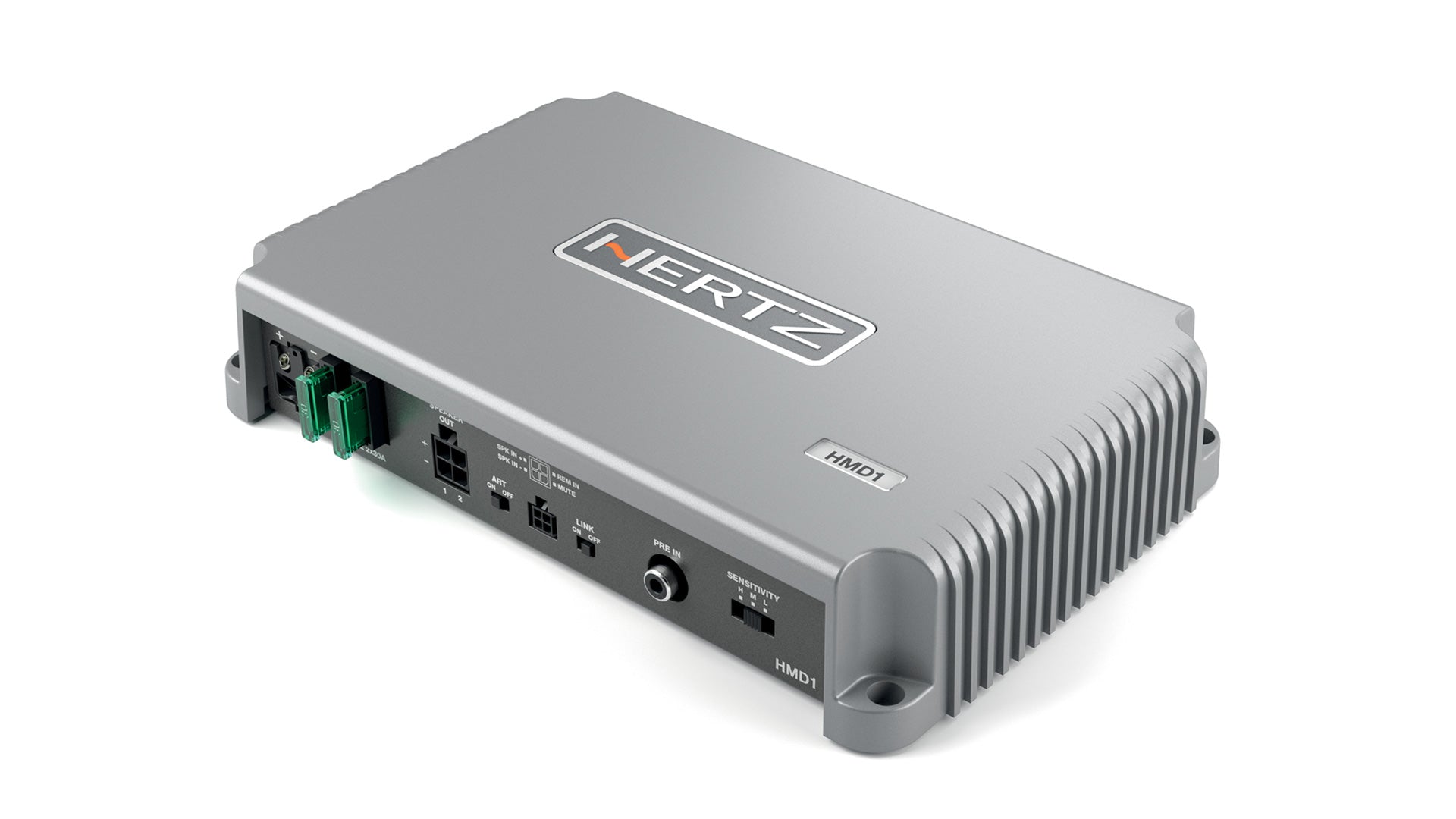

(HMD1) HIGH POWER MARINE MONO AMPLIFIER - 800 WRMS X 1 AT 2-OHM
HMD1 mono amplifier is the perfect solution to add one or more marine subwoofer to your vassel, being the ideal power extension of HMD8 DSP. At 1 Ohms it is stable and can supply up to 1000 W of power with extremely compact dimension.
GENERAL SPECIFICATIONS:
- Channels : 1
POWER SUPPLY
- Power supply voltage / fuse : 11 ÷ 15 VDC / 2 x 30A
- Operating power supply voltage : 6.5 ÷ 17 VDC
- Idling current : 1.3 A
- Idling current off : 0.05 mA
- Consumption @ 14.4 VDC, 2Ω, Max Musical Power : 50 A
- Remote IN : 6.5 ÷ 15 VDC (1 mA)
- ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable) : 2 ÷ 7 VDC
AMPLIFIER STAGE
- Distortion - THD @ 1 kHz, 4Ω, 70% Rated Power : 0.1%
- Damping factor @ 1 kHz, 4Ω, 2 VRMS : 140
- Bandwidth @ -1.5 dB : 10 Hz ÷ 500 Hz
- S/N ratio (A weighted @ 1 V Input) Master Input : 110 dBA
- Input sensitivity Pre-In : Selectable: 0.6 - 2.0 - 6.0 VRMS
- Input sensitivity Speaker-In : Selectable: 2.0 - 6.5 - 20 VRMS
- Minimum load impedance : 1Ω
- Adjustable Crossovers : Yes
OUTPUT POWER
- 1Ch @ 4Ω : 500 W
- 1Ch @ 2Ω : 800 W
- 1Ch @ 1Ω : 1000 W
- Total Power RMS : 1000 W
INPUTS / FILTERS
- Pre-In Inputs : RCA
- Speaker-In Inputs: Wired
PHYSICAL SPECS:
- Max size W x H x D (mm/inch) : 243 x 48 x 159, 9.56 x 1.8 x 6.25
- Weight (kg/lbs) : 1,98 (4.36)
