HIFONICS HEW8D4

HIFONICS

(HEW8D4) ELITE 8 INCH 4 OHM DVC 600 WATTS RMS/ 1200 WATTS SUBWOOFER

Hifonics ELITE Subwoofer with dual 4 Ohm design delivers 1200 watts and features heavy gauge, powder-coated, aluminum die-cast basket.

FEATURES & BENEFITS:

• Terminal Type :  Push & insert style terminals for easy installation.
• Configuration :  Round
• Surround / Cone Coupling :  The pressure treated double stitched foam surround along with the dual poly cotton spider helps keep the piston motion of the subwoofer linear and distortion free.
• Voice Coil / Former Assembly :  Vented aluminum former holds a 3" voice coil while allowing the heat to be exchanged. (Less heat means less distortion)
• Spider :  Specialized Hifonics dual poly cotton spider with double centering allows the woofer to handle more power with minimum distortions.

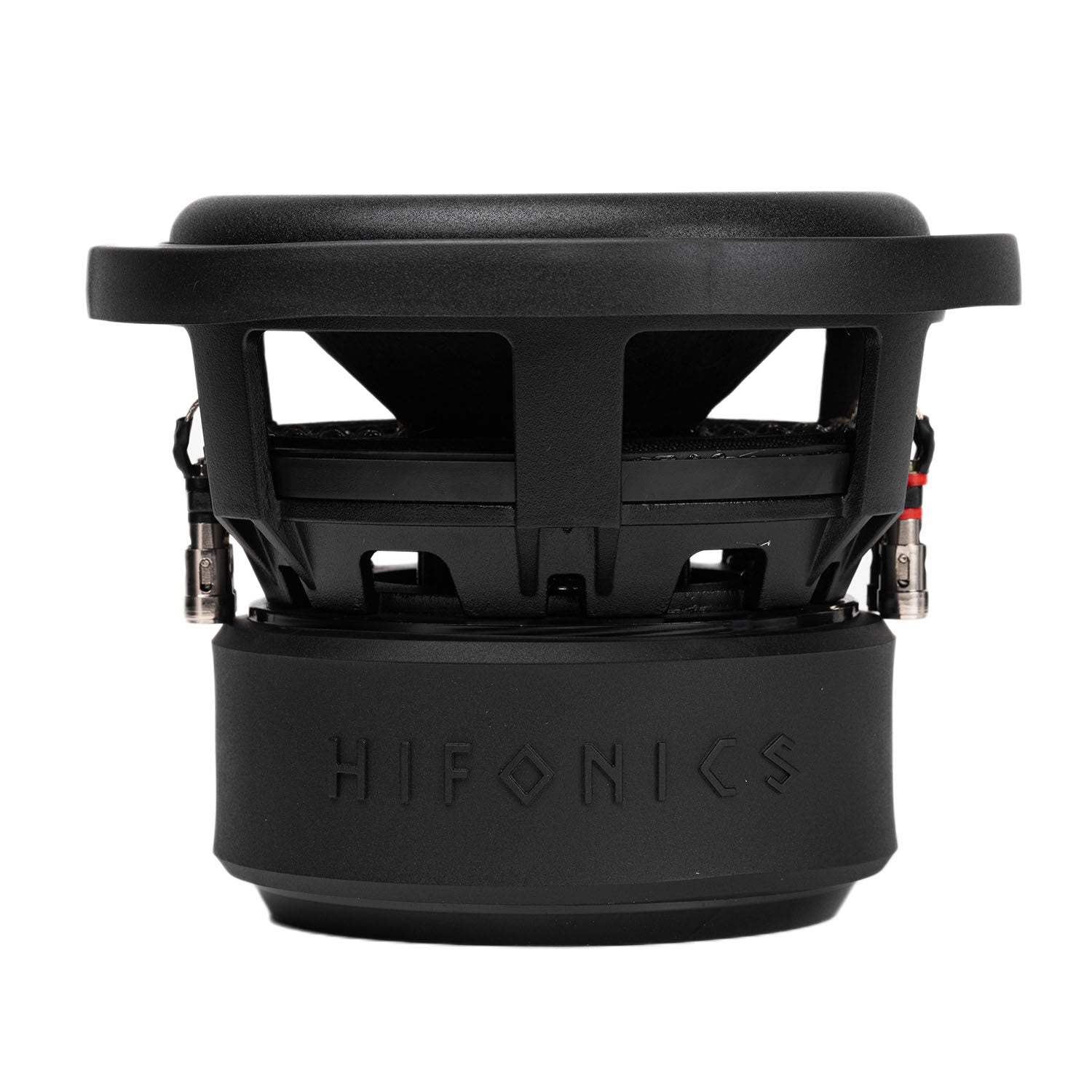

• Frame / Venting :  Hifonics heavy duty aluminum die-cast basket allows back venting, which exchanges heat with cool air, resulting in more power handling and increased reliability.

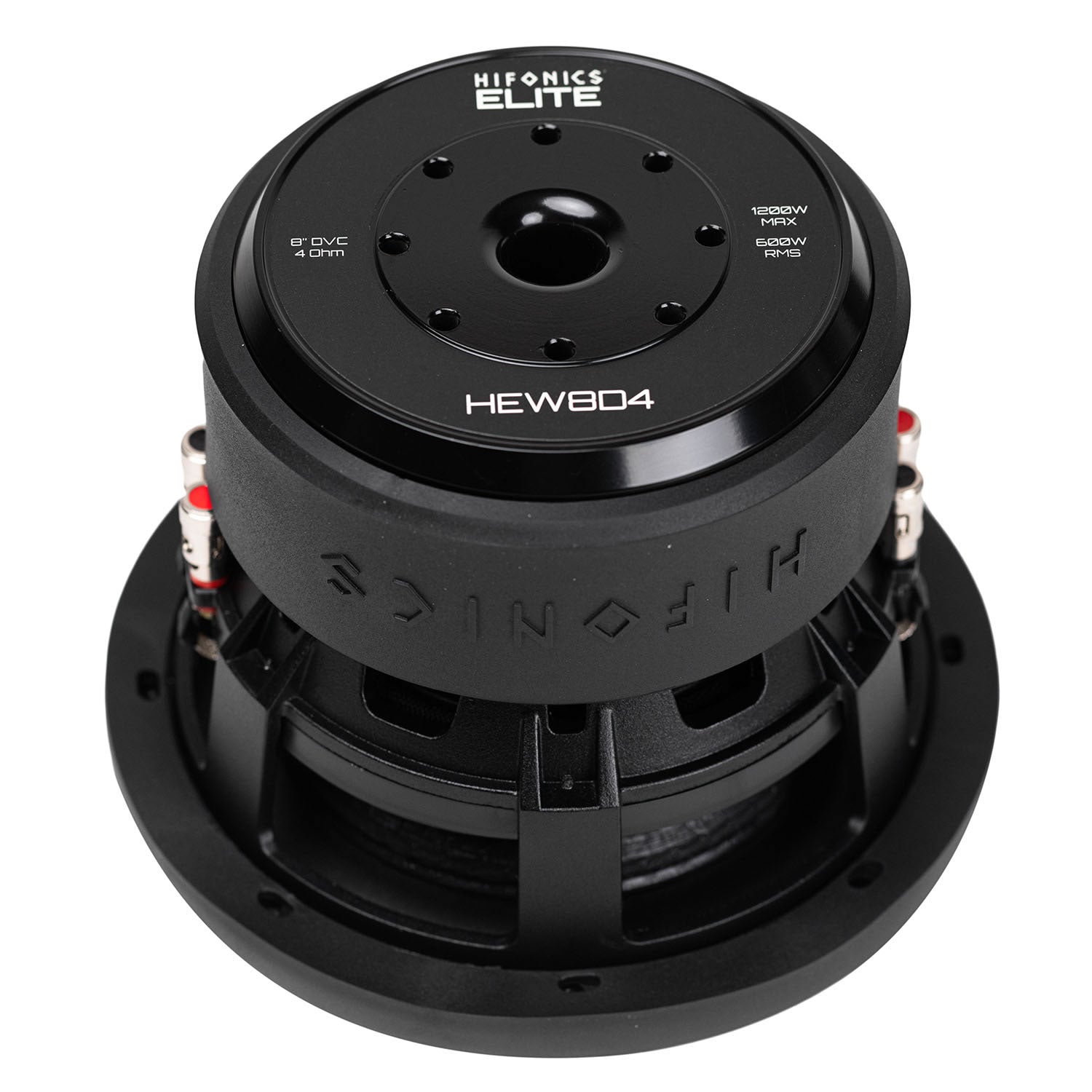

• Motor :  Vented high energy motor assembly with heavy duty magnets increases power handling and increases SPL.

SPECIFICATIONS:

• Subwoofer Voice Coils :  2
• Subwoofer Impedance (ohms) :  4
• Subwoofer RMS Power Handing (watts) :  600
• Subwoofer Peak Power Handling (watts) : 1200
• Subwoofer Cut-Out (in) :  7.4
• Subwoofer Mounting Depth (in) :  5.66
• Subwoofer Outside Diameter (in) :  8.5
• Subwoofer Sensitivity (1 watt/1 meter) :  80 dB
• Subwoofer Enclosure Recommendation :  Medium Sealed-Large Vented
• Subwoofer Size (in) :  15
• Weight :   19.70 lbs
• Dimensions :  10.50 × 10.50 × 10.50 in
