JL AUDIO HD750/1

JL AUDIO

(HD750/1) MONOBLOCK CLASS-D WIDE-RANGE AMPLIFIER. 750 WATTS @ 1.5-4 OHMS

OVERVIEW:

• Monoblock Class D Wide-Range Amplifier, 750 W x 1 @ 1.5-4 Ω
• This ultra-compact monoblock amplifier employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 750 W of clean power into any impedance between 1.5 and 4 Ω, giving you the highest degree of flexibility in designing your subwoofer system. Tight power supply regulation keeps distortion down and maximizes your bass quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.
• While targeted primarily to subwoofer applications, the HD750/1 is a wide-range amplifier and can also be used to drive high-performance mid-range speaker systems.

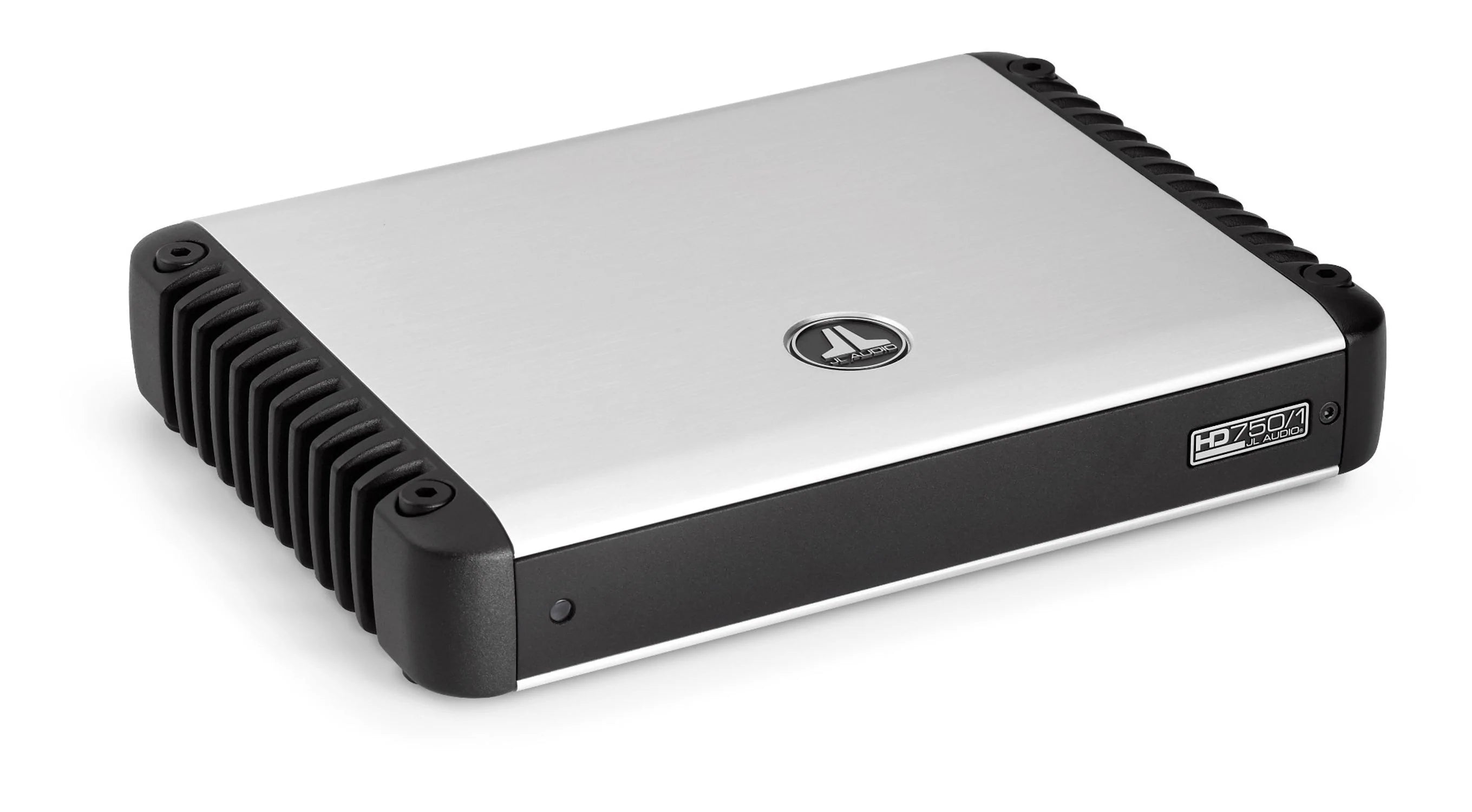

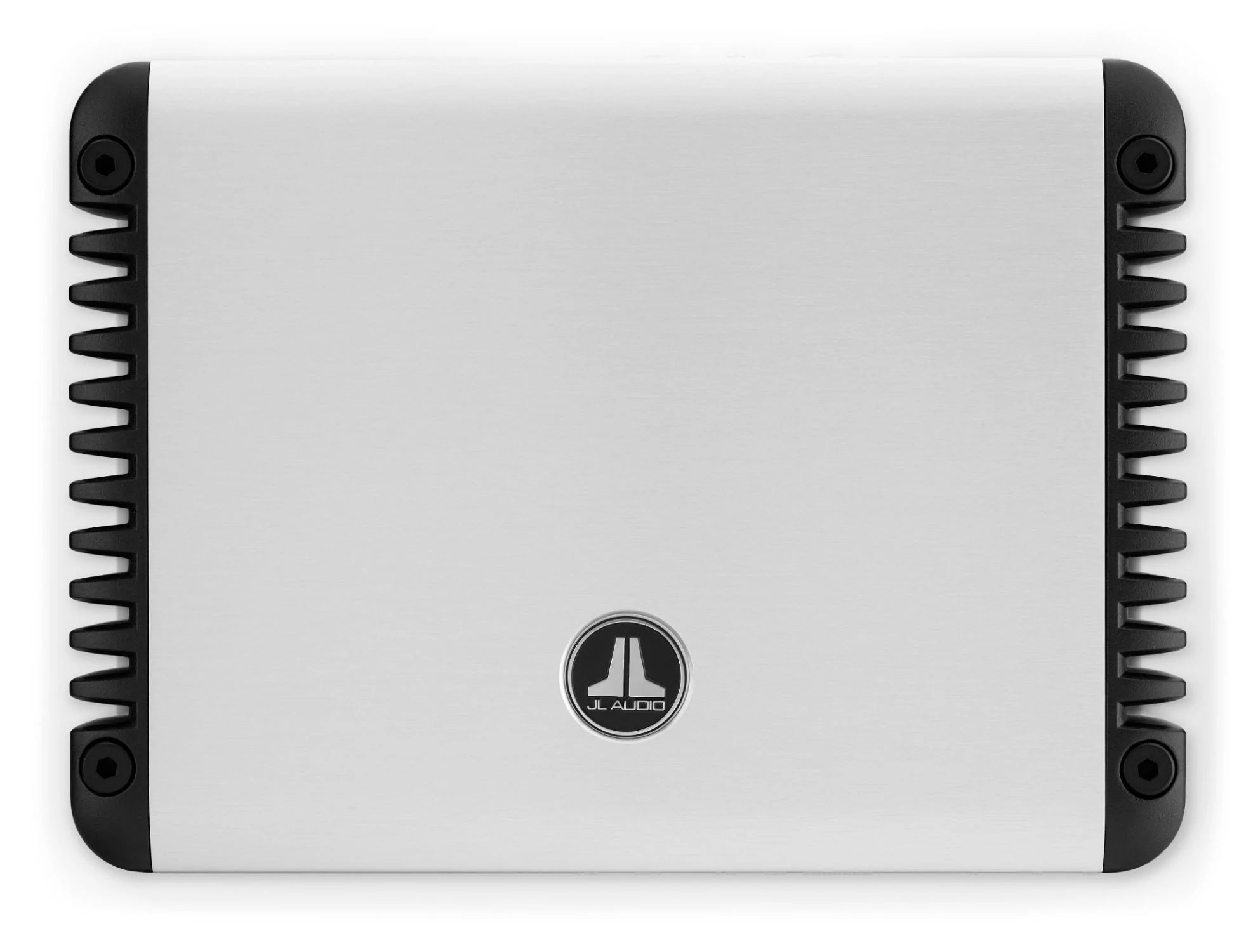

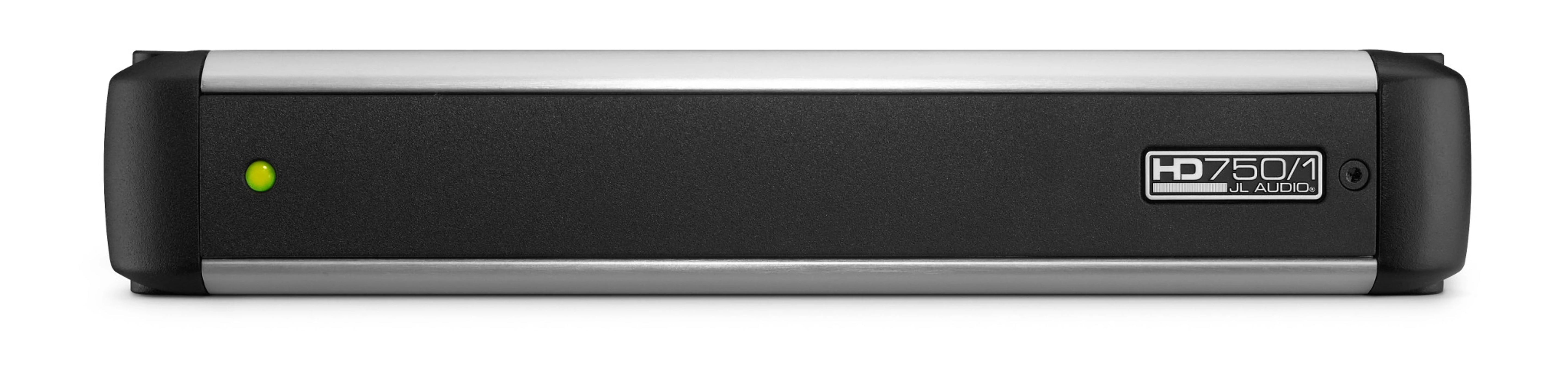

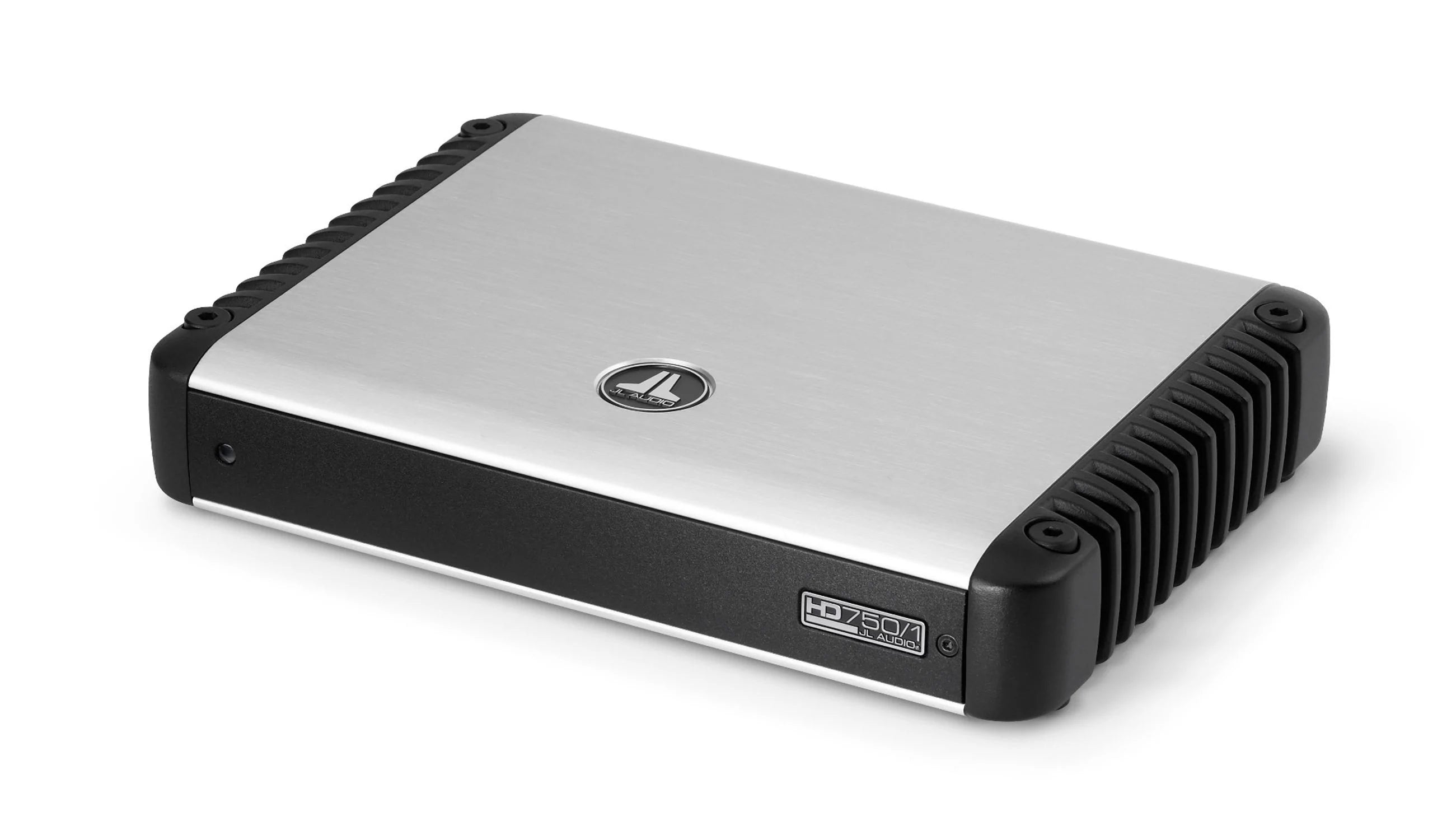

• This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.

RATED CONTINUOUS (RMS) POWER @ 14.4 V

• @ 4 Ω : 750 W RMS x 1
• @ 3 Ω : 750 W RMS x 1
• @ 2 Ω : 750 W RMS x 1
• @ 1.5 Ω : 750 W RMS x 1

RATED CONTINUOUS (RMS) POWER @ 12.5 V

• @ 4 Ω : 750 W RMS x 1
• @ 3 Ω : 750 W RMS x 1
• @ 2 Ω : 750 W RMS x 1
• @ 1.5 Ω : 750 W RMS x 1

GENERAL SPECIFICATIONS:

• Frequency Response : 6 Hz - 8 kHz (+0, -1dB)
• S/N Ratio, referred to highest rated power : >110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Main Channels) : >88 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω : >500 / 50 Hz
• Damping Factor @ 2 Ω : >250 / 50 Hz
• THD+N @ Rated Power (Main Channels) : <0.03% @ 4 Ω

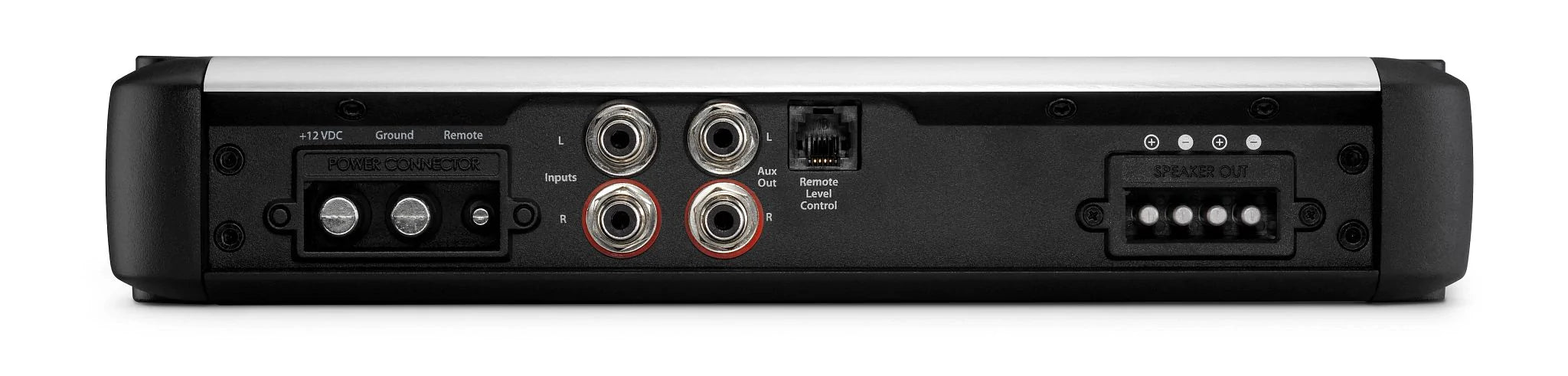

• Input Voltage Range @ RCA Inputs : Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
• Min.Copper Power / Ground Wire Gauge : 4 AWG wire
• Fuse Rating : 60 A (AFS, AGU or MaxiFuse™)

PHYSICAL SPECIFICATIONS:

• Height (H) : 1.93 in / 49 mm
• Width (W) : 10.74 in / 273 mm
• Depth (D) : 8.29 in / 211 mm
• Net Weight : 6.6 lb / 2.99 kg

In-store Purchase only

SKU # 98220
