JL AUDIO HD1200/1

JL AUDIO

(HD1200/1) MONOBLOCK CLASS-D WIDE-RANGE AMPLIFIER. 1200 WATTS @ 1.5-4 OHMS

OVERVIEW:

• Monoblock Class D Wide-Range Amplifier, 1200 W x 1 @ 1.5-4 Ω
• Our most powerful HD amplifier employs our advanced Single-Cycle Control switching design and R.I.P.S. technology to deliver 1200 W of clean power into any impedance between 1.5 and 4 Ω, giving you the highest degree of flexibility in designing your subwoofer system. Tight power supply regulation keeps distortion down and maximizes your bass quality. From a pure sound quality perspective, we invite you to compare the real-world, in-car performance of this amplifier to any other amplifier on the market, of any type, at any price.
• While targeted primarily to subwoofer applications, the HD1200/1 is a wide-range amplifier and can also be used to drive high-performance mid-range speaker systems.

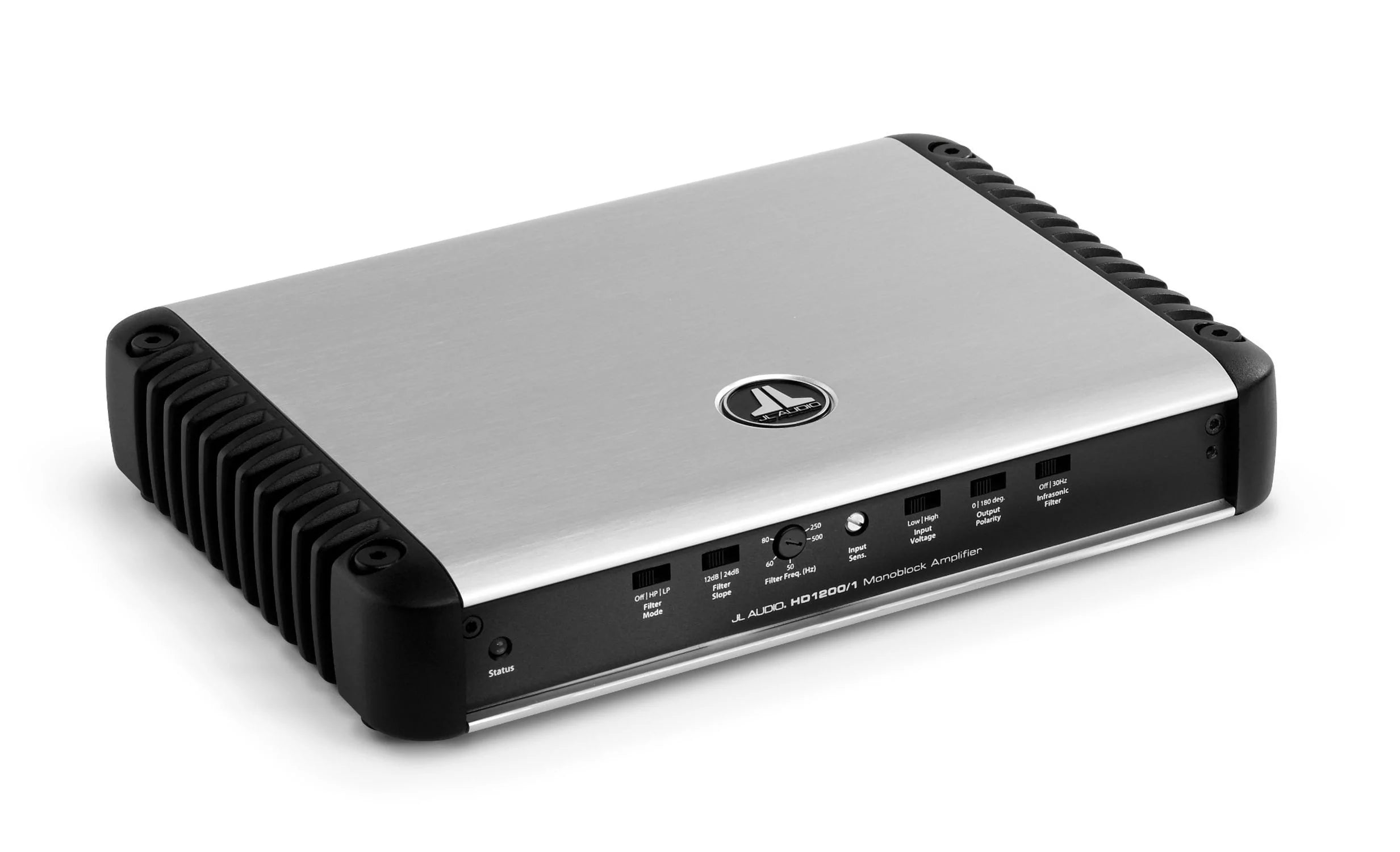

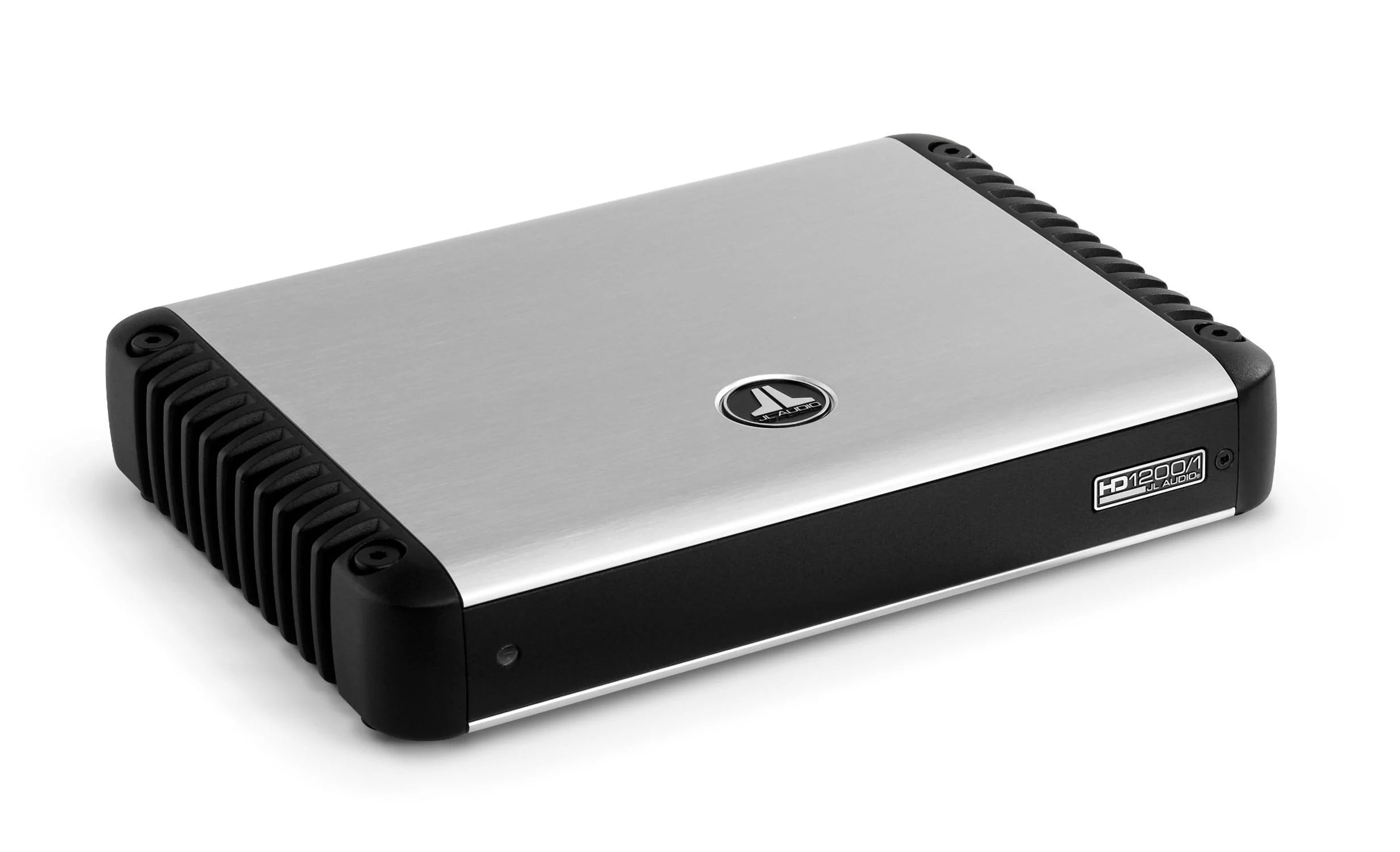

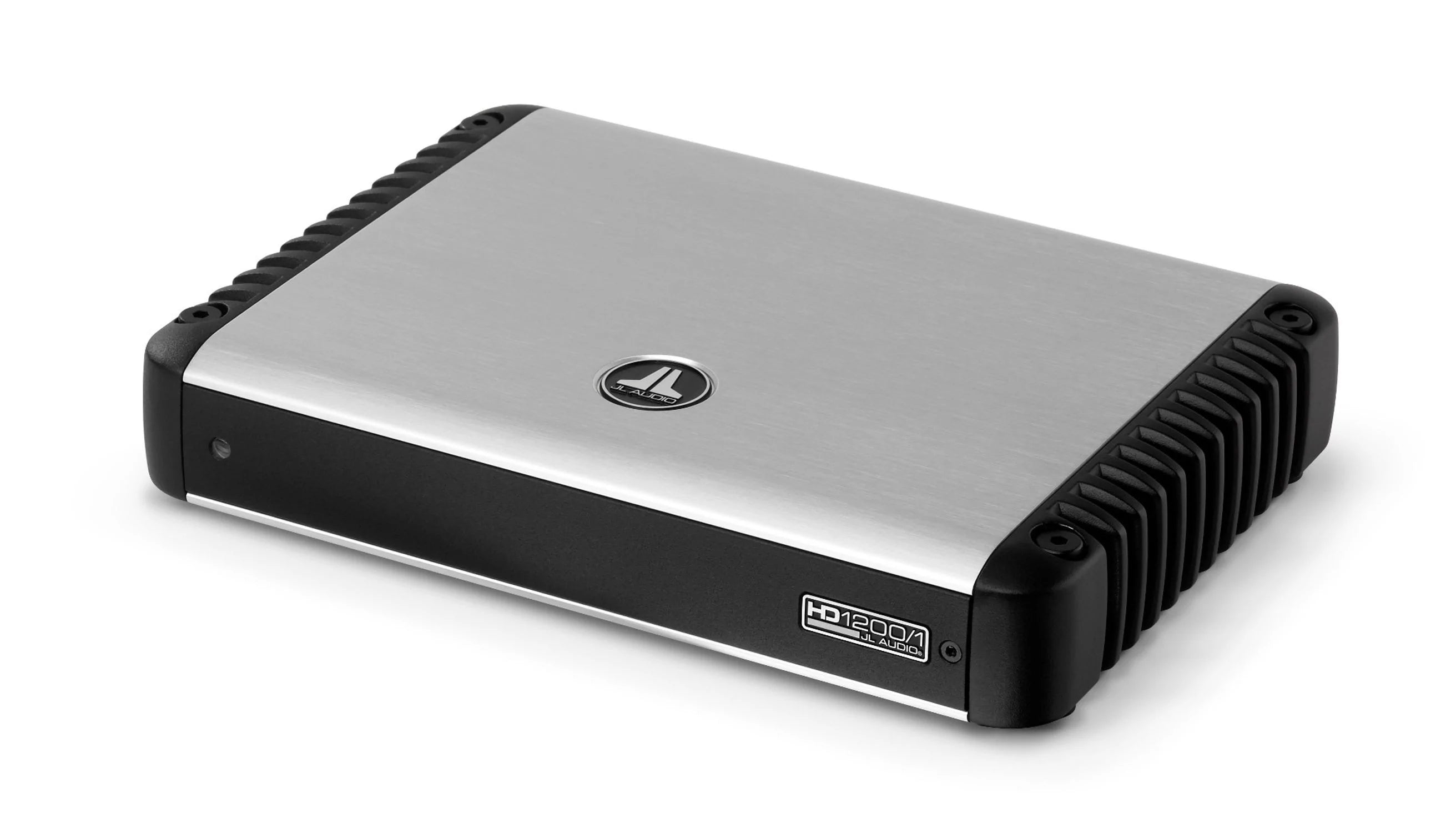

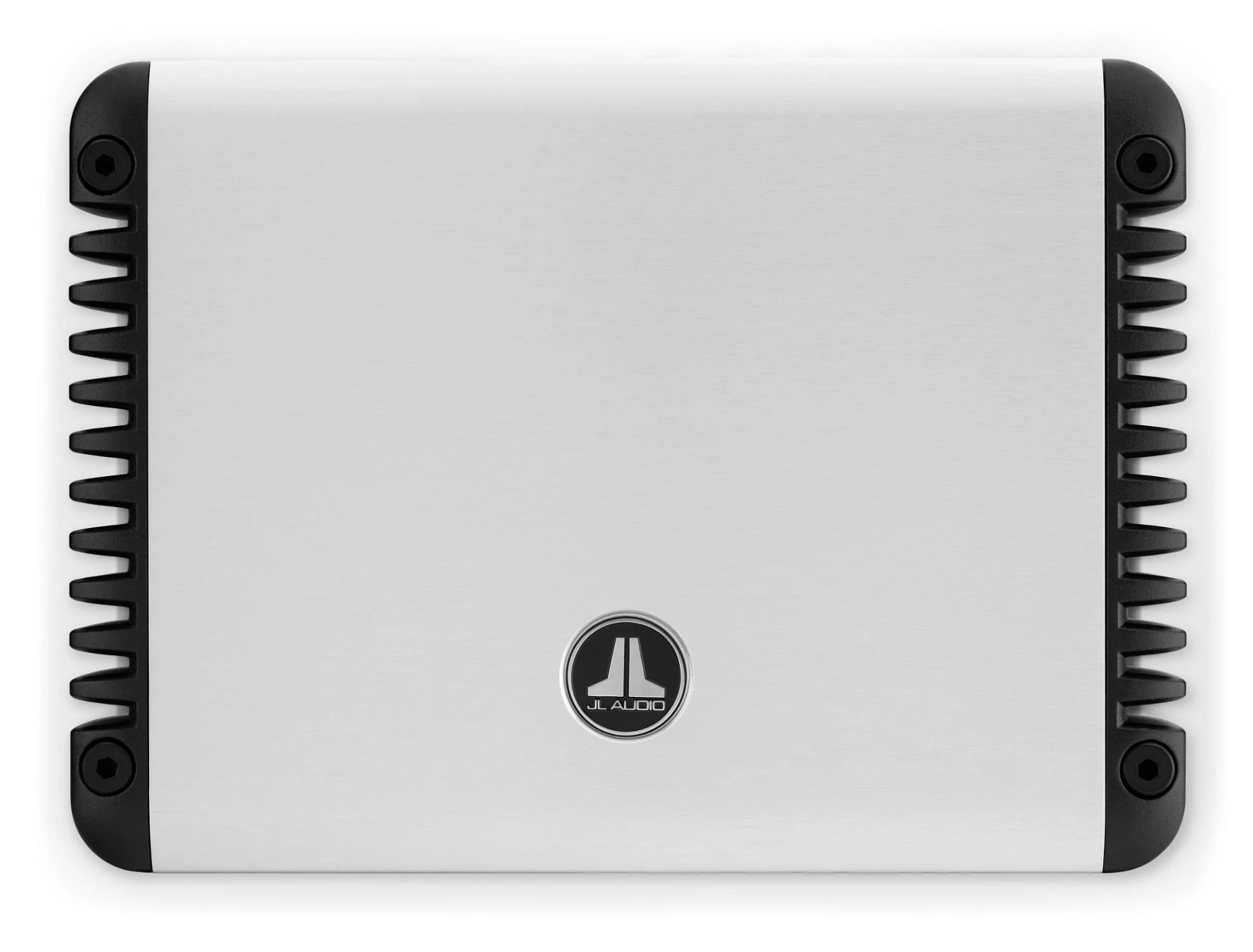

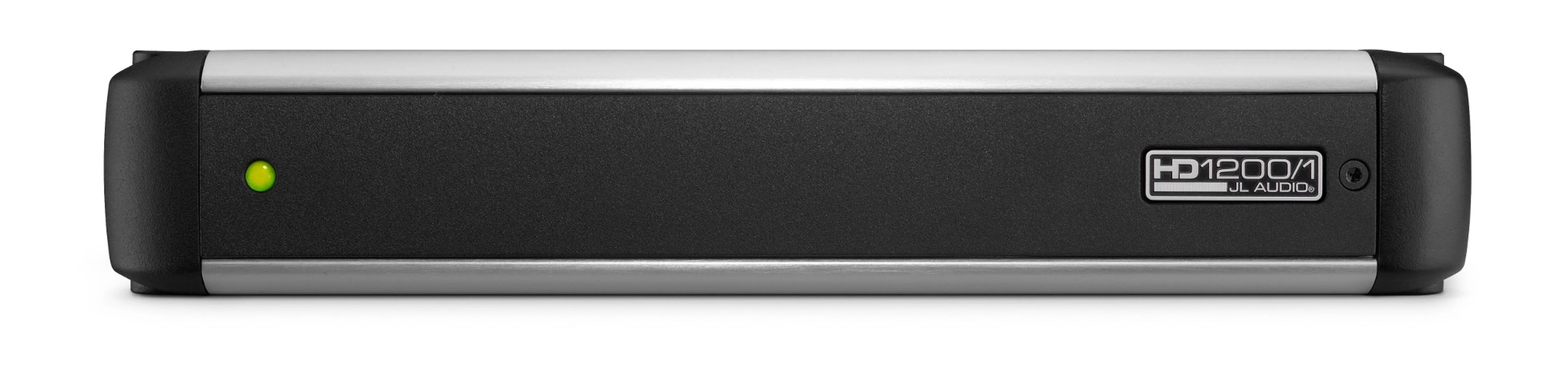

• This amplifier features a brushed aluminum finish with black powder-coated cast alloy heat sinks and bottom panel. A black powder-coated, gasketed cover is also provided to protect the controls.

RATED CONTINUOUS (RMS) POWER @ 14.4 V

• @ 4 Ω : 1200 W RMS x 1
• @ 3 Ω : 1200 W RMS x 1
• @ 2 Ω : 1200 W RMS x 1
• @ 1.5 Ω : 1200 W RMS x 1

RATED CONTINUOUS (RMS) POWER @ 12.5 V

• @ 4 Ω : 1200 W RMS x 1
• @ 3 Ω : 1200 W RMS x 1
• @ 2 Ω : 1200 W RMS x 1
• @ 1.5 Ω : 1200 W RMS x 1

GENERAL SPECIFICATIONS:

• Frequency Response : 6 Hz - 8 kHz (+0, -1dB)
• S/N Ratio, referred to highest rated power : >110 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W (Main Channels) : >79 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω : >500 / 50 Hz
• Damping Factor @ 2 Ω : >250 / 50 Hz
• THD+N @ Rated Power (Main Channels) : <0.03% @ 4 Ω
• Input Voltage Range @ RCA Inputs : Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
• Min.Copper Power / Ground Wire Gauge : 2 AWG wire
• Fuse Rating : 100 A (AFS, AGU or MaxiFuse™)

SIGNAL PROCESSING:

• Filter Mode(s) : Low-Pass or High-Pass
• Filter Slope(s) : 12/24 dB/octave
• Filter Frequency Range : 50 Hz - 500 Hz
• Detented, Calibrated Filter Freq. Potentiometer : Yes
• Filter Defeat Function : Yes
• Infrasonic Filter : 30 Hz, defeatable
• Bass Boost EQ : No
• Output Polarity Switch : Yes
• Remote Subwoofer Level Control : Optional (HD-RLC)
• Remote Bass EQ Boost Control : No
• Pass-Through Preamp Output : Buffered

PHYSICAL SPECIFICATIONS:

• Height (H) : 1.93 in / 49 mm
• Width (W) : 10.74 in / 273 mm
• Depth (D) : 8.29 in / 211 mm
• Net Weight : 6.6 lb / 2.99 kg

In-store Purchase only

SKU # 98250
