HERTZ HCP 5MD

HERTZ

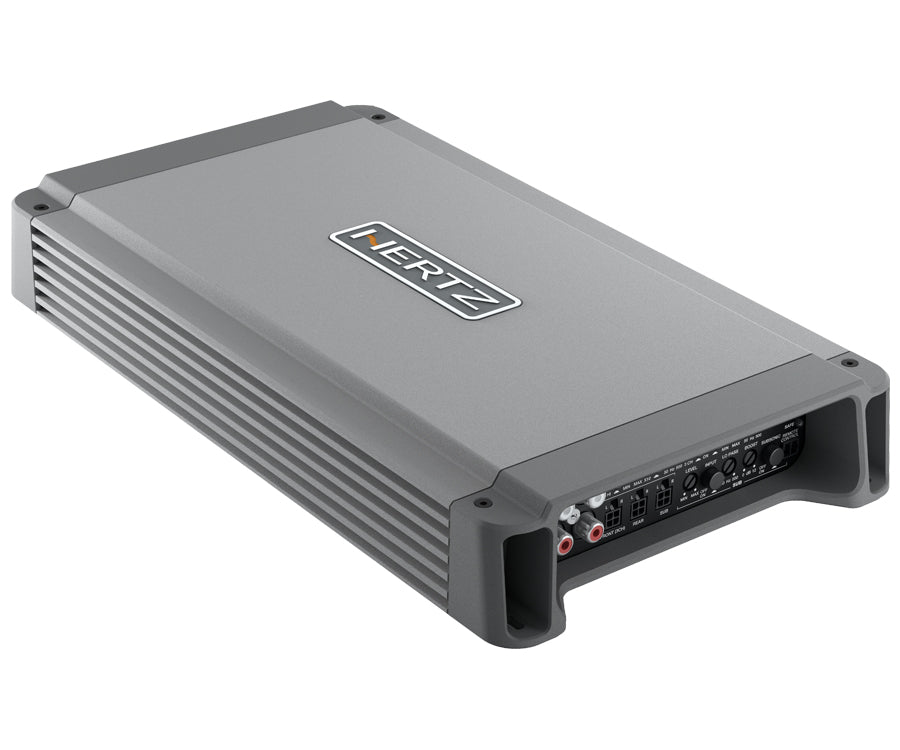

(HCP 5MD) 105WX4 + 330WX1 @ 2 OHMS, CLASS D 5-CHANNEL MARINE AMPLIFIER

HCP 5MD marine amplifier feature a compact design ready to face the open water environment, providing tons of clean power. The heat sink has been crafted from extruded aluminium, a material unmatched for lightness, robustness and heat dissipation. To keep size to a minimum, the power transistors are placed between the PCB and the top side of the heat sink where heat is gathered. Built up heat is then directed to the special dissipation “wings” along the side of the amplifier. Both Pre-In and Speaker-In inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences for noise-free results. The HCP M amplifiers crossover section ensure extreme flexibility: fully adjustable Lo-pass, Hi-pass filters with 12 dB/Oct. and 24 dB/Oct. slopes according to the amplifier model; Bass Boost is also available to enhance low frequencies. More specifically HCP 5MD is suitable for a five channels system with subwoofer, a tree channel front + sub system using the front and rear built-in filters that also include a bass boost circuit and a subsonic filter.

FEATURES:

Product Highlights:

• Engineered and tested for the real environment of application (UV, salt-fog, vibrations, high/low temperature, thermal shock, dust).
• Compact design built from extruded aluminum heatsink with the top side ensuring effective transfer of the heat.
• Power supply featuring multiple winding transformer, Low-ESR 105°C capacitors, D-Class 2 ohm stable output stage.
• Versatile front and rear filters, providing the ability to build Hi-Pass front + rear or multichannel woofer + tweeter systems, both including sub.
• 24 dB continuous adjustable (50 to 500 Hz) Lo-Pass subwoofer filter.
• SUBSONIC filter (24 dB - 25 Hz), removes very low subsonic frequencies from music signal to avoid damages to the subwoofer.
• 5 ch/3 ch operation mode (selectable), to create a five-channel system (with sub), or a powerful sub + front three-channel system.
• Bass Boost adjustable via selector, for more punch from speakers.
• Special balanced input circuitry to reject electro-magnetic disturbances.
• Hi-Level and lo-level inputs compatible with any source.
• Short-circuit and thermal protections with auto resetting.
• Optional Remote Volume Control (HRC); providing the ability to adjust subwoofer volume level from the dashboard.

Specifications:

• Channel mode: 5 - 3
• Output Power (RMS) @ 14.4 VDC:
  • 5 Ch: 65 W x 4 + 200 W x 1 (4 ohms)
  • 5 Ch: 105 W x 4 + 330 W x 1 (2 ohms)
  • 3 Ch: 210 W x 2 (4 ?) + 200 W x 1 (4 ohms)
  • 3 Ch: 210 W x 2 (4 ?) + 330 W x 1 (2 ohms)
• Filters:
  • Bypass: Front CH; Rear CH
  • Hi-Pass: FRONT/REAR Ch: 50 ÷ 5k Hz @ 12 dB/Oct.
  • Lo-Pass: SUB Ch: 50 ÷ 500 Hz @ 24 dB/Oct.
  • Band-Pass: REAR Ch: 50 ÷ 500 Hz (Hi) @ 12 dB/Oct. - 50 ÷ 5 kHz (Lo) @ 12 dB/Oct.
  • Subsonic: on/off: 25 Hz @ 24 dB/Oct.
• Distortion - THD (100Hz @ 4Ω): 0.02 %
• S/N Ratio (A weighted @ 1V): 100 dB
• Damping factor (100Hz @ 4Ω): 100
• Size W x D x H mm (in.): 345 x 190 x 50 / 13.58 x 7.48 x 1.97

SPECIFICATIONS:

• Maximum Power : 750 Watts
• Number of Channels : 5
• Built In Crossovers : Yes
• RMS Power Output : 330 Watts
• Amplifier Class : D
• XP750-SE OFFER : Yes
