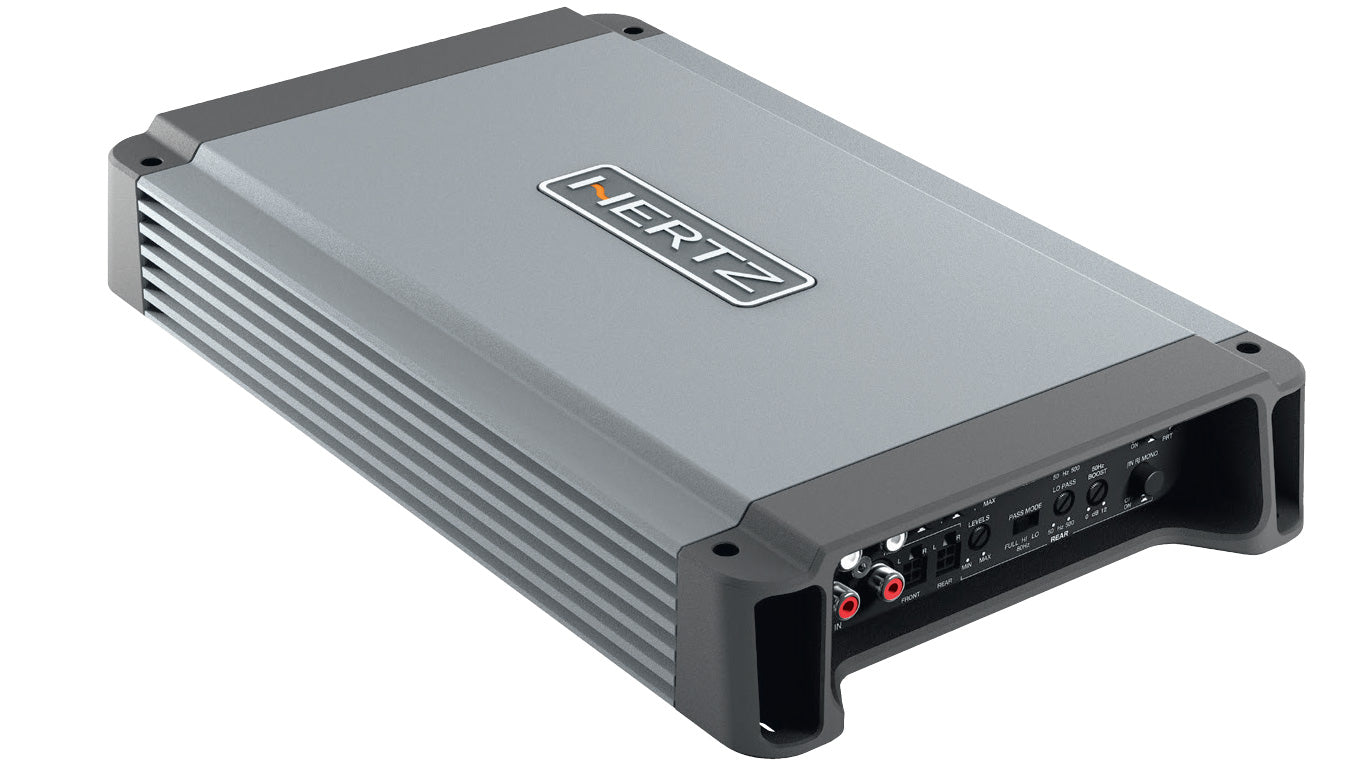

HERTZ HCP 4MDK

HERTZ

(HCP 4MDK) 4MDK 250W X 4 @2 OHMS D-CLASS 4 CHANNEL AMPLIFIER

New HCP 4MDK features latest generation D-Class 2Ω stable output stage reaching the impressive  power RMS of 150 W x 4 with the excellent S/N ratio of 105 dB. Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), providing  the ability to build a two zone stereo or a single zone stereo system with subwoofer.  The dissipation system is optimized with the heat being transferred to the heat sink and

SPECIFICATIONS:

• Maximum Power : 1000 Watts
• Low Frequency Response : 50-3200 Hz
• High Frequency Response : 50-3200 Hz
• Number of Channels : 4
• Frequency Response : 10-35000 Hz
• Built In Crossovers : Yes
• Channel Separation : Yes
• RMS Power Range : 250x4 Watts
• Amplifier Class : D
• Fuse Rating : 35x2 A

FEATURES:

• Engineered and tested for the real environment of application (UV, salt-fog, vibrations, high/low temperature, thermal shock, dust).
• Compact design built from extruded aluminium heatsink with top side ensuring effective heat transfer.
• Latest generation D-Class 2Ω stable output stage ensuring very high power with an excellent S/N ratio.
• Lo-Pass and Hi-Pass 12 dB adjustable (50 Hz to 3200 Hz) filters, providing the ability to build a two zone stereo or a single zone stereo system with subwoofer.
• Bridge operation mode to drive a subwoofer or to create a powerful dual-mono system.
• Bass Boost adjustable via selector, for more punch from speakers.
• Special balanced input circuitry to reject electro-magnetic disturbances.
• Hi-Level and lo-level inputs to be compatible with any source.
• Short-circuit and thermal protections with auto resetting.

SPECIFICATIONS:

• Channel mode : 4 - 3 - 2
• Output Power (RMS) @ 14.4 VDC:
• 4 Ch: 150 W x 4 (4 Ω)
• 4 Ch: 250 W x 4 (2 Ω)
• 3 Ch: 150 W x 2 (4 Ω) + 520 W x 1 (4 Ω)
• 3 Ch: 250 W x 2 (2 Ω) + 520 W x 1 (4 Ω)
• 2 Ch: 520 W x 2 (4 Ω)
• Filters
• Bypass : Yes
• Hi-Pass : A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.
• Lo-Pass : A/B: 50 ÷ 3.2k Hz @ 12 dB/Oct.
• Band-Pass : -
• Subsonic : No
• Distortion - THD (100Hz @ 4Ω): 0.03%
• S/N Ratio (A weighted @ 1V): 105 dB
• Damping factor : (100Hz @ 4Ω) 200
• Size W x D x H mm (in.): 315 x 190 x 50 (12.40 x 7.48 x 1.97)
