HERTZ HCP 4M

HERTZ

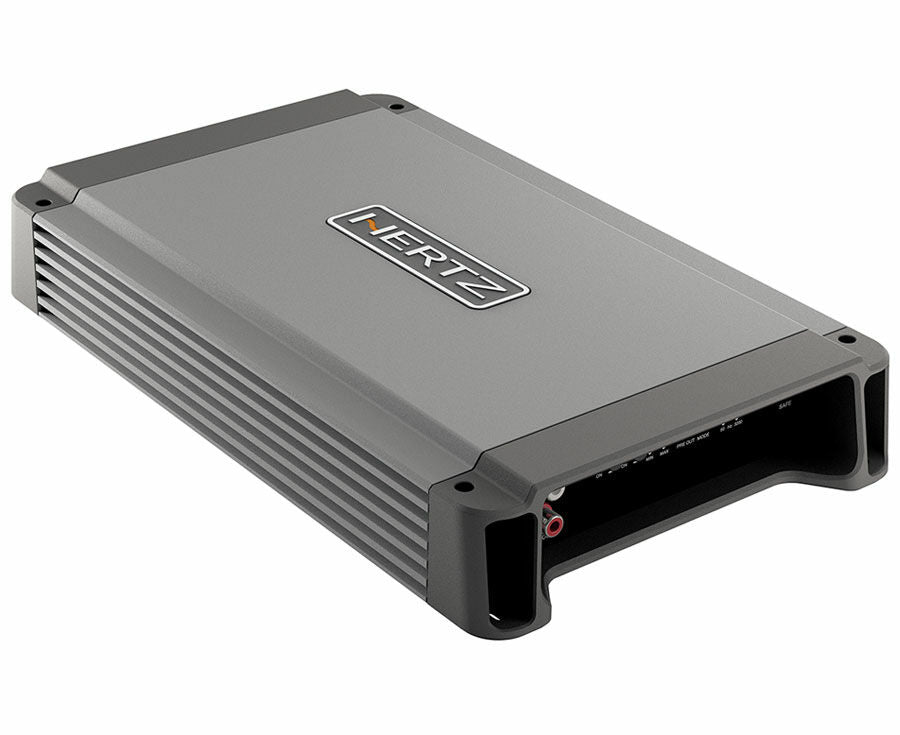

(HCP 4M) CLASS D 4 CHANNEL 2 OHMS MARINE STEREO AMPLIFIER

HCP 4M four channels marine amplifier feature a compact design ready to face the open water environment, providing tons of clean power. The HCP M heat sink has been crafted from extruded aluminium, a material unmatched for lightness, robustness and heat dissipation. To keep size to a minimum, the power transistors are placed between the PCB and the top side of the heat sink where heat is gathered. Built up heat is then directed to the special dissipation “wings” along the side of the amplifier. Both Pre-In and Speaker-In inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences for noise-free results.

GENERAL FEATURES:

• Hertz HCP 4M
• D Class 2-Ohm Stable 4-Channel Marine Amplifier
• RMS Power Rating :
• 4 ohms : 65 watts x 4 chan.
• 2 ohms : 95 watts x 4 chan.
• CEA-2006 Compliant Amplifier
• Corrosion Protection
• Salt fog tested
• Water jet tested
• Input sensitivity :
• Total Harmonic Distortion (THD) : 0.01%
• Signal to Noise Ratio : 103 dB
• Fuse Rating : 20 A x 2
• Dimensions : "12.40 x " 7.48 x "1.97
