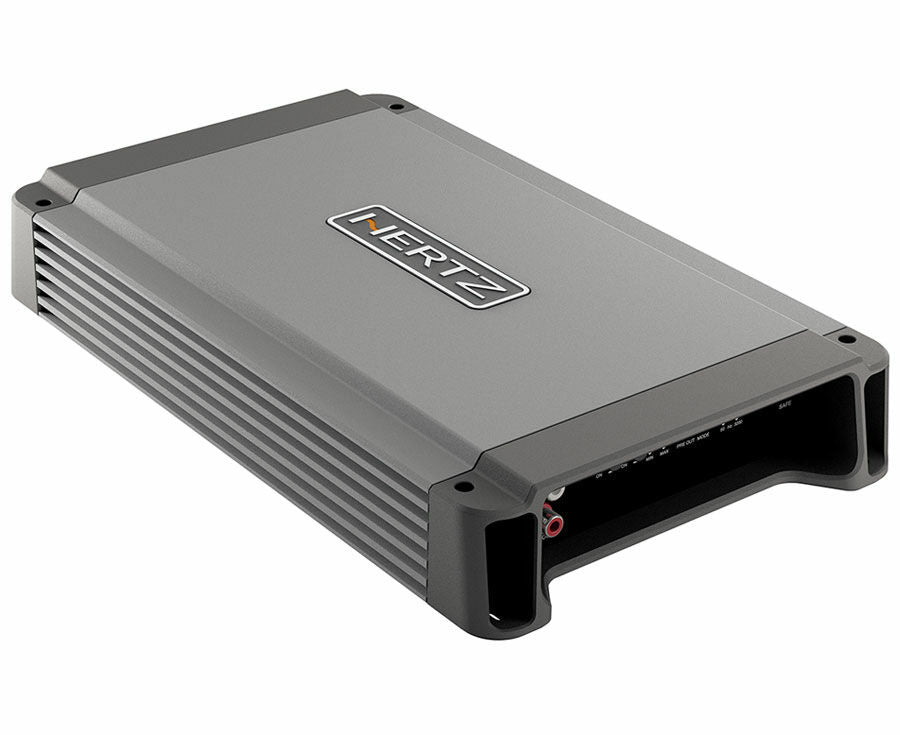

HERTZ HCP 2MX

HERTZ

(HCP 2MX) CLASS AB 2 OHMS 2 CHANNEL MARINE STEREO AMPLIFIER

HCP 2 MX marine amplifier feature a compact design ready to face the open water environment, providing tons of clean power. The HCP M heat sink has been crafted from extruded aluminium, a material unmatched for lightness, robustness and heat dissipation. To keep size to a minimum, the power transistors are placed between the PCB and the top side of the heat sink where heat is gathered. Built up heat is then directed to the special dissipation “wings” along the side of the amplifier. Both Pre-In and Speaker-In inputs feature a special balanced circuitry, ensuring high rejection against electro-magnetic interferences for noise-free results. The HCP M amplifiers crossover section ensure extreme flexibility: fully adjustable Lo-pass, Hi-pass filters with 12 dB/Oct. and 24 dB/Oct. slopes according to the amplifier model; Bass Boost is also available to enhance low frequencies. More specifically HCP 2 MX features Hi-Pass pre-amplified outputs, providing the ability to create a Band-Pass on the front woofer.

GENERAL FEATURES:

• Hertz HCP 2MX
• AB Class 2-Ohm Stable 2-Channel Marine Amplifier
• RMS Power Rating :
• 4 ohms : 120 watts x 2 chan.
• 2 ohms : 200 watts x 2 chan.
• 1 ohm : 400 watts x 1 chan.
• CEA-2006 Compliant Amplifier
• Corrosion Protection
• Salt fog tested
• Water jet tested
• Input sensitivity :
• Total Harmonic Distortion (THD) : 0.03%
• Signal to Noise Ratio : 105 dB
• Fuse Rating : 20 A x 2
• Dimensions : "12.40 x " 7.48 x "1.97
