HERTZ H8 DSP DRC

HERTZ

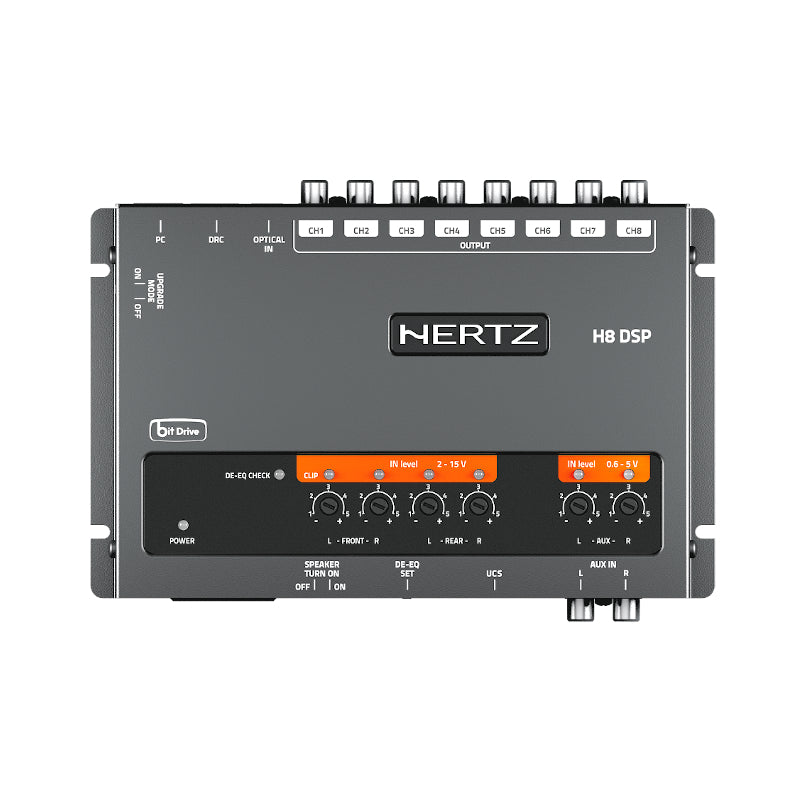

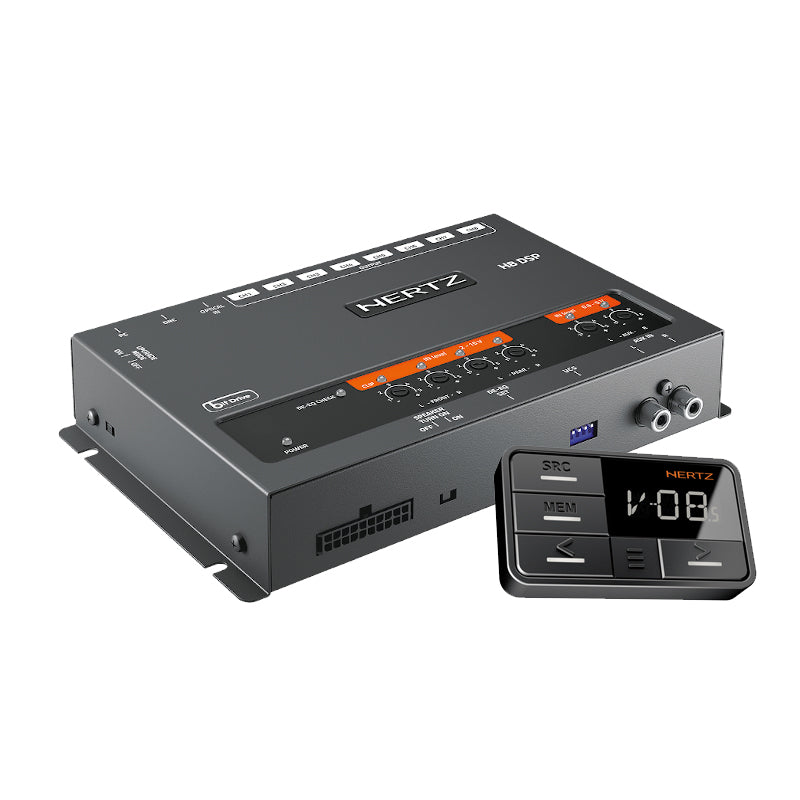

(H8 DSP DRC) CAR AUDIO PROCESSOR WITH 8 PRE OUT ANALOG OUTPUTS, 31-BAND EQUALIZER PER OUTPUT, INCLUDES DRC HE CONTROLLER

Hertz H8 DSP is capable of interfacing with any analog and/or digital source, transforming ordinary “audio” into a high-performance integrated system. The simple and intuitive computer software ensures a wide array of adjustments to improve the acoustic response of a complex environment like the car compartment. Developed according to specific ergonomics criteria required by the Car Audio industry, the PC software facilitates direct access to all the available functions for the signal treatment, providing immediate results, as well as extreme operational accuracy. Setting the parameters of each input single channel, adjusting the delays according to the listening position, tuning the crossovers and equalizers for each output channel; these are just some of the operations that can be managed by the PC software based on Windows platform (XP, Vista, 7,8, 10) to be used in Standard or Expert mode.

FEATURES:

• AUDIO DSP AND CONVERTERS : 32 bit Cirrus Logic (Clock speed: 147 MHz) Digital Signal Processing chip and A/D D/A converters working in PCM at 48 kHz with 24 bit resolution. The processor speed allows the user to hear and verify in real time the changes applied during the tuning.

• AUDIO INPUTS:
• 4 independent high-level channels with automatic summing capability.
• 1 analog low-level stereo auxiliary input.
• 1 optical digital input.

• AUDIO OUTPUTS : 8 independent analog PRE channels featuring adjustable level.

• CONTROL CONNECTIONS :
• 1 USB /B (2.0) connector for PC connection.
• Optical In / Aux Wire control +12V/GND.
• Wire control Memory A/B.
• 1 Connector for DRC HE.

• CONFIGURATION : Guided procedure which, thanks to a wide range of default settings, provides the ability to assign each component to the H8 DSP connections and automatically coordinate their functions.

• TURN-ON CONTROLS :
• ART™, Automatic Remote Turn on/off, selectable from Hi-Level Front L.
• The ART™ function can be enabled through an external switch, the Remote IN, the vehicle ignition key with memory function, the DRC HE (optional).

• IN/Out VOLUME :
• Manual input sensitivity adjustment for the Master Hi-Level inputs (with supplied Test CD).
• Manual input sensitivity adjustment for auxiliary inputs.
• Independent level control for each output channel for system fine tuning (-40 ÷ 0 dB).

• DE-EQUALIZATION : Automatic de-equalization of the high-level inputs signal (with supplied Test CD) if necessary. It can also be performed without the PC.

• EQUALIZERS : 31-band graphic equalizer (1/3 Oct.; ±12dB) for each analog and digital output channel.

• CROSSOVER FILTER
• Filter typology : Hi-pass, Lo-pass, Full Range or Band-pass with independent selectable cut-off slope.
• Cut-off frequency : 68 steps available from 20 Hz to 20 kHz.
• Cut-off slope : 6 to 24 dB/Oct.
• Filter alignment : Linkwitz or Butterworth.
• Mute function : selectable for each output (on/off).
• Phase : selectable for each output (0°/180°).

• SIGNAL CHANNELS RECONSTRUCTION
• It can reconstruct a stereo output signal from a multi-channel input signal.
• In addition it can also reconstruct rear, centre and subwoofer output channels from a stereo input.

• TIME ALIGNMENT
• Guided procedure for the speaker distance data entry with an automated calculation (distance to time) for each channel accurate time delays.
• “Fine-tuning” can also be manually applied (0.02 ms fine set).

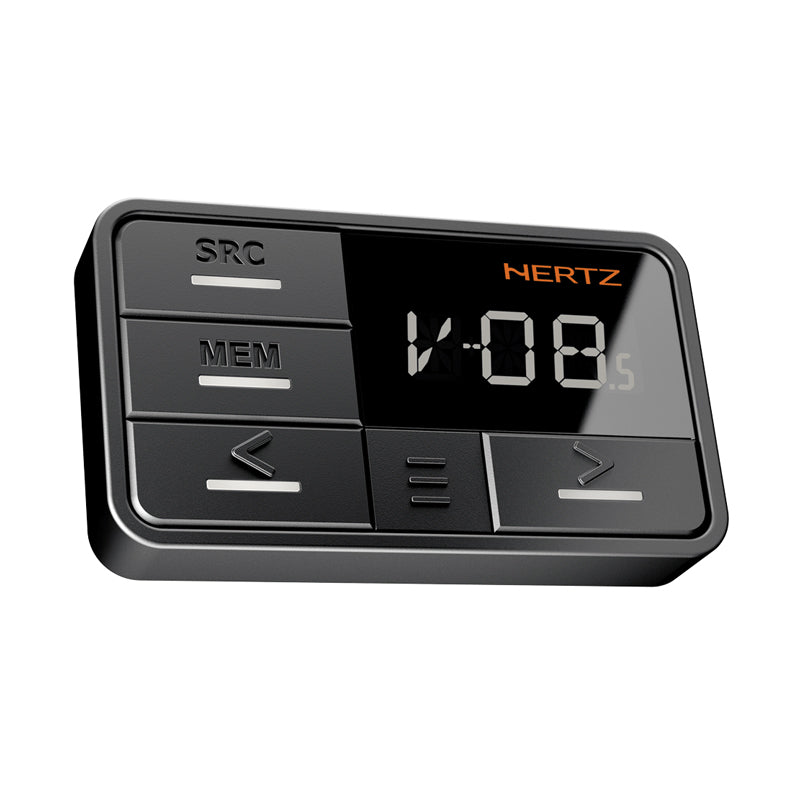

• REMOTE CONTROL : Master Volume, Subwoofer Volume, Balance and Fader controls, Input selection, Memory selection.

• MEMORY : 2 presets separately managed and recalled via DRC HE and wire control.

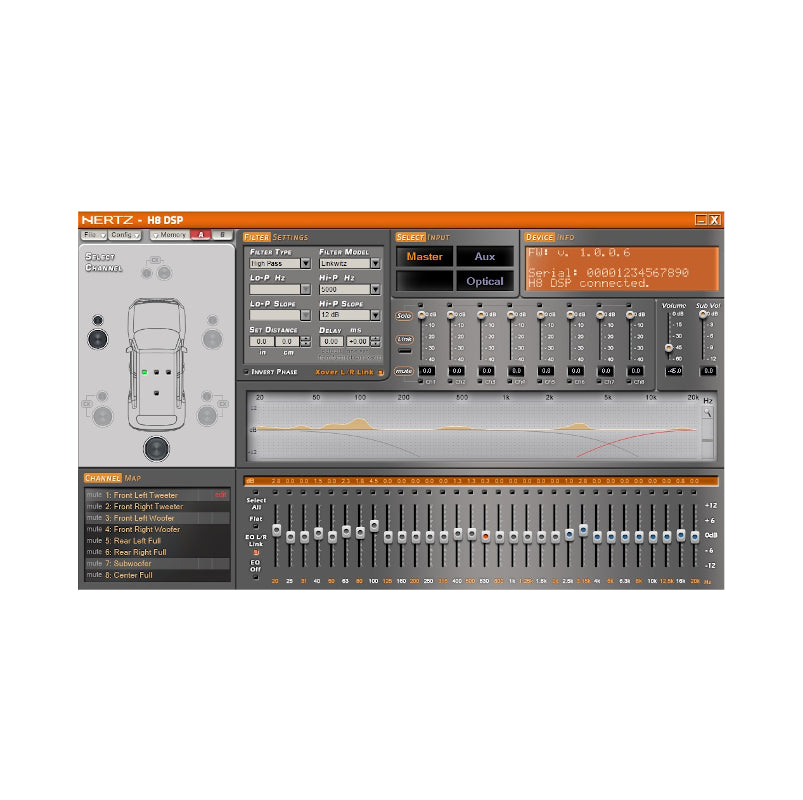

• PC SOFTWARE : Microsoft Windows (XP, Vista and 7,8,10) based software with “Standard” and “Expert” operating modes; screen resolution: 1024 x 600 px min.

SPECIFICATIONS:

POWER SUPPLY

• Operating power supply voltage : 10.8 ÷ 14.4 VDC
• Power supply : 7.5 ÷ 15 VDC
• Idling current : 0,4 A
• Switched off without DRC : 2,5 mA
• Switched off with DRC : 4 mA
• Remote IN voltage : 6,5 ÷ 15 VDC (1,3 mA)
• Remote OUT voltage : 12 VDC (130 mA)

SIGNAL STAGE

• Distortion - THD @ 1 kHz, 1V RMS Output : 0,005%
• Bandwith @ -3 dB : 10 ÷ 22k Hz
• S/N Ratio @ A weighted
  • Digital input : 105 dBA
  • Master Input : 95 dBA
  • AUX Input : 96 dBA
• Channel Separation @ 1 kHz : 85 dB
• Input sensitivity (Speaker In) : 2 ÷ 15 V RMS
• Input sensitivity (AUX In) : 0,6 ÷ 5 V RMS
• Input impedance (Speaker In) : 2,2 kΩ
• Input impedance (AUX) : 15 kΩ
• Max Output Level (RMS) @ 0.1% THD: 4 V RMS

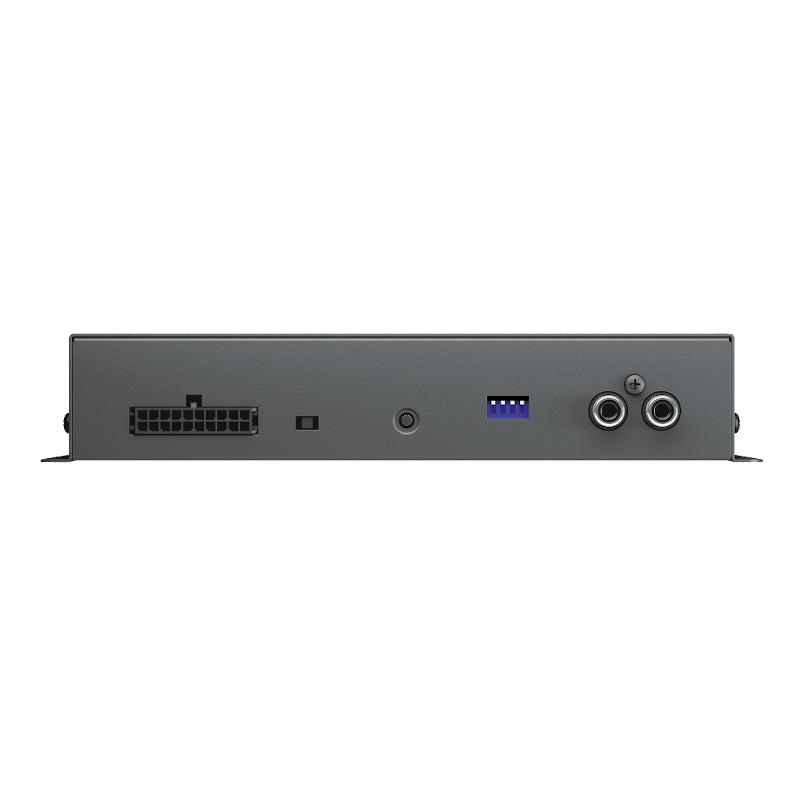

INPUT STAGE

• High Level (Speaker) : FL - FR - RL - RR
• Low Level (Pre) : AUX IN
• Digital Optical IN (S/PDIF max 96 kHz/24bit) : OPTICAL IN

OUTPUT STAGE

• Low Level Pre (default):FRONT TW L/R, FRONT WF L/R REAR L/R, SUB, CENTER

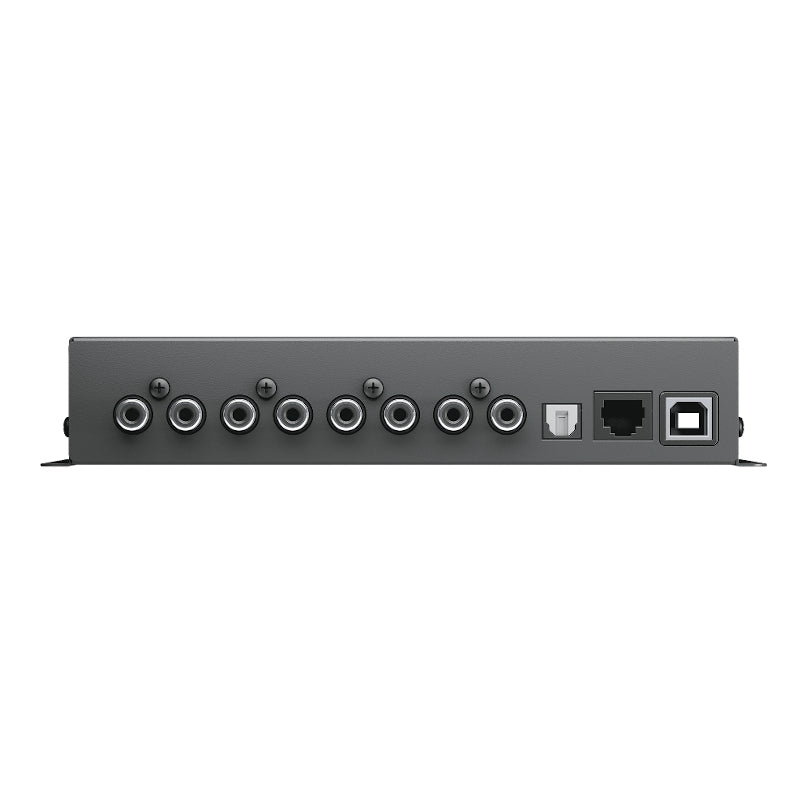

CONNECTIONS

• From / To Personal Computer : 1 x USB / B
• DRC HE : Audio controls and Memory / Inputs selection
• Optical / AUX select : Optical In / Aux wire control + 12V / GND enable
• Memory A / Memory : B Memory A / B wire control + 12V / GND enable

CROSSOVER N.8 (ONE FOR EACH OUTPUT CHANNEL)

• Filter Type : Full / High Pass / Low Pass / Band Pass
• Filter mode and slope :
  • Linkwitz @ 12 / 24 dB
  • Butterworth @ 6 / 12 / 18 / 24 dB
• Crossover frequency : 68 steps @ 20 ÷ 20k Hz
• Phase control : 0° ÷ 180°

EQUALIZER

• On Hi-Levels input (Speaker In) : Automatic De-Equalization On
• Outputs N.8 Graphic :
  • ±12 dB @ 31 Band
  • ISO 1/3 Oct. 20 ÷ 20k Hz

TIME ALIGNMENT

• Distance : 0 ÷ 510 cm / 0 ÷ 200.8 inch
• Delay : 0 ÷ 15 ms
• Step : 0.08 ms; 2,8 cm / 1.1 inch
• Fine set : 0.02 ms; 0,7 cm / 0.27 inch

GENERAL REQUIREMENTS

• PC connections : USB 1.1 / 2.0 / 3.0 Compatible
• Software/PC requirements:
  • Microsoft Windows (32/64 bit):
  • XP, Vista, Windows 7, Windows 8,
  • Windows 10
• Graphic card min. resolution : 800 x 600
• Ambient operating temperature range : 0 °C to 55 °C (32°F to 131°F)

SIZE

• W (Width) x H (Height) x D (Depth) mm/inch : 191 x 34 x 131 / 7.51” x 1.33” x 4.76”
• Weight kg/lb : 0,6 / 1.322
